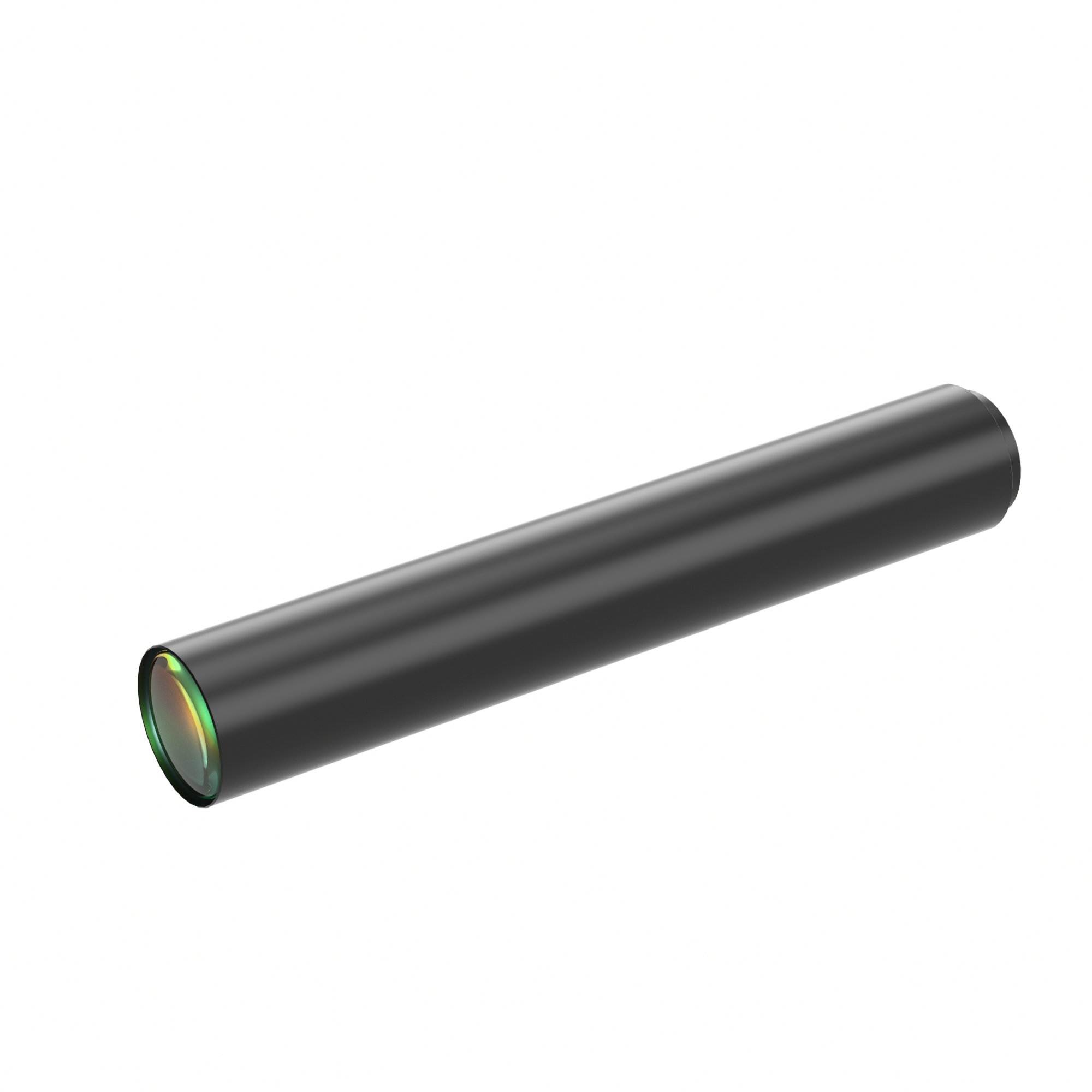

1" 0.6X Industrial Lenses | WH06-195A-110 COOLENS®

WH06-195A-110
Image Circle:16(1")mm, Magnification:0.6X, WD:195mm, NA:0.02084, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH06-195A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.6 Working Distance(mm) 195
NA 0.0208 Type Fixed Magnification
Mount C Best Aperture(f/#) 14.4
MTF30 (lp/mm) 65 Object Resolution(μm) 16.1
Depth of Field(mm) 3.2 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 176.6
With Coaxial Illumination Port No Measured Depth of Field (mm) 2.2
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 10.7x8.0
1/1.8"(7.13x5.37) 11.9x9.0
2/3"(8.8x6.6) 14.7x11.0
1"(12.43x9.83) 20.7x16.4

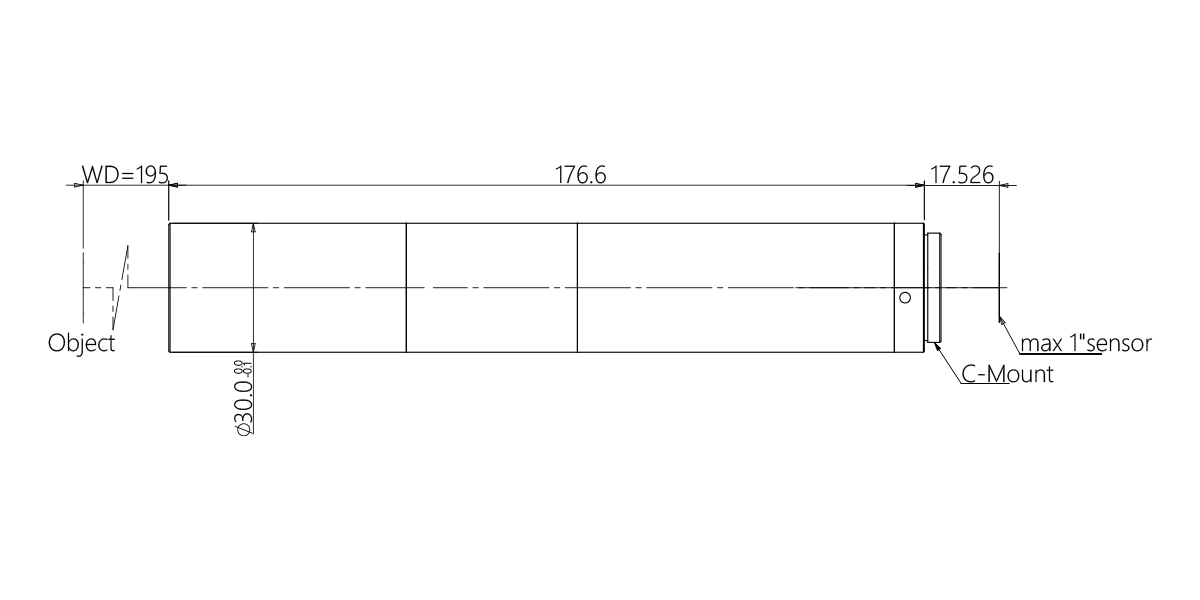

Dimensions

Naming Rule
