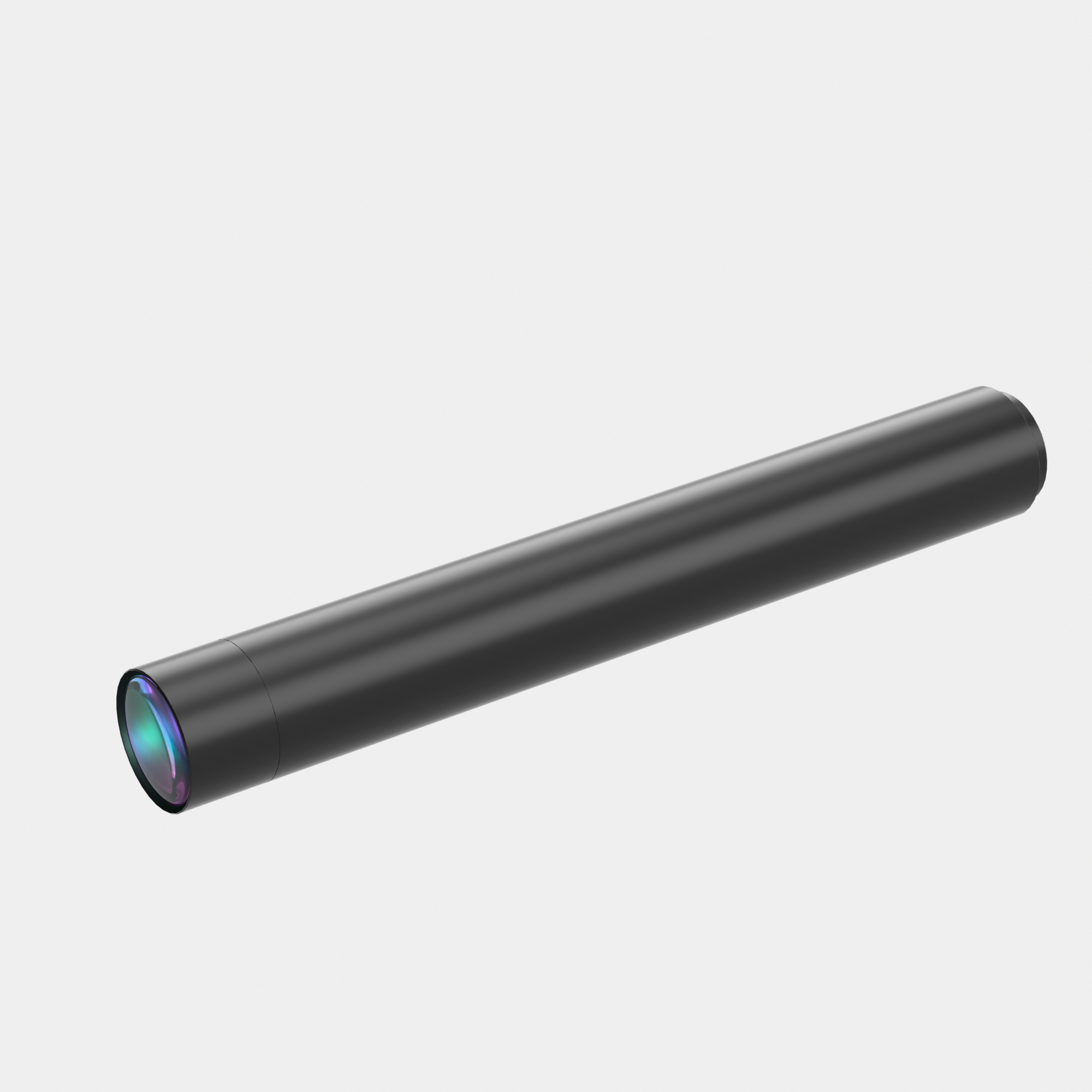

| Model NO. | WH09-120A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.9 | Working Distance(mm) | 120 | ||||
| NA | 0.0305 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.8 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 11 | ||||
| Depth of Field(mm) | 1.5 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | 0.1 | Length (mm) | 213 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.2 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4×4.8) | 7.1x5.3 | ||||||
| 1/1.8"(7.13×5.37) | 7.9x6.0 | ||||||
| 2/3"(8.8×6.6) | 9.8x7.3 | ||||||
Dimensions
Naming Rule
