| Model NO. |
WH0126-875-117 |
Image Circle Diameter (Φmm) |
9.4(1/1.7") |
| Magnification(x) |
0.126 |
Working Distance(mm) |
875 |
| NA |
0.0126 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
5 |
| MTF30 (lp/mm) |
172 |
Object Resolution(μm) |
26.7 |
| Depth of Field(mm) |
25.2 |
Distortion Typical(% max) |
0.1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
104.7 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
6 |
| Filter Screw Size |
M32x0.5 |
| Field of View (mm x mm) |
|
| 1/3"(4.8x3.6) |
38.1x28.6 |
| 1/2"(6.4x4.8) |
50.8x38.1 |
| 1/1.7"(7.44x5.62) |
59.0x44.6 |

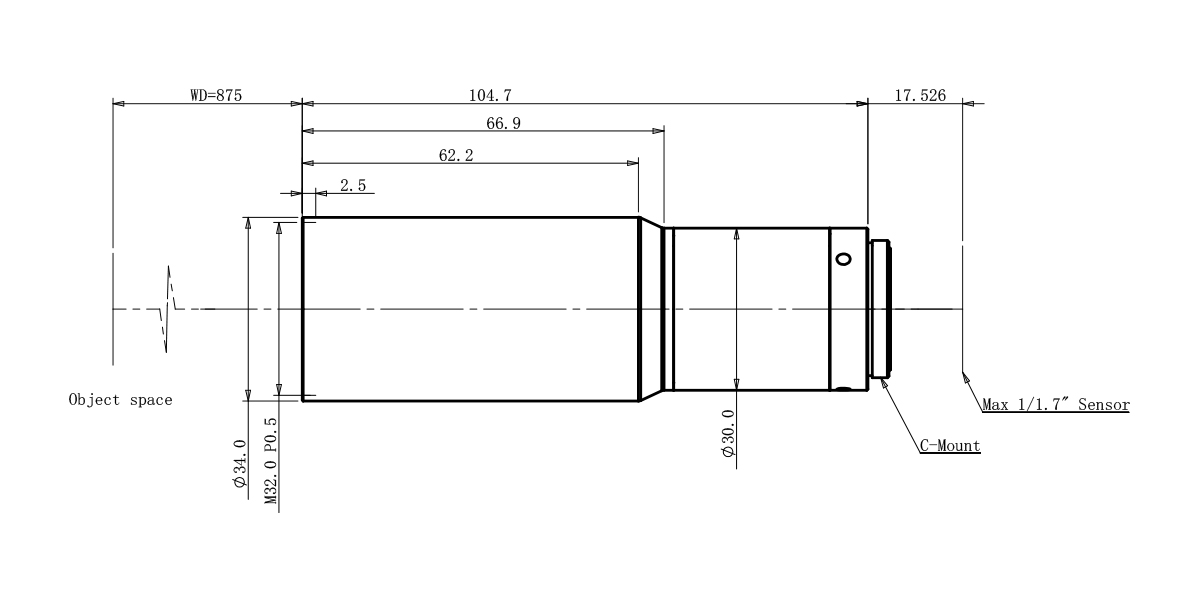

Dimensions
Naming Rule
