Model NO. | WH0142-630A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
Magnification(x) | 0.142 | Working Distance(mm) | 630 | ||||
NA | 0.0071 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 95 | Object Resolution(μm) | 47.2 | ||||
Depth of Field(mm) | 39.7 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 107.2 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 11 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 45.1x33.8 | ||||||
1/1.7"(7.44x4.62) | 52.4x32.5 |

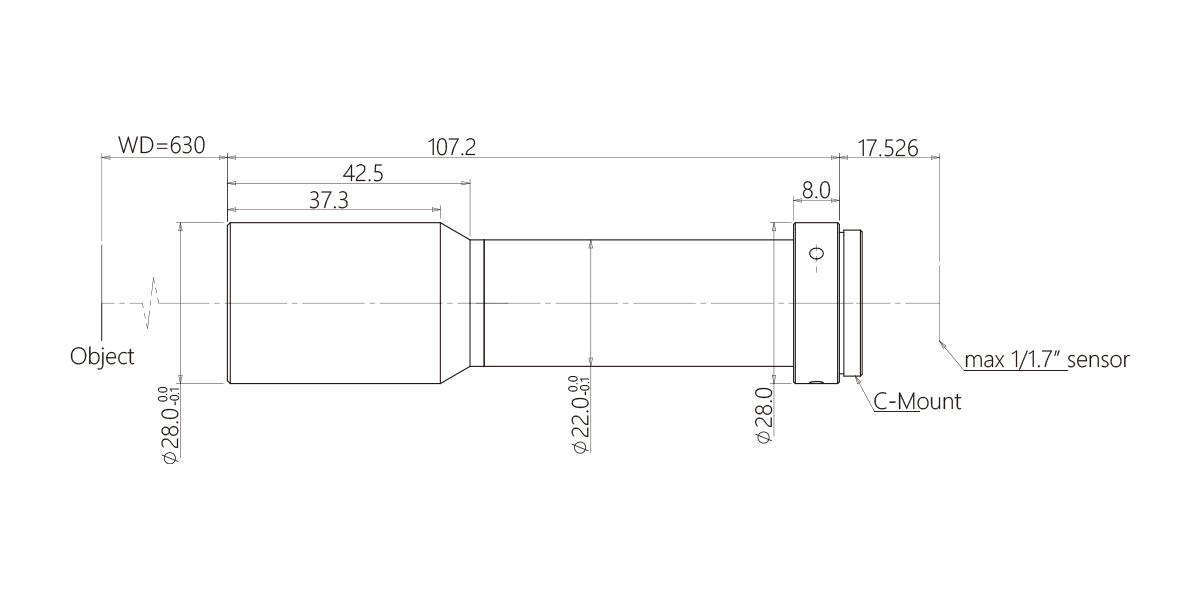

Dimensions
Naming Rule
