Model NO. | WH01-750A-117 | Image Circle Diameter (Φmm) | 1/1.7" | ||||
Magnification(x) | 0.1 | Working Distance(mm) | 750 | ||||
NA | 0.0053 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 9.5 | ||||
MTF30 (lp/mm) | 91 | Object Resolution(μm) | 63.7 | ||||
Depth of Field(mm) | 76 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 103.3 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 15 | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4×4.8) | 64.0×48.0 | ||||||
1/1.8"(7.13×5.37) | 71.3×53.7 | ||||||
2/3"(8.45×7.1) | 84.5×71.0 |

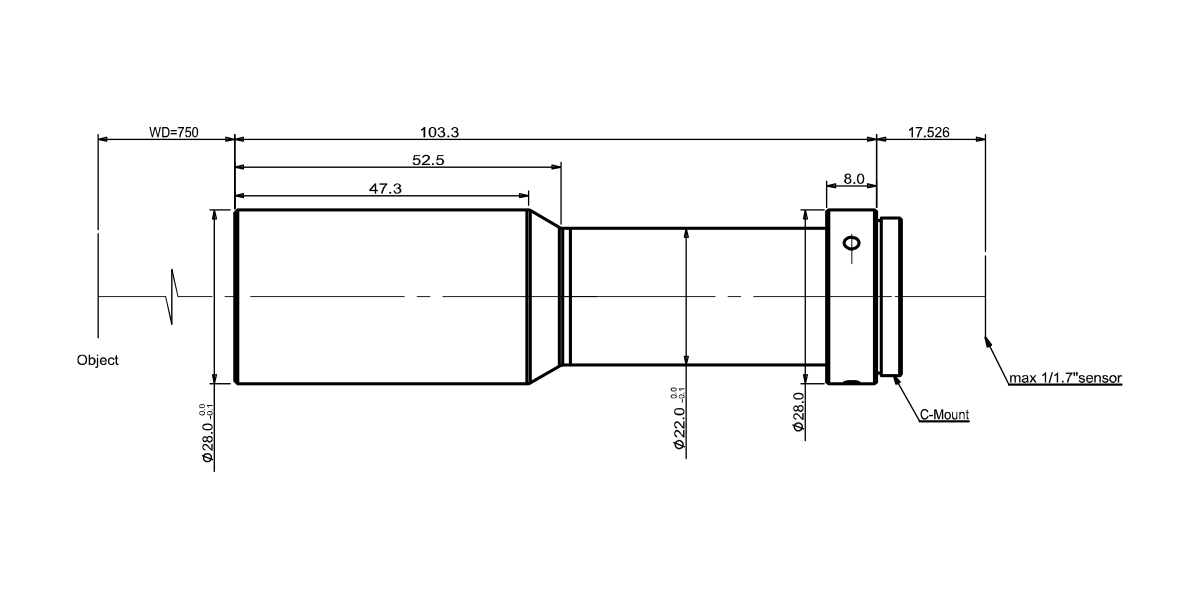

Dimensions
Naming Rule
