| Model NO. |
WH025-415A-118 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Magnification(x) |
0.25 |
Working Distance(mm) |
415 |
| NA |
0.0127 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
9.9 |
| MTF30 (lp/mm) |
90 |
Object Resolution(μm) |
26.4 |
| Depth of Field(mm) |
12.7 |
Distortion Typical(% max) |
0.1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
129.9 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
6 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
25.6x19.2 |
| 1/1.8"(7.13x5.37) |
28.5x21.5 |

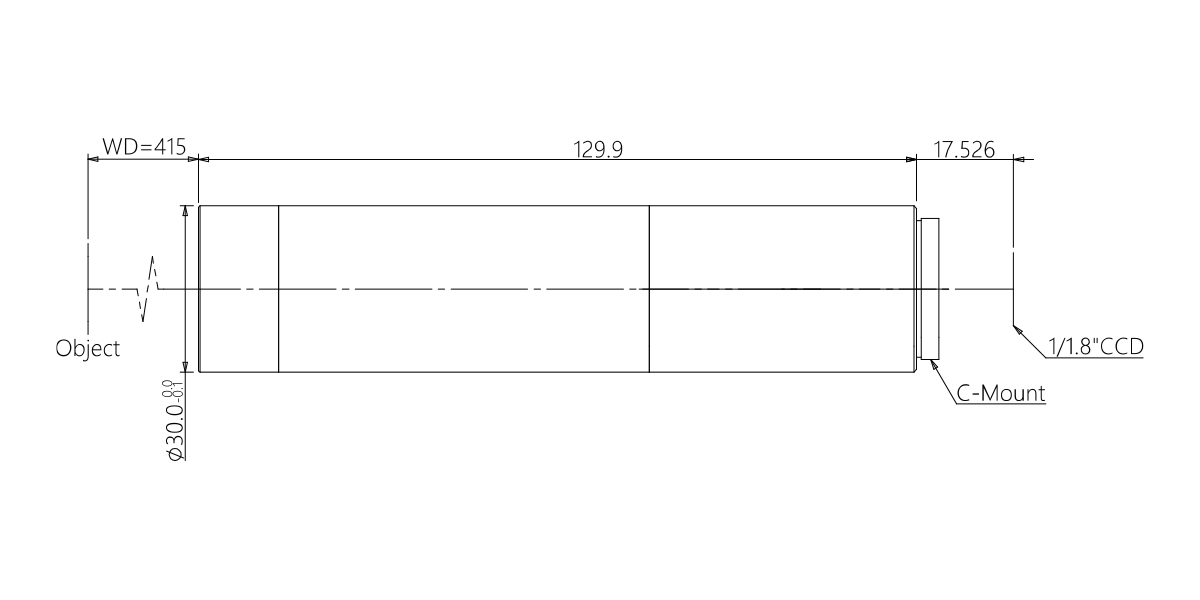

Dimensions
Naming Rule
