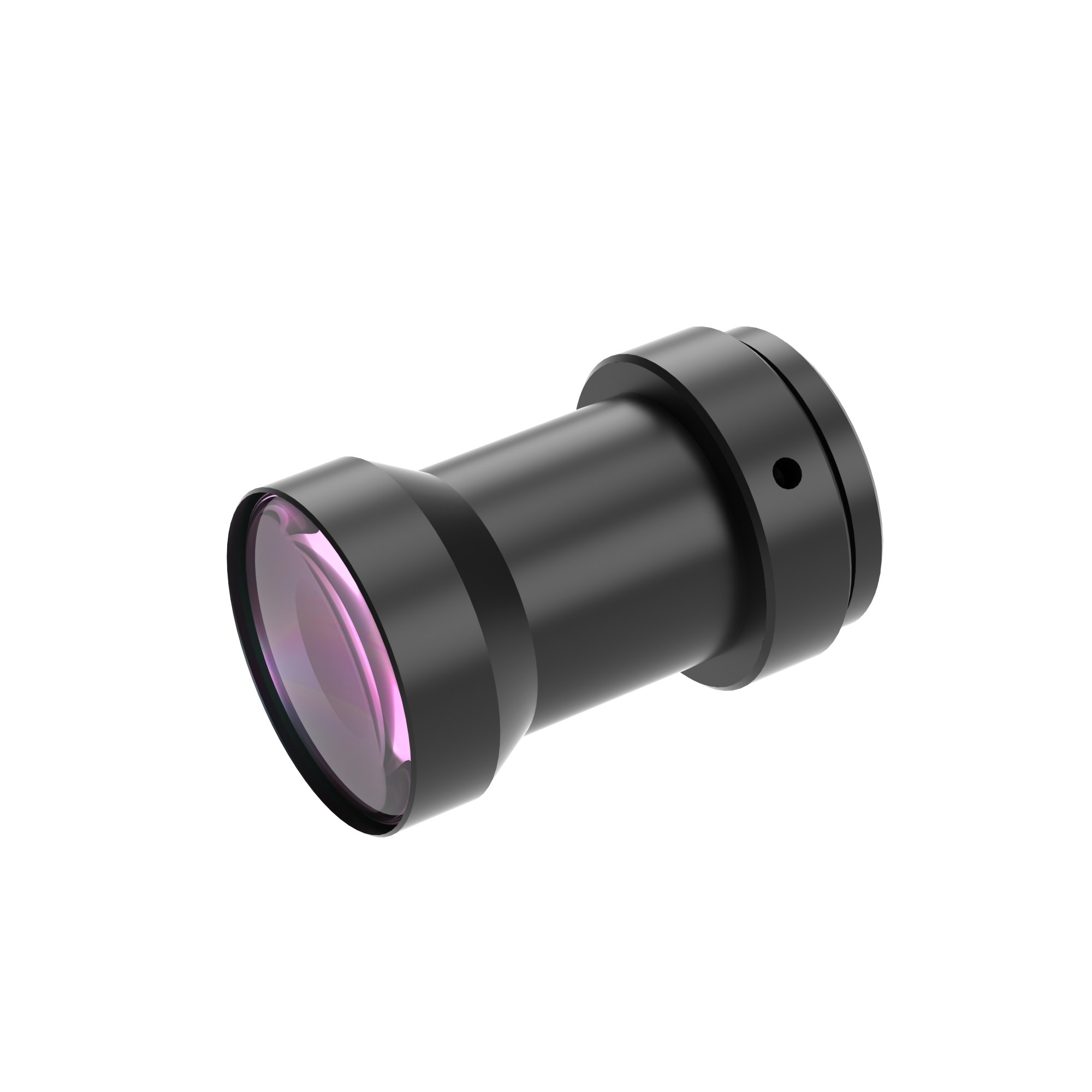

1/1.8" 0.2X Industrial Lenses | WH02-155A-118 COOLENS®-OKLAB
1/1.8" 0.2X Industrial Lenses | WH02-155A-118 COOLENS®-OKLAB
Home / 1/1.8" 0.2X Industrial Lenses | WH02-155A-118 COOLENS®

1/1.8" 0.2X Industrial Lenses | WH02-155A-118 COOLENS®

WH02-155A-118
Image Circle:9(1/1.8")mm, Magnification:0.2X, WD:155mm, NA:0.00913, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH02-155A-118 Image Circle Diameter (Φmm) 9(1/1.8")
Magnification(x) 0.2 Working Distance(mm) 155
NA 0.0091 Type Fixed Magnification
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 70 Object Resolution(μm) 36.7
Depth of Field(mm) 22 Distortion Typical(% max) 0.7
Telecentricity Typical (°max) Non-telecentric Length (mm) 39.8
With Coaxial Illumination Port No Measured Depth of Field (mm) 10
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 32.0x24.0
1/1.8"(7.13x5.37) 35.7x26.9

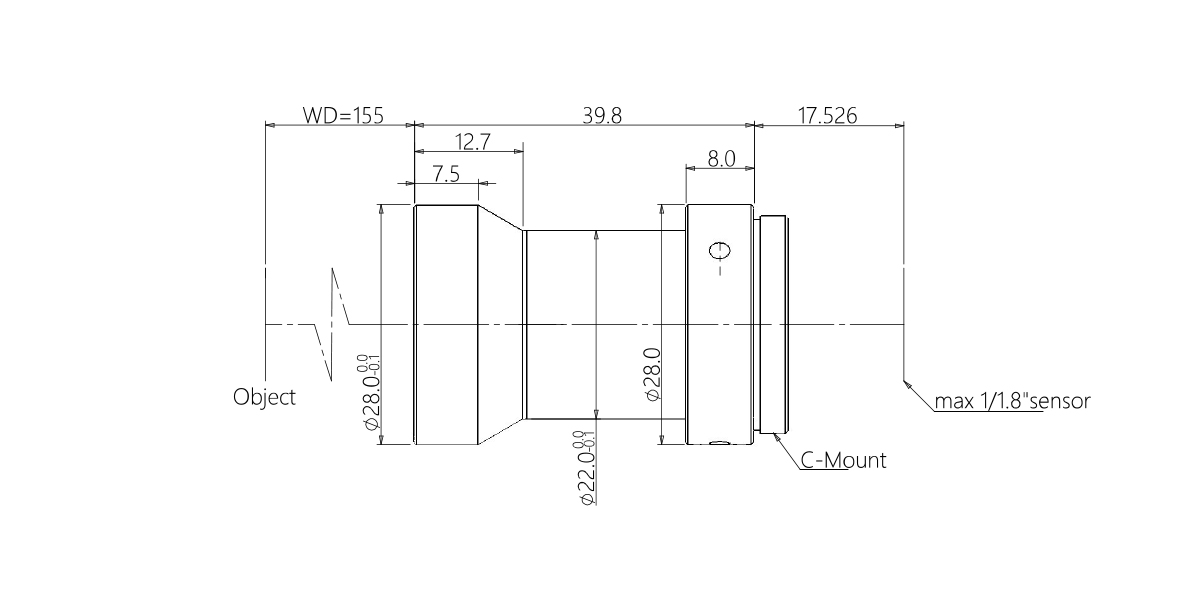

Dimensions

Naming Rule
