| Model NO. |
WWH03-110AT |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Magnification(x) |
0.3 |
Working Distance(mm) |
110 |
| NA |
0.0167 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
9 |
| MTF30 (lp/mm) |
100 |
Object Resolution(μm) |
20.1 |
| Depth of Field(mm) |
8 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
137.1 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
3 |
| Filter Screw Size |
M40x0.5 |
| Field of View (mm x mm) |
|
| 1/3"(4.8x3.6) |
16.0x12.0 |
| 1/2"(6.4x4.8) |
21.3x16.0 |
| 1/1.8"(7.13x5.37) |
23.8x17.9 |

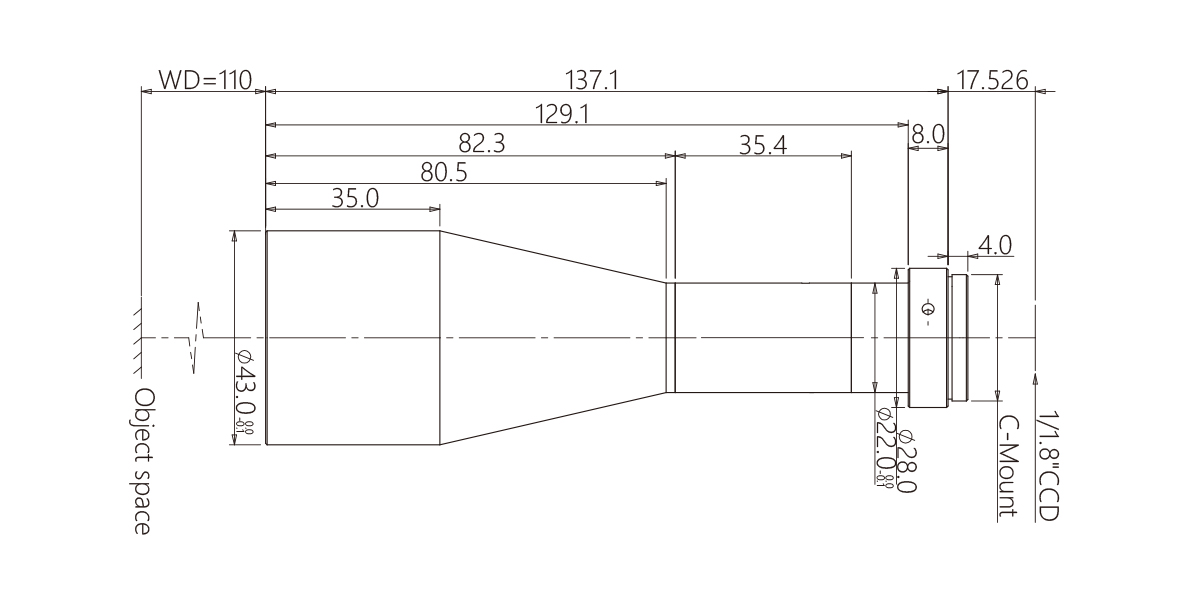

Dimensions
Naming Rule
