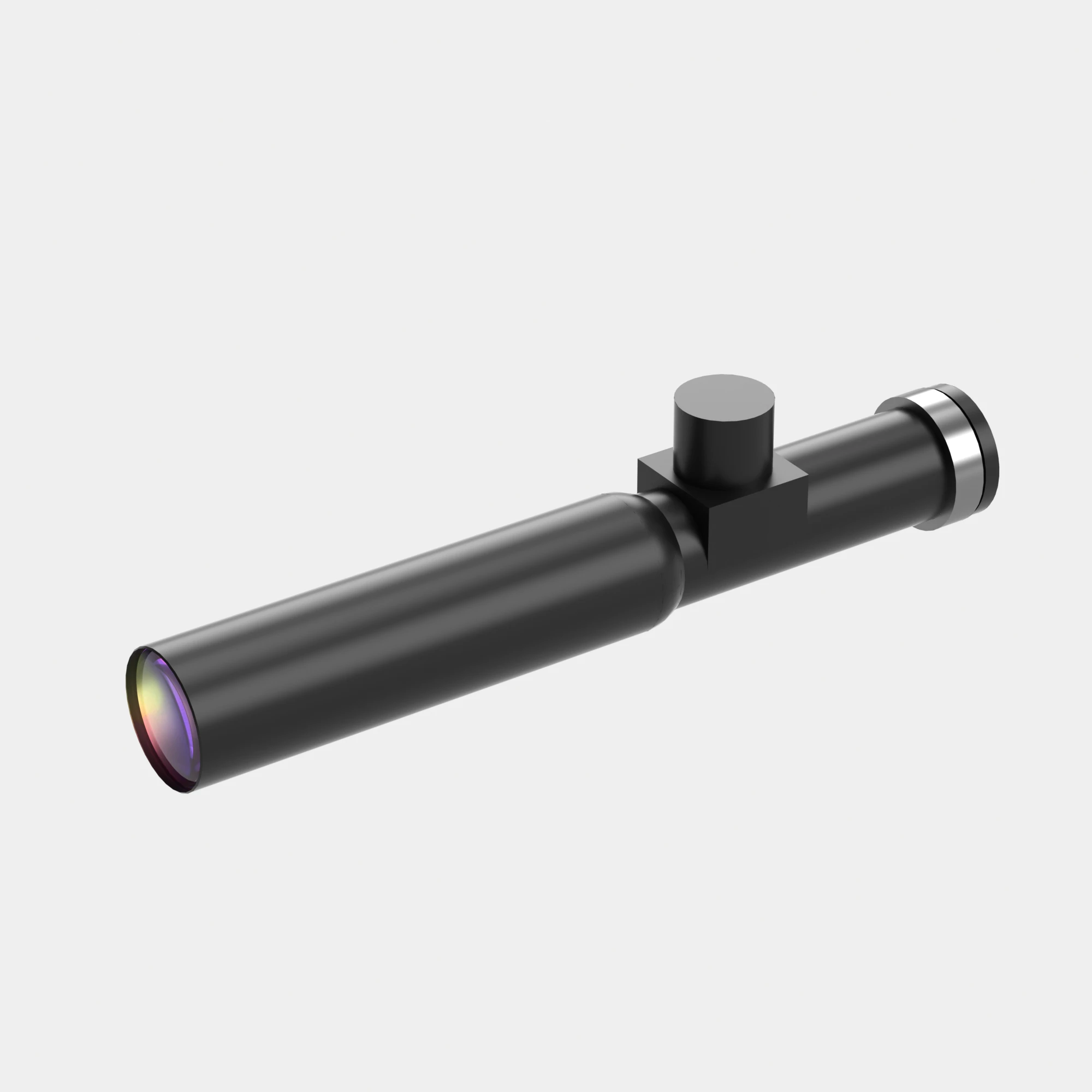

1/1.8" 0.5X Telecentric Lenses | WWH05-510CT COOLENS®

WWH05-510CT
Image Circle:9(1/1.8")mm, Magnification:0.5X, WD:510mm, NA:0.0174, Mount:C, Type:Telecentric Lenses
$449.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$449.00 USD each
Description

Model NO. WWH05-510CT Image Circle Diameter (Φmm) 9(1/1.8")
Magnification(x) 0.5 Working Distance(mm) 510
NA 0.0174 Type Telecentric
Mount C Best Aperture(f/#) 14.2
MTF30 (lp/mm) 63 Object Resolution(μm) 19.282
Depth of Field(mm) 4.544 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) 0.8 Length (mm) 166.3
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.8
Filter Screw Size /
Field of View (mm x mm)
1/3"(4.8x3.6) 9.6x7.2
1/2"(6.4x4.8) 12.8x9.6
1/1.8"(7.13x5.37)  14.3x10.7

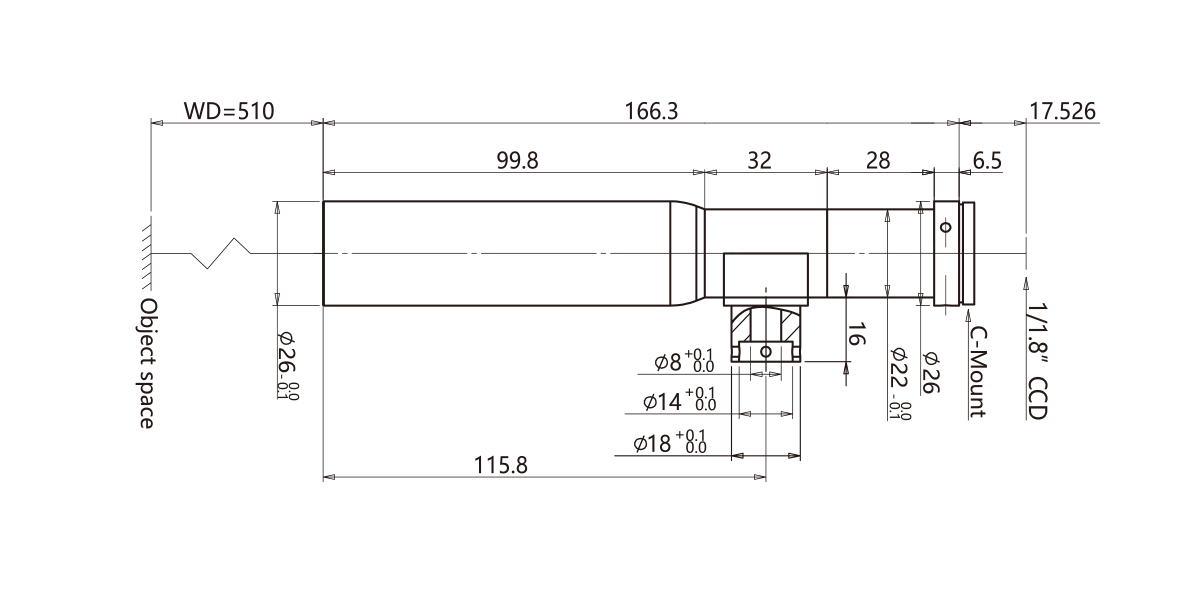

Dimensions

Naming Rule
