| Model NO. |
WWT118-015-92 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Focal Length(mm) |
15.96 |
Magnification(x) |
0.15 |
| Working Distance(mm) |
92 |
MTF30 (lp/mm) |
100 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0094 |
Best Aperture(f/#) |
8 |
| Object Resolution(μm) |
41.3 |
Depth of Field(mm) |
49 |
| TV Distortion |
0.8 |
Length (mm) |
22.7 |
| Measured Depth of Field (mm) |
11 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.37x4.92） |
49.1x32.8 |

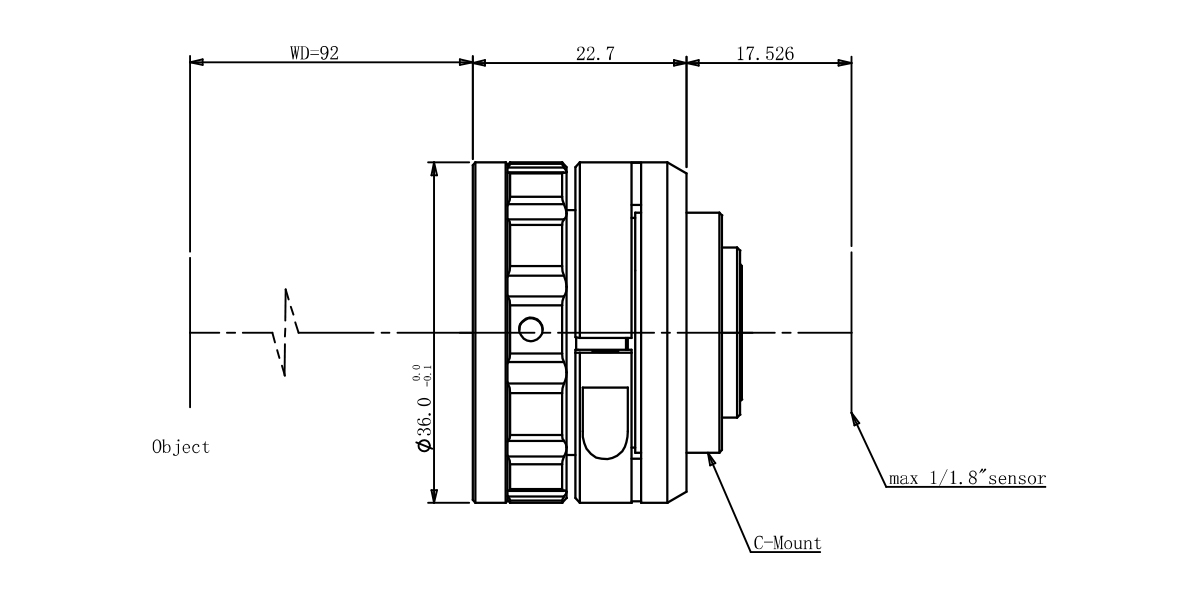

Dimensions
Naming Rule
