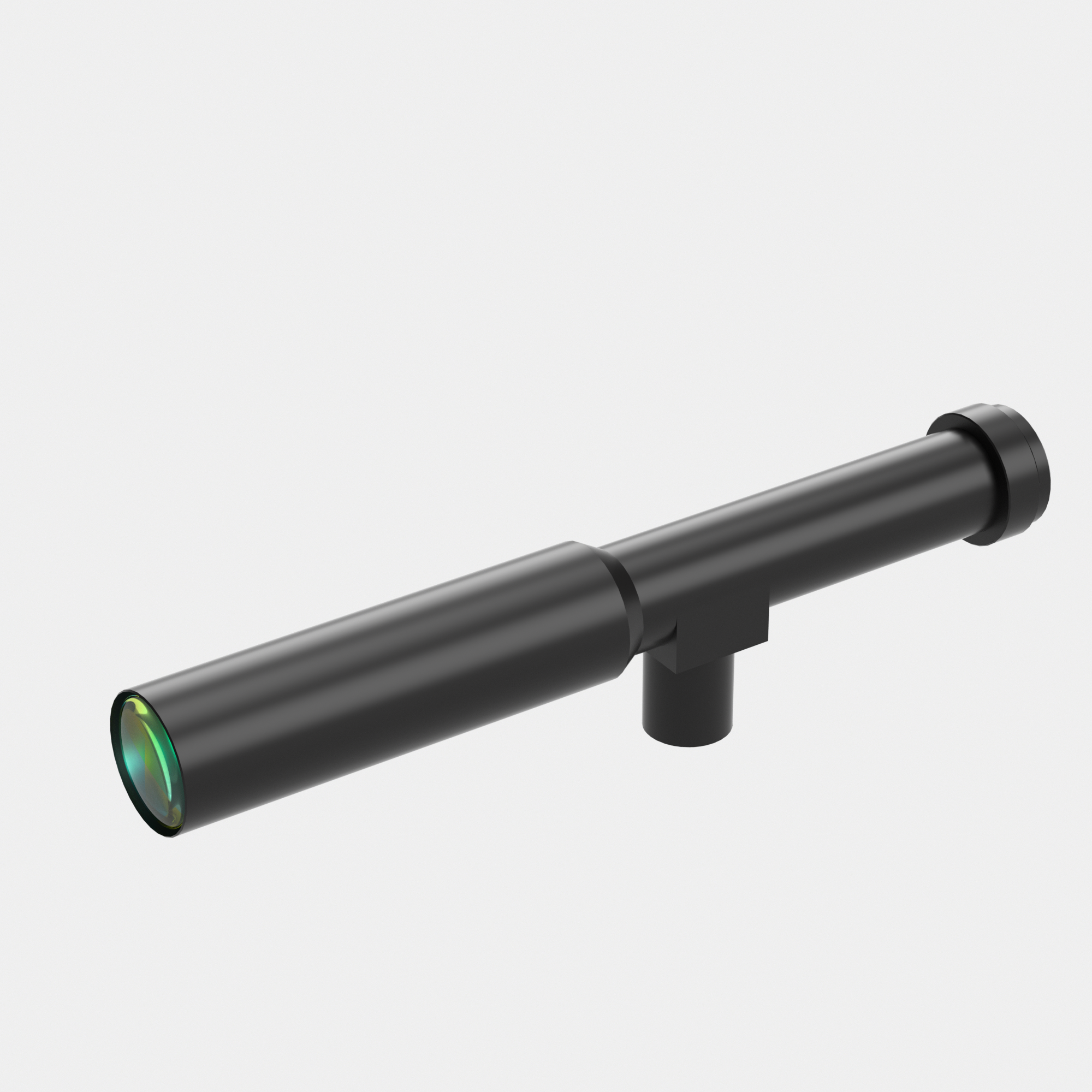

1/1.8" 1X Industrial Lenses | WH10-565C-118 COOLENS®

WH10-565C-118
Image Circle:9(1/1.8")mm, Magnification:1X, WD:565mm, NA:0.01687, Mount:C, Type:Fixed Magnification Lenses
$494.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$494.00 USD each
Description

Model NO. WH10-565C-118 Image Circle Diameter (Φmm) 9(1/1.8")
Magnification(x) 1 Working Distance(mm) 565
NA 0.0169 Type Fixed Magnification
Mount C Best Aperture(f/#) 29.8
MTF30 (lp/mm) 30 Object Resolution(μm) 19.9
Depth of Field(mm) 2.4 Distortion Typical(% max) 0.6
Telecentricity Typical (°max) Non-telecentric Length (mm) 196.2
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 2
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 6.4x4.8
1/1.8"(7.13x5.37) 7.13x5.37

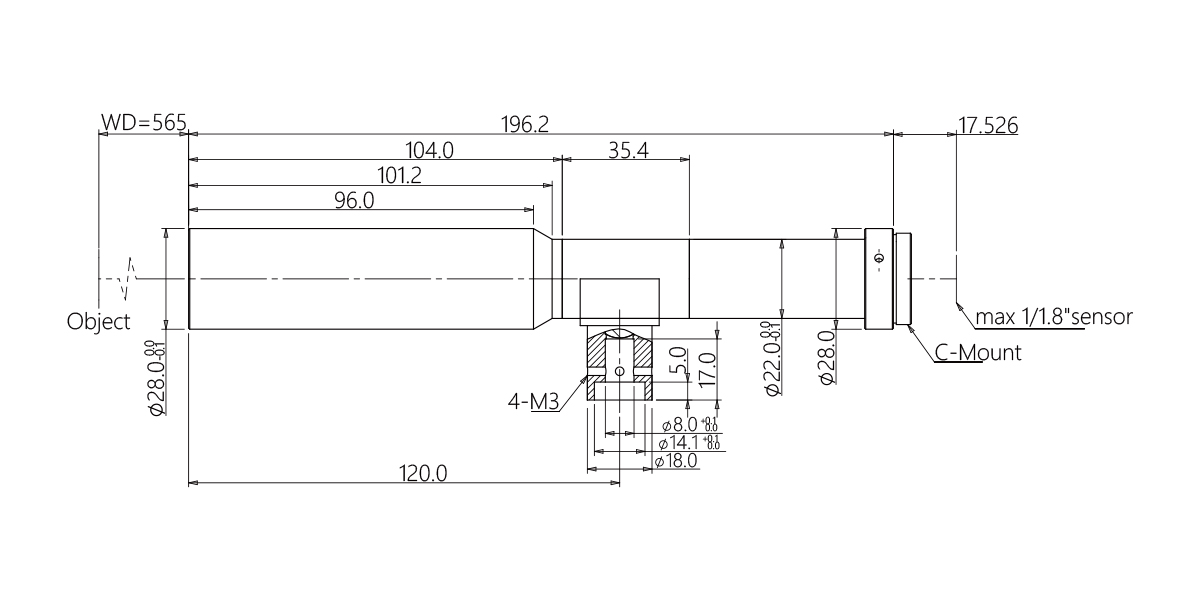

Dimensions

Naming Rule
