  • 1/1.8" 24.99mm Fixed Magnification Focal Length Lens | WWT118-02-130 COOLENS®-OKLAB
1 / 1

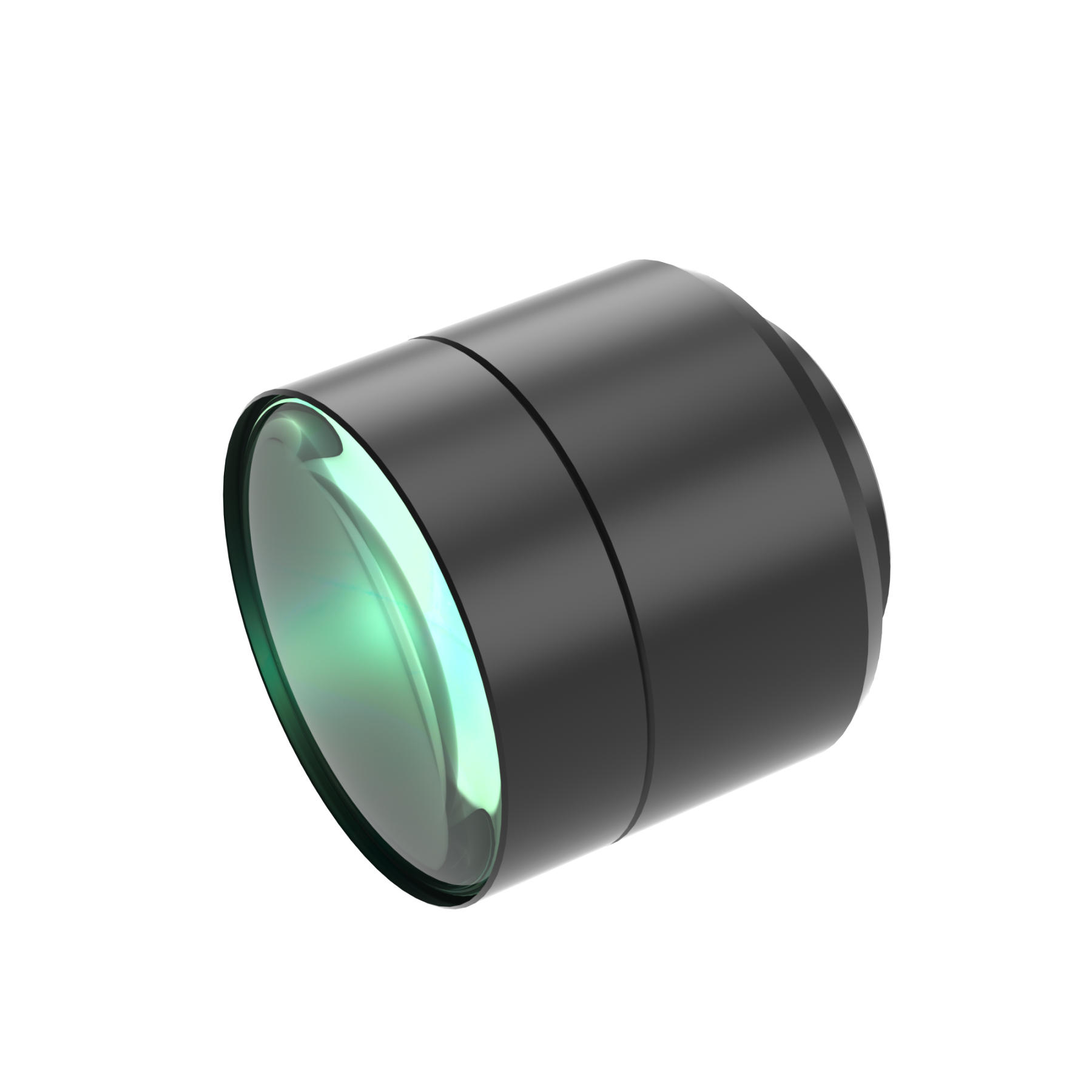

1/1.8" 24.99mm Fixed Magnification Focal Length Lens | WWT118-02-130 COOLENS®

WWT118-02-130
$95.00 USD
Shipping calculated at checkout.
Quantity
1/1.8" 24.99mm Fixed Magnification Focal Length Lens | WWT118-02-130 COOLENS®-OKLAB

Description

Model NO. WWT118-02-130 Image Circle Diameter (Φmm) 9(1/1.8")
Focal Length(mm) 24.99 Magnification(x) 0.2
Working Distance(mm) 130 MTF30 (lp/mm) 152
Type Fixed Magnification Focal Length Mount C
NA 0.0179 Best Aperture(f/#) 5.6
Object Resolution(μm) 18.8 Depth of Field(mm) 11.2
TV Distortion -0.037 Length (mm) 30
Measured Depth of Field (mm) 4.8 Filter Screw Size M30x0.5
Field of View (mm x mm)
1/1.8”（7.13x5.37） 35.7x26.9
1/1.8”（7.43x4.9） 37.2x24.5

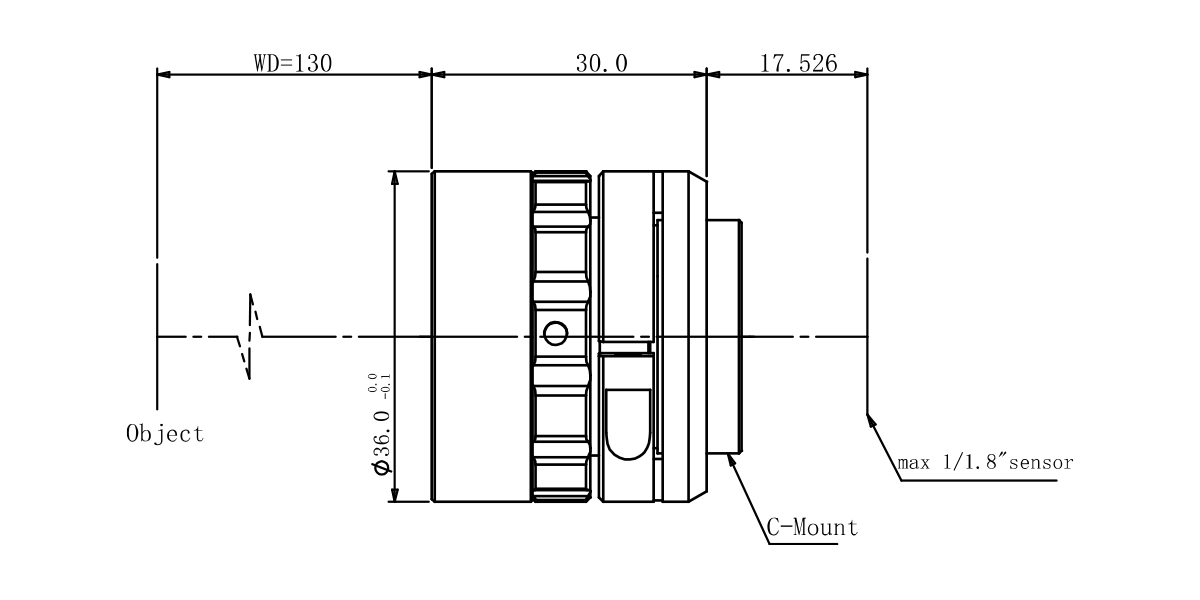

Dimensions

Naming Rule
