Model No.	Image Circle Diameter (Φmm)	Focal Length(mm)	Magnification(x)	Working Distance(mm)	MTF30 (lp/mm)	Type	Price
WWT118-01-145	9(1/1.8")	15.87	0.1	145	139	Fixed Magnification Focal Length	$95.00
WWT118-01-252	9(1/1.8")	25.04	0.1	252	172	Fixed Magnification Focal Length	$95.00
WWT118-015-92	9(1/1.8")	15.96	0.15	92	100	Fixed Magnification Focal Length	$95.00
WWT118-02-66	9(1/1.8")	15.85	0.2	66	137.8	Fixed Magnification Focal Length	$95.00
WWT118-02-130	9(1/1.8")	24.99	0.2	130	152	Fixed Magnification Focal Length	$95.00
WWT118-03-39	9(1/1.8")	15.89	0.3	39	119.8	Fixed Magnification Focal Length	$95.00
WWT118-035-161	9(1/1.8")	46.07	0.35	161	106	Fixed Magnification Focal Length	$95.00
WWT118-04-26	9(1/1.8")	15.9	0.4	26	116	Fixed Magnification Focal Length	$95.00
WWT118-05-56	9(1/1.8")	24.89	0.5	26	136	Fixed Magnification Focal Length	$95.00
WWT118-055-113	9(1/1.8")	45.37	0.55	115	82	Fixed Magnification Focal Length	$95.00
WWT118-06-106	9(1/1.8")	45.4	0.6	106	140	Fixed Magnification Focal Length	$95.00
WWT118-09-81	9(1/1.8")	45.63	0.9	81	117	Fixed Magnification Focal Length	$95.00
WWT118-095-78	9(1/1.8")	45.43	0.95	78	56	Fixed Magnification Focal Length	$95.00

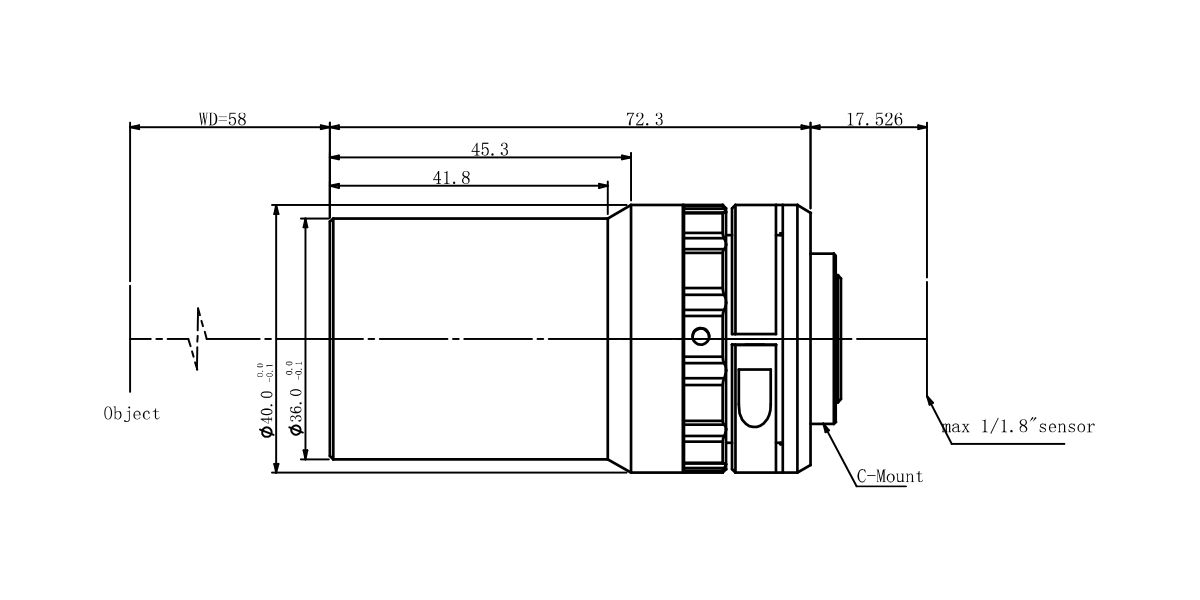

WWT118-10-58	9(1/1.8")	45	1	58	78	Fixed Magnification Focal Length	$95.00
WWT118-10-76	9(1/1.8")	45.71	1	76	106	Fixed Magnification Focal Length	$95.00
MFA118-S06	1/1.8"	6	Adjustable	Min.100	150	Fixed Focal Length	$77.00
MFA118-S08	1/1.8"	8	Adjustable	Min.100	150	Fixed Focal Length	$77.00
MFA118-S12V2	1/1.8"	12	Adjustable	Min.100	120	Fixed Focal Length	$128.00
MFA118-S16V2	1/1.8"	16	Adjustable	Min.100	150	Fixed Focal Length	$77.00
MFA118-S25V2	1/1.8"	25	Adjustable	Min.100	150	Fixed Focal Length	$77.00
MFA118-S35V2	1/1.8"	35	Adjustable	Min.180	150	Fixed Focal Length	$77.00
MFA118-S50V2	1/1.8"	50	Adjustable	Min.300	150	Fixed Focal Length	$77.00

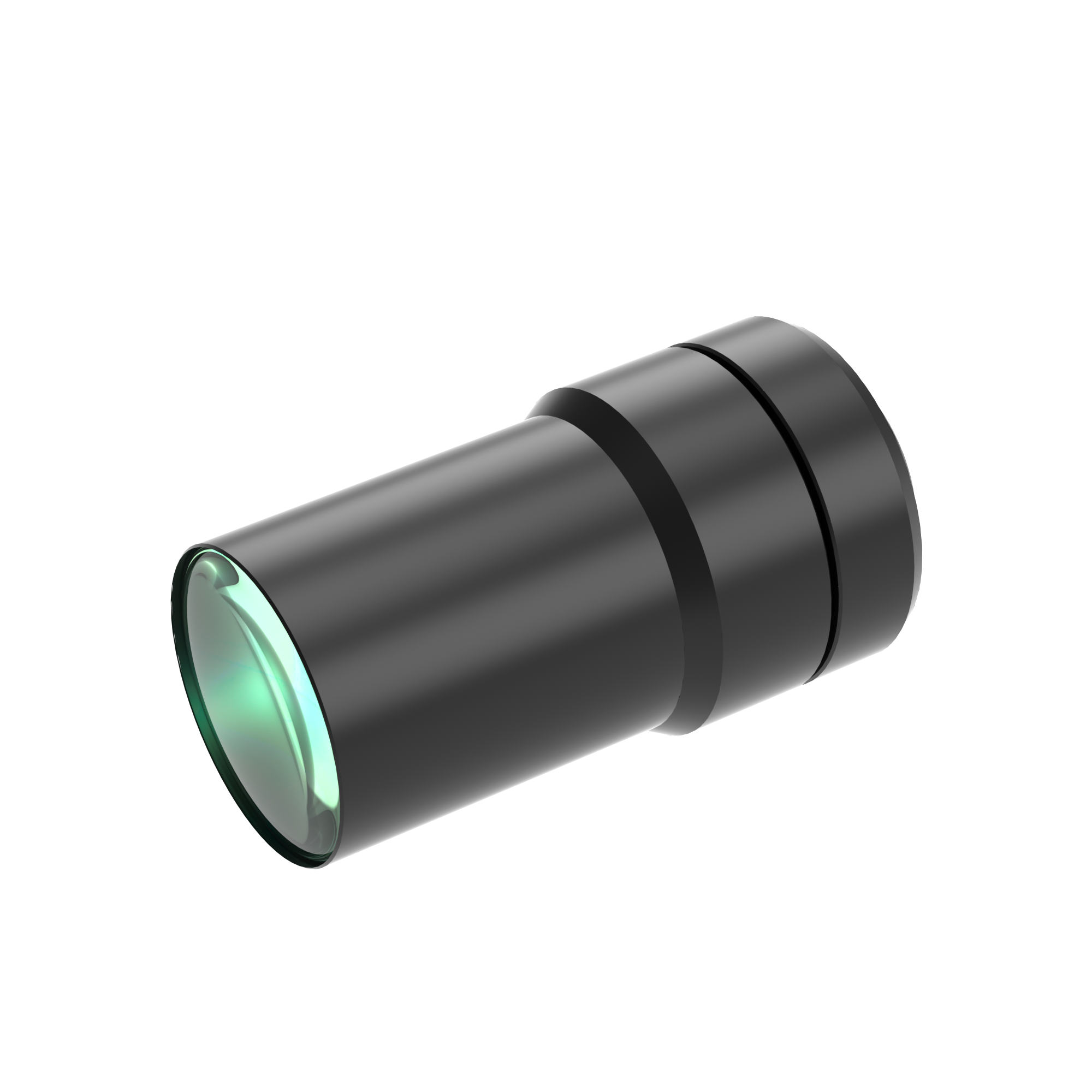

1/1.8" 45mm Fixed Magnification Focal Length Lens | WWT118-10-58 COOLENS®
