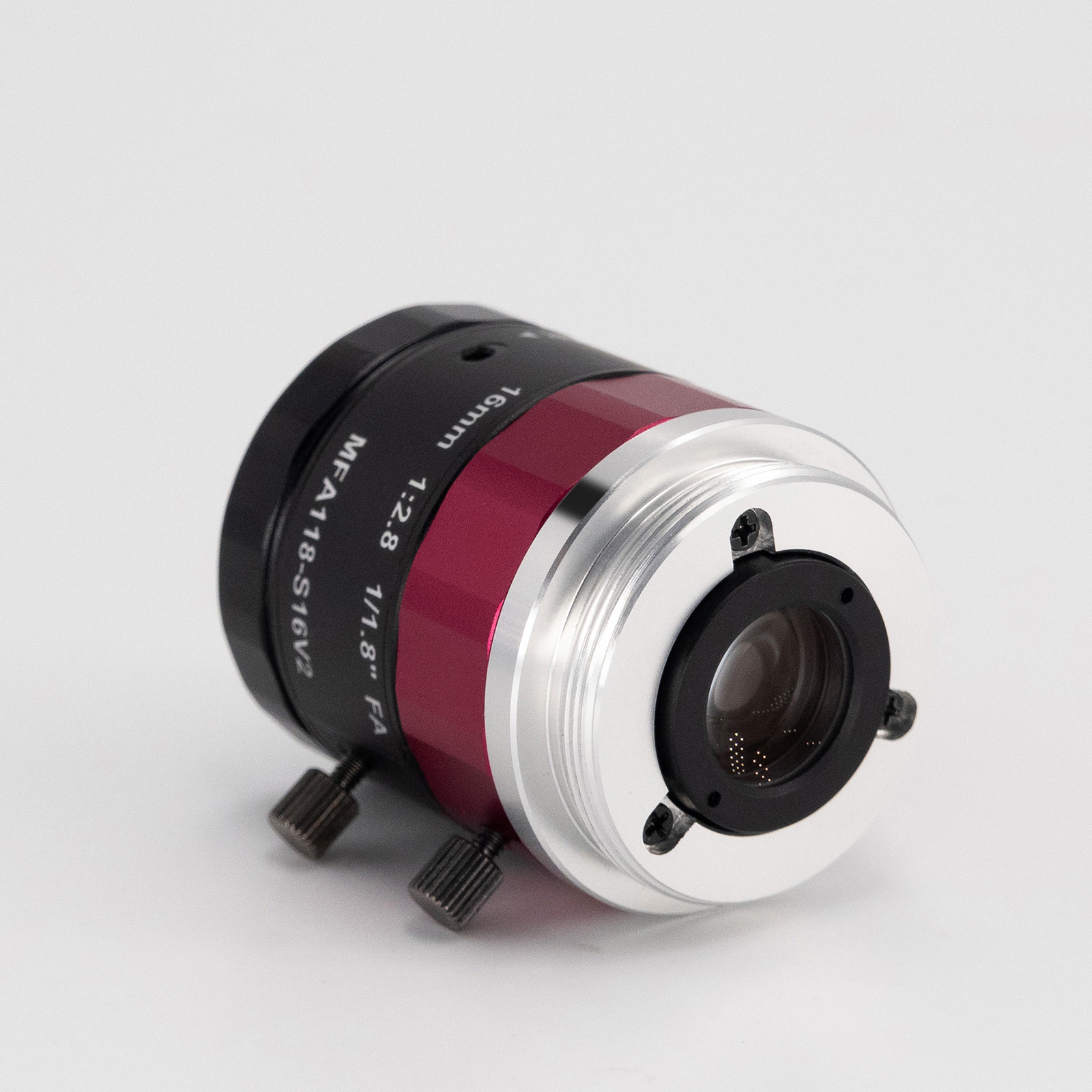

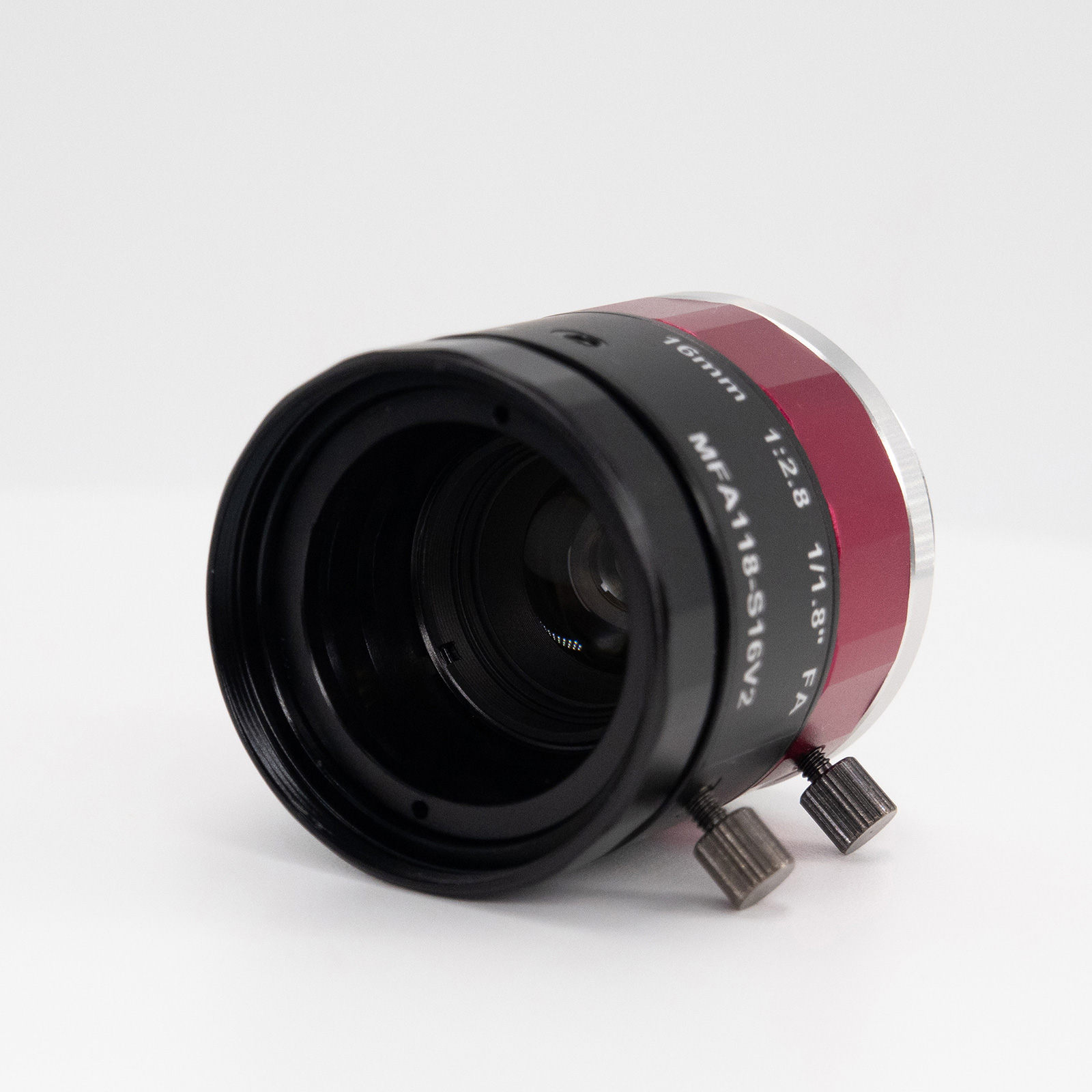

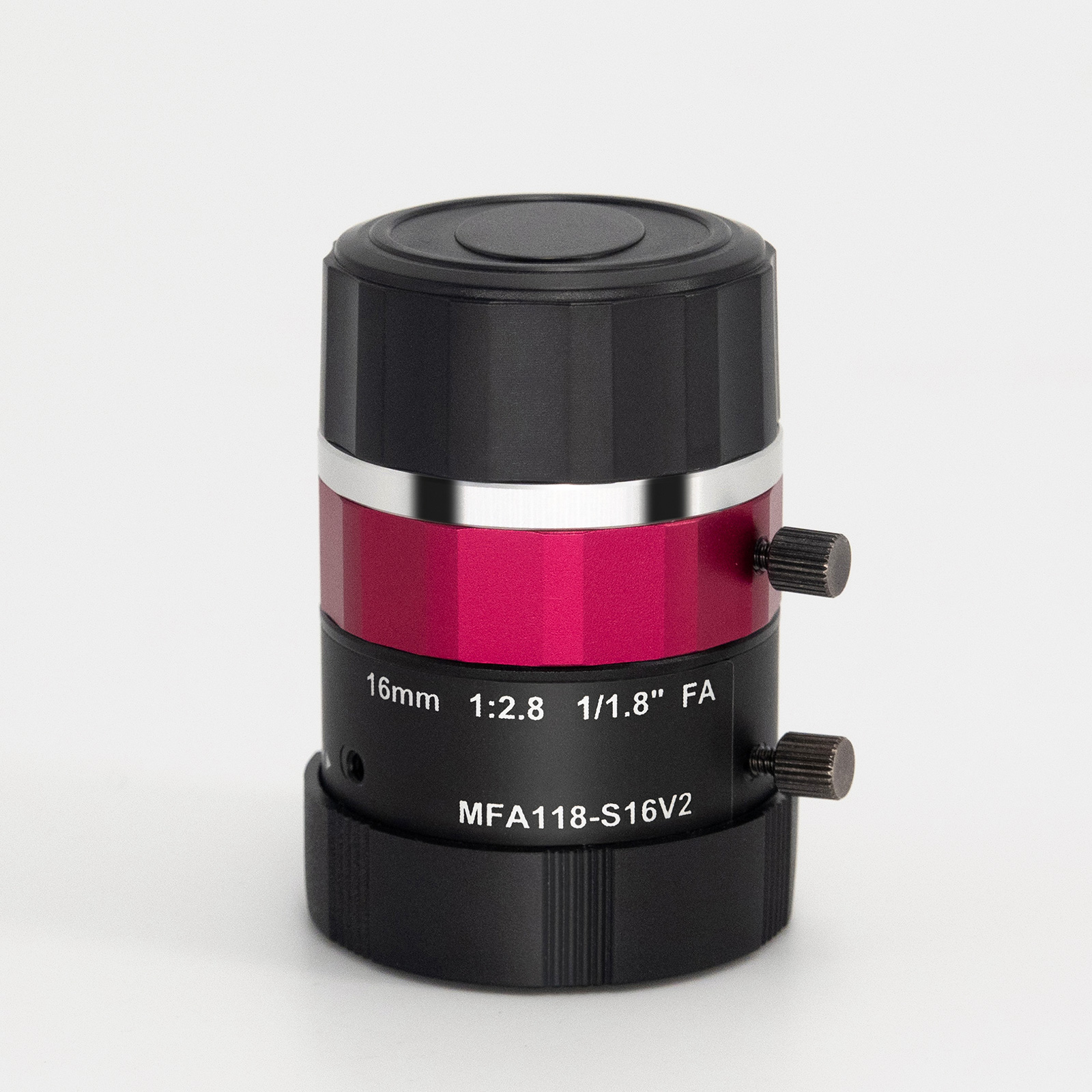

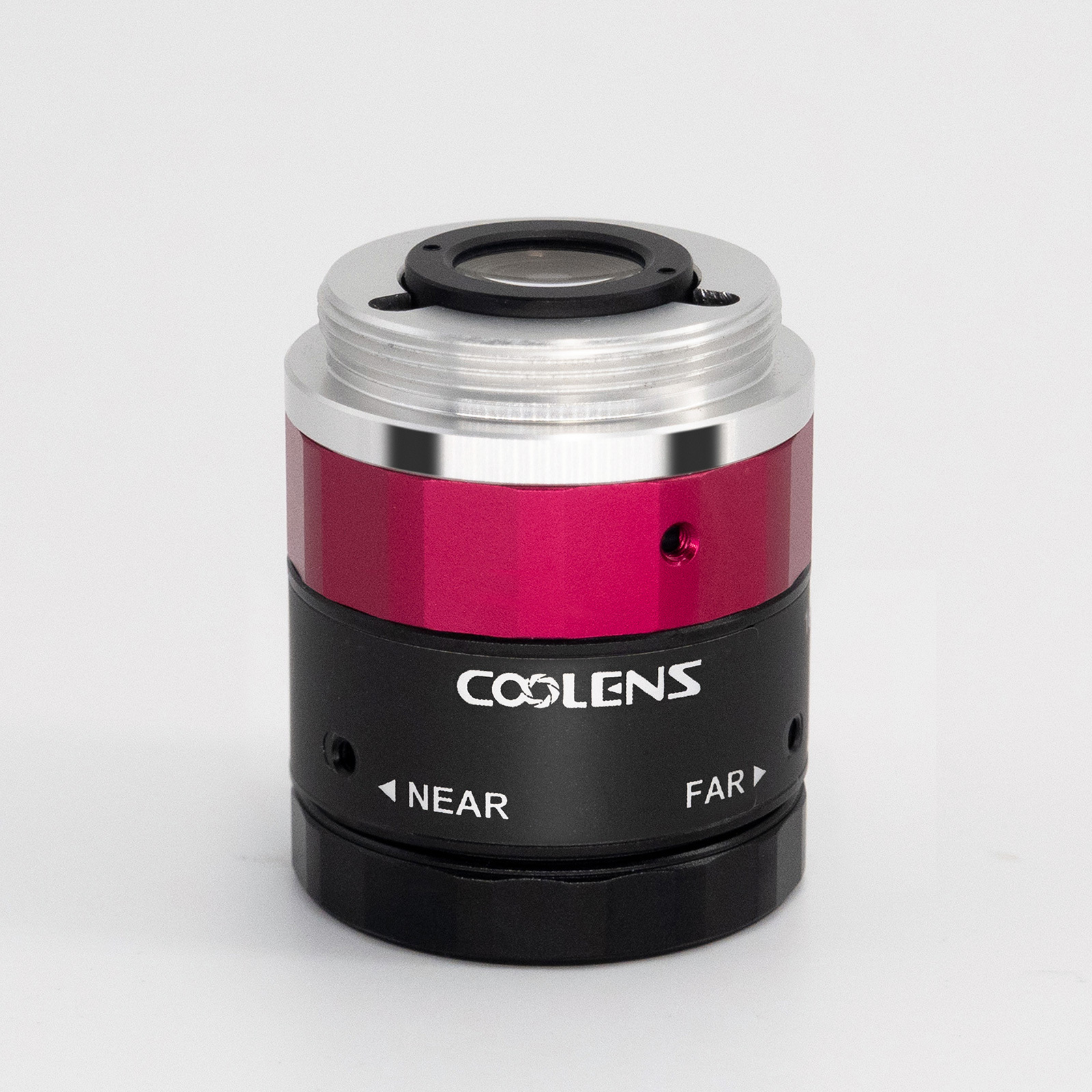

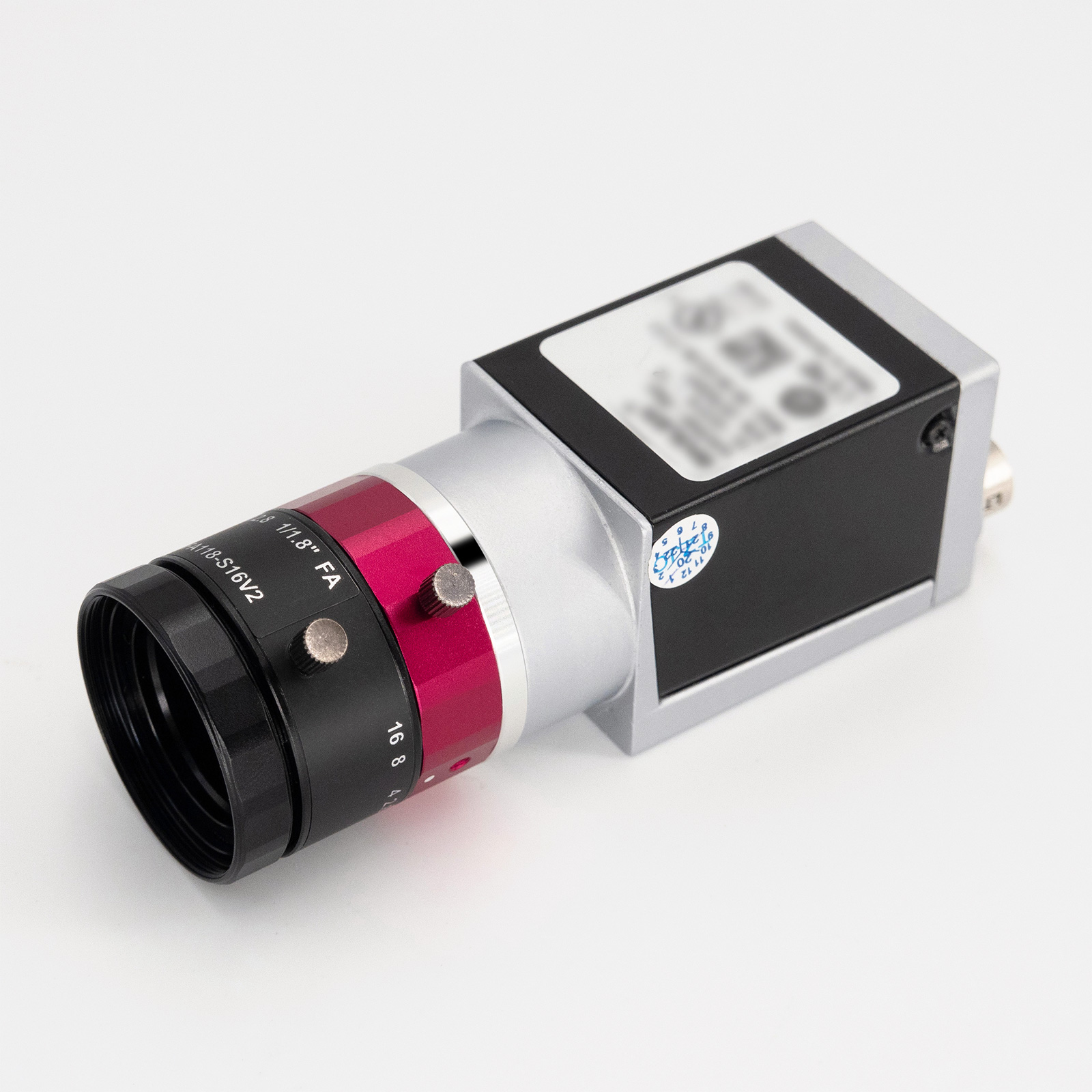

1/1.8" 16mm Fixed Focal Length Lens | MFA118-S16V2 COOLENS®
1/1.8" 16mm Fixed Focal Length Lens | MFA118-S16V2 COOLENS®
MFA118-S16V2
Image Circle: 1/1.8" Focal Length: 16mm MTF30 (lp/mm):150 Mount: C
$77.00 USD
$0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$77.00 USD
each
Sold Out
Add to cart
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Download the Specification: pdf
Download the IGES: igs
Download the STEP: step
Model No.
MFA118-S16V2
Image Circle Diameter (Φmm)
1/1.8"
Focal Length(mm)
16
Magnification(x)
Adjustable
Working Distance(mm)
Min.100
MTF30 (lp/mm)
150
Type
Fixed Focal Length
Support Cameras
6M
Mount
C
Back Focal Length
12.7mm in Air
F NO.
F2.8 - F16
Filter Size
M27 x P0.5
Max. Image Format
1/1.8" (φ9.4mm)
Distortion
<0.06%
Angle of View
D
1/1.8"
31.0°
1/2"
27.8°
1/3"
21.1°
H
25.7°
22.4°
16.9°
V
17.3°
16.9°
12.7°
M.o.D
0.1m
Object Dimension at M.o.D
1/1.8"
55.02mm x 36.68mm
Length (mm)
29.9
1/2.3"
48.06mm x 34.45mm
Flange Back Length
17.526mm in Air
Structure
5 Groups, 7 Elements
Operating Temperature
-10°C — 50°C
Operation of Iris
Range
F2.8 - F16
Operation of Focus
Range
MOD-INF
Spectral Transmission
AT 436nm-656nmT≥85%

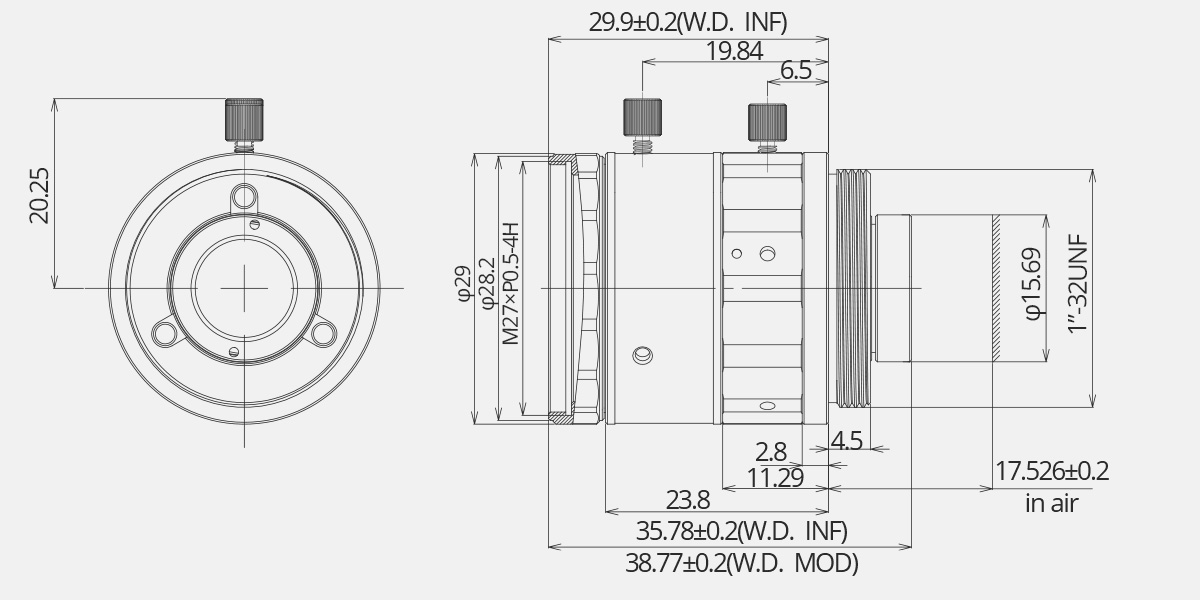

Dimensions

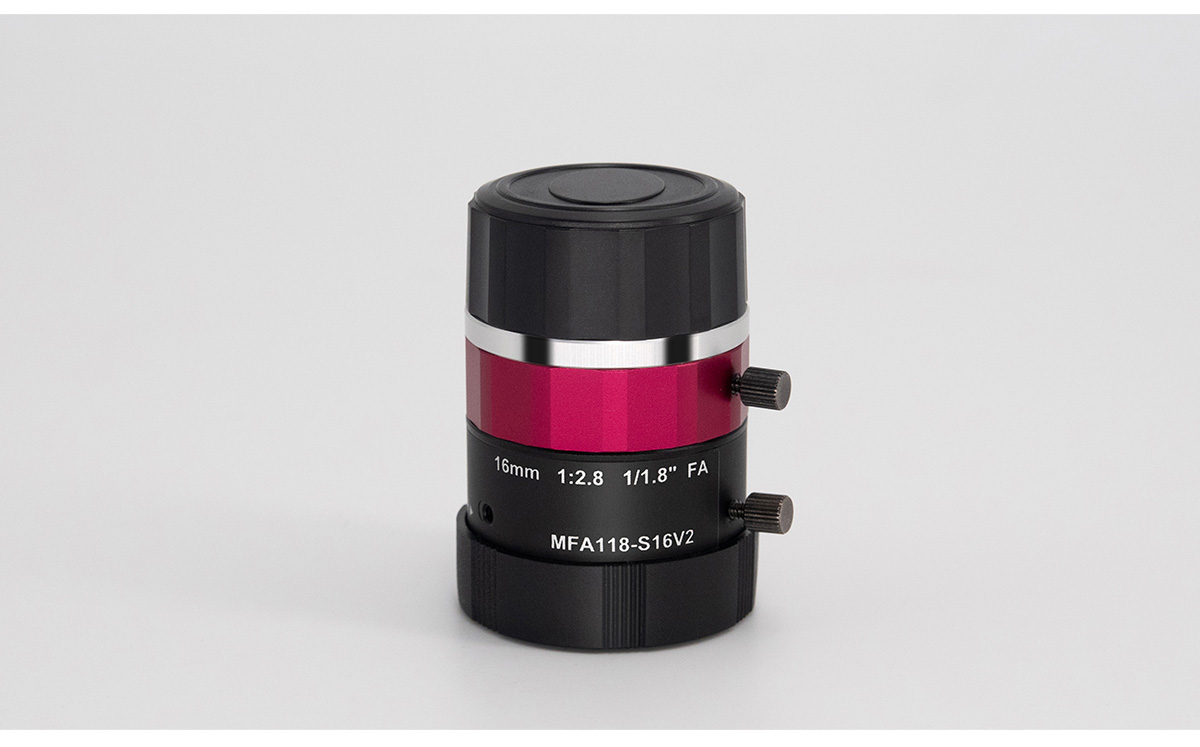

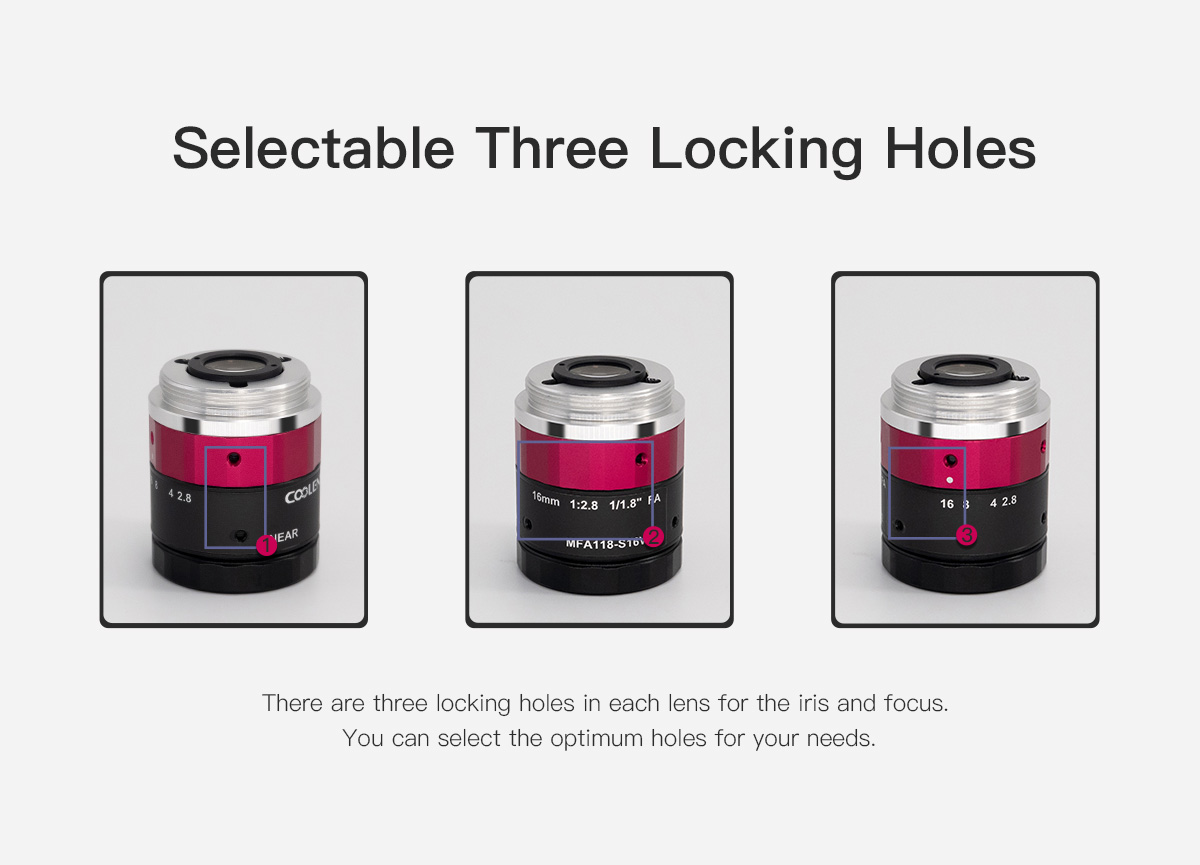

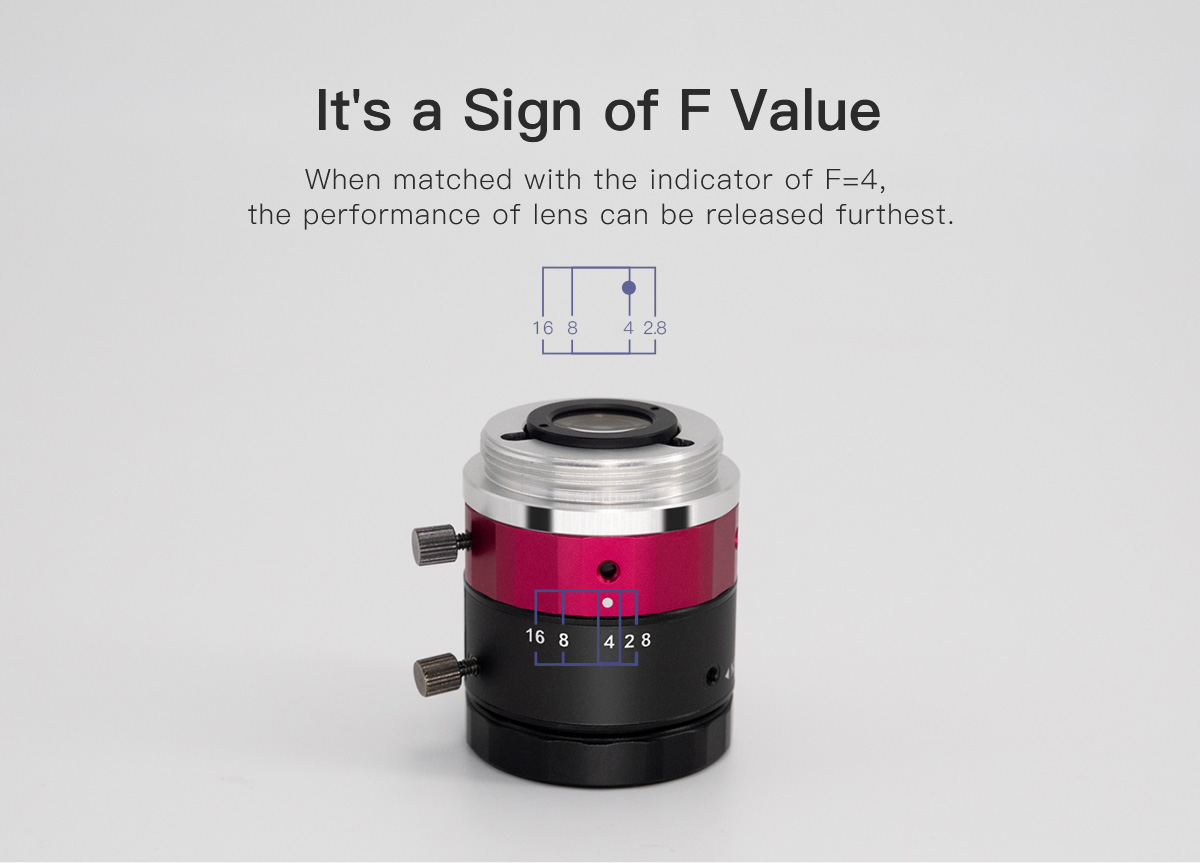

Product Photograph
