Home / 1/1.8" 25mm Fixed Focal Length Lens | MFA118-S25V2 COOLENS®

1/1.8" 25mm Fixed Focal Length Lens | MFA118-S25V2 COOLENS®

MFA118-S25V2
Image Circle: 1/1.8" Focal Length: 25mm MTF30 (lp/mm):150 Mount: C
$77.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$77.00 USD each
Description

Model No. MFA118-S25V2 Image Circle Diameter (Φmm) 1/1.8"
Focal Length(mm) 25 Magnification(x) Adjustable
Working Distance(mm) Min.100 MTF30 (lp/mm) 150
Type Fixed Focal Length Support Cameras 6M
Mount C Back Focal Length 23.1mm in Air

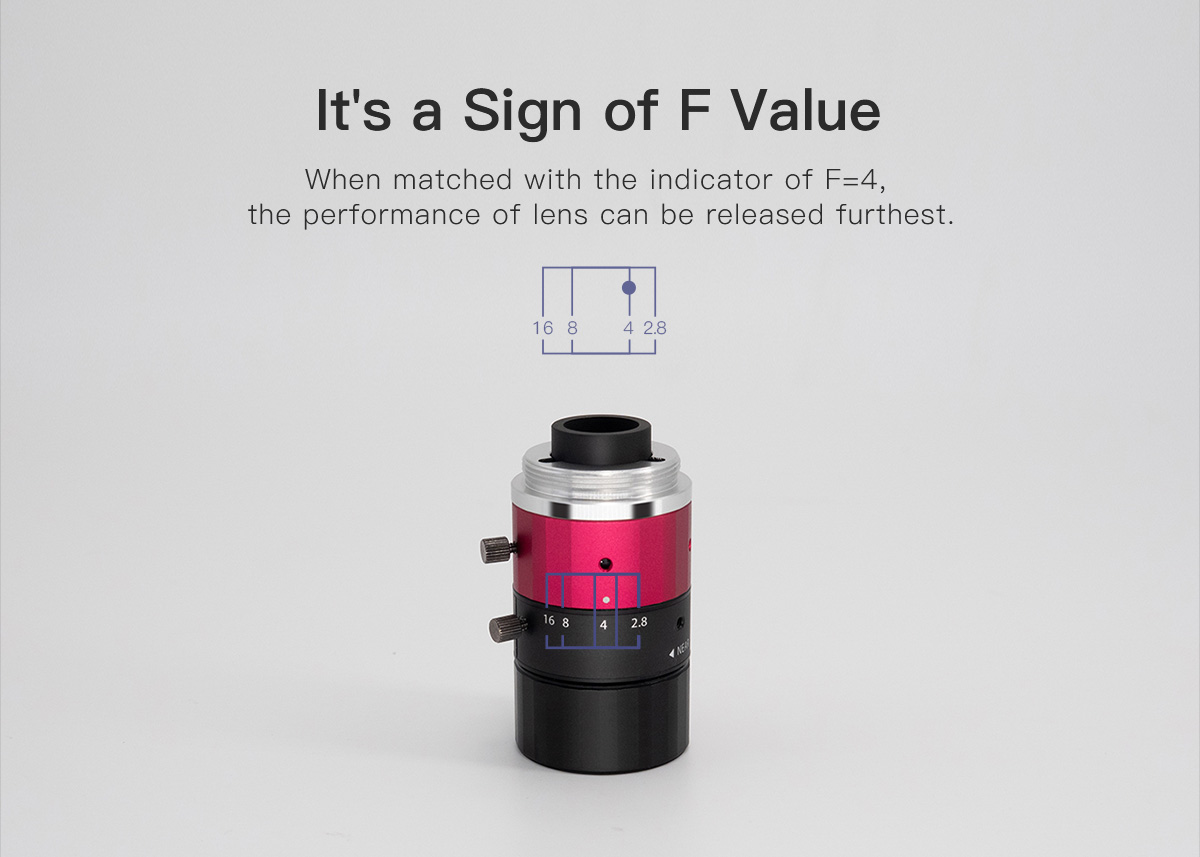

F NO. F2.8 - F16 Filter Size M27 x P0.5

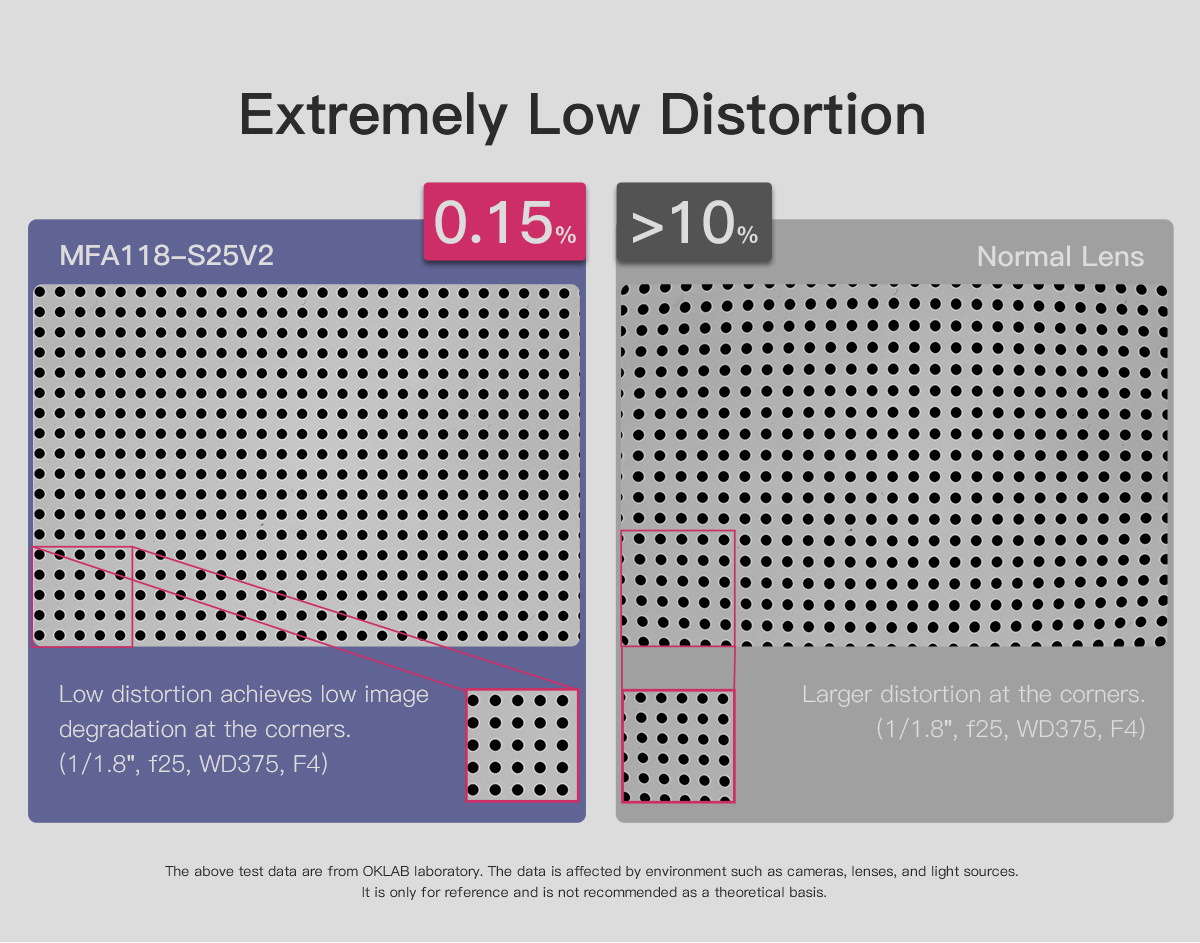

Max. Image Format 1/1.8" (φ9.4mm) Distortion <0.15%
Angle of View D 1/1.8"
20.3°
 1/2"
18.2°
 1/3"
13.7°
H
16.7°
14.6°
11.0°
V
11.2°
11.0°
8.2°
M.o.D 0.1m Object Dimension at M.o.D 1/1.8"
32.91mm x 21.94mm
Length (mm)
63.13
 1/2.3"
28.75 mm x 20.61mm
Flange Back Length 17.526mm in Air
Structure
4 Groups, 6 Elements
 Operating Temperature -10°C — 50°C

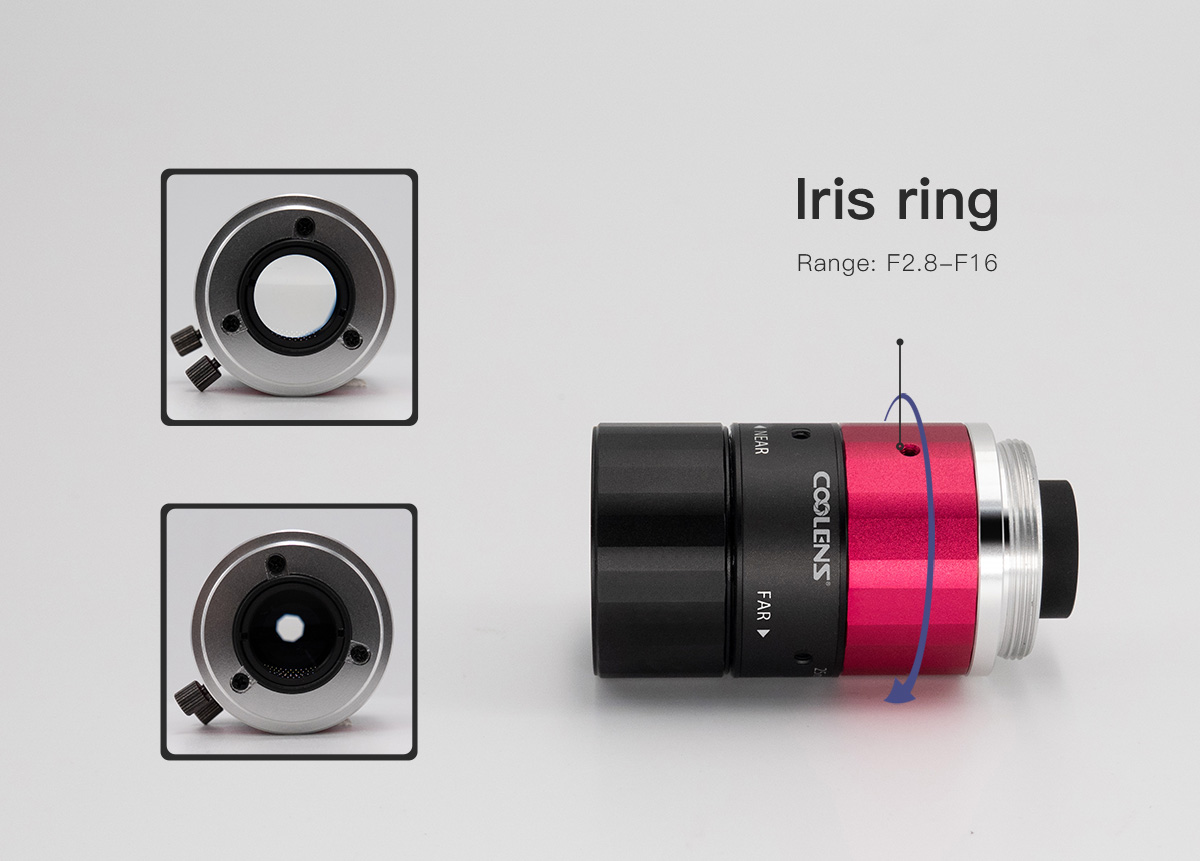

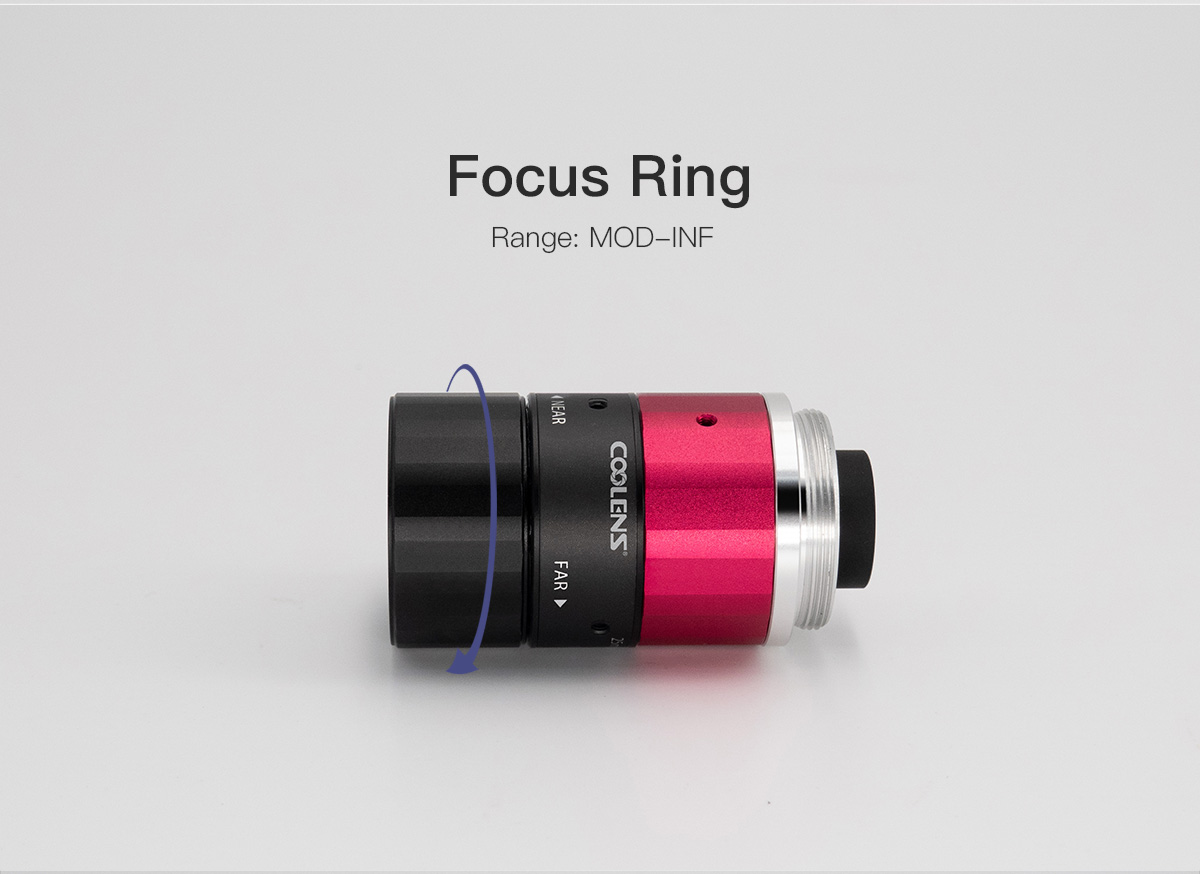

Operation of Iris Range F2.8 - F16 Operation of Focus Range MOD-INF
Spectral Transmission AT 436nm-656nmT≥85%

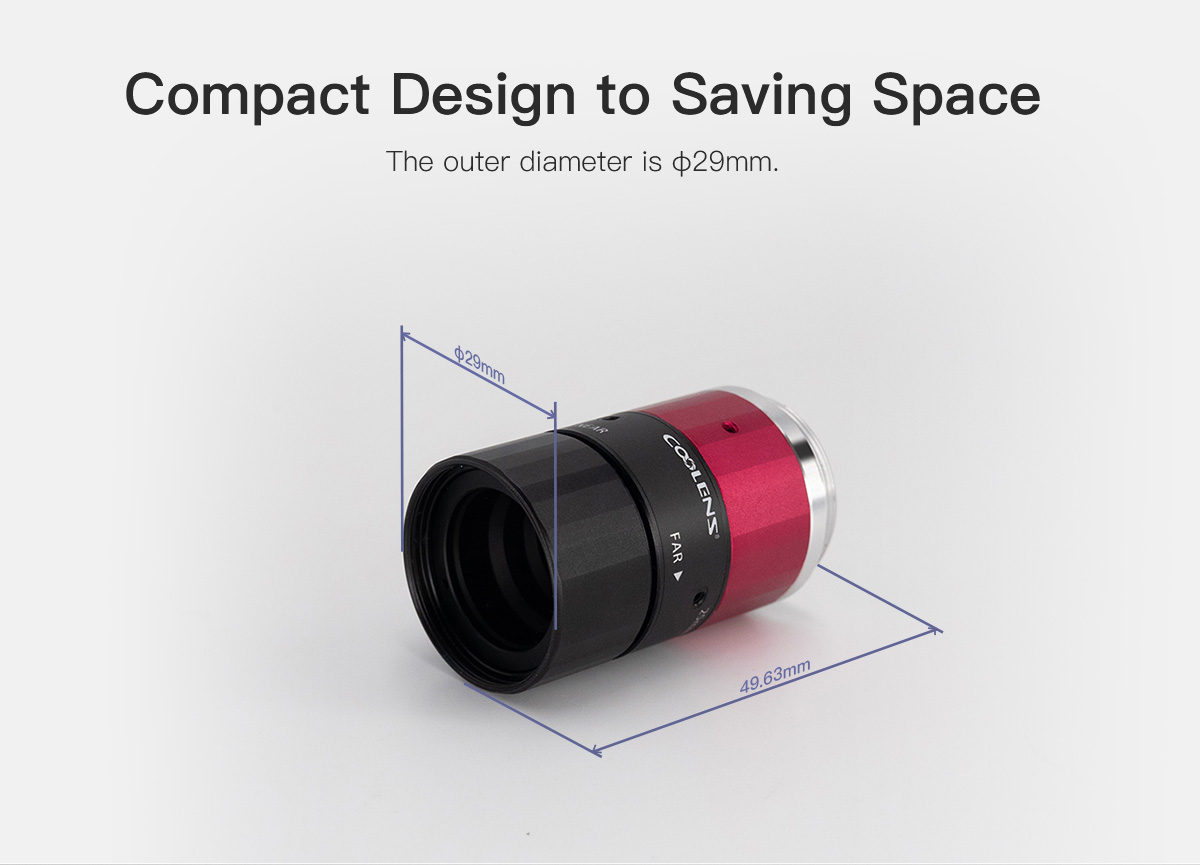

Dimensions

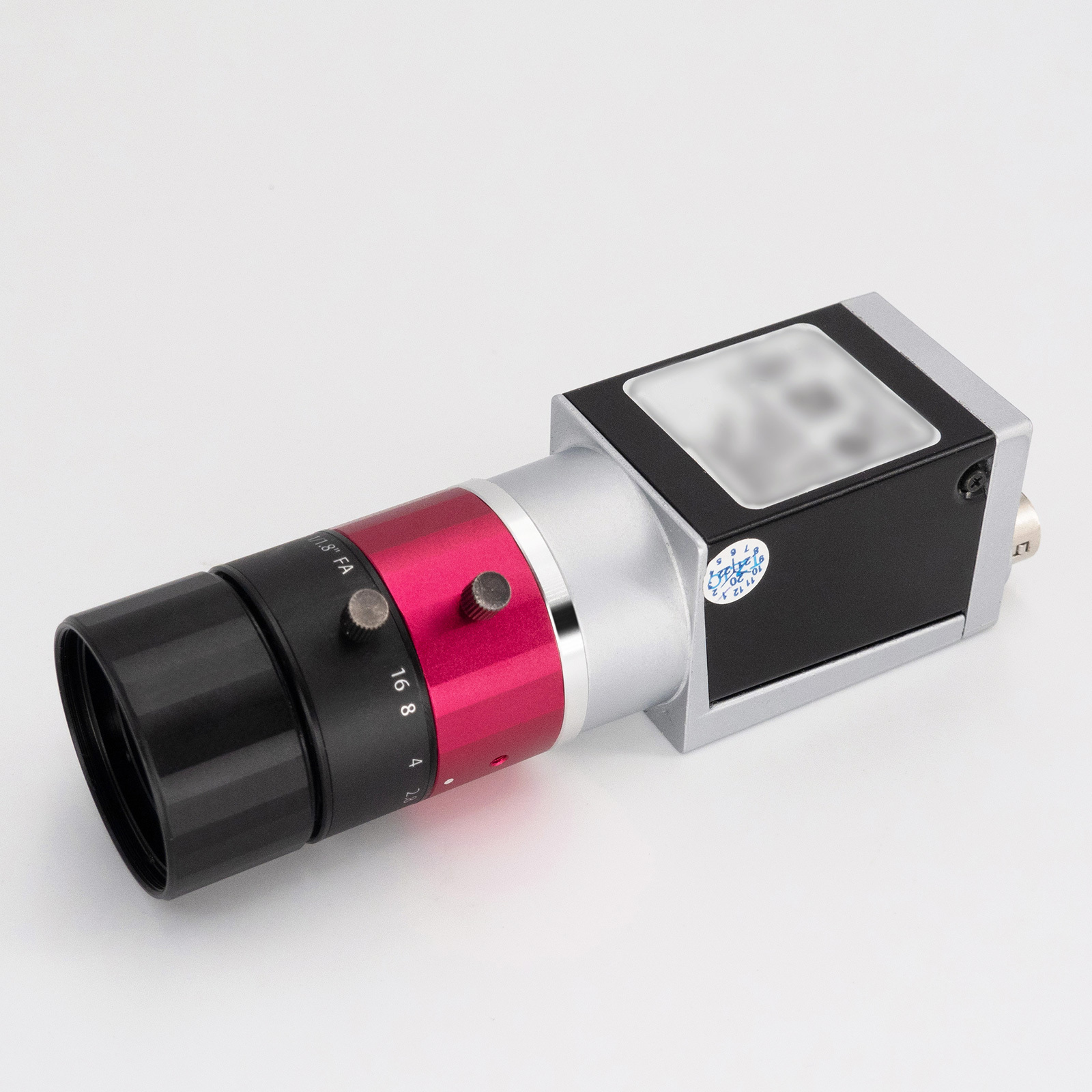

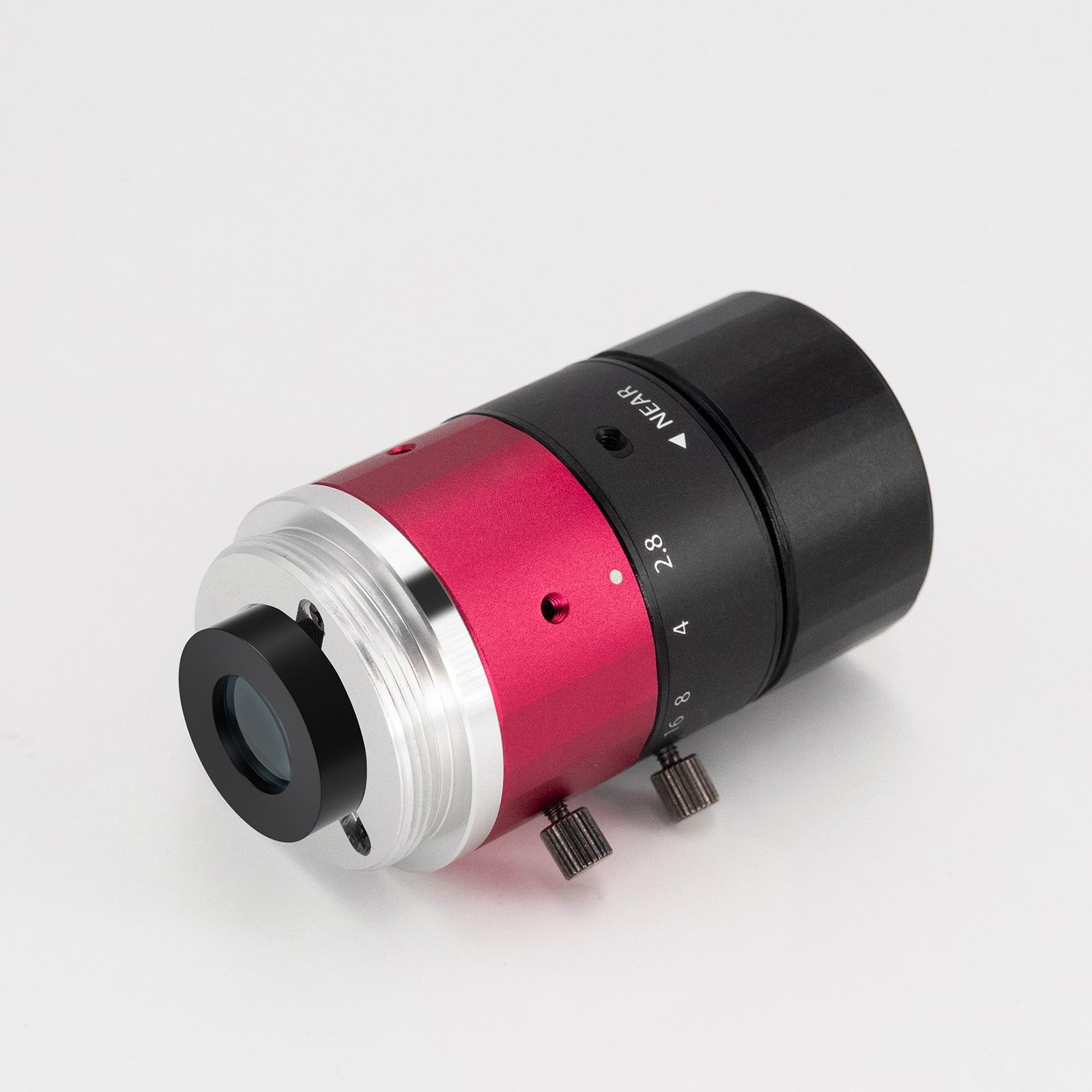

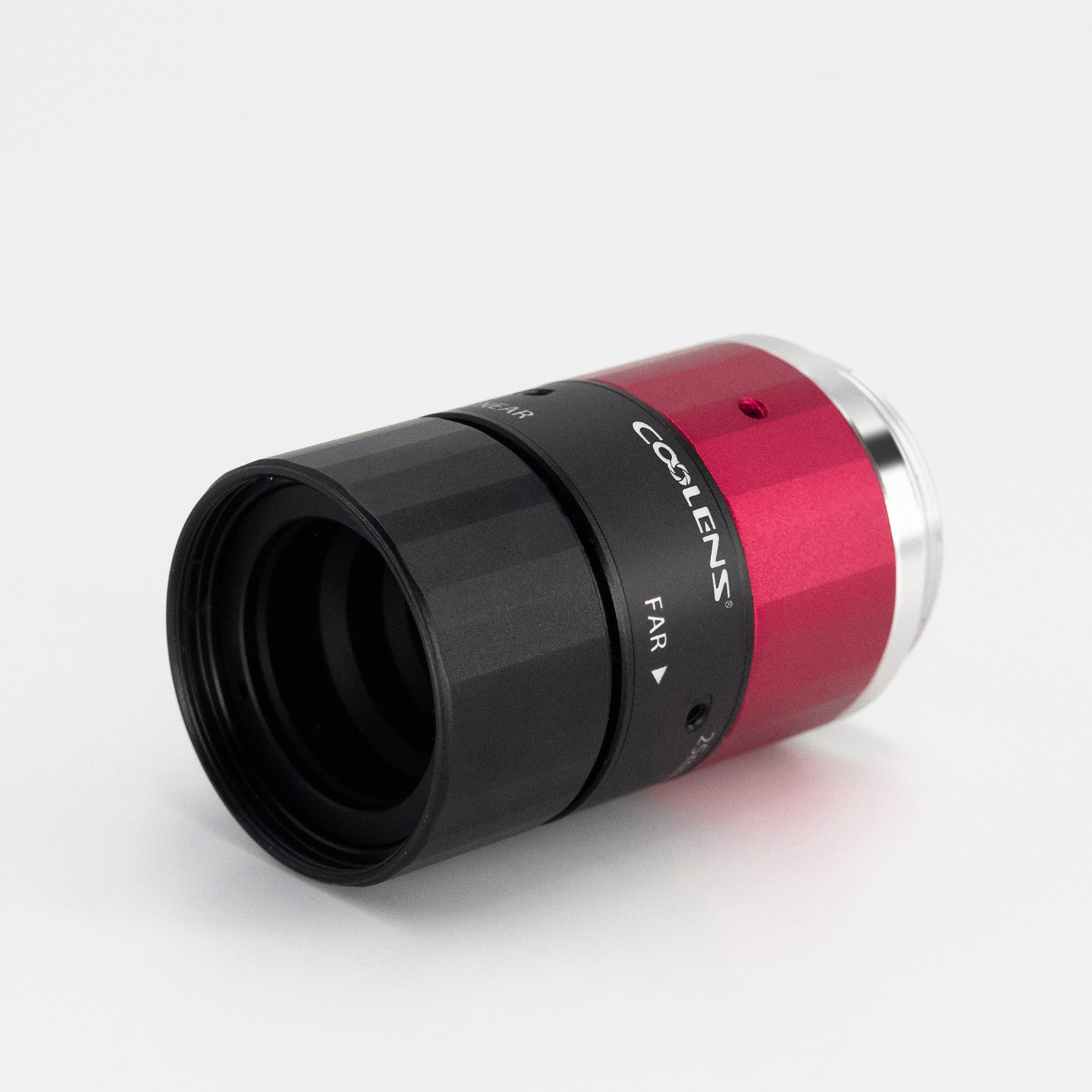

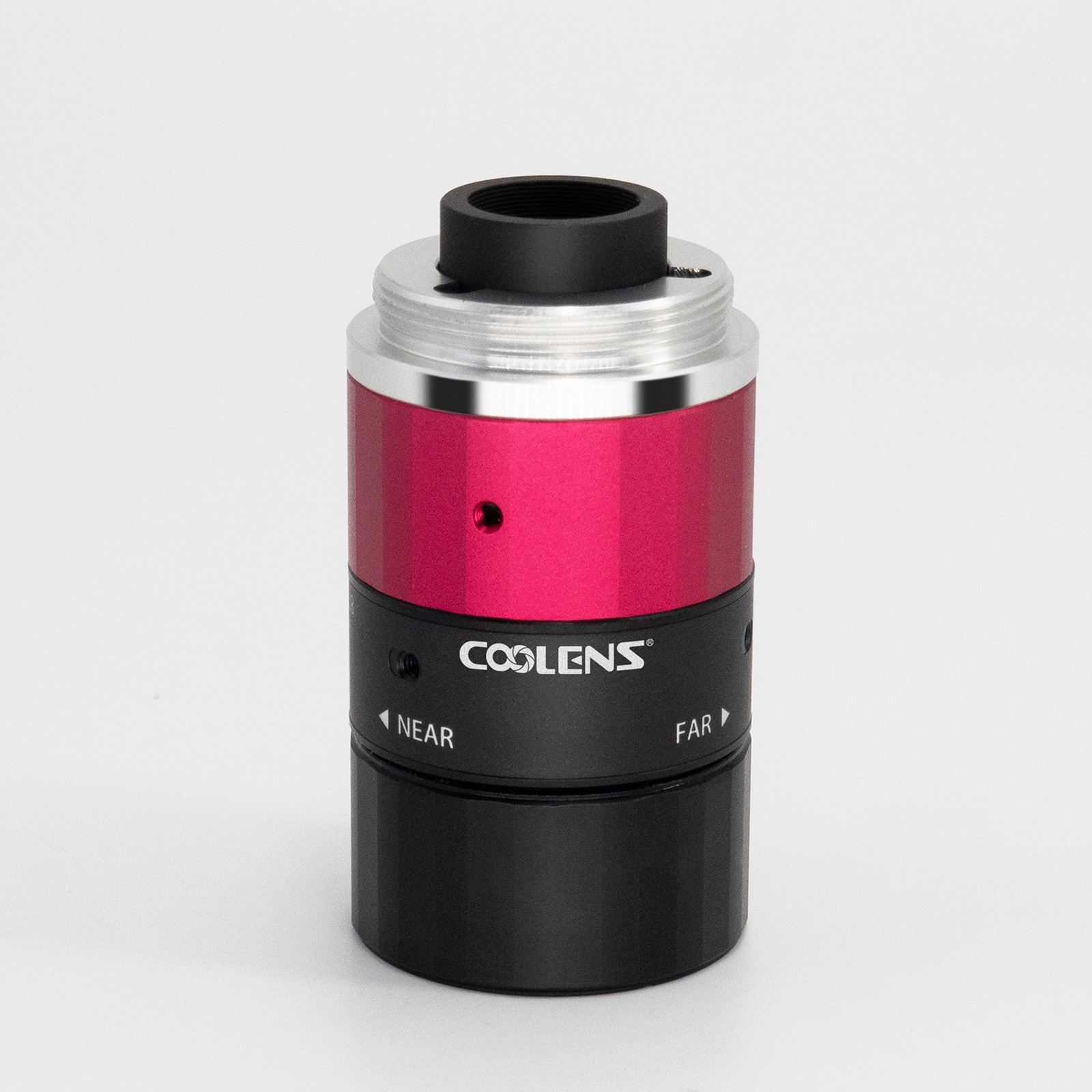

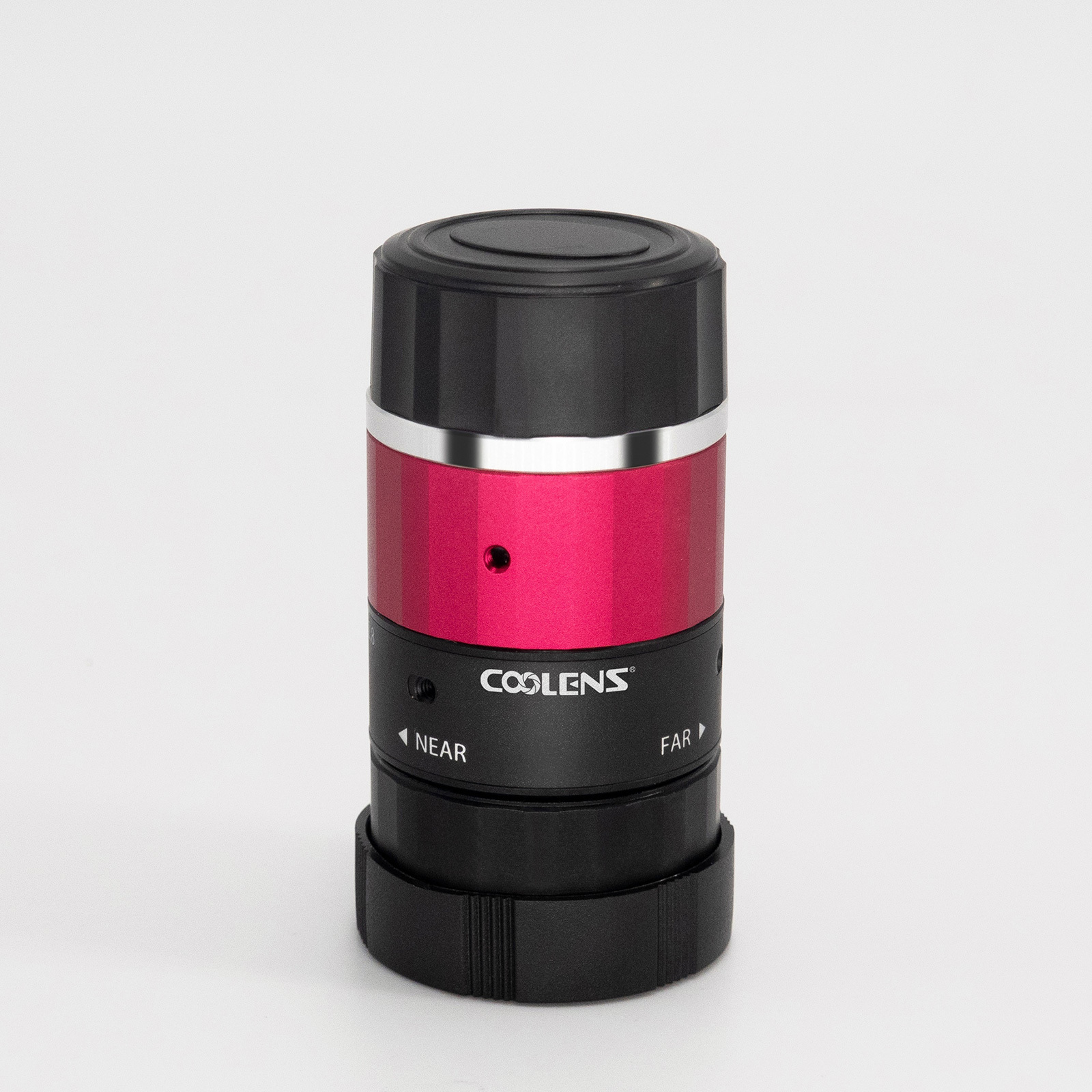

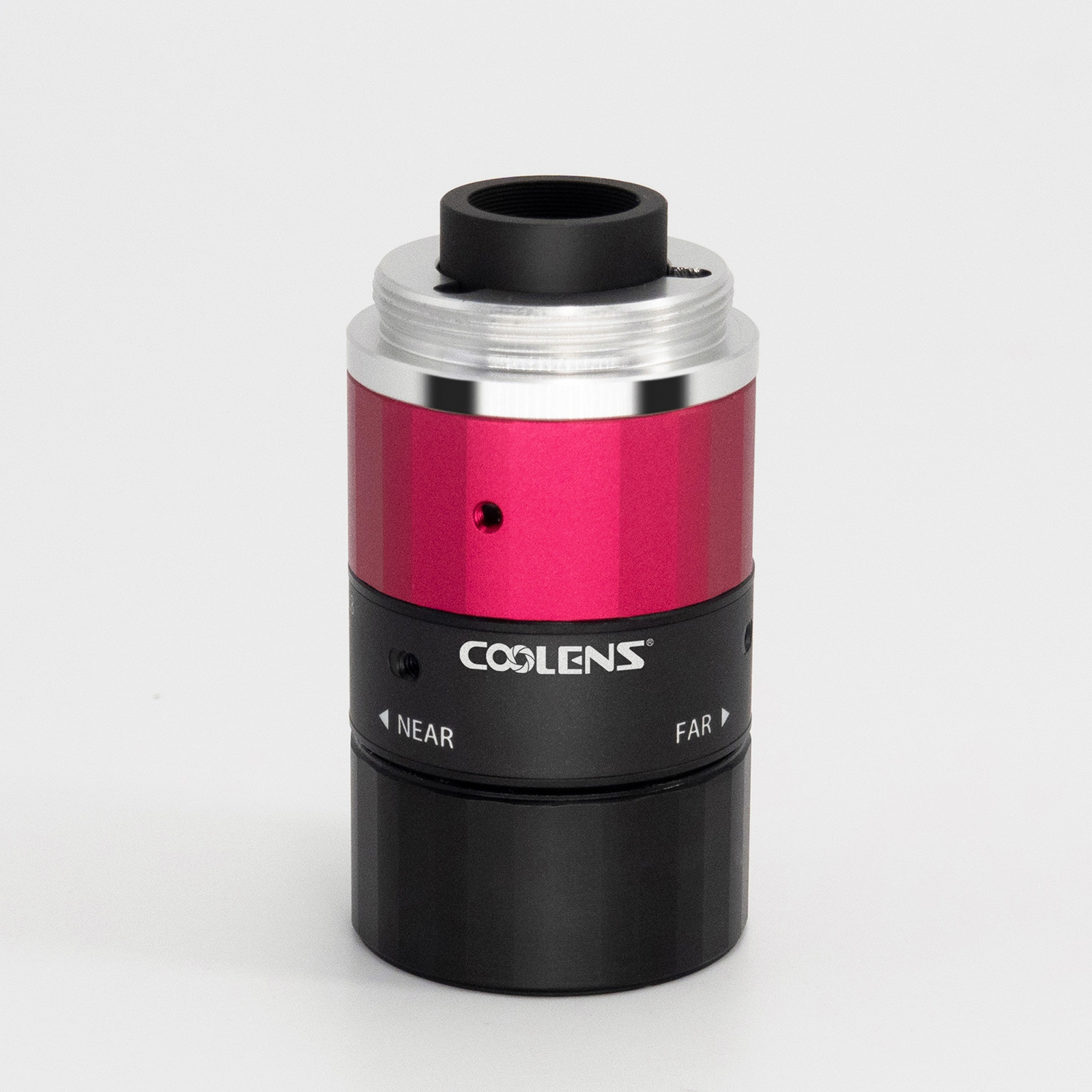

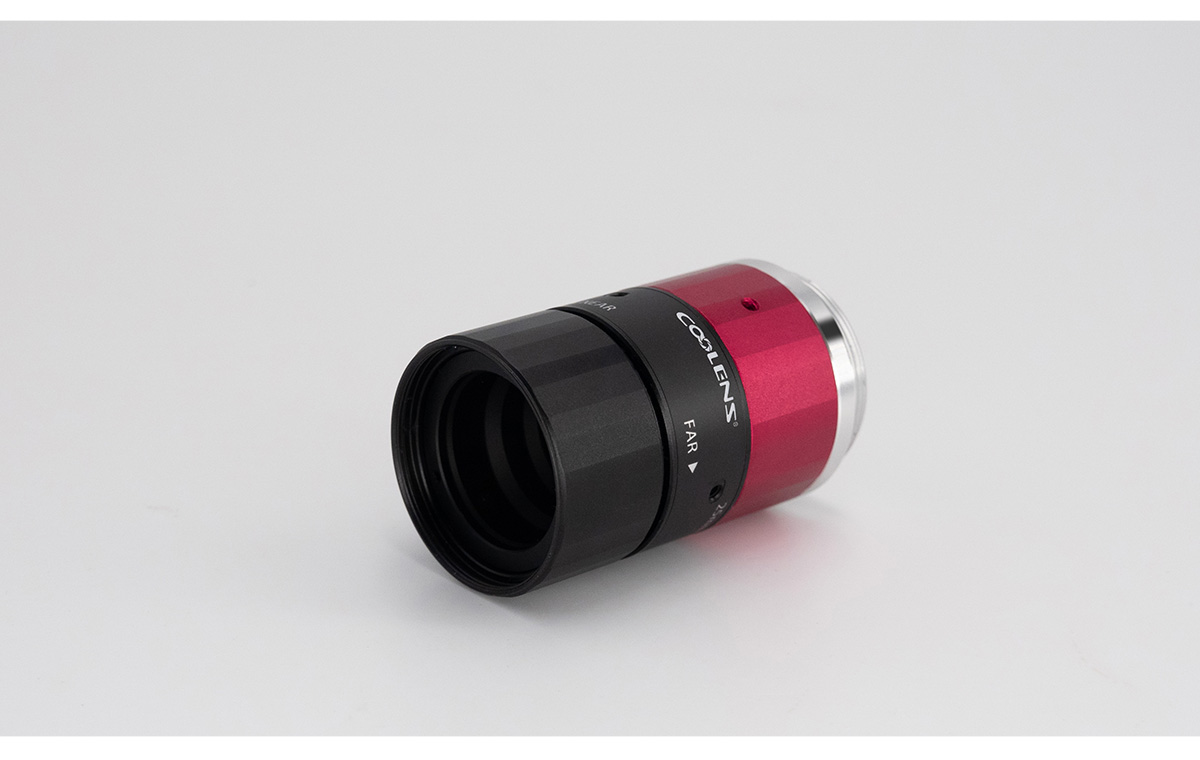

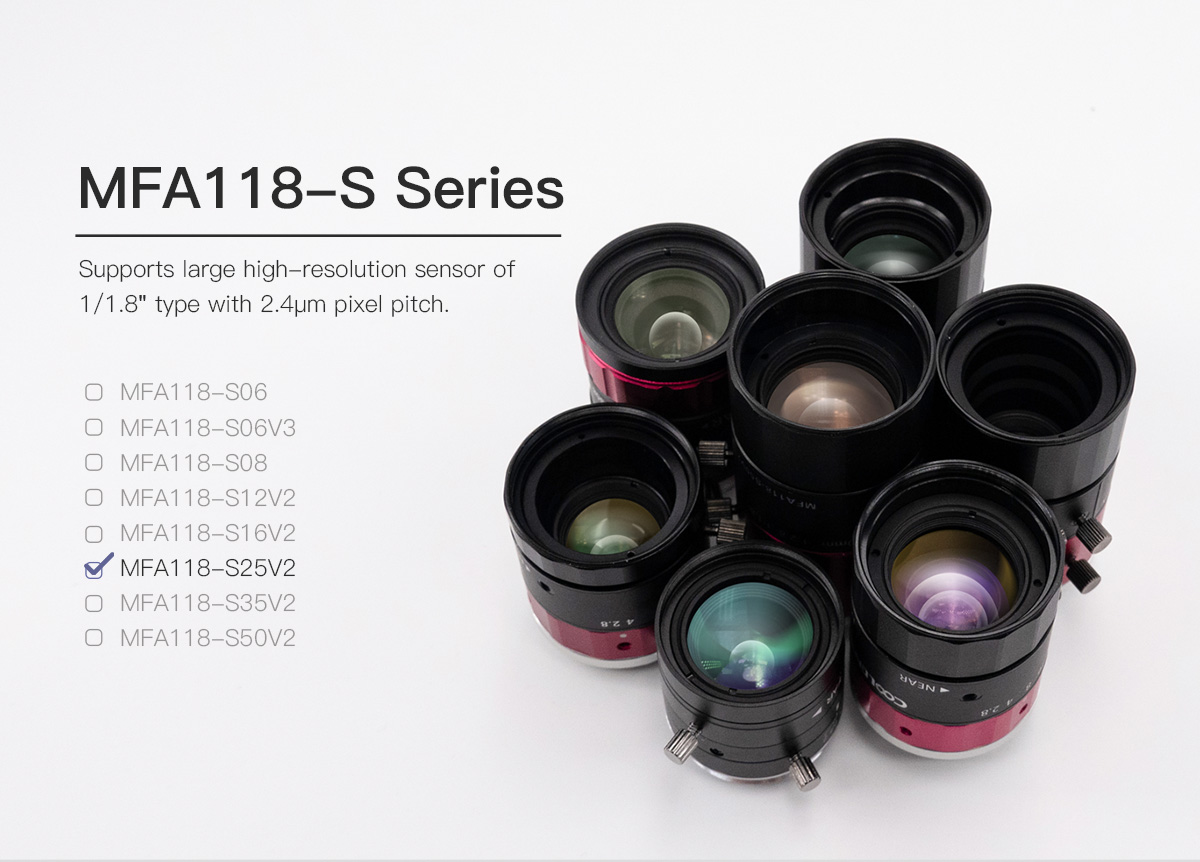

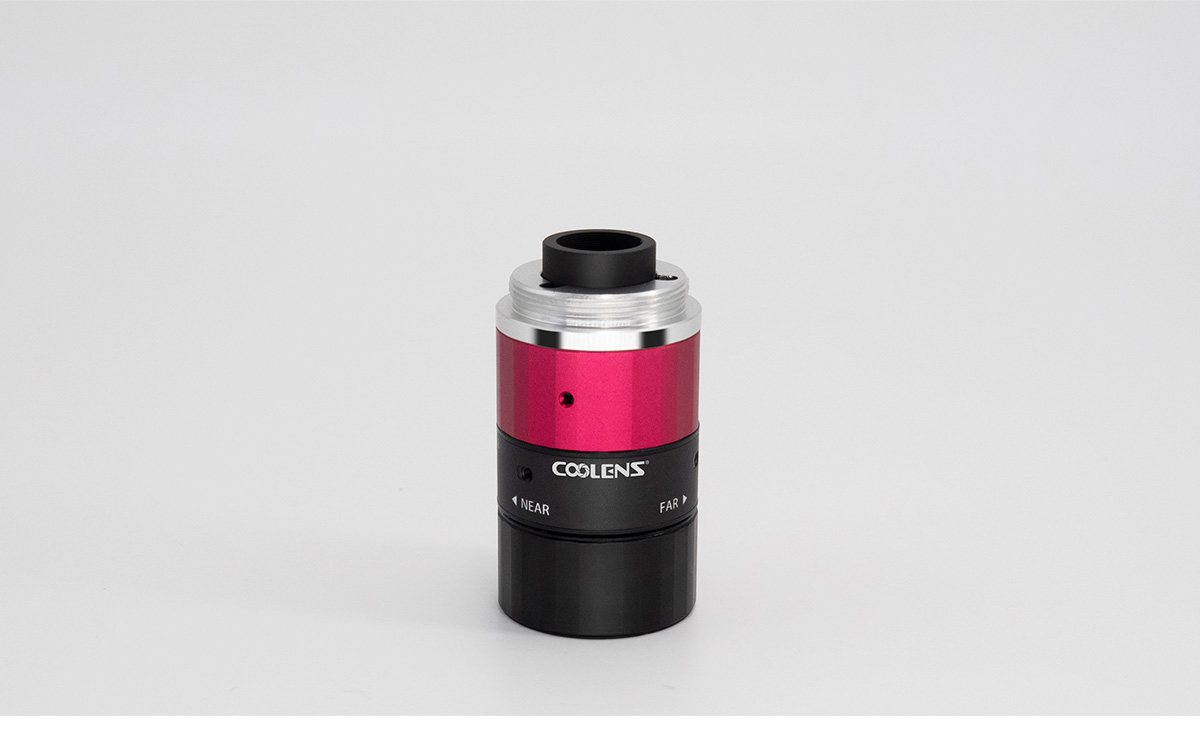

Product Photograph
