Model No. | MFA118-S35V2 | Image Circle Diameter (Φmm) | 1/1.8" | ||||
Focal Length(mm) | 35 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.180 | MTF30 (lp/mm) | 150 | ||||
Type | Fixed Focal Length | Support Cameras | 6M | ||||
Mount | C | Back Focal Length | 13.9 mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | M27 x P0.5 | ||||
Max. Image Format | 1/1.8" (φ9.4mm) | Distortion | <0.05% | ||||
Angle of View | D | 1/1.8" |
13.2°
|
1/2" |
11.8°
|
1/3" |
8.9°
|
H |
10.9°
|
9.5°
|
7.1°
|
||||
V |
7.3°
|
7.1°
|
5.3°
|
||||
M.o.D | 0.15m | Object Dimension at M.o.D | 1/1.8" |
31.63mm x 21.09mm
|
|||

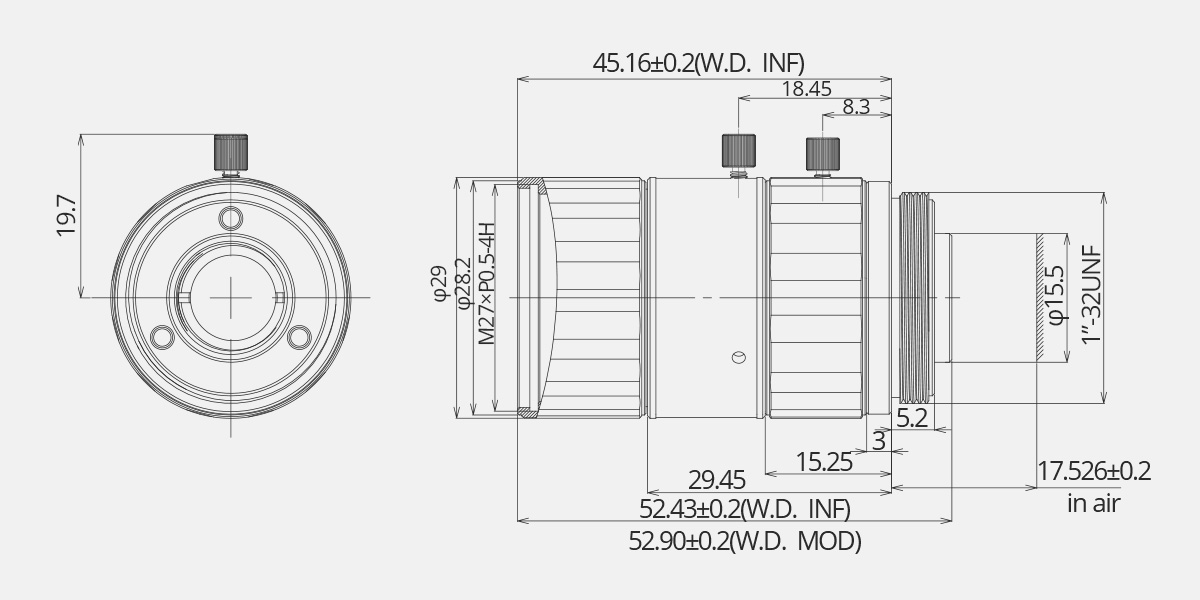

Length (mm) |
45.16
|
1/2.3" |
27.63mm x 19.80mm
|
||||
Flange Back Length | 17.526mm in Air | ||||||
Structure |
5 Groups, 7 Elements
|
Operating Temperature | -10°C — 50°C | ||||

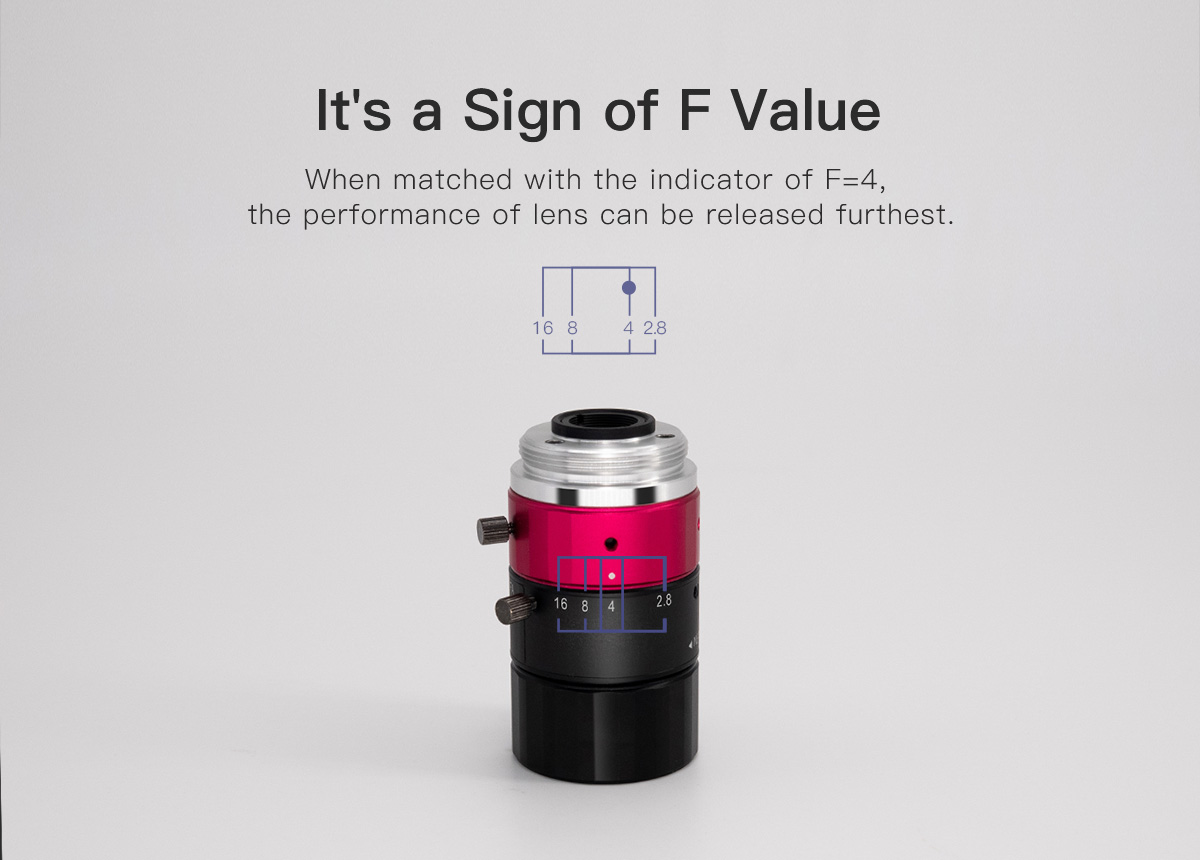

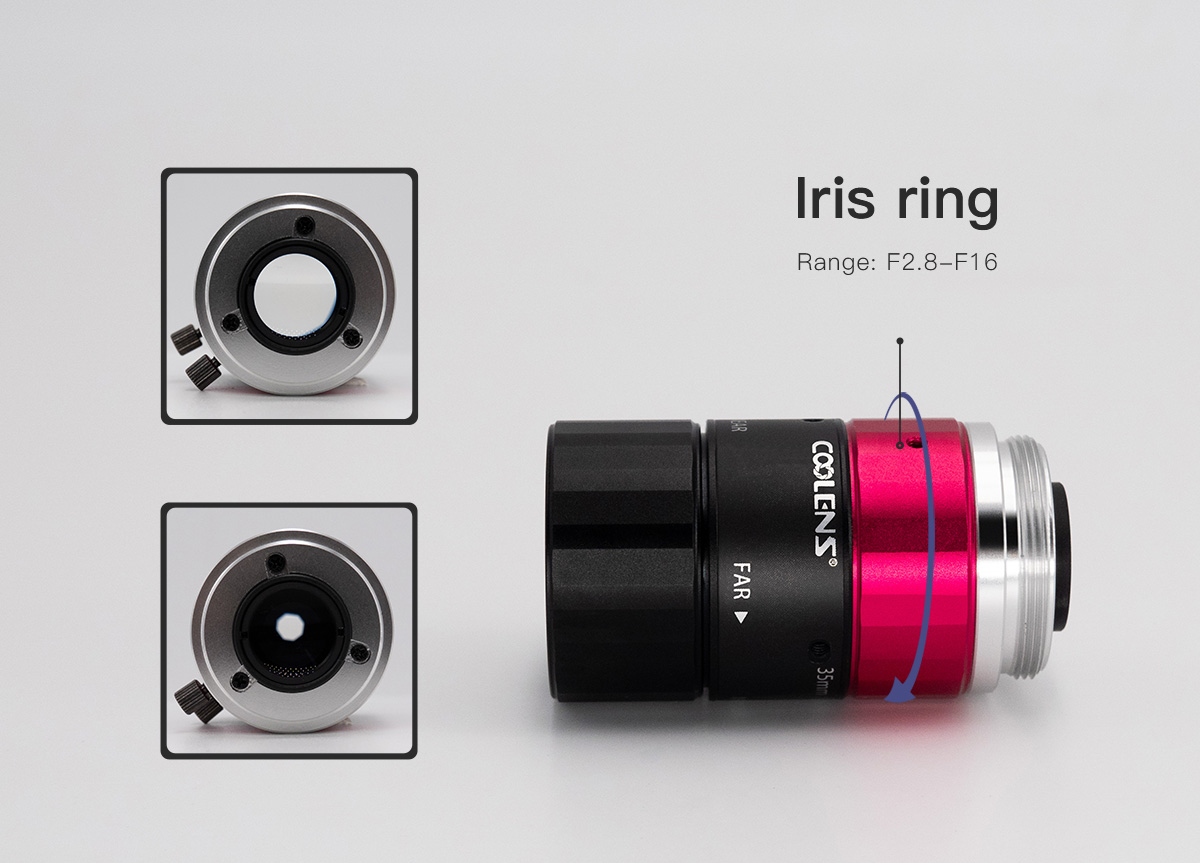

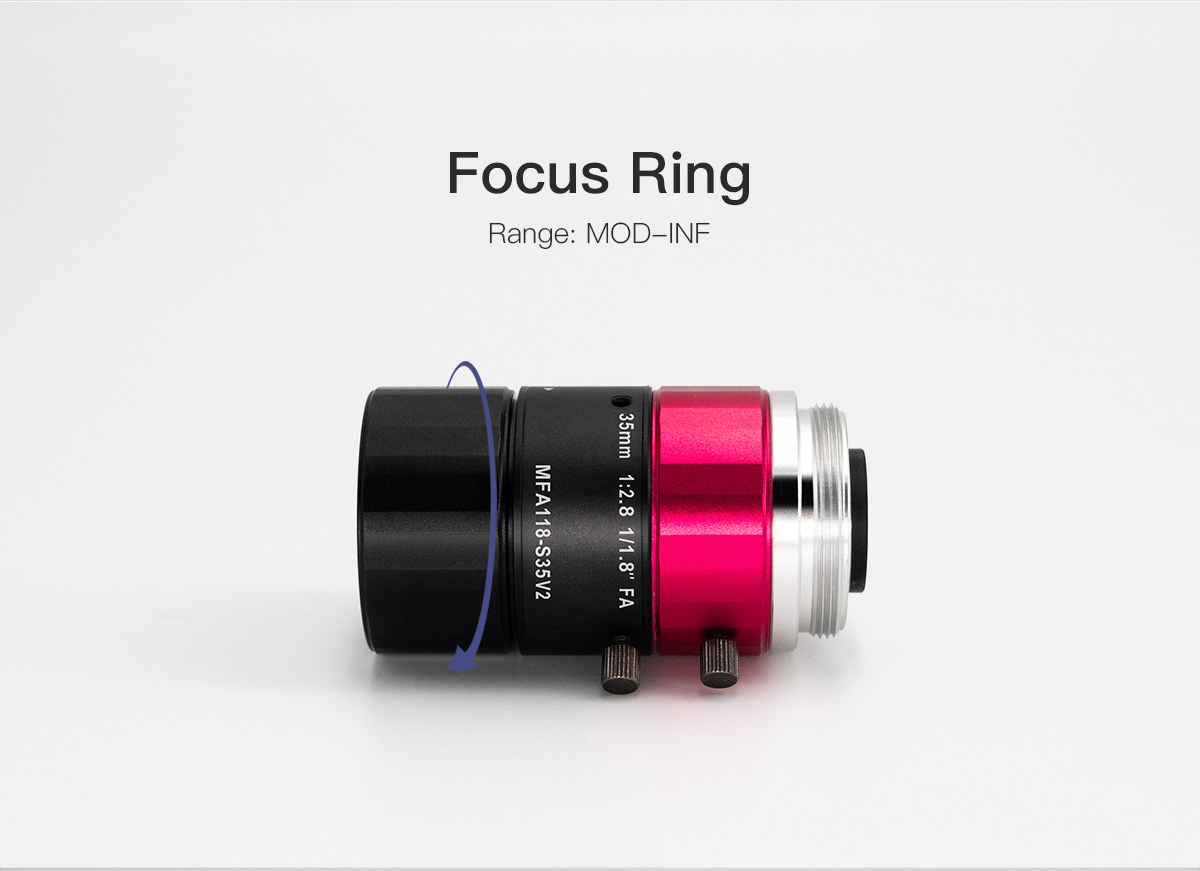

Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | MOD-INF | ||
Spectral Transmission | AT 436nm-656nmT≥85% |

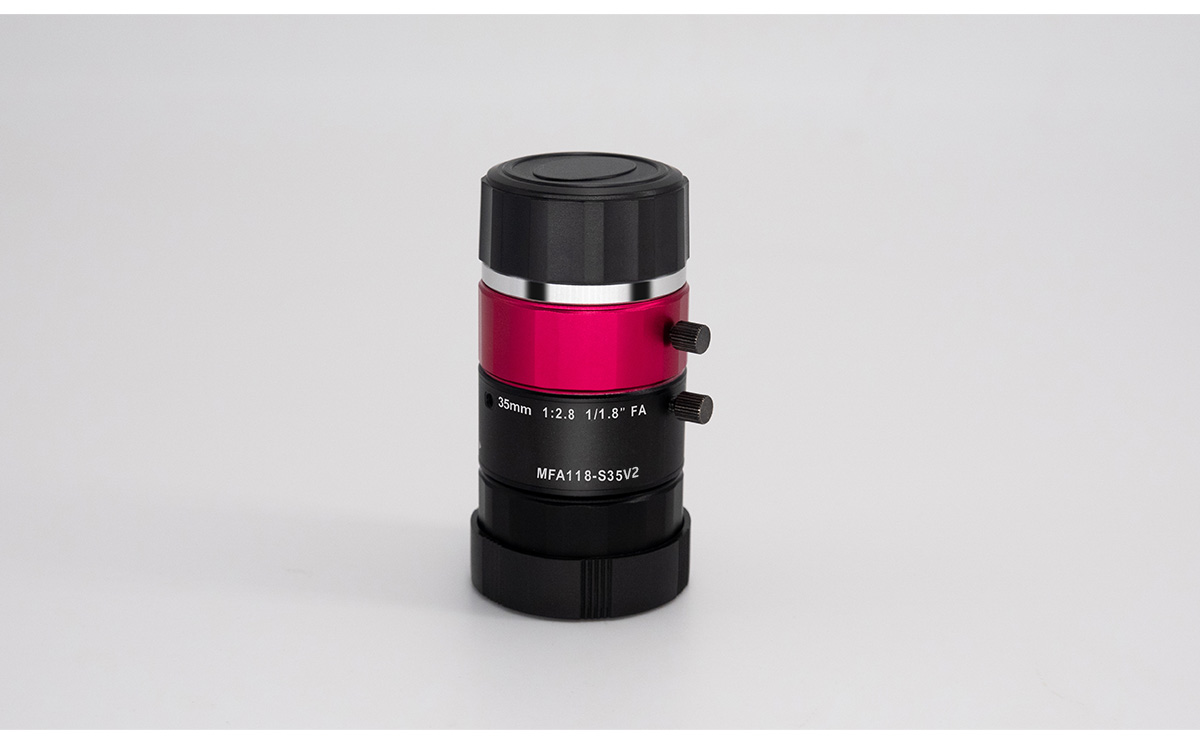

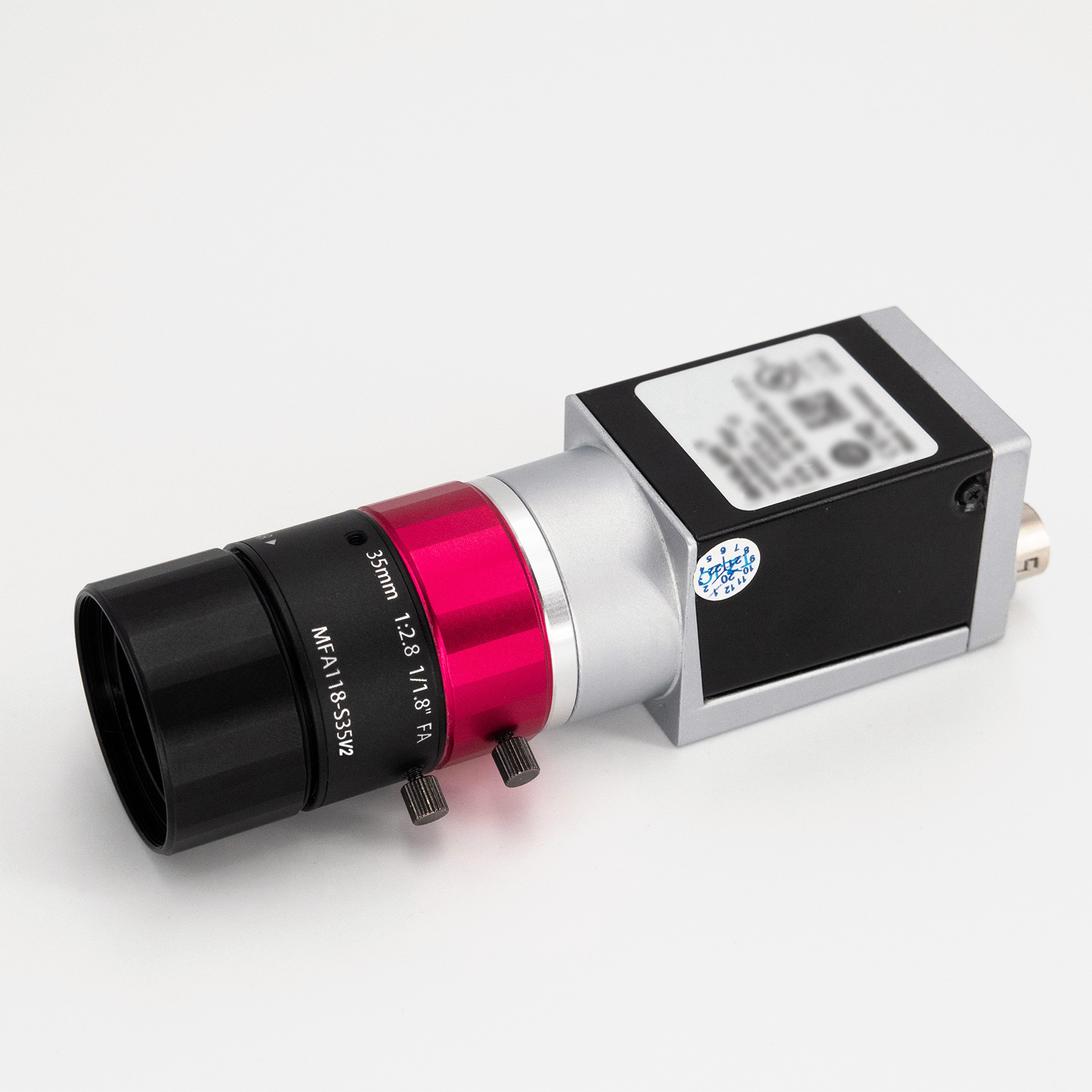

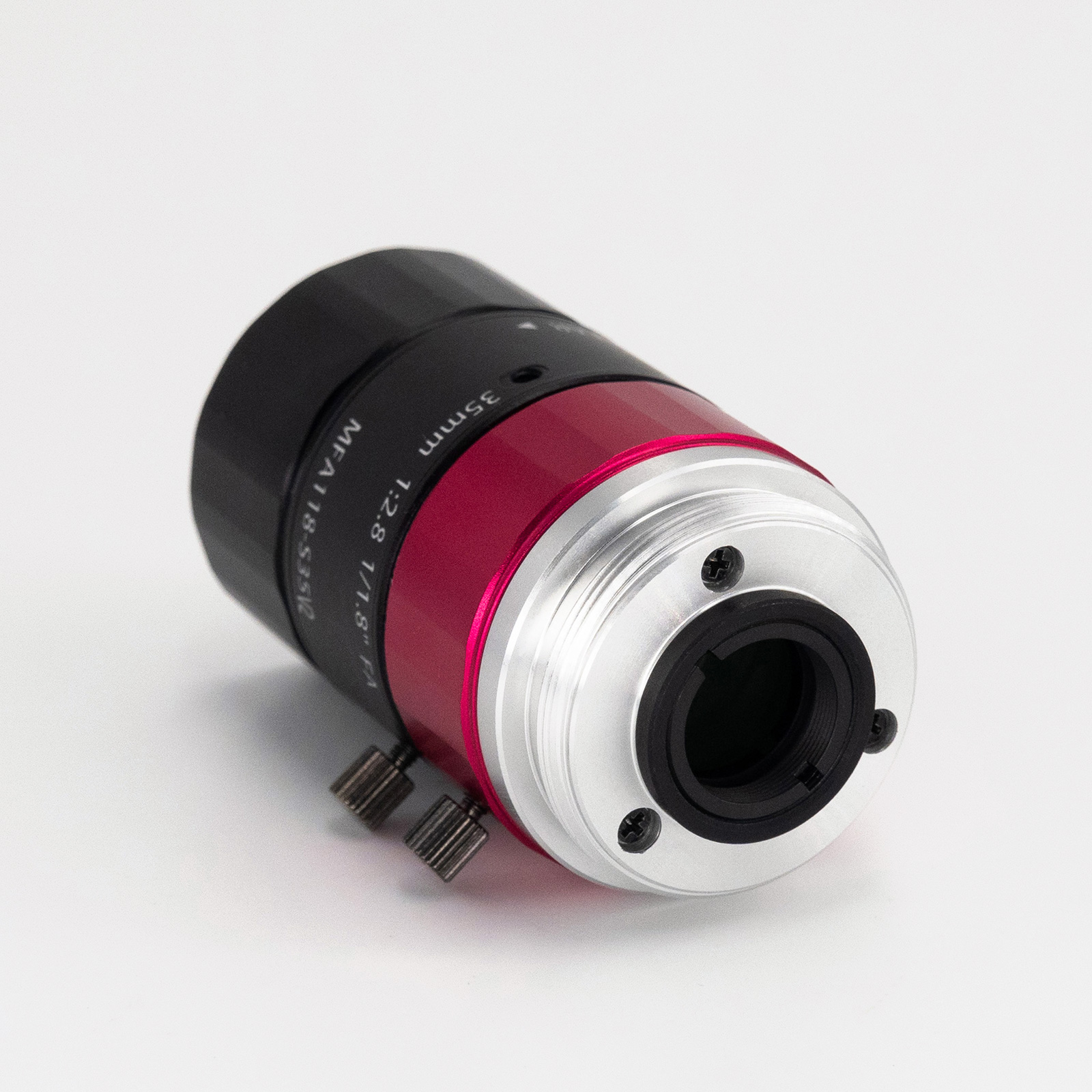

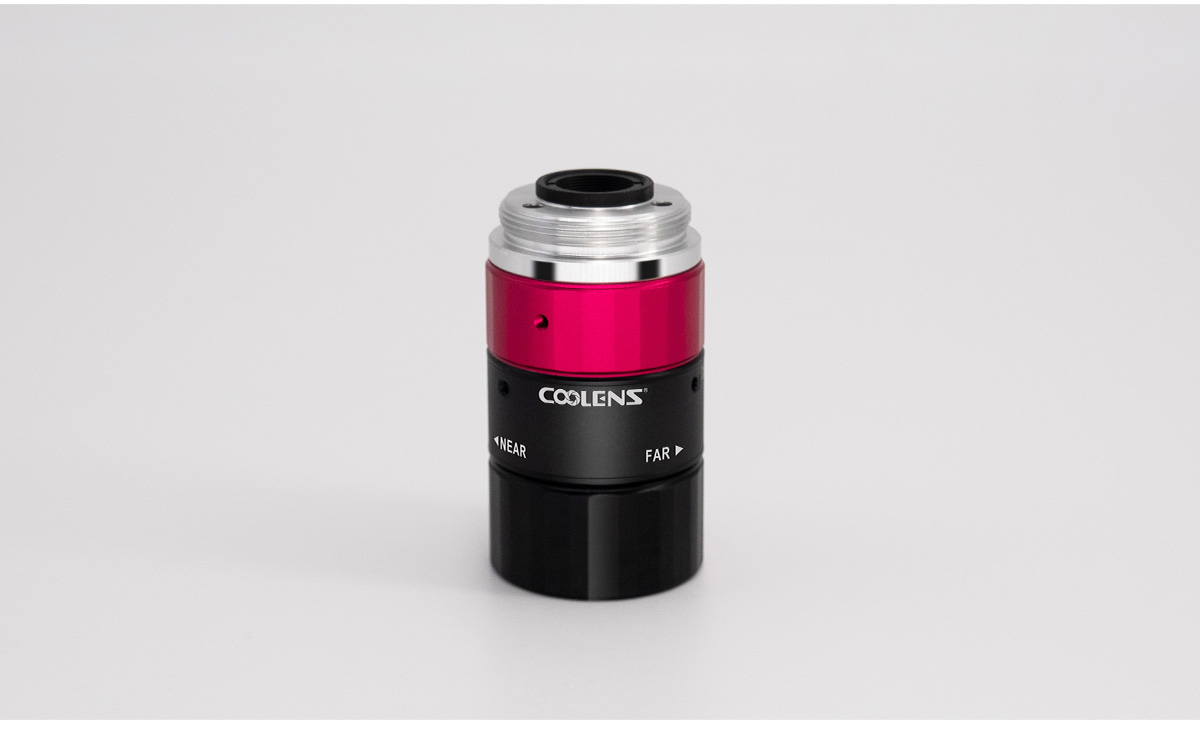

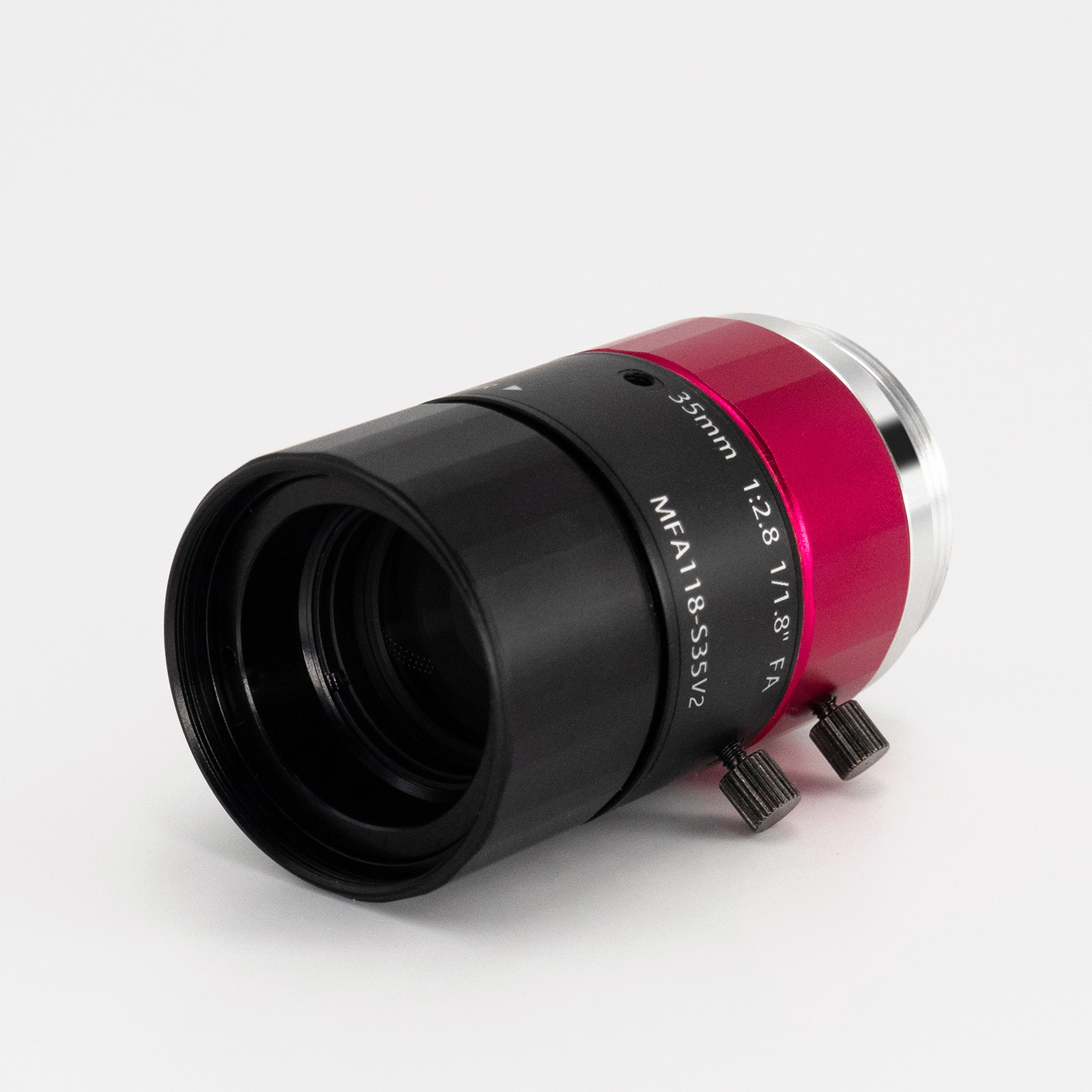

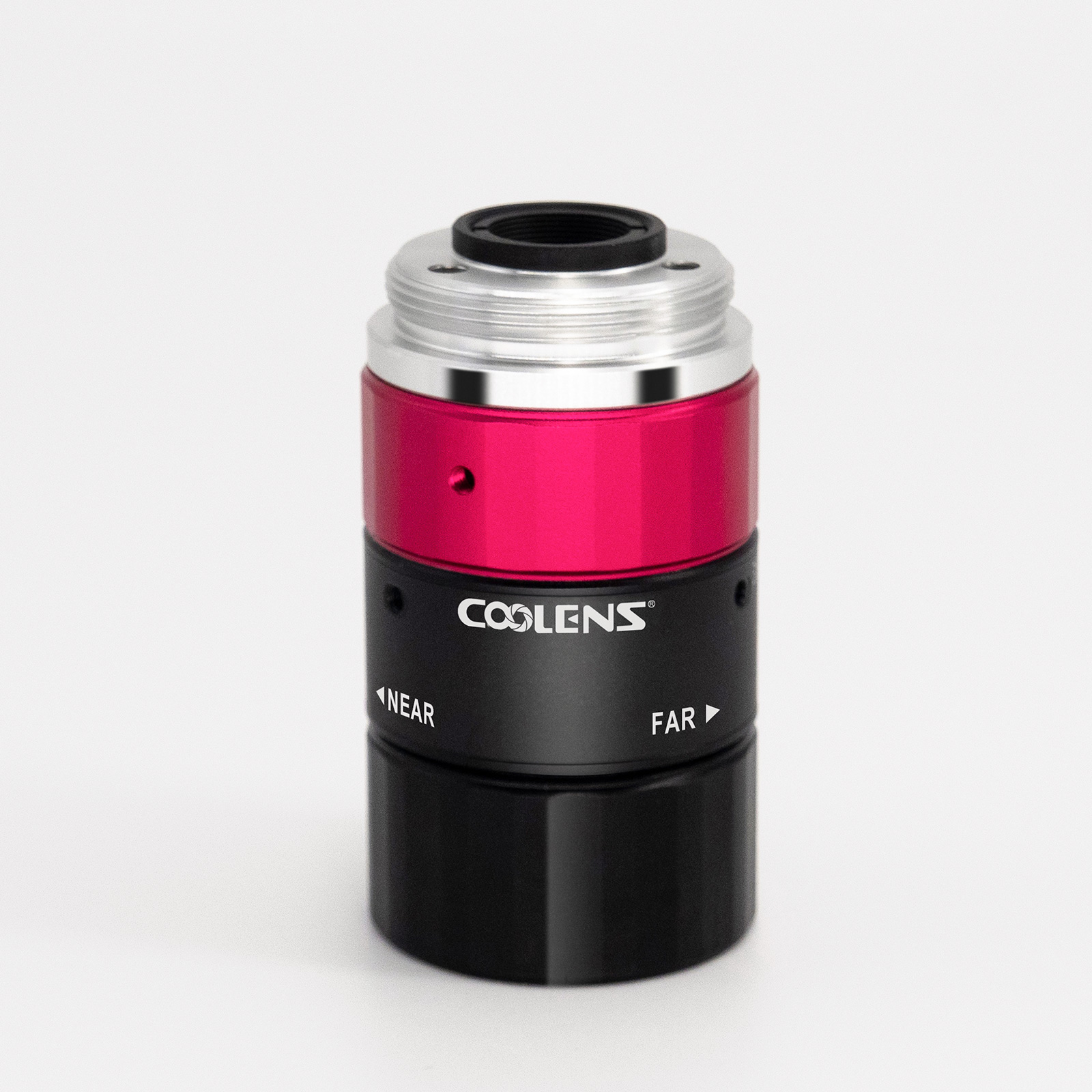

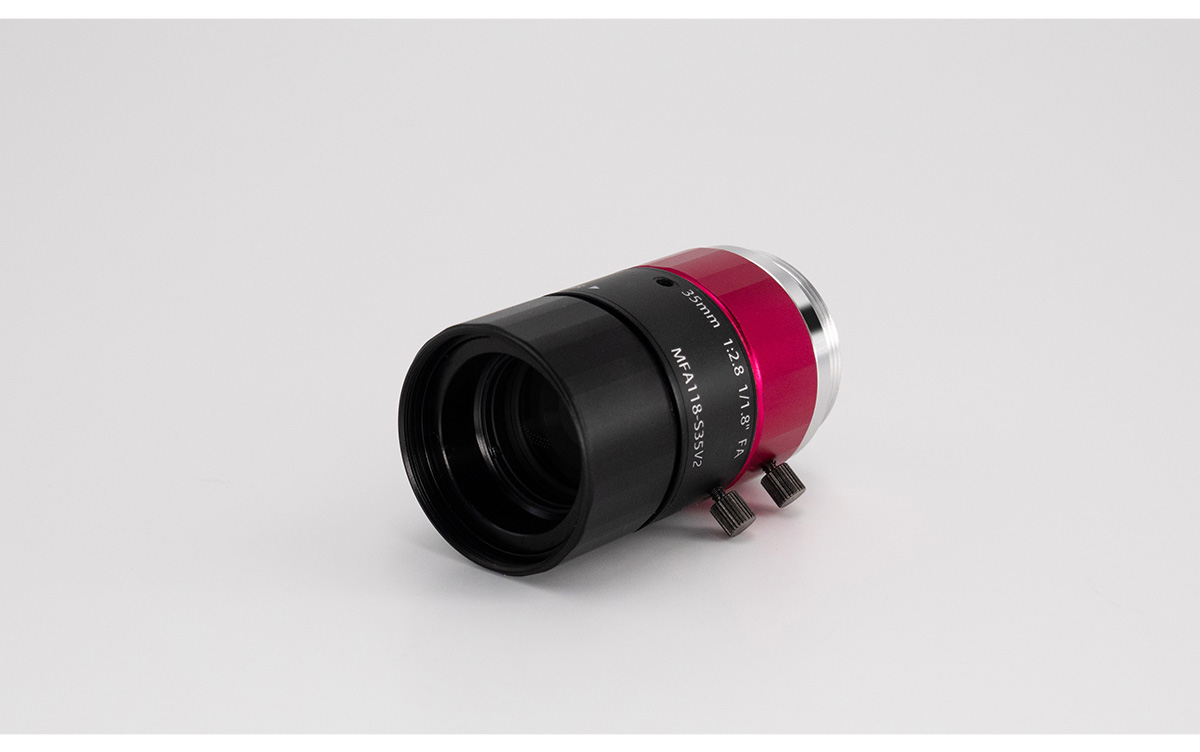

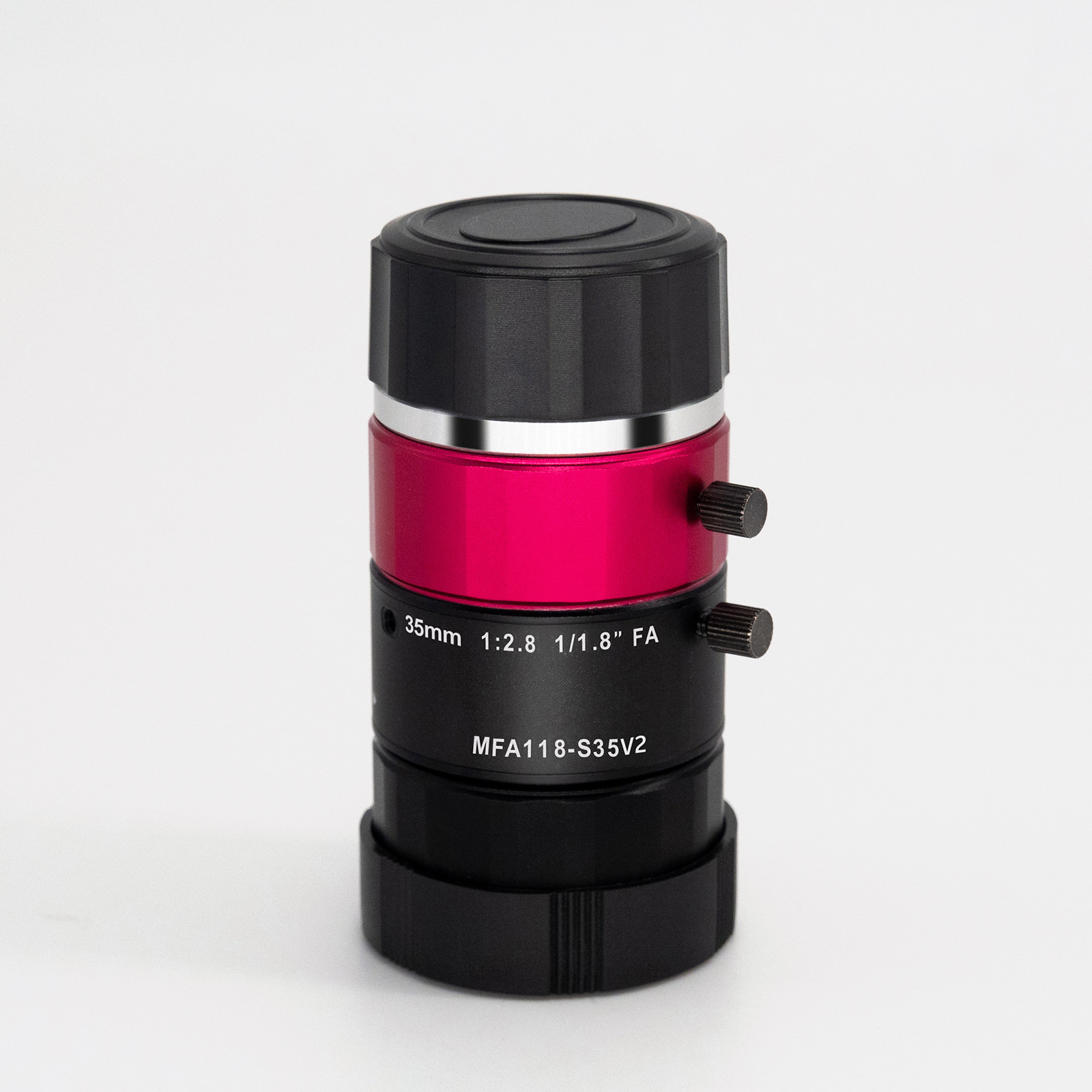

1/1.8" 35mm Fixed Focal Length Lens | MFA118-S35V2 COOLENS®
$77.00 USD
Shipping calculated at checkout.
Quantity










Description
-
Description
Model No. | MFA118-S35V2 | Image Circle Diameter (Φmm) | 1/1.8" | ||||
Focal Length(mm) | 35 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.180 | MTF30 (lp/mm) | 150 | ||||
Type | Fixed Focal Length | Support Cameras | 6M | ||||
Mount | C | Back Focal Length | 13.9 mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | M27 x P0.5 | ||||
Max. Image Format | 1/1.8" (φ9.4mm) | Distortion | <0.05% | ||||
Angle of View | D | 1/1.8" |
13.2°
|
1/2" |
11.8°
|
1/3" |
8.9°
|
H |
10.9°
|
9.5°
|
7.1°
|
||||
V |
7.3°
|
7.1°
|
5.3°
|
||||
M.o.D | 0.15m | Object Dimension at M.o.D | 1/1.8" |
31.63mm x 21.09mm
|
|||
Length (mm) |
45.16
|
1/2.3" |
27.63mm x 19.80mm
|
||||
Flange Back Length | 17.526mm in Air | ||||||
Structure |
5 Groups, 7 Elements
|
Operating Temperature | -10°C — 50°C | ||||
Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | MOD-INF | ||
Spectral Transmission | AT 436nm-656nmT≥85% |
