1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®

Name: 1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®
Brand: COOLENS
SKU: MFA118-S08
Price: 77 USD
Availability: InStock
Rating: 0 (0 reviews)

MFA118-S08

Image Circle: 1/1.8" Focal Length: 8mm MTF30 (lp/mm):150 Mount: C

$77.00 USD

Quantity

Description

Model No.		MFA118-S08		Image Circle Diameter (Φmm)		1/1.8"
Focal Length(mm)		8		Magnification(x)		Adjustable
Working Distance(mm)		Min.100		MTF30 (lp/mm)		150
Type		Fixed Focal Length		Support Cameras		6M
Mount		C		Back Focal Length		10.4 mm in Air
F NO.		F2.8 - F16		Filter Size		M27 x P0.5

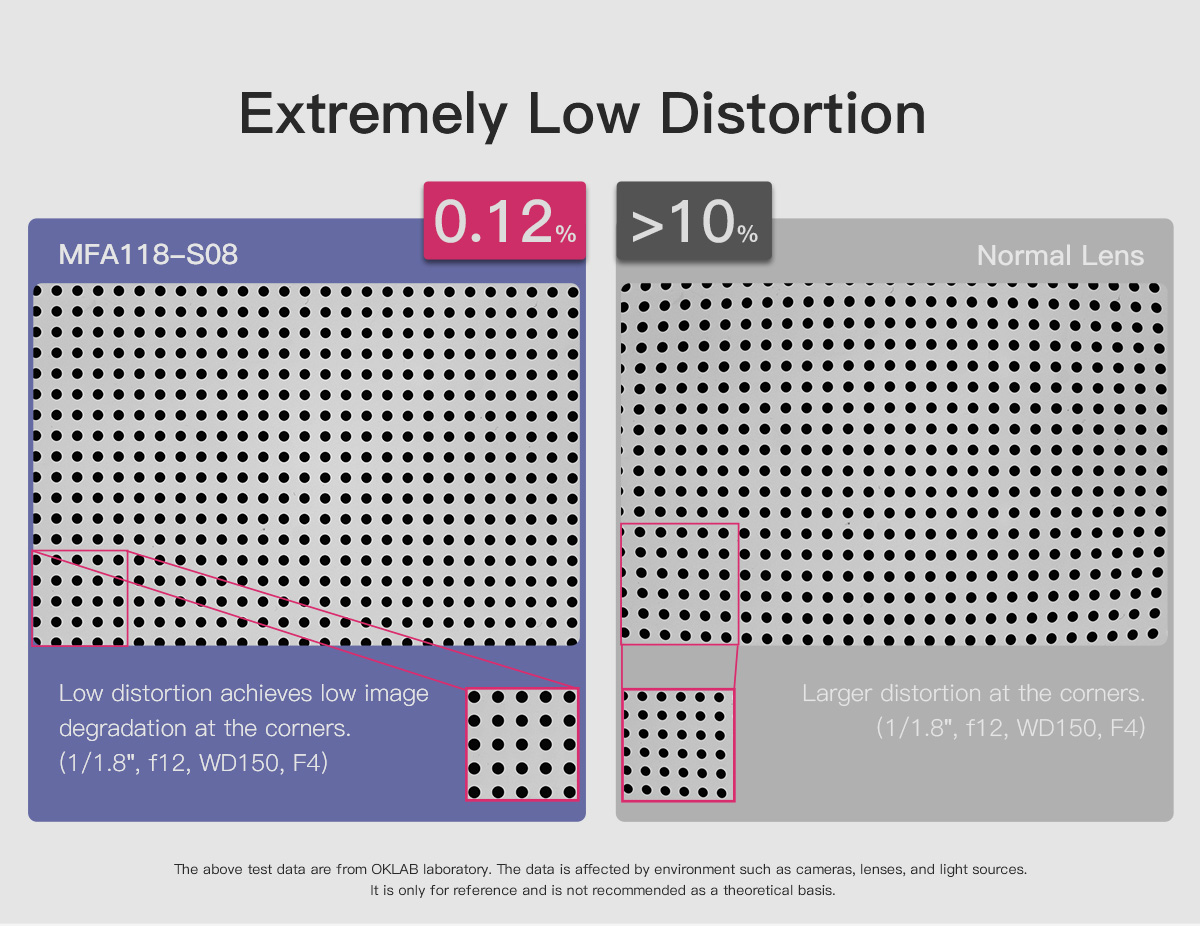

Max. Image Format		1/1.8" (φ9.4mm)		Distortion		<0.12%
Angle of View	D	1/1.8"	58.5°	1/2"	53.4°	1/3"	41.3°
	H		49.3°		43.5°		33.2°
	V		34.0°		33.2°		25.2°
M.o.D		0.1m		Object Dimension at M.o.D	1/1.8"	105.33mm x 70.22mm
Length (mm)		99.5			1/2.3"	92.00mm x 65.94mm
Flange Back Length		17.526mm in Air
Structure		7 Groups, 9 Elements Operating Temperature -10°C — 50°C		Operating Temperature		-10°C — 50°C
Operation of Iris		Range	F2.8 - F16	Operation of Focus		Range	MOD-INF</td
		Angle	28°			Angle	164.6°
Spectral Transmission		AT 436nm-656nmT≥85%

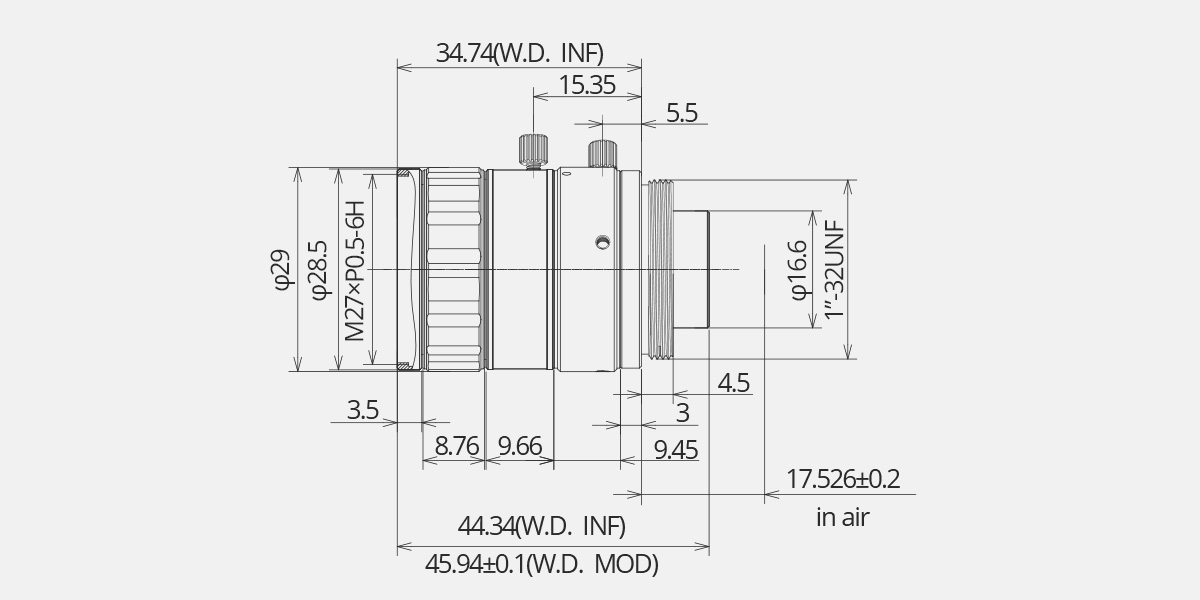

Dimensions

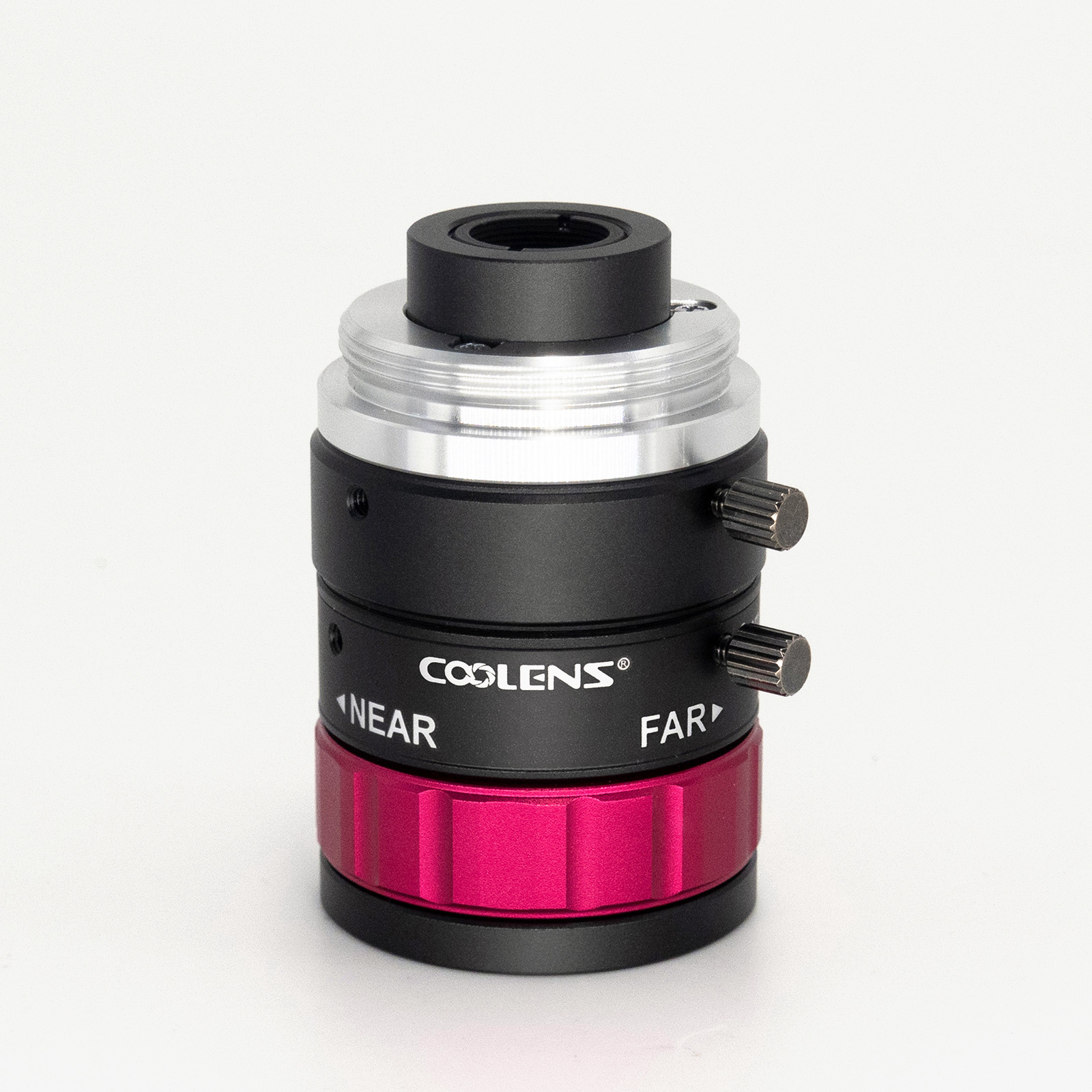

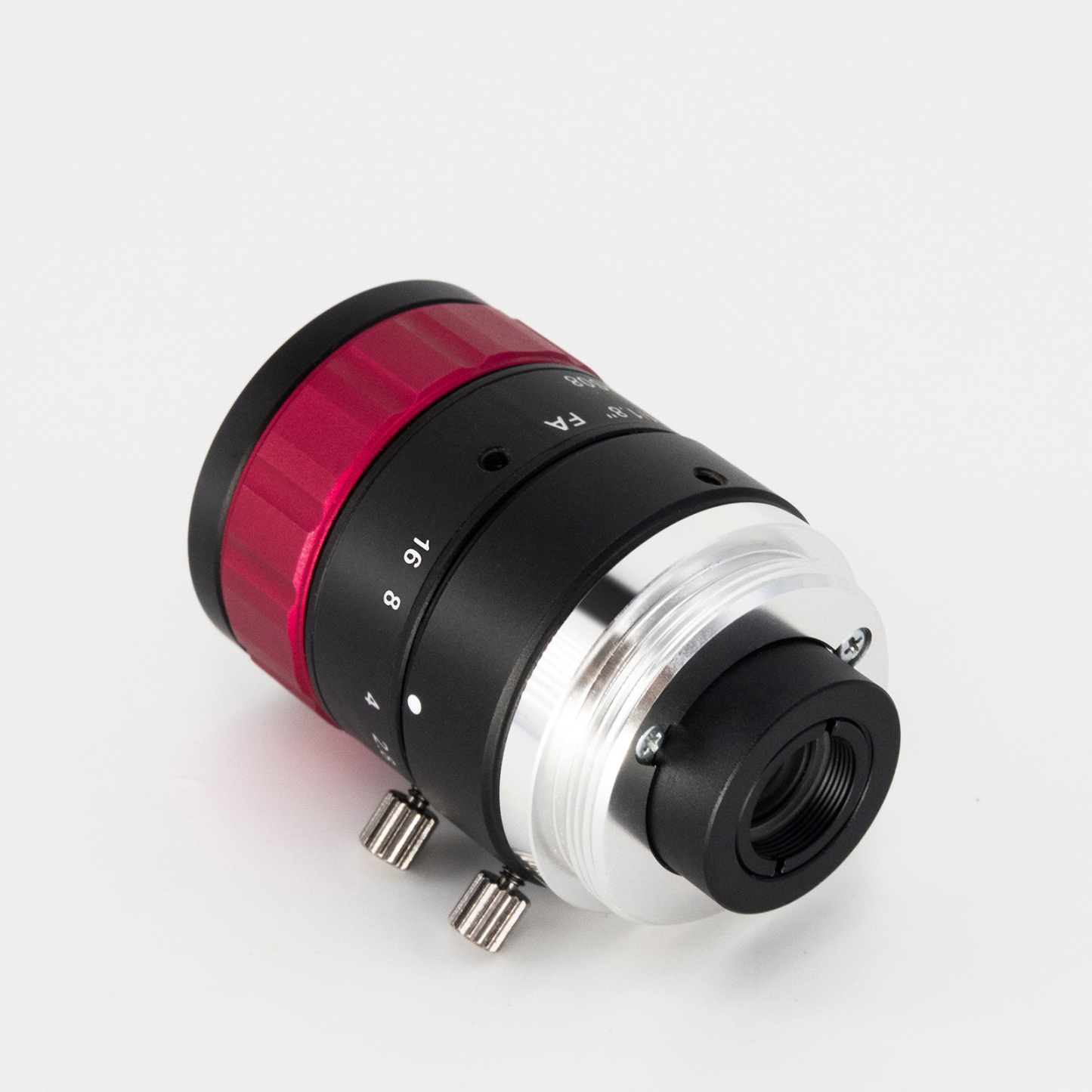

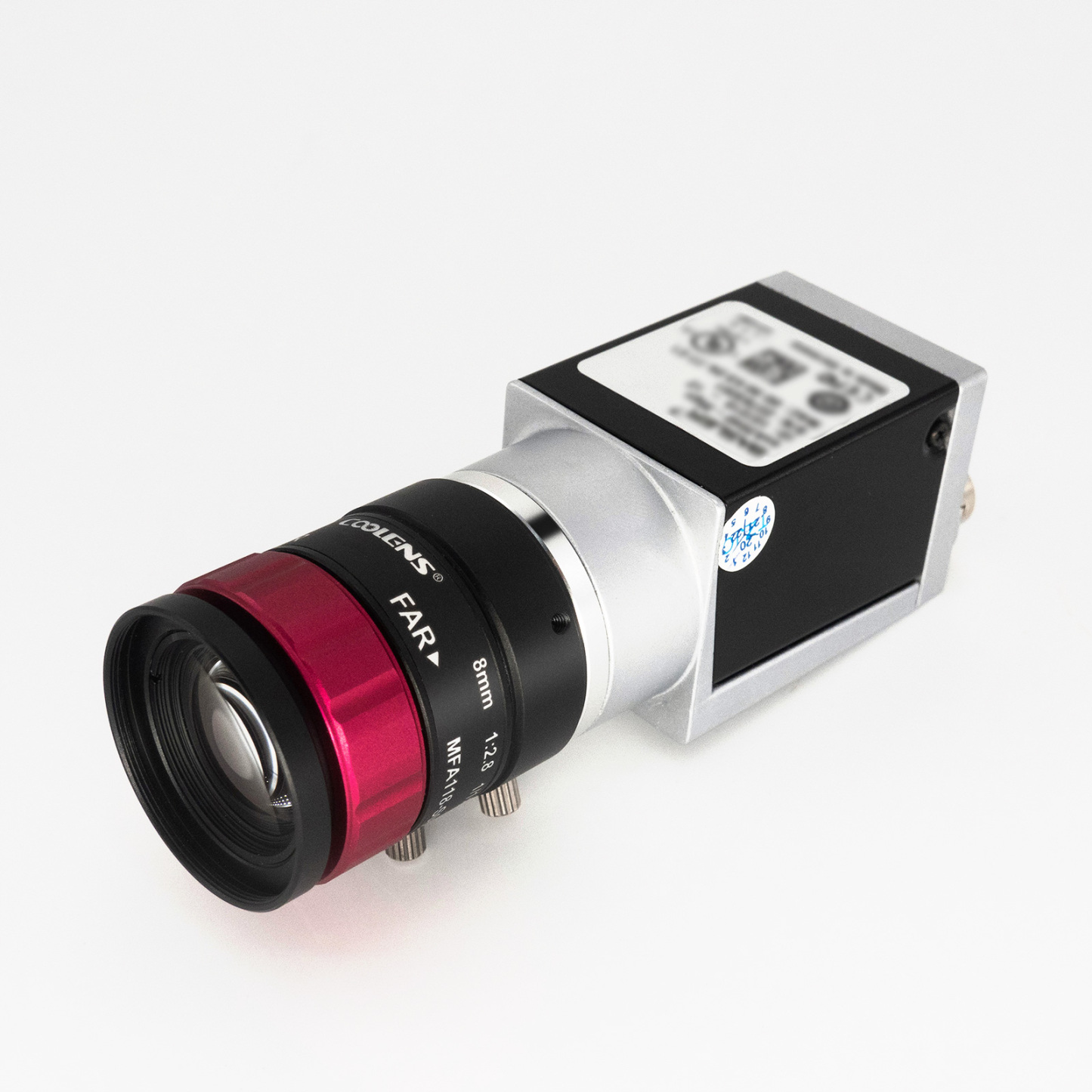

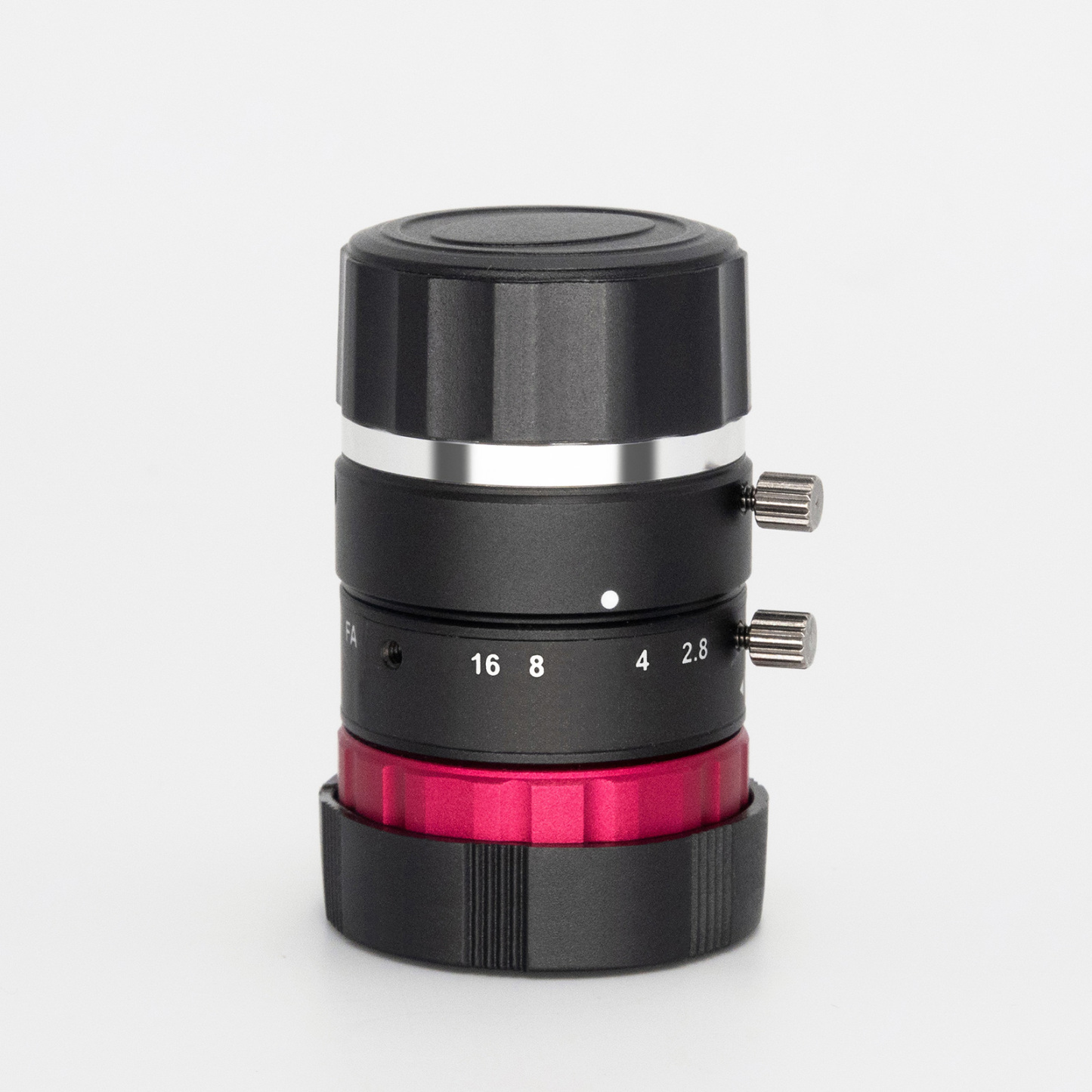

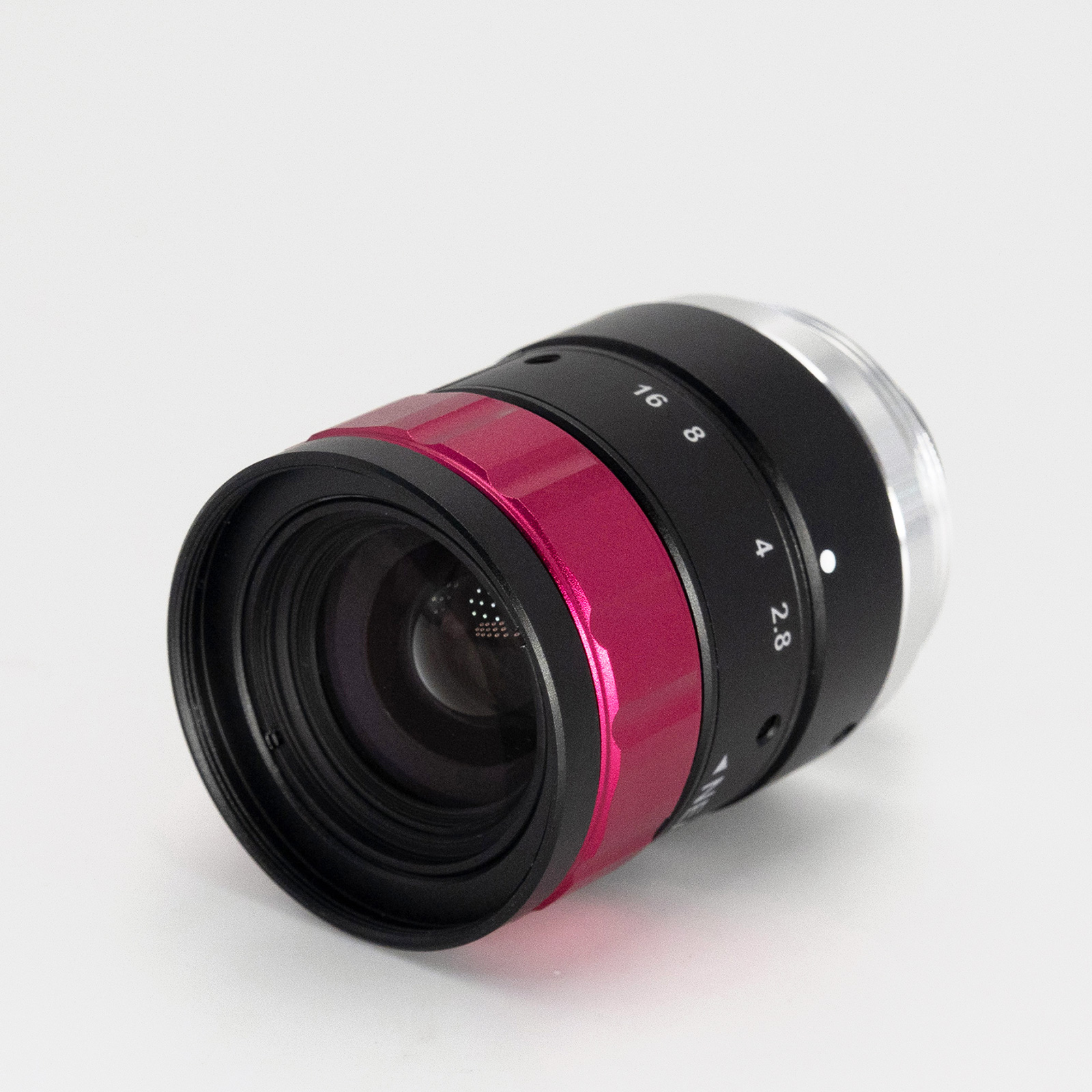

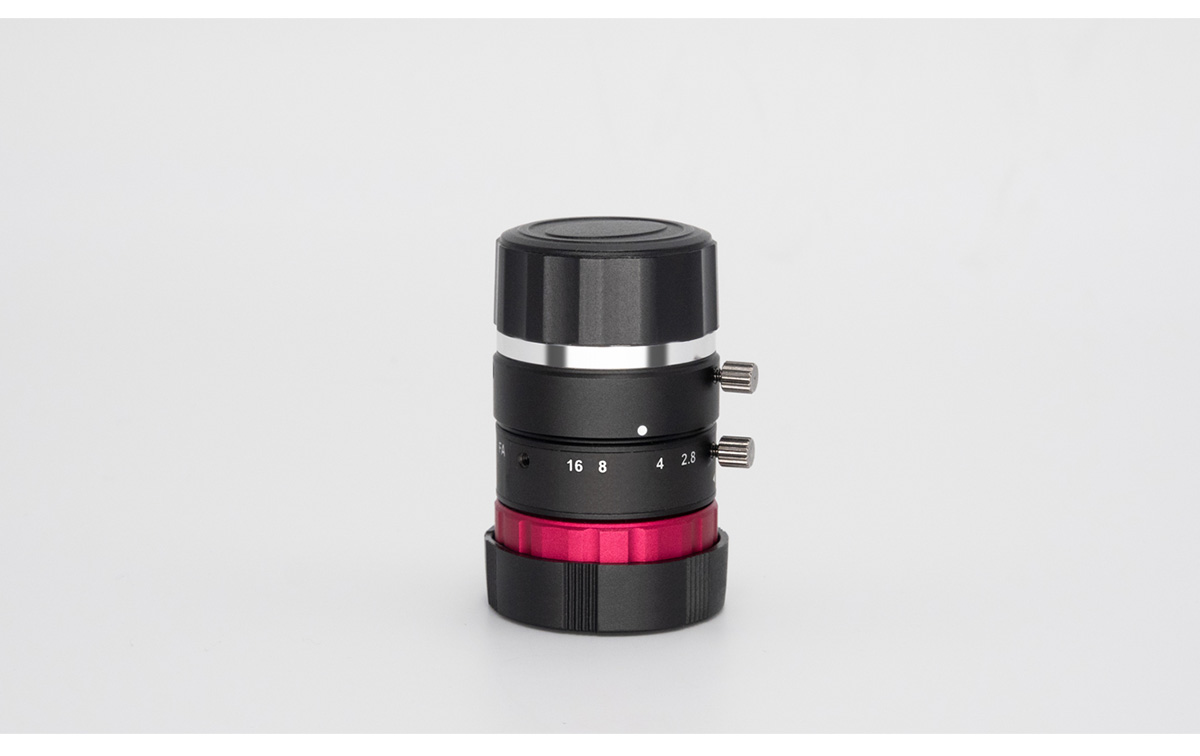

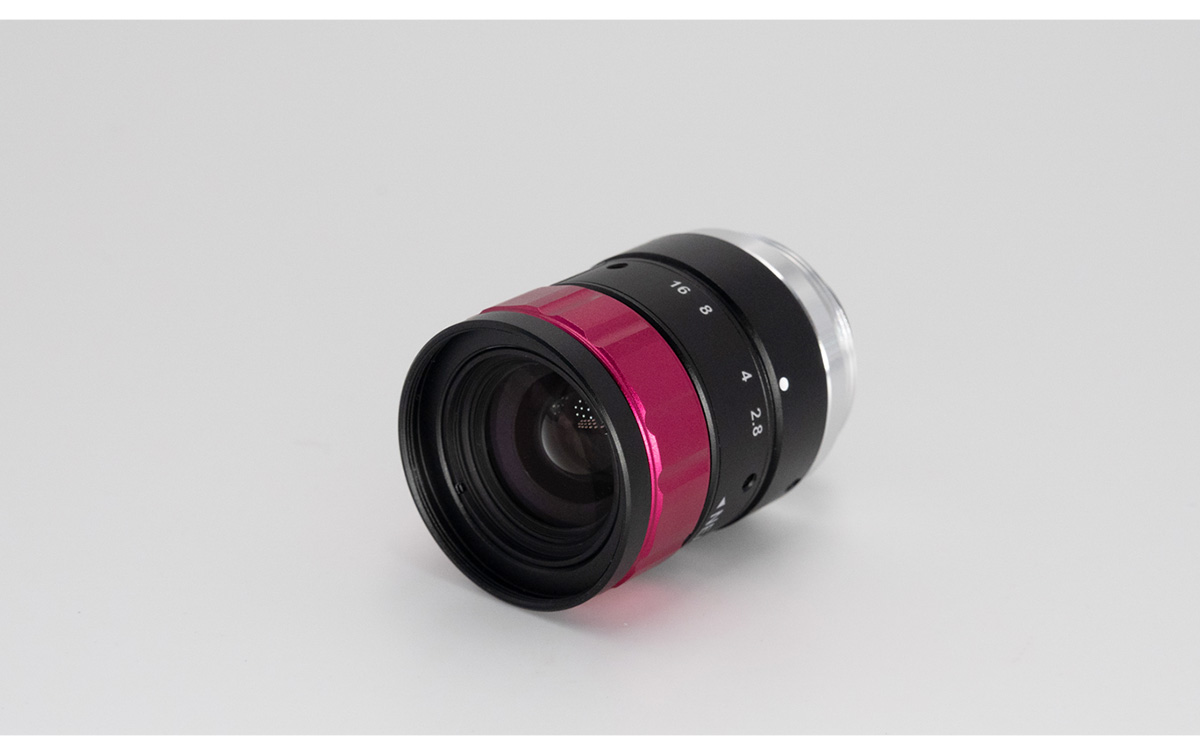

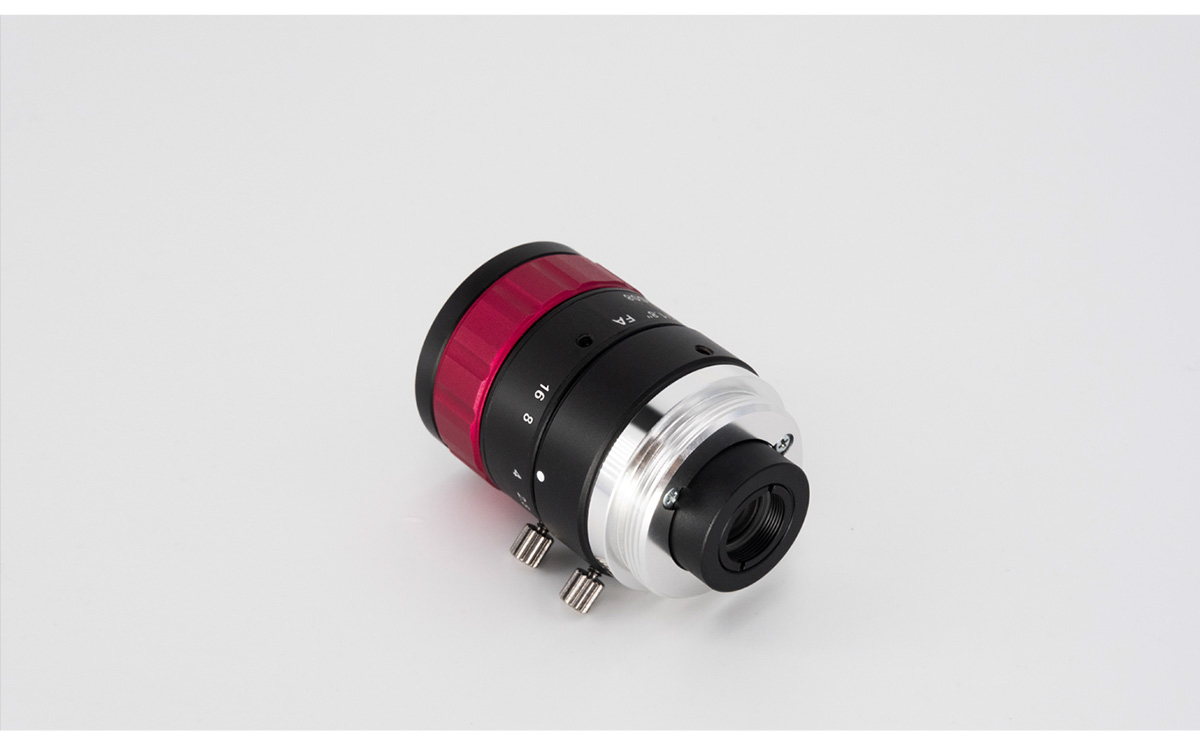

Product Photograph
