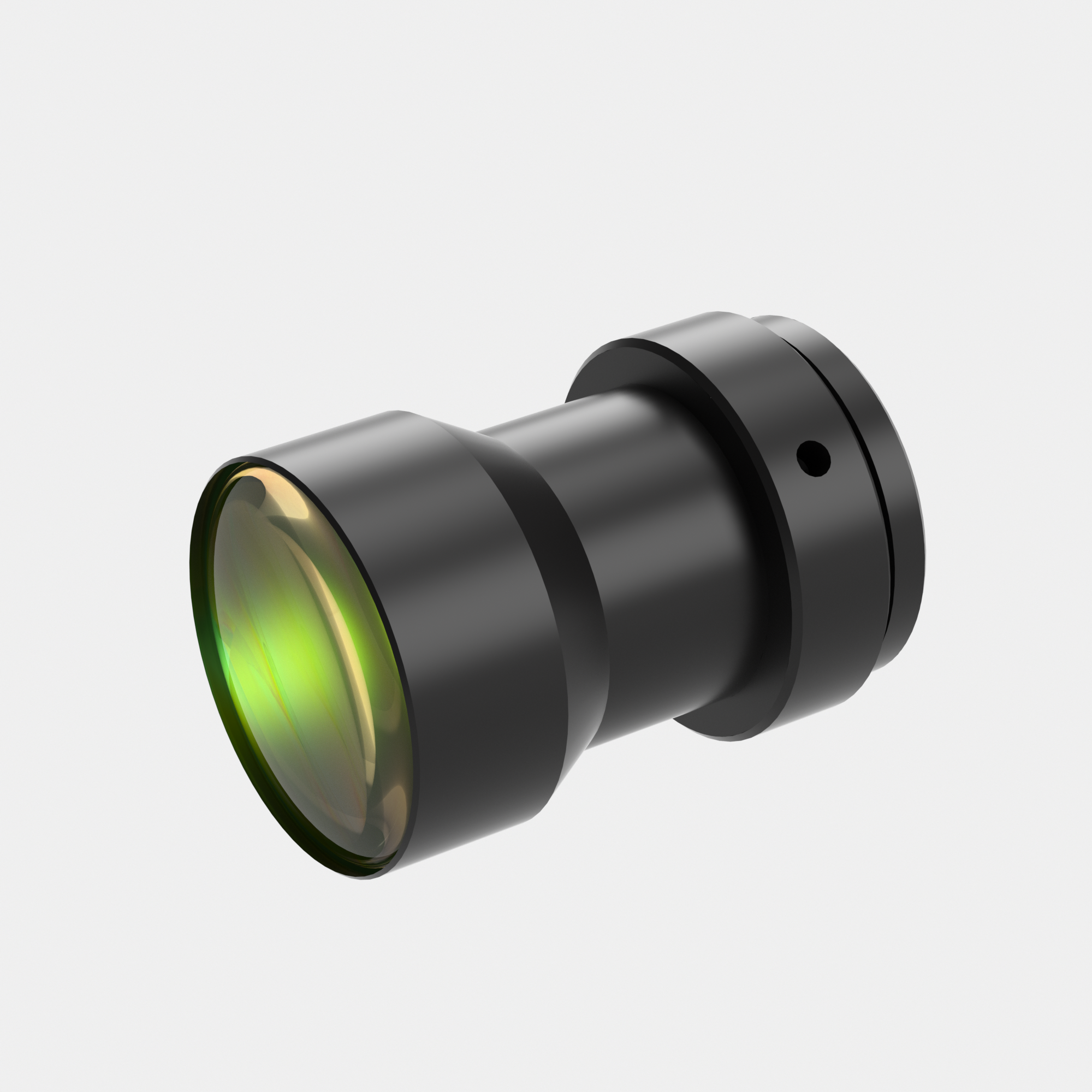

1/2" 0.12X Industrial Lenses | WH012-250A COOLENS®

WH012-250A
Image Circle:8(1/2")mm, Magnification:0.12X, WD:250mm, NA:0.00497, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH012-250A Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.12 Working Distance(mm) 250
NA 0.0050 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.2
MTF30 (lp/mm) 80 Object Resolution(μm) 67.5
Depth of Field(mm) 67.8 Distortion Typical(% max) 0.53
Telecentricity Typical (°max) Non-telecentric Length (mm) 36.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 30
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/4"(3.2x2.4)  26.7x20.0
1/3"(4.8x3.6)  40.0x30.0
1/2"(6.4x4.8) 53.0x40.0

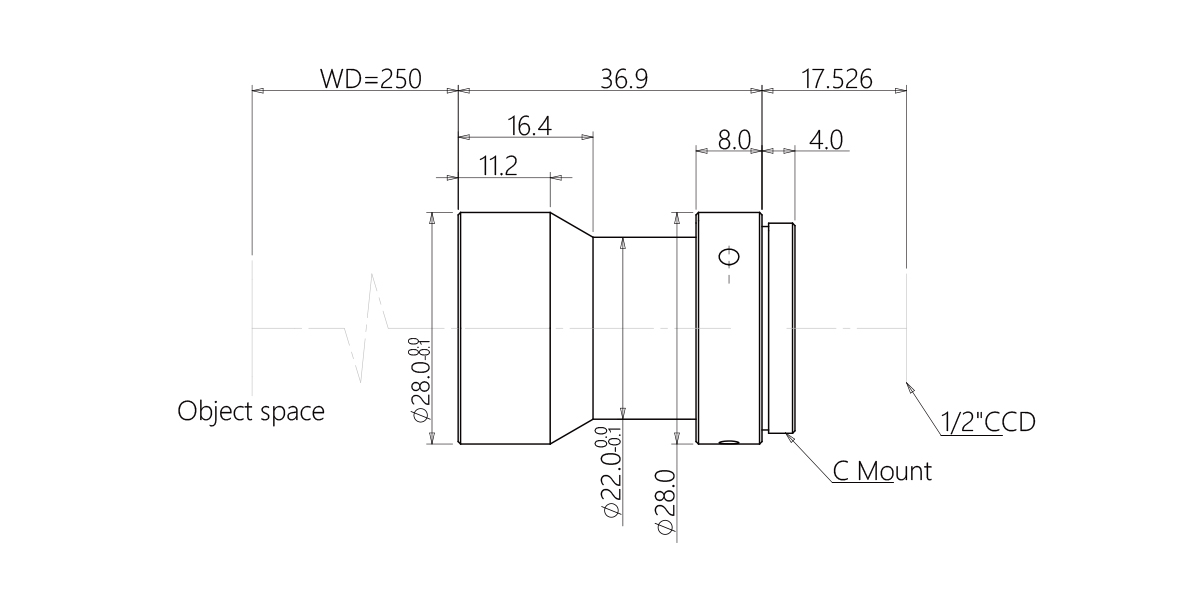

Dimensions

Naming Rule
