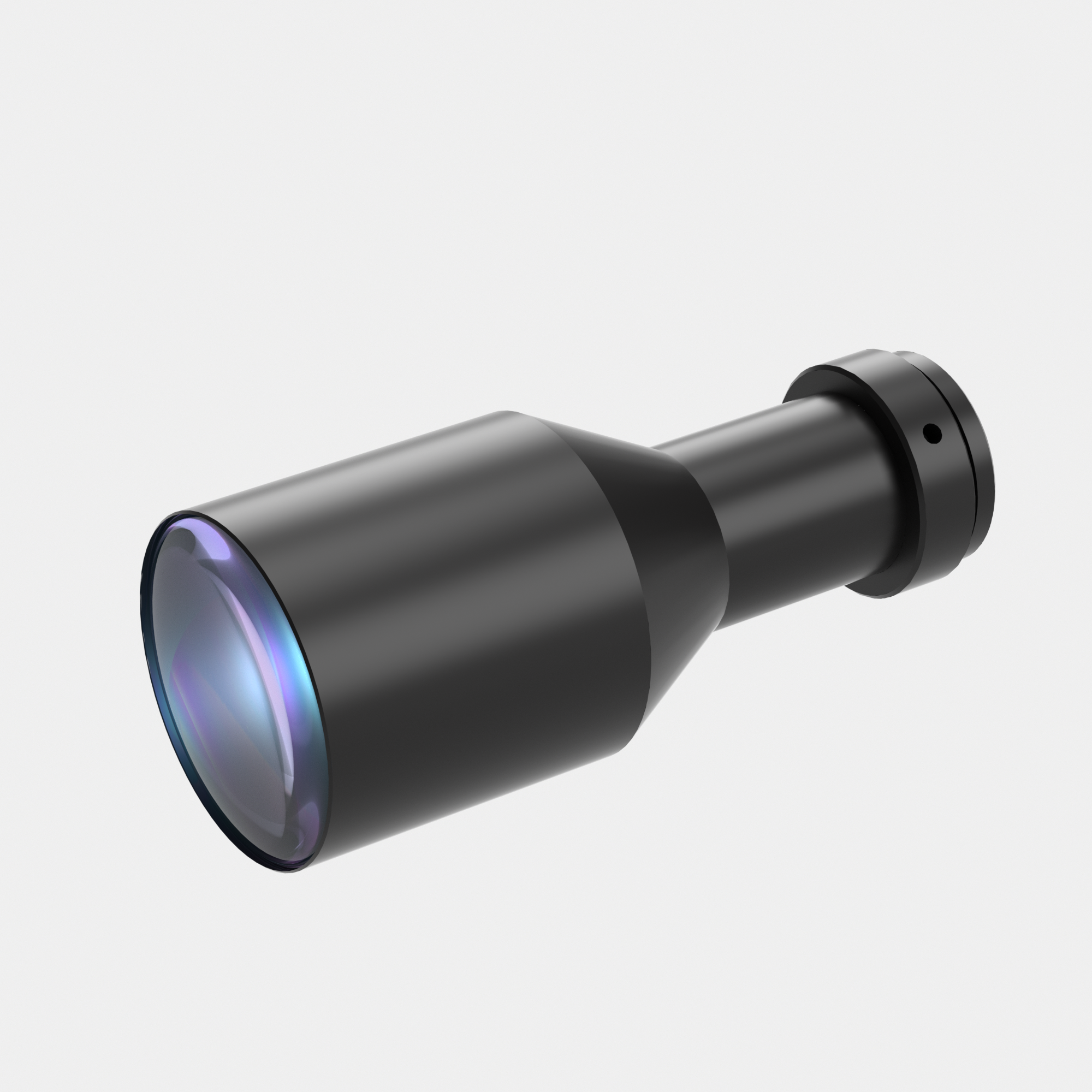

1/2" 0.12X Industrial Lenses | WH012-340A COOLENS®

WH012-340A
Image Circle:8(1/2")mm, Magnification:0.12X, WD:340mm, NA:0.006, Mount:C, Type:Fixed Magnification Lenses
$600.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$600.00 USD each
Description

Model NO. WH012-340A Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.12 Working Distance(mm) 340
NA 0.0060 Type Fixed Magnification
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 93 Object Resolution(μm) 55.9
Depth of Field(mm) 55.6 Distortion Typical(% max) 0.17
Telecentricity Typical (°max) Non-telecentric Length (mm) 89.6
With Coaxial Illumination Port No Measured Depth of Field (mm) 20
Filter Screw Size M35x0.5
Field of View (mm x mm)
1/4"(3.2x2.4) 26.7x20.0
1/3"(4.8x3.6)  40.0x30.0
1/2"(6.4x4.8) 53.0x40.0

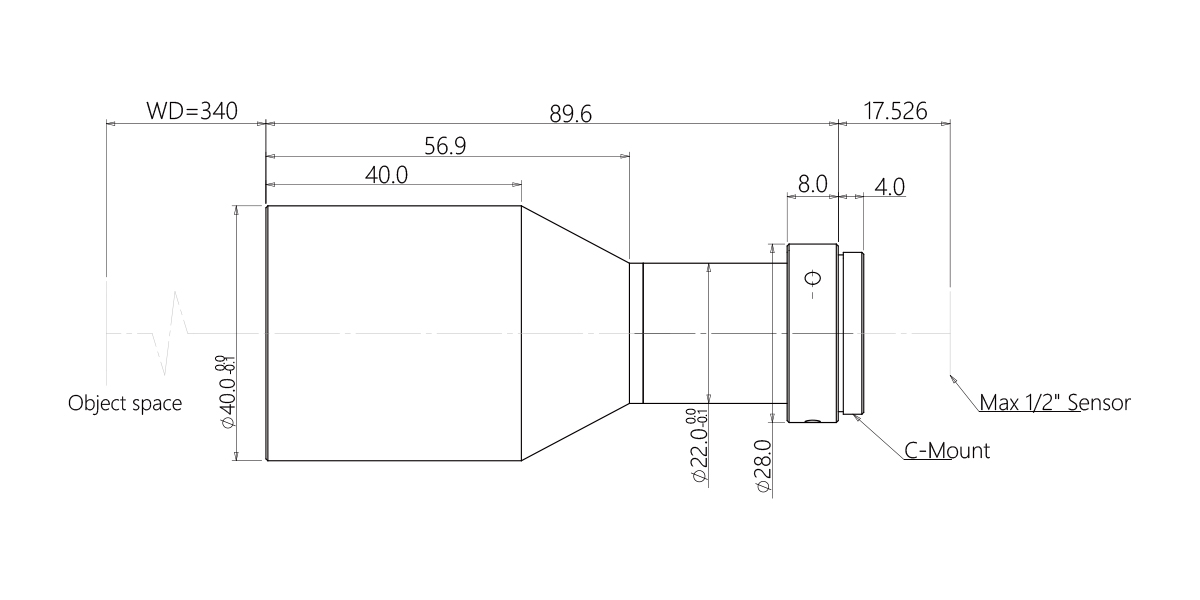

Dimensions

Naming Rule
