| Model NO. |
WH015-355A |
Image Circle Diameter (Φmm) |
8(1/2") |
| Magnification(x) |
0.15 |
Working Distance(mm) |
355 |
| NA |
0.01 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
9 |
| MTF30 (lp/mm) |
90 |
Object Resolution(μm) |
33.6 |
| Depth of Field(mm) |
32 |
Distortion Typical(% max) |
0.1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
80.6 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
10 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/4"(3.2x2.4) |
21.3x16.0 |
| 1/3"(4.8x3.6) |
32.0x24.0 |
| 1/2"(6.4x4.8) |
42.7x32.0 |

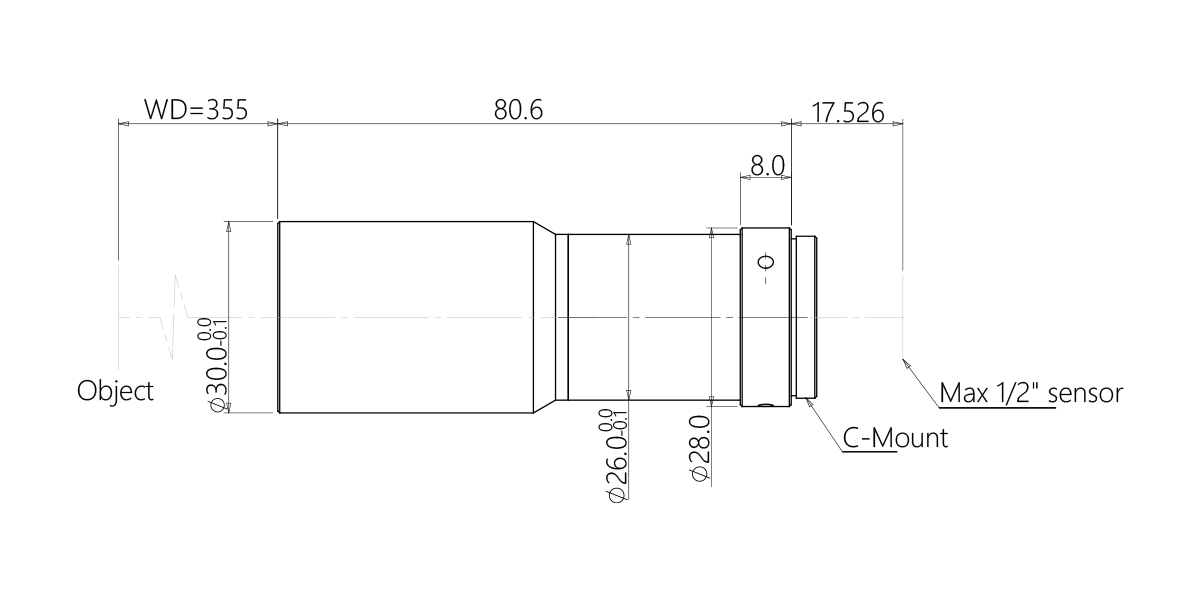

Dimensions
Naming Rule
