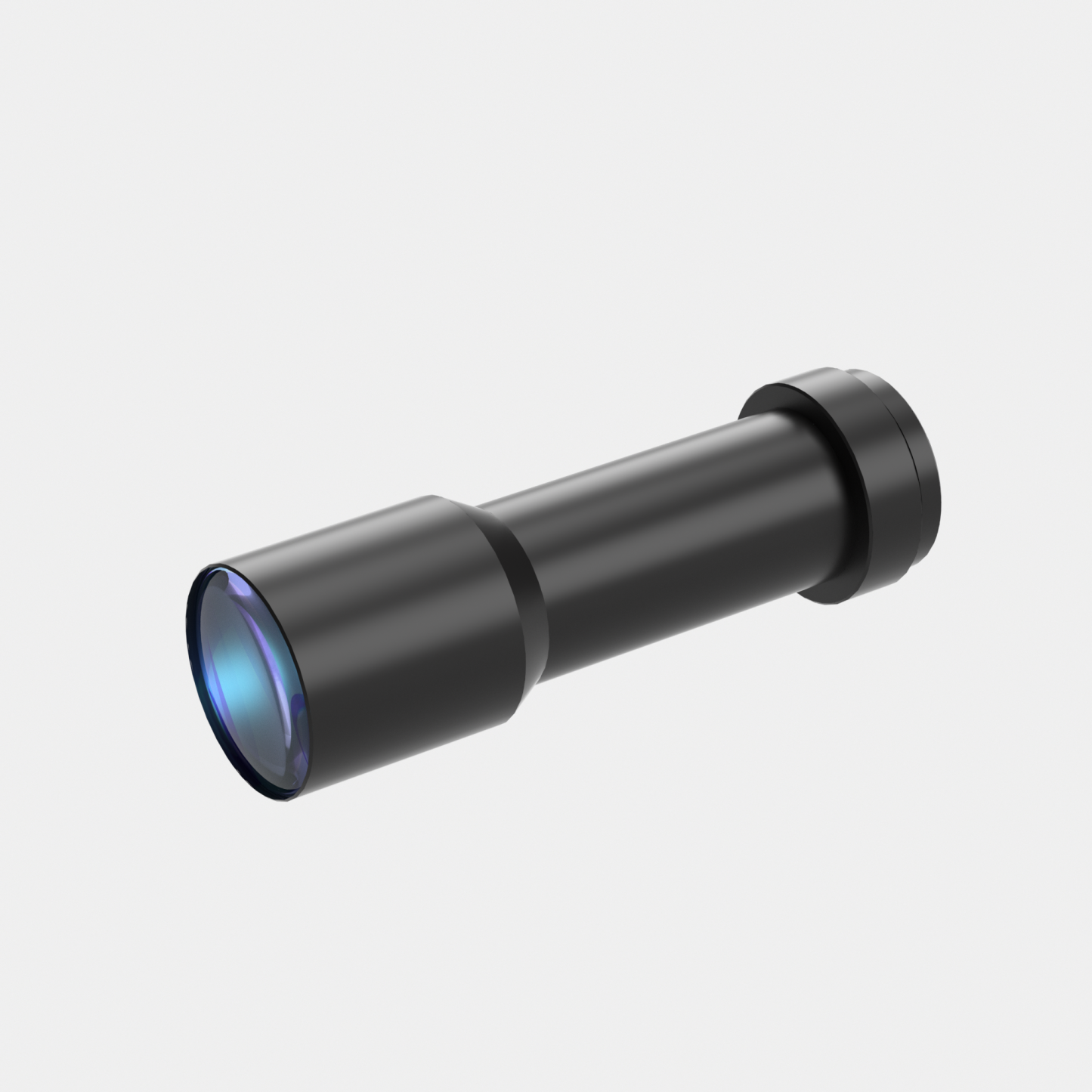

1/2" 0.18X Industrial Lenses | WH018-300A-120 COOLENS®

WH018-300A-120
Image Circle:8(1/2")mm, Magnification:0.18X, WD:300mm, NA:0.01034, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH018-300A-120 Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.18 Working Distance(mm) 300
NA 0.0103 Type Fixed Magnification
Mount C Best Aperture(f/#) 8.7
MTF30 (lp/mm) 100 Object Resolution(μm) 32.4
Depth of Field(mm) 21.5 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 85.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/4"(3.2x2.4)  17.8x13.3
1/3"(4.8x3.6) 26.7x20.0
1/2"(6.4x4.8) 35.6x26.7

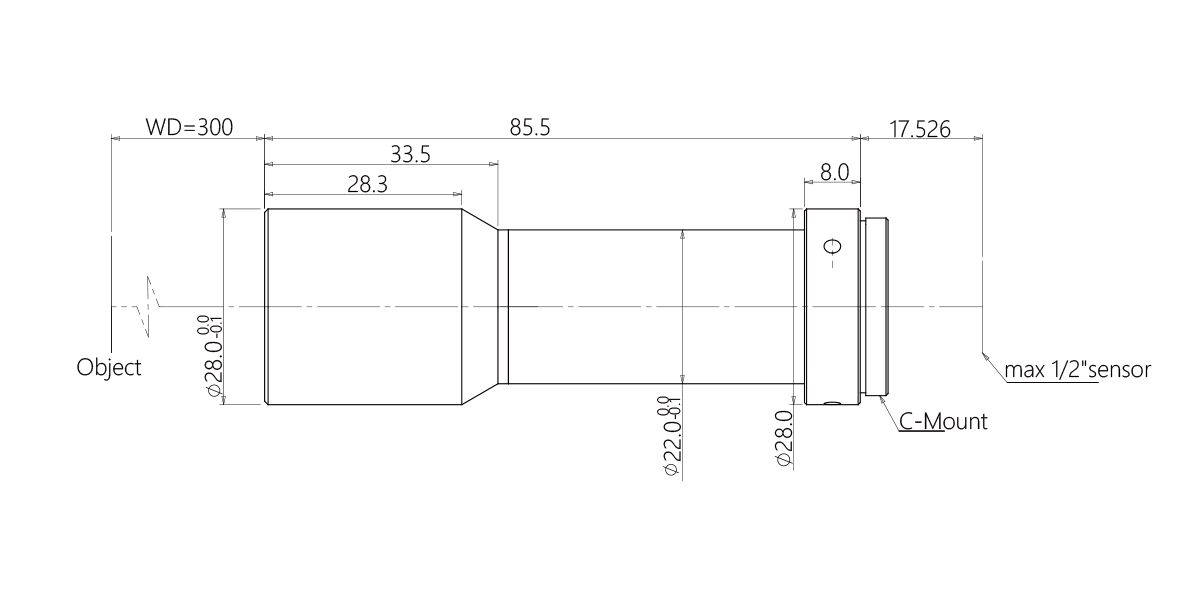

Dimensions

Naming Rule
