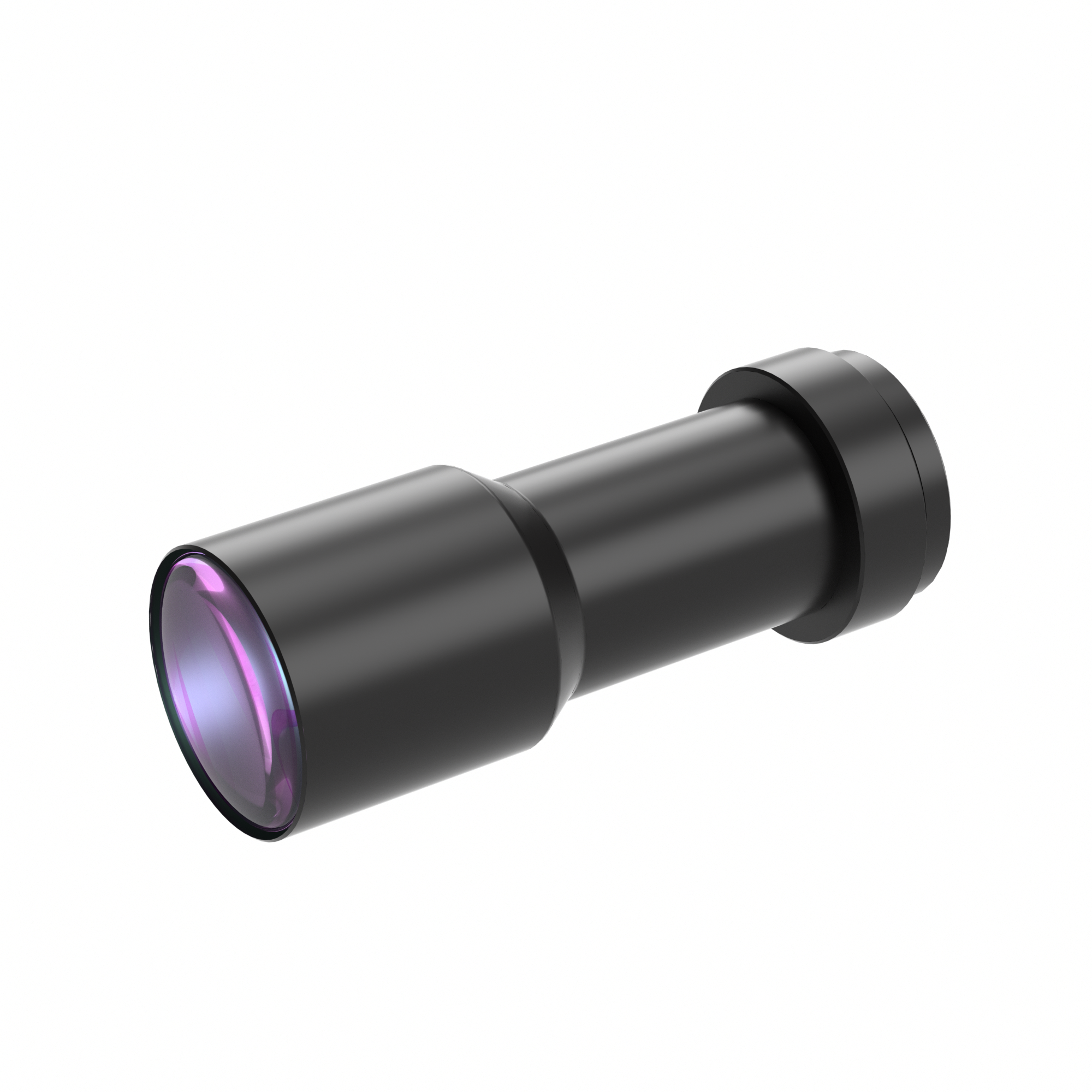

1/2" 0.22X Industrial Lenses | WH022-150A-120IR COOLENS®-OKLAB
1/2" 0.22X Industrial Lenses | WH022-150A-120IR COOLENS®-OKLAB
Home / 1/2" 0.22X Industrial Lenses | WH022-150A-120IR COOLENS®

1/2" 0.22X Industrial Lenses | WH022-150A-120IR COOLENS®

WH022-150A-120IR
Image Circle:8(1/2")mm, Magnification:0.22X, WD:150mm, NA:0.01379, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH022-150A-120IR Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.22 Working Distance(mm) 150
NA 0.0138 Type Fixed Magnification
Mount C Best Aperture(f/#) 8
MTF30 (lp/mm) 80 Object Resolution(μm) 37.2
Depth of Field(mm) 13.2 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 69.6
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/4"(3.2x2.4) 14.5x10.9
1/3"(4.8x3.6) 21.8x16.4
1/2"(6.4x4.8) 29.1x21.8

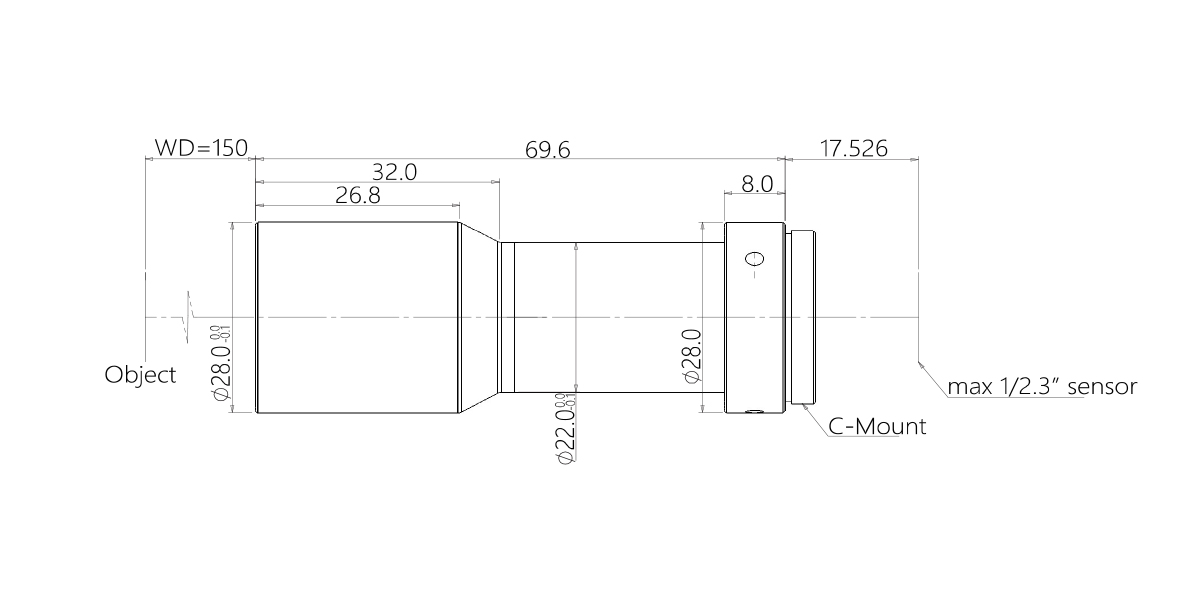

Dimensions

Naming Rule
