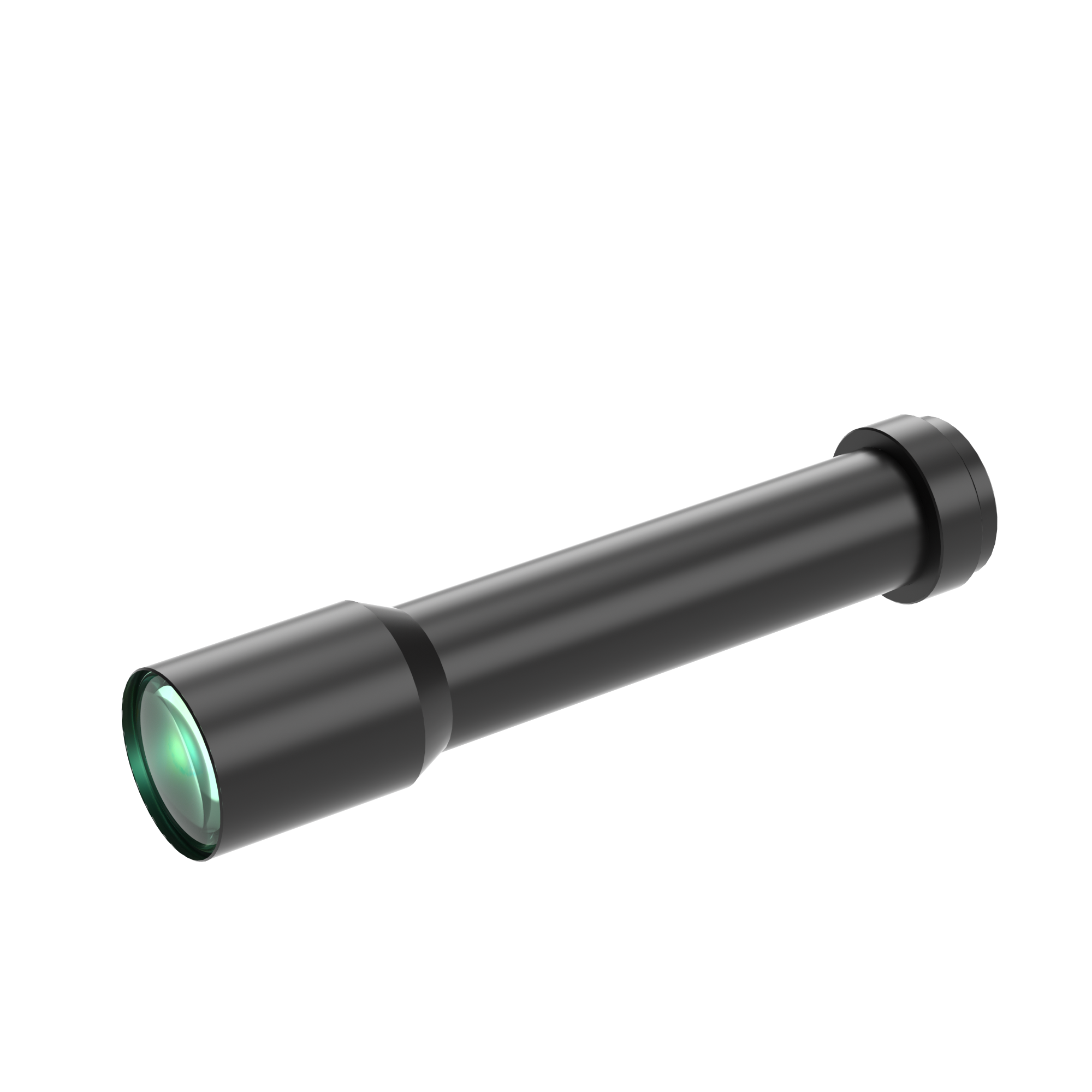

1/2" 0.25X Industrial Lenses | ＷＨ025-340A-120 COOLENS®

WH025-340A-120
Image Circle:8(1/2")mm, Magnification:0.25X, WD:340mm, NA:0.01379, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH025-340A-120 Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.25 Working Distance(mm) 340
NA 0.0138 Type Fixed Magnification
Mount C Best Aperture(f/#) 9
MTF30 (lp/mm) 100 Object Resolution(μm) 24.3
Depth of Field(mm) 11.5 Distortion Typical(% max) 0.02
Telecentricity Typical (°max) Non-telecentric Length (mm) 131.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 5
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/3"(4.8x3.6) 19.2x14.4
1/2"(6.4x4.8) 25.6x19.2

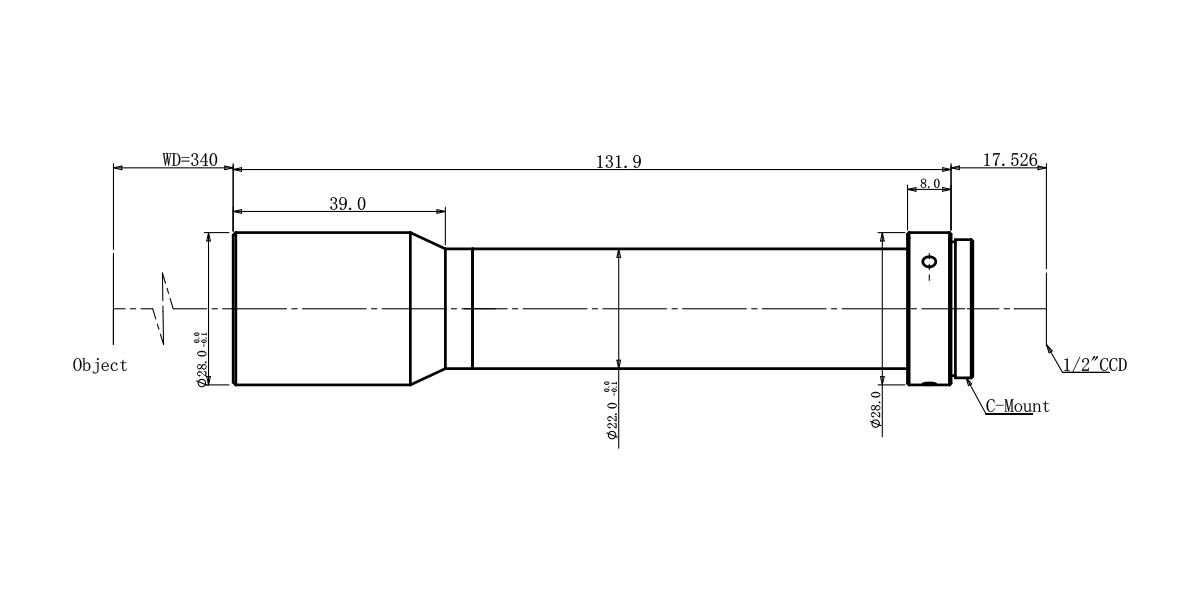

Dimensions

Naming Rule
