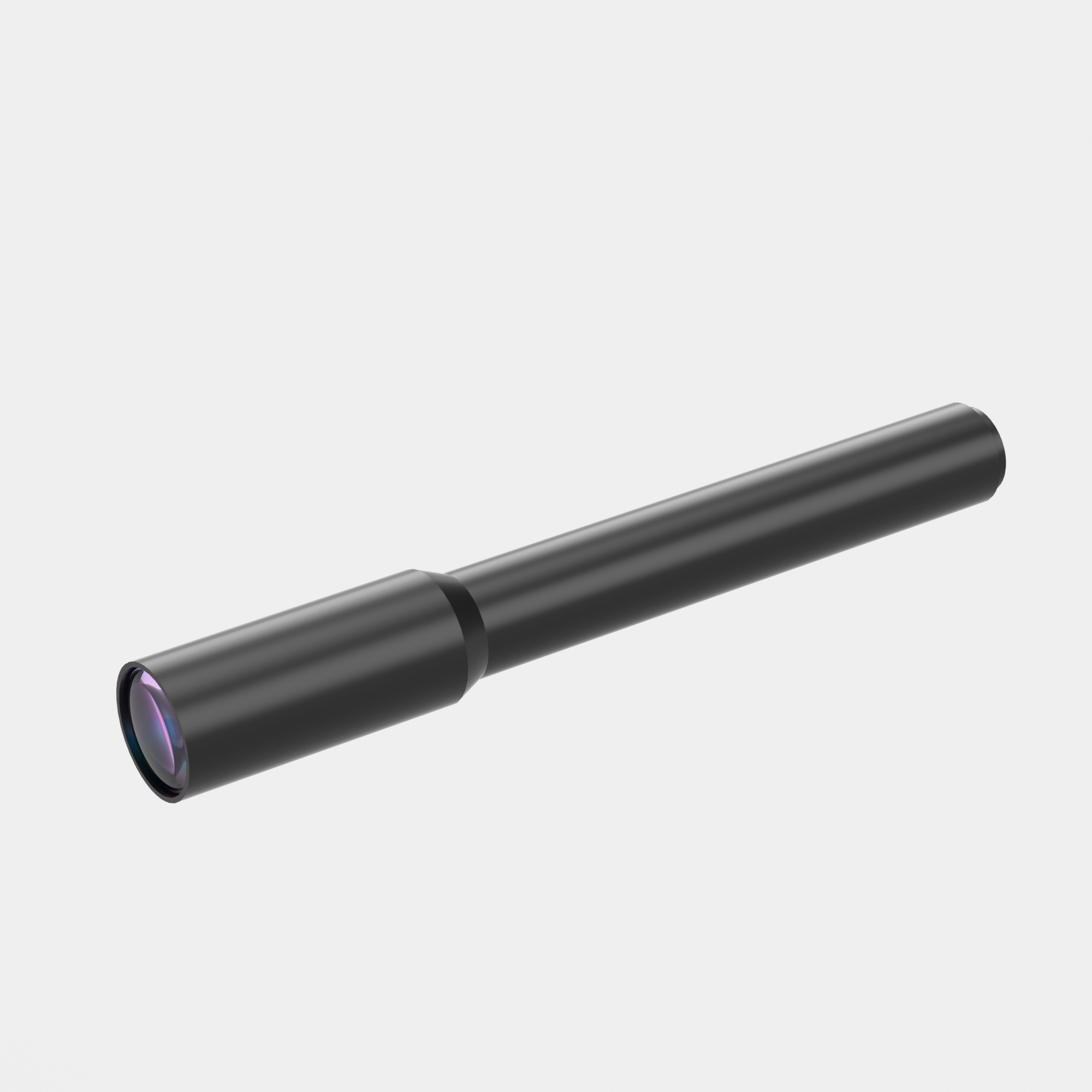

1/2.3" 0.3X Industrial Lenses | WH03-745A-120 COOLENS®

WH03-745A-120

Image Circle:7.9(1/2.3")mm, Magnification:0.3X, WD:745mm, NA:0.01249, Mount:C, Type:Fixed Magnification Lenses

$471.00 USD

Quantity

Description

Model NO.		WH03-745A-120		Image Circle Diameter (Φmm)		7.9(1/2.3")
Magnification(x)		0.3		Working Distance(mm)		745
NA		0.0125		Type		Fixed Magnification
Mount		C		Best Aperture(f/#)		12
MTF30 (lp/mm)		85		Object Resolution(μm)		26.9
Depth of Field(mm)		10.7		Distortion Typical(% max)		0.01
Telecentricity Typical (°max)		Non-telecentric		Length (mm)		266.9
With Coaxial Illumination Port		No		Measured Depth of Field (mm)		5
Filter Screw Size		M35x0.5
Field of View (mm x mm)

1/2"(6.4x4.8)				21.3x16.0
1/1.8"(7.13x5.37)				23.8x17.9
2/3"(8.8x6.6)				29.3x22.0

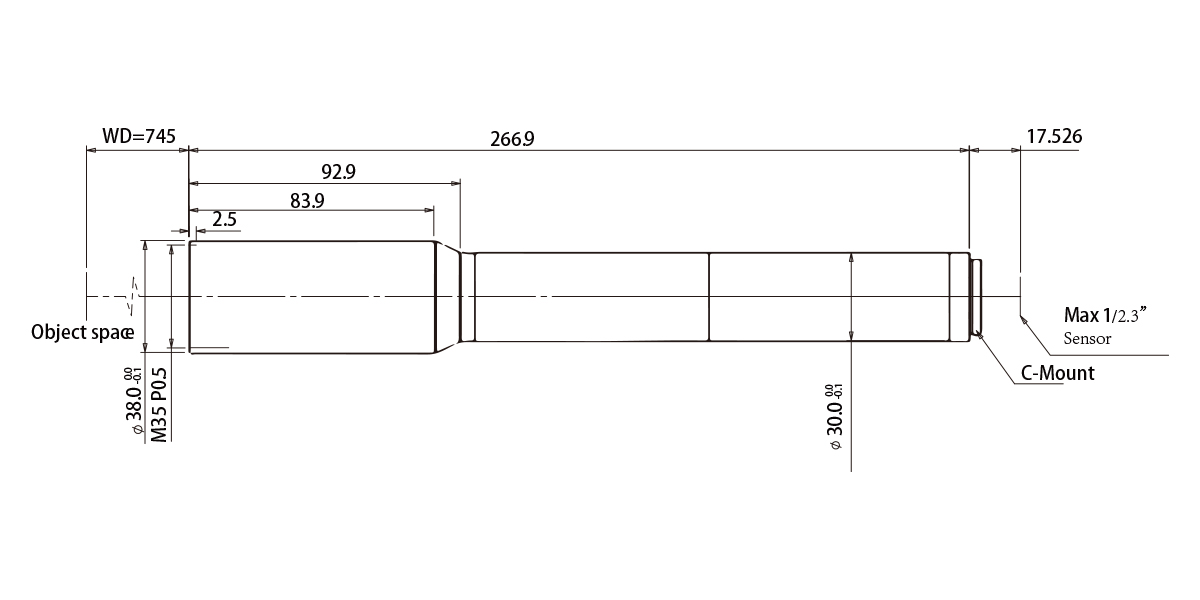

Dimensions

Naming Rule
