| Model NO. |

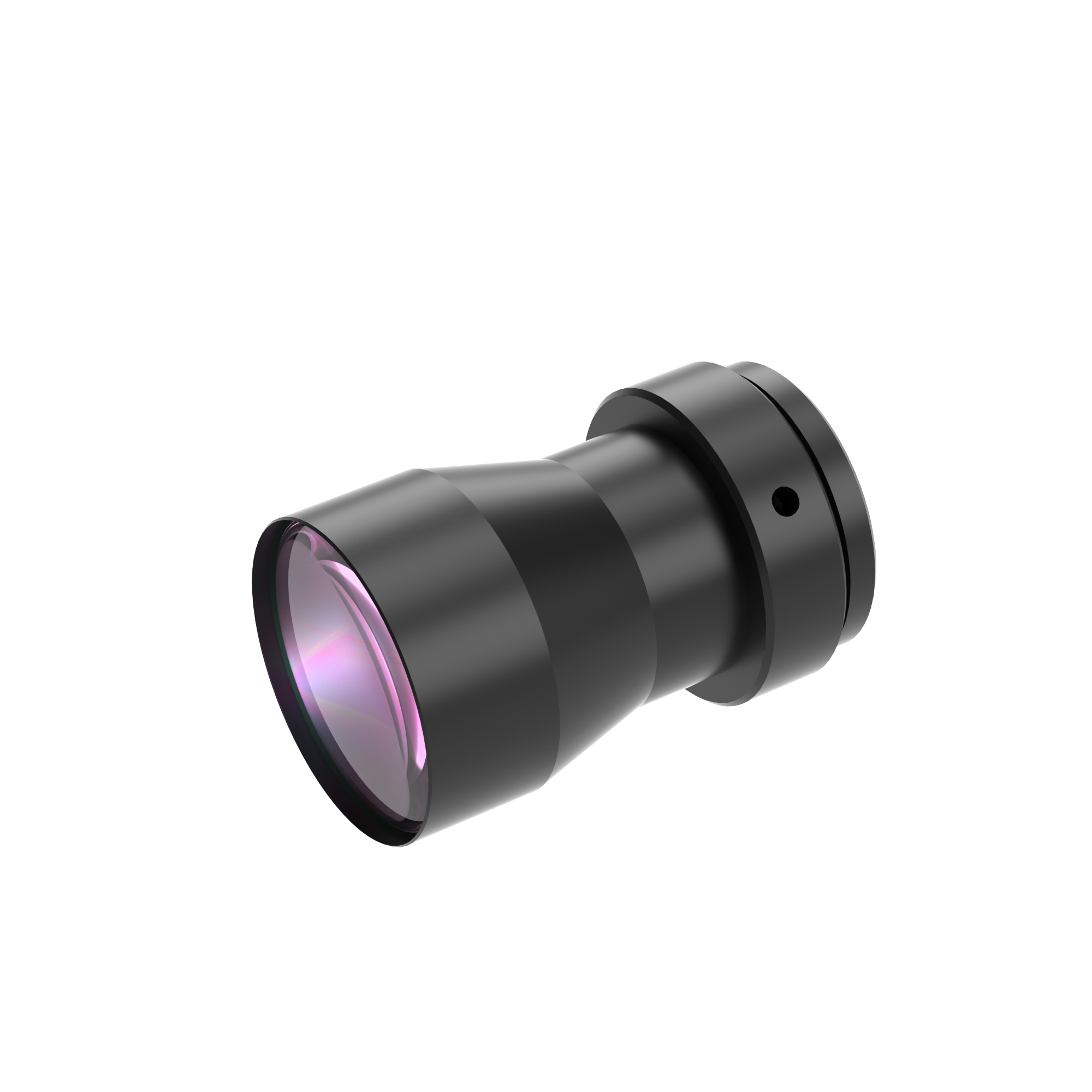

WH0092-330A-125 |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.092 |
Working Distance(mm) |
330 |
| NA |
0.0038 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
12.2 |
| MTF30 (lp/mm) |
65 |
Object Resolution(μm) |
89.2 |
| Depth of Field(mm) |
115.3 |
Distortion Typical(% max) |
1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
40.1 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
30 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/4"(3.2x2.4) |
34.8x26.1 |
| 1/3"(4.8x3.6) |
52.2x39.1 |
| 1/2.5"(5.7x4.3) |
61.9x46.7 |

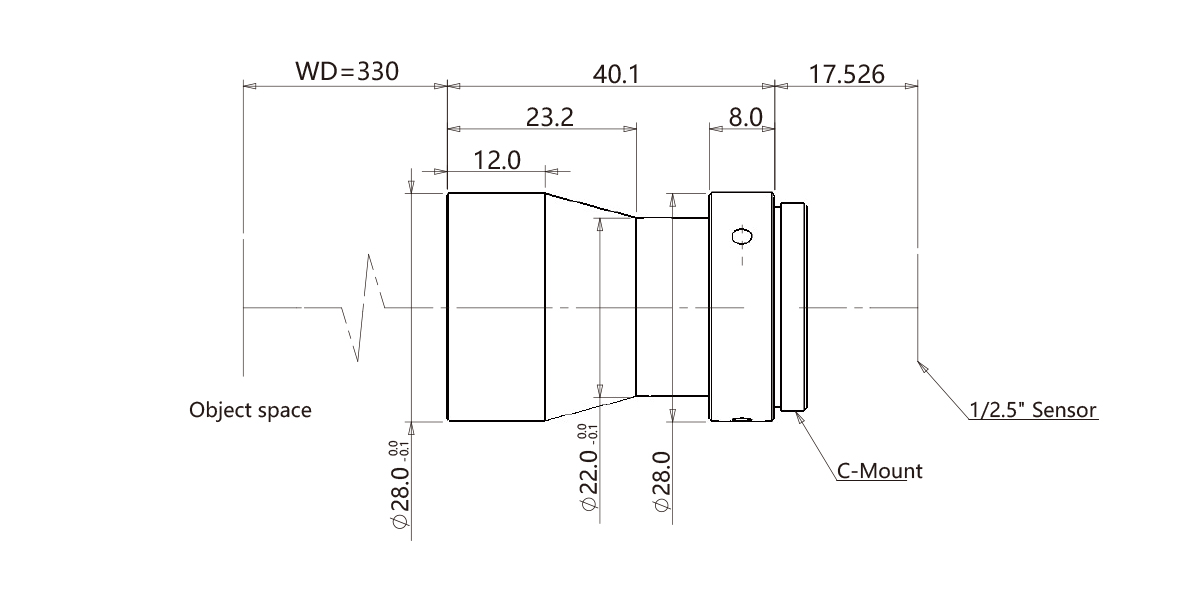

Dimensions
Naming Rule
