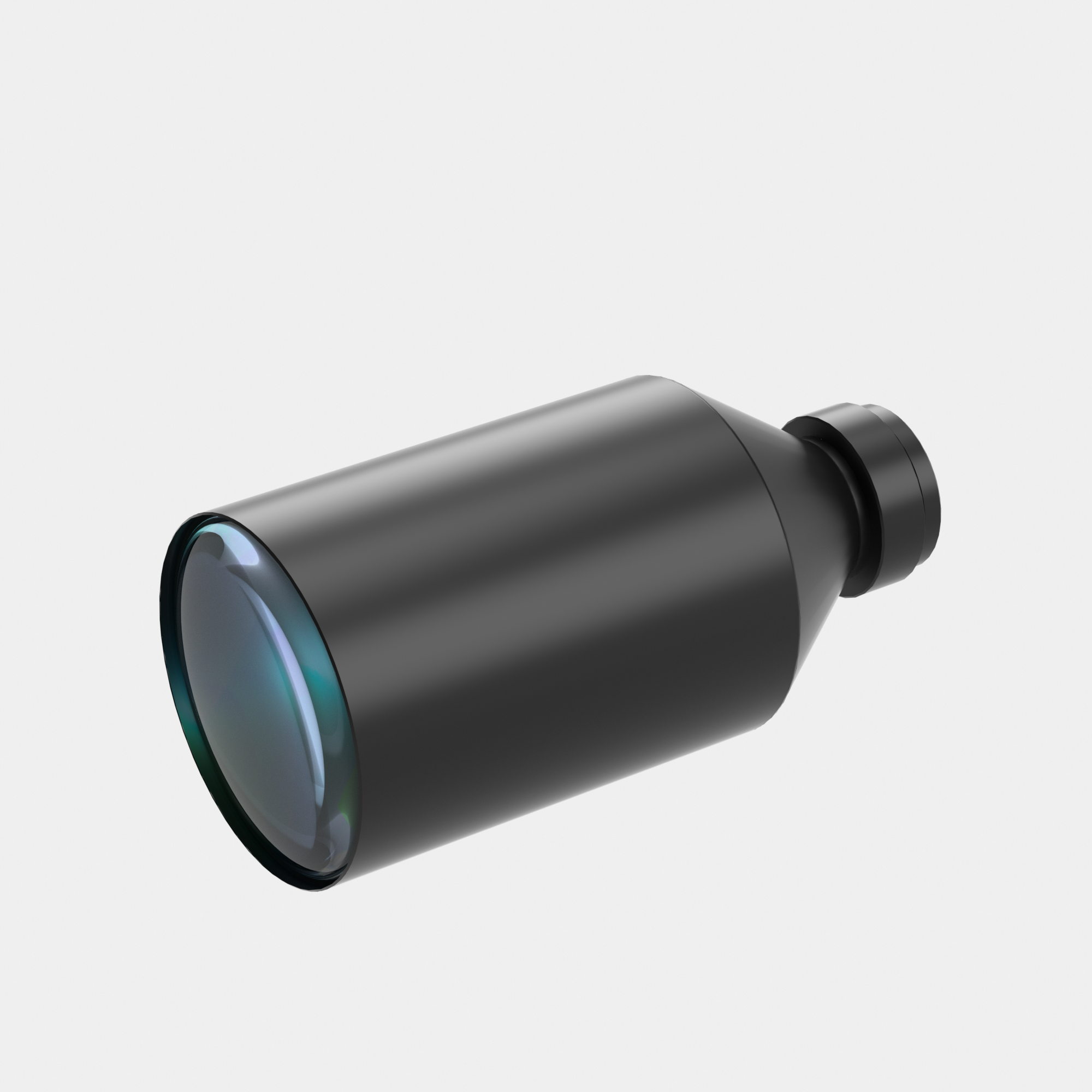

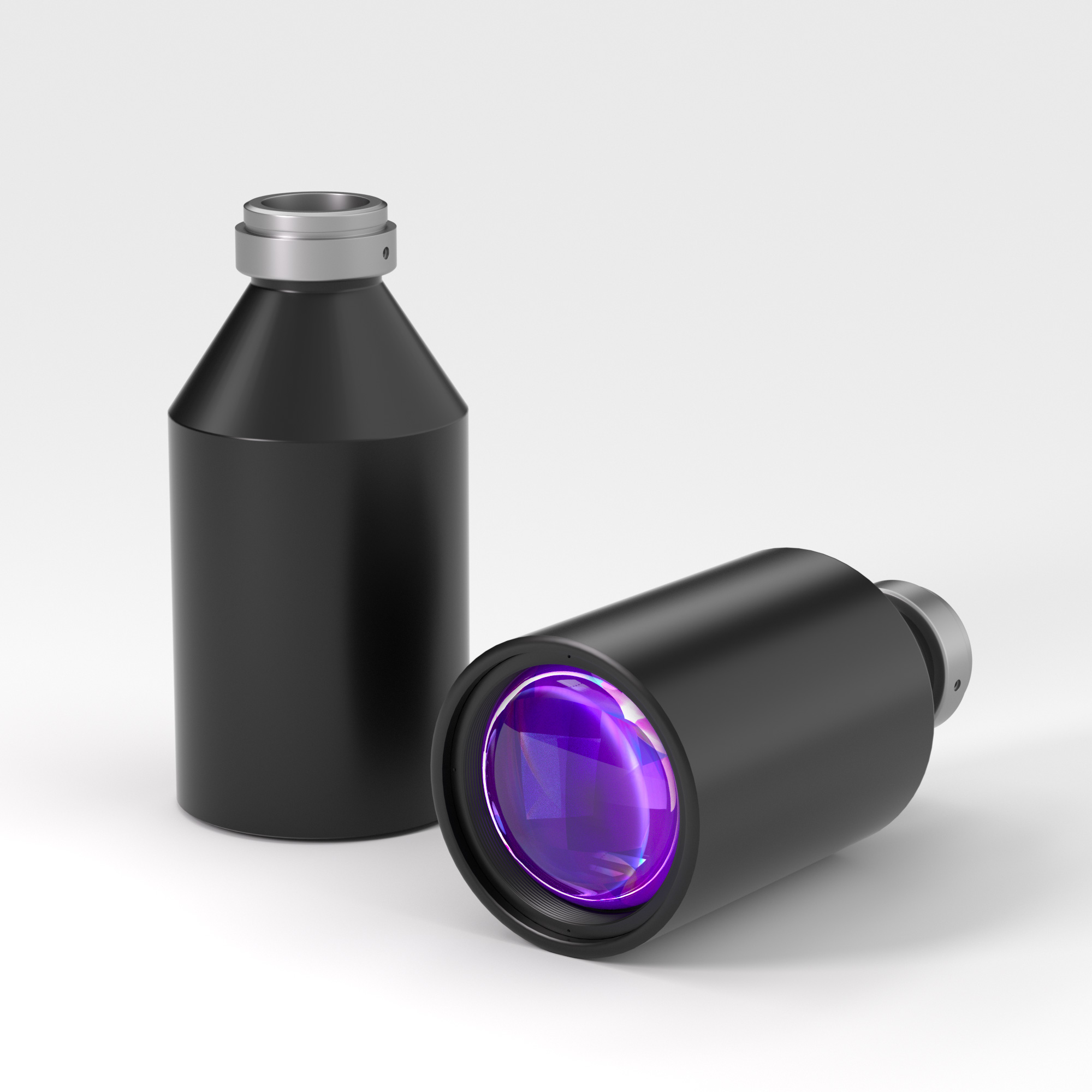

Model NO. | WH014-150A-125-54 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.14 | Working Distance(mm) | 150 | ||||
NA | 0.0088 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | 95 | Object Resolution(μm) | 38.1 | ||||
Depth of Field(mm) | 32.7 | Distortion Typical(% max) | 0.25 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 105 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) | |||||||
1/2.5"(5.7×4.28) | 40.7x30.6 |

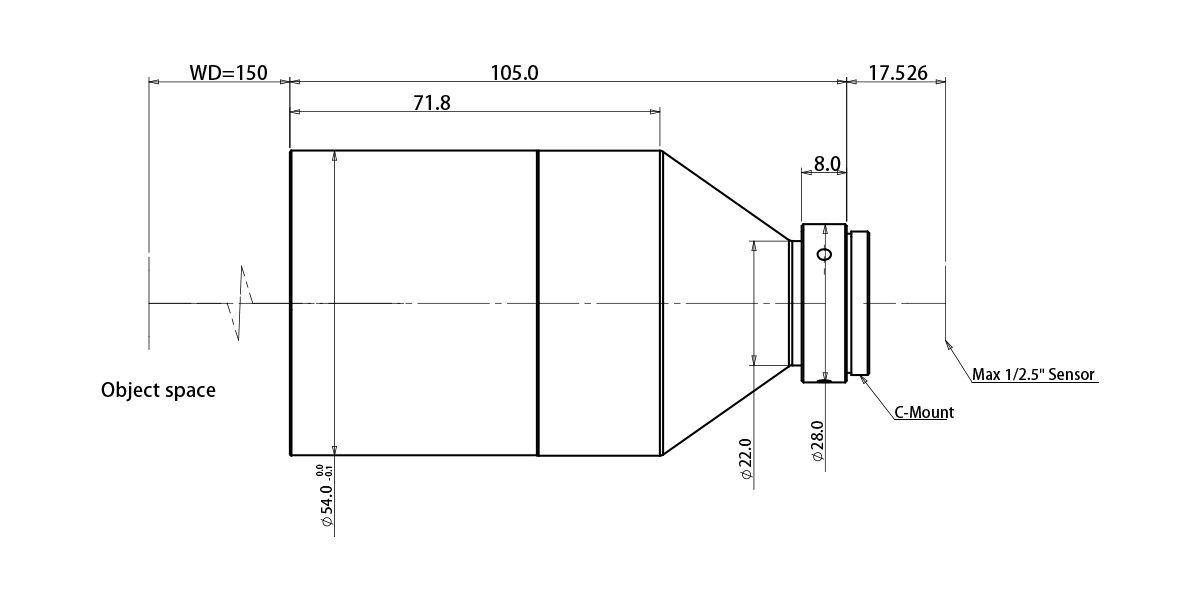

Dimensions
Naming Rule
