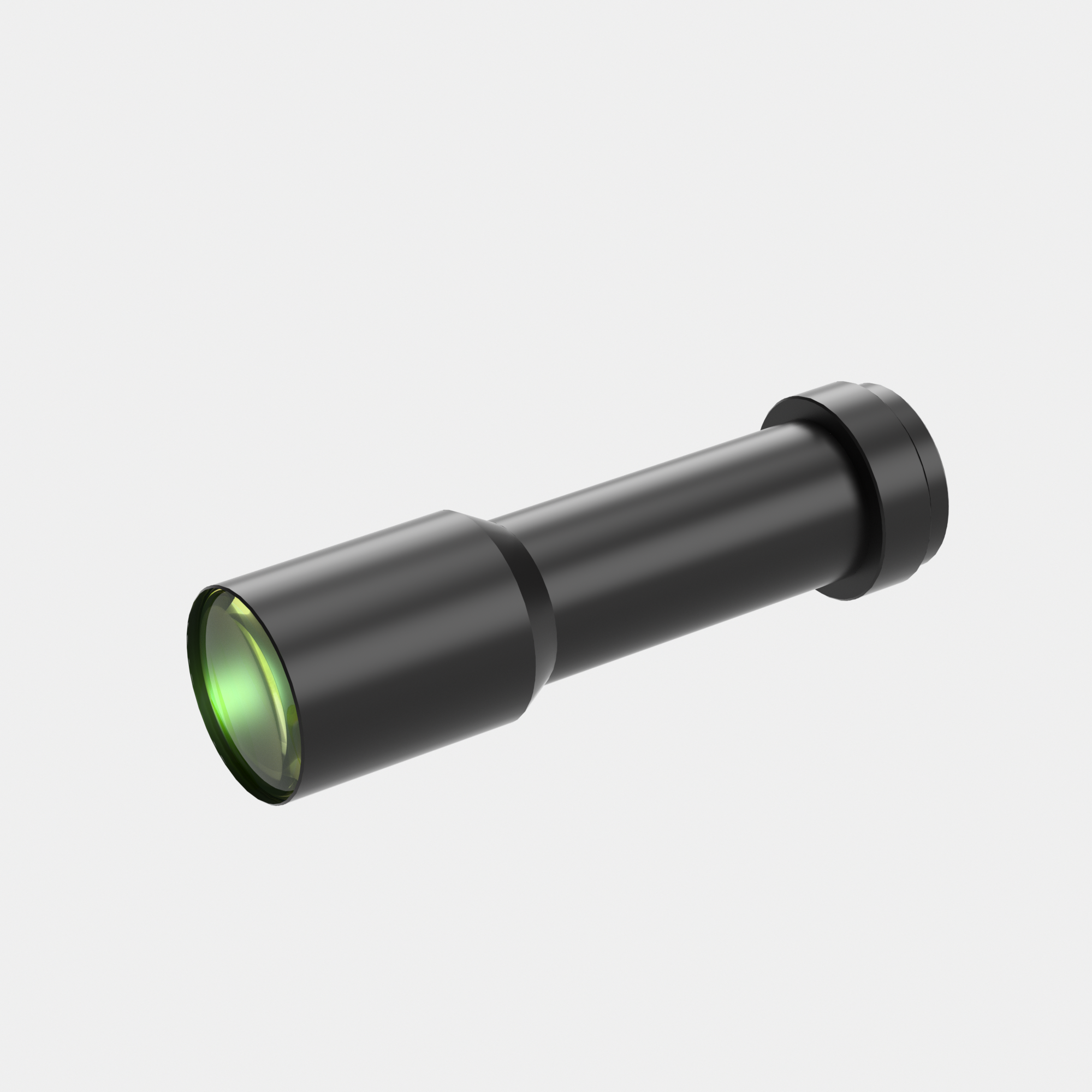

1/2.5" 0.14X Industrial Lenses | WH014-420A-125 COOLENS®

WH014-420A-125
Image Circle:7.2(1/2.5")mm, Magnification:0.14X, WD:420mm, NA:0.00876, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH014-420A-125 Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.14 Working Distance(mm) 420
NA 0.0088 Type Fixed Magnification
Mount C Best Aperture(f/#) 8
MTF30 (lp/mm) 110 Object Resolution(μm) 38.3
Depth of Field(mm) 32.7 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 101.6
With Coaxial Illumination Port No Measured Depth of Field (mm) /
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2.5"(5.7x4.3) 40.7x30.7

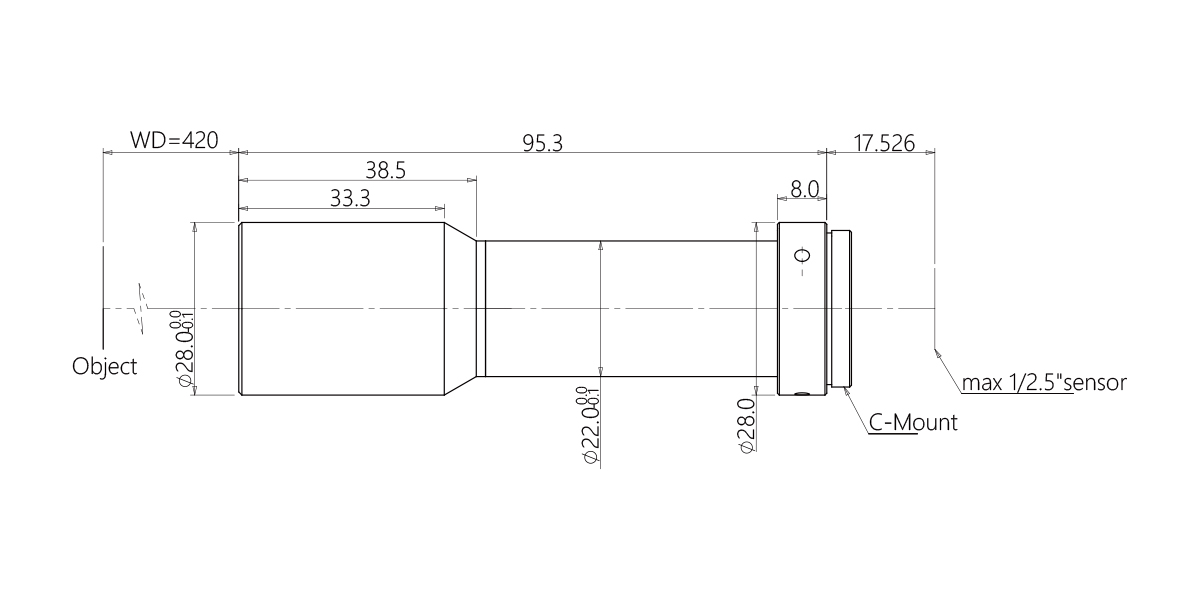

Dimensions

Naming Rule
