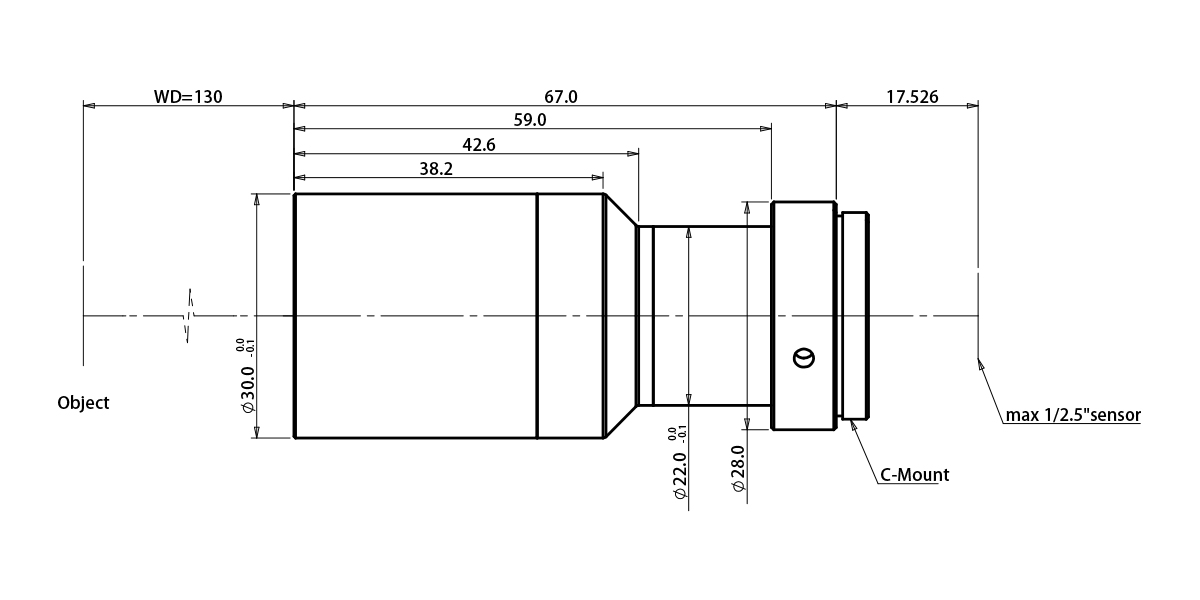

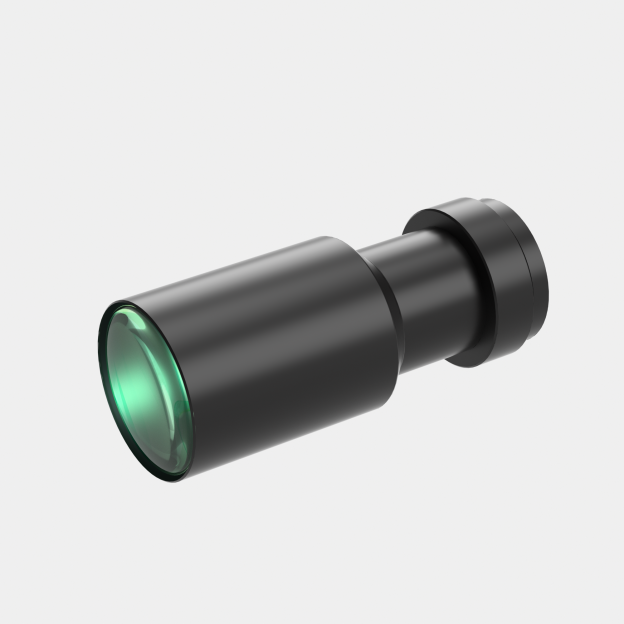

Model NO. | WH018-130A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.18 | Working Distance(mm) | 130 | ||||
NA | 0.0102 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 9 | ||||
MTF30 (lp/mm) | 92 | Object Resolution(μm) | 33 | ||||
Depth of Field(mm) | 22.2 | Distortion Typical(% max) | 0.3 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 67 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7.5 | ||||
Filter Screw Size | M27x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2.5" (5.7×4.28) | 31.7×23.8 |
