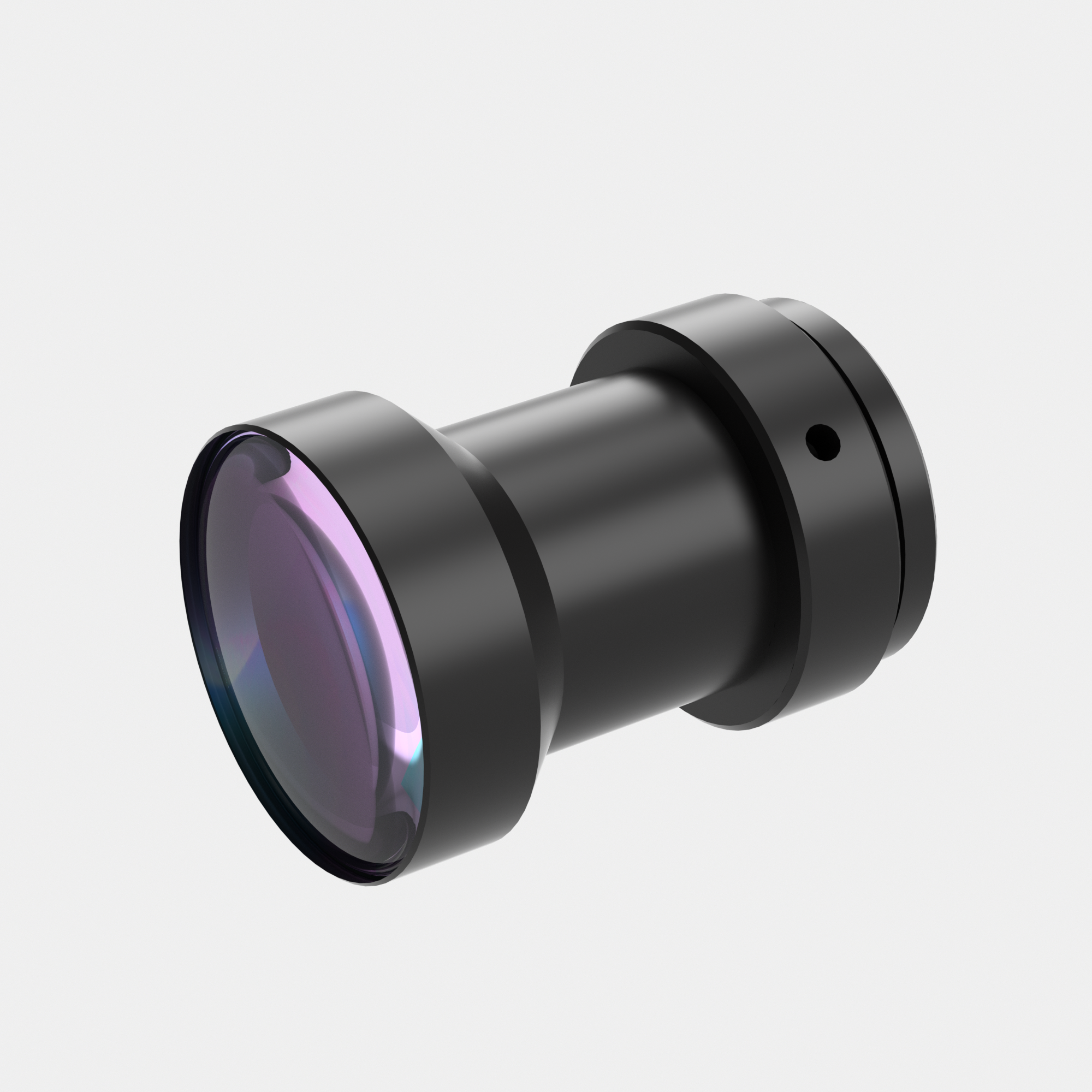

1/2.5" 0.18X Industrial Lenses | WH018-160A-125 COOLENS®-OKLAB
1/2.5" 0.18X Industrial Lenses | WH018-160A-125 COOLENS®-OKLAB
Home / 1/2.5" 0.18X Industrial Lenses | WH018-160A-125 COOLENS®

1/2.5" 0.18X Industrial Lenses | WH018-160A-125 COOLENS®

WH018-160A-125
Image Circle:7.2(1/2.5")mm, Magnification:0.18X, WD:160mm, NA:0.01017, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH018-160A-125 Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.18 Working Distance(mm) 160
NA 0.0102 Type Fixed Magnification
Mount C Best Aperture(f/#) 9
MTF30 (lp/mm) 90 Object Resolution(μm) 33
Depth of Field(mm) 22.2 Distortion Typical(% max) 0.3
Telecentricity Typical (°max) Non-telecentric Length (mm) 37
With Coaxial Illumination Port No Measured Depth of Field (mm) /
Filter Screw Size /
Field of View (mm x mm)
1/2.5" (5.7×4.28) 31.7×23.8

Dimensions

Naming Rule
