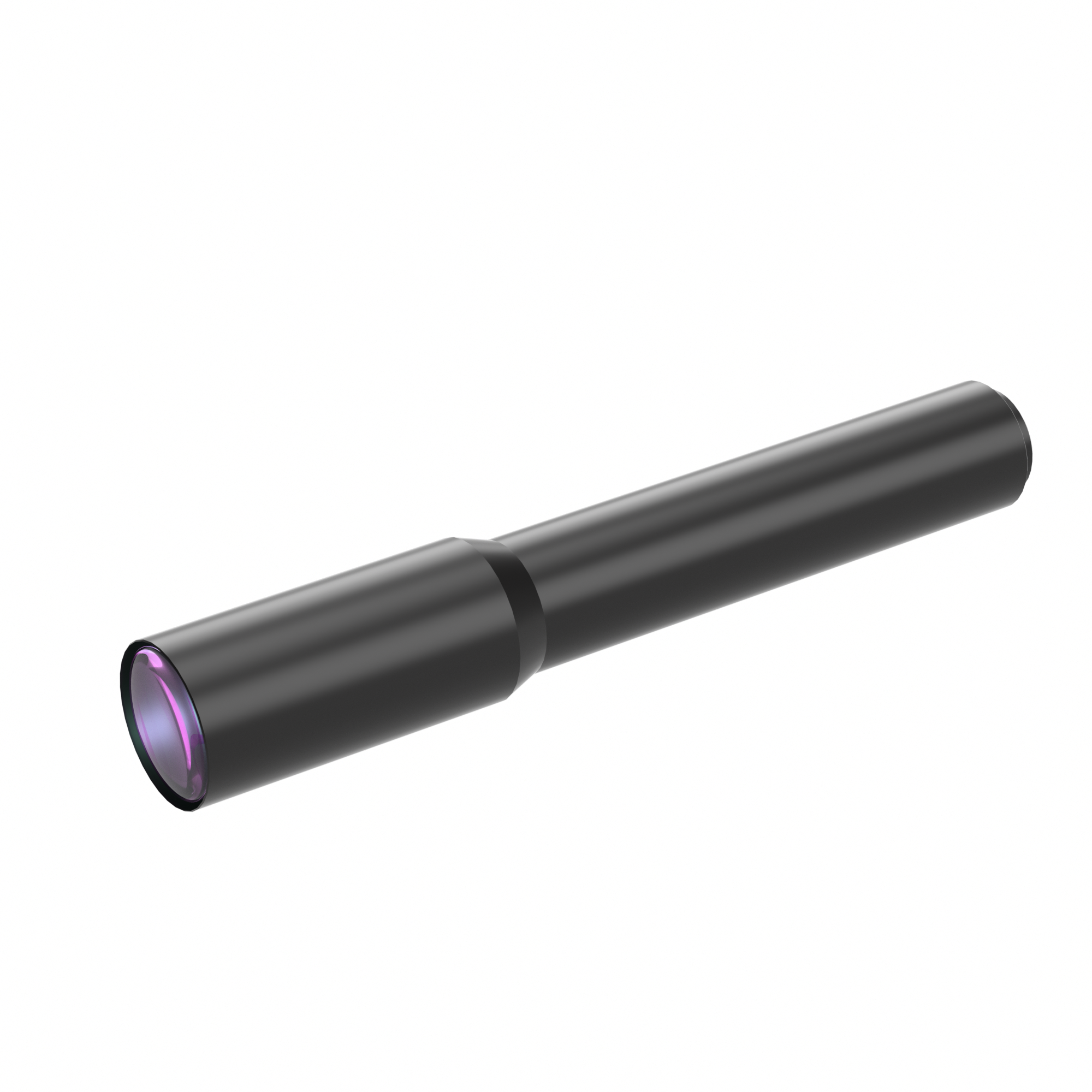

Model NO. | WH022-820A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.22 | Working Distance(mm) | 820 | ||||
NA | 0.0103 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10.6 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 32.4 | ||||
Depth of Field(mm) | 17.5 | Distortion Typical(% max) | 0.01 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 221.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
Filter Screw Size | M35x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2.5"(5.7x4.3) | 25.9x19.5 |
Dimensions
Naming Rule
