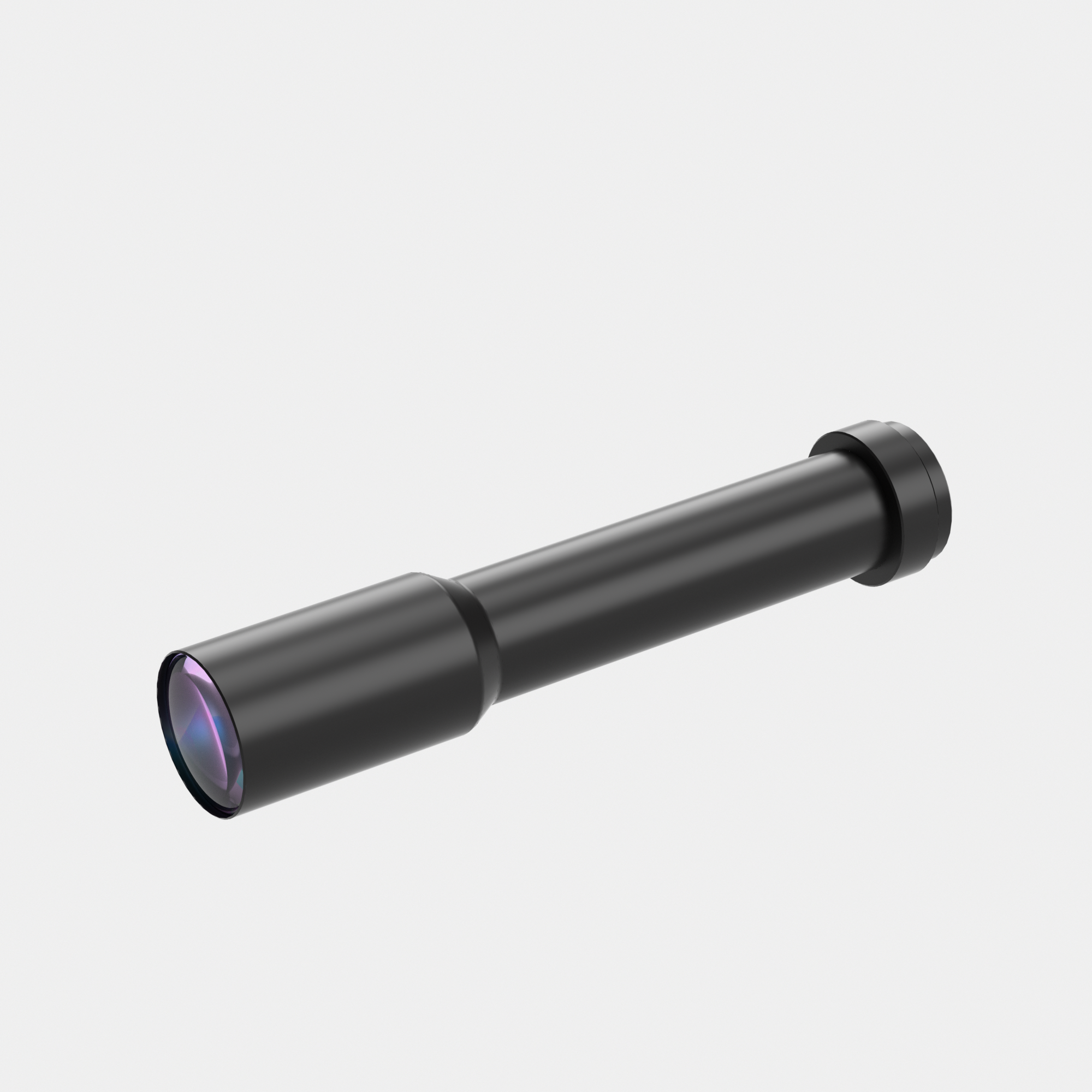

| Model NO. |
WH028-380A-125 |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.28 |
Working Distance(mm) |
380 |
| NA |
0.0175 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
8 |
| MTF30 (lp/mm) |
100 |
Object Resolution(μm) |
19.2 |
| Depth of Field(mm) |
8.2 |
Distortion Typical(% max) |
0.01 |
| Telecentricity Typical (°max) |
1.5 |
Length (mm) |
137.9 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
3 |
| Filter Screw Size |
/ |
| Field of View (mm x mm) |
|
| 1/2.5"(5.7x4.28) |
20.36x15.29 |

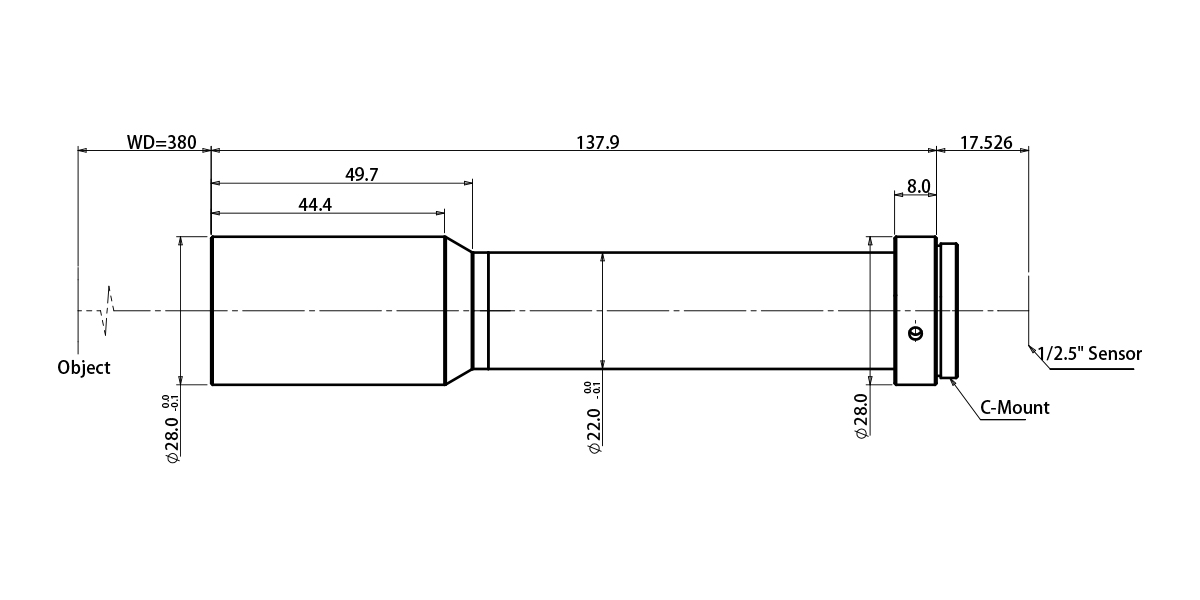

Dimensions
Naming Rule
