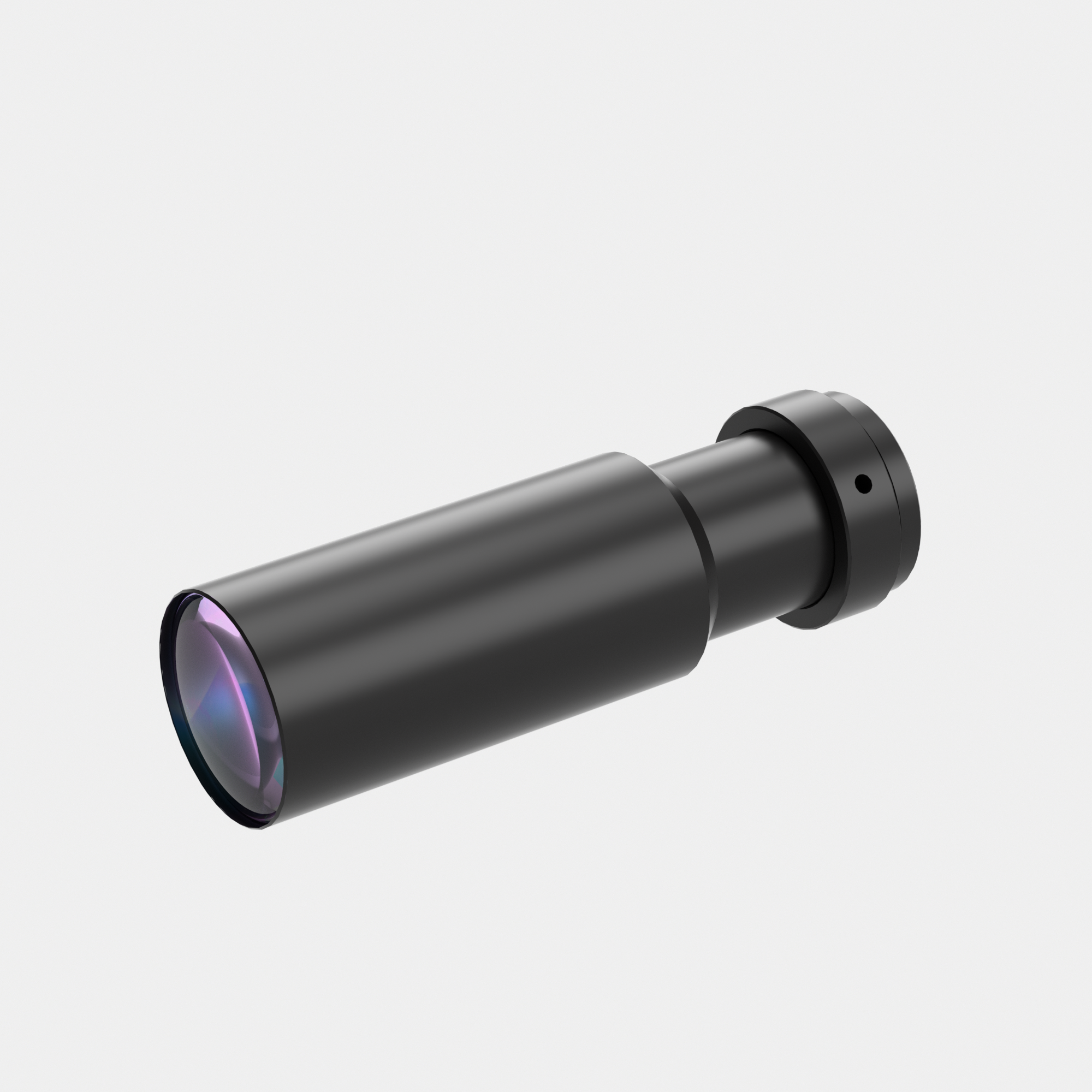

Model NO. | WH025-75AS-130 | Image Circle Diameter (Φmm) | 6(1/3") | ||||
Magnification(x) | 0.25 | Working Distance(mm) | 75 | ||||
NA | 0.0126 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 26.6 | ||||
Depth of Field(mm) | 12.8 | Distortion Typical(% max) | 0.1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 85 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | / |

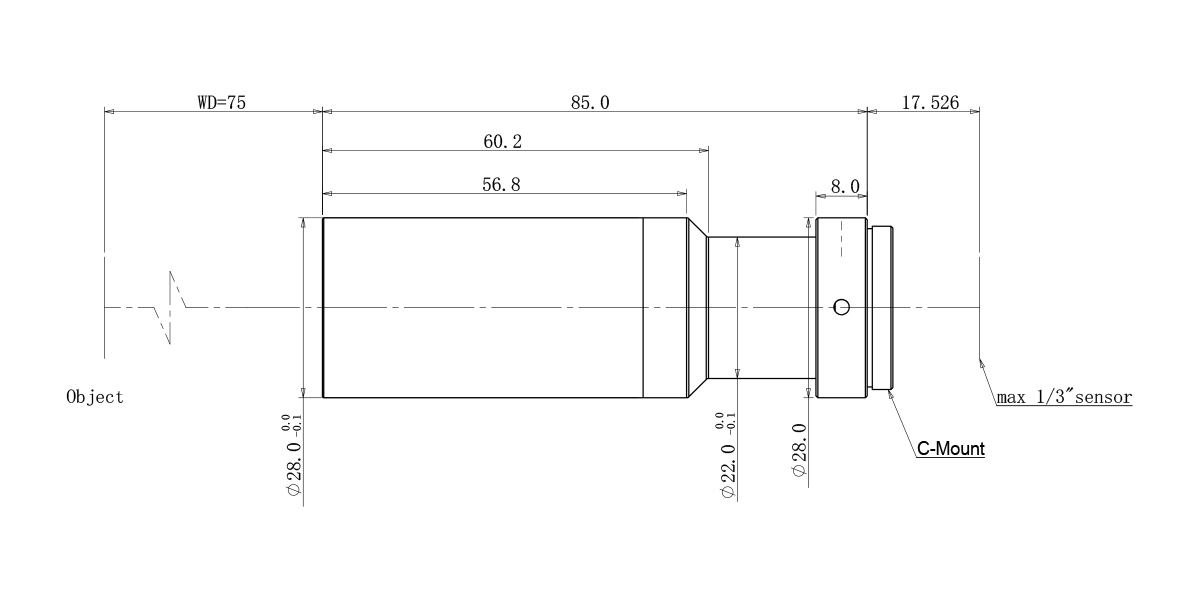

Dimensions
Naming Rule
