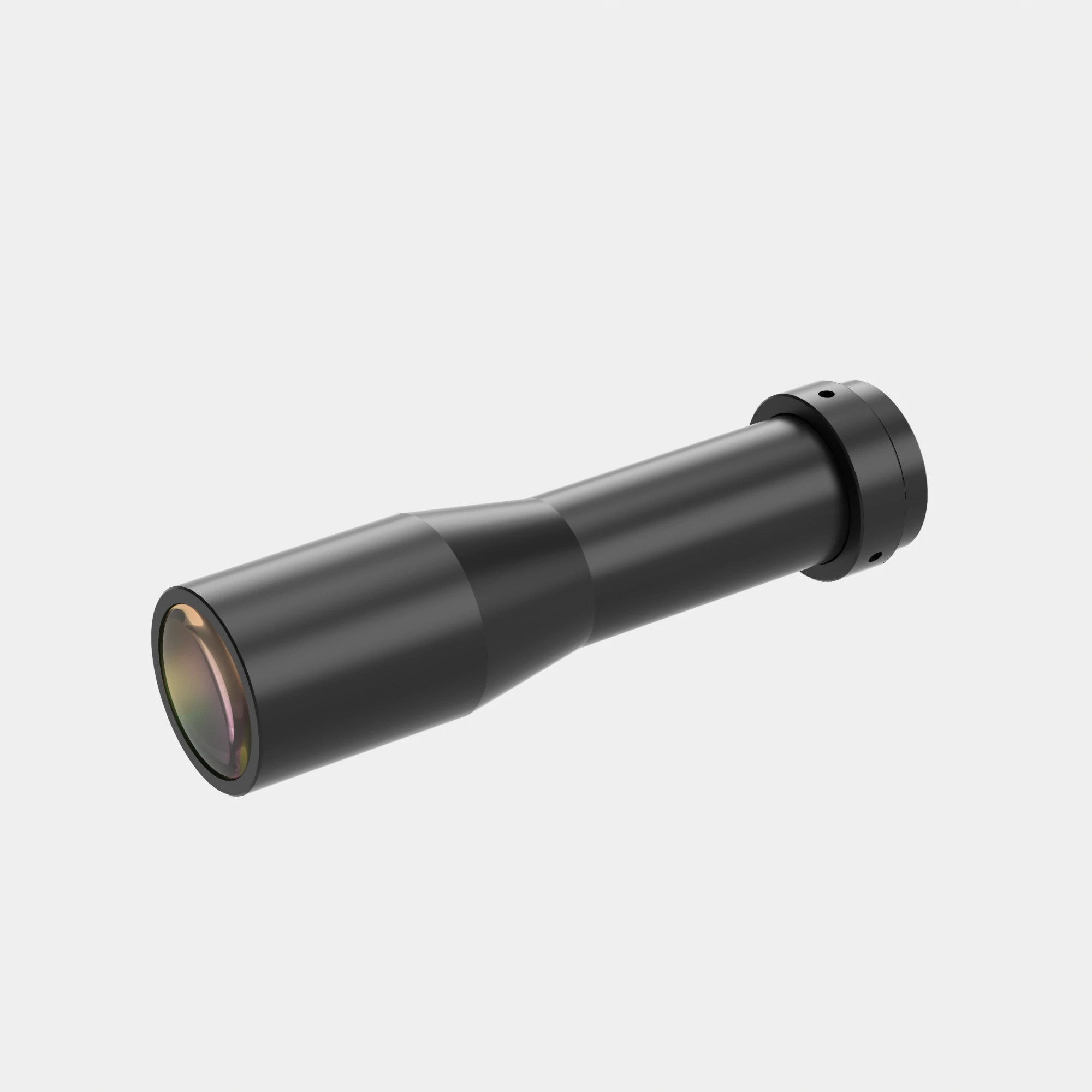

1/3" 0.5X Telecentric Lenses | WWL05-110AT COOLENS®

WWL05-110AT
Image Circle:6(1/3")mm, Magnification:0.5X, WD:110mm, NA:0.02142, Mount:C, Type:Telecentric Lenses
$279.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$279.00 USD each
Description

Model NO. WWL05-110AT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 0.5 Working Distance(mm) 110
NA 0.0214 Type Telecentric
Mount C Best Aperture(f/#) 11.6
MTF30 (lp/mm) 80 Object Resolution(μm) 15.7
Depth of Field(mm) 3.7 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) 0.01 Length (mm) 106.3
With Coaxial Illumination Port No Measured Depth of Field (mm) 3.4
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 6.4x4.8
1/3" (4.8x3.6)
 9.6x7.2

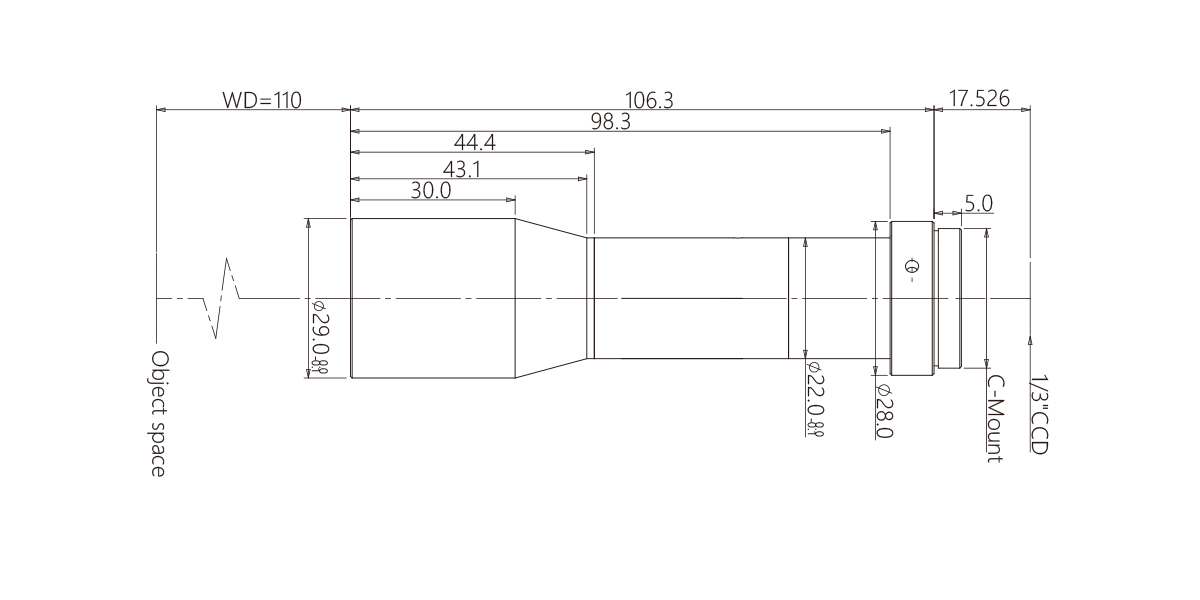

Dimensions



Naming Rule
