  • 1/3" 0.6X Industrial Lenses | WH06-220CT-130 COOLENS®-OKLAB
1 / 1

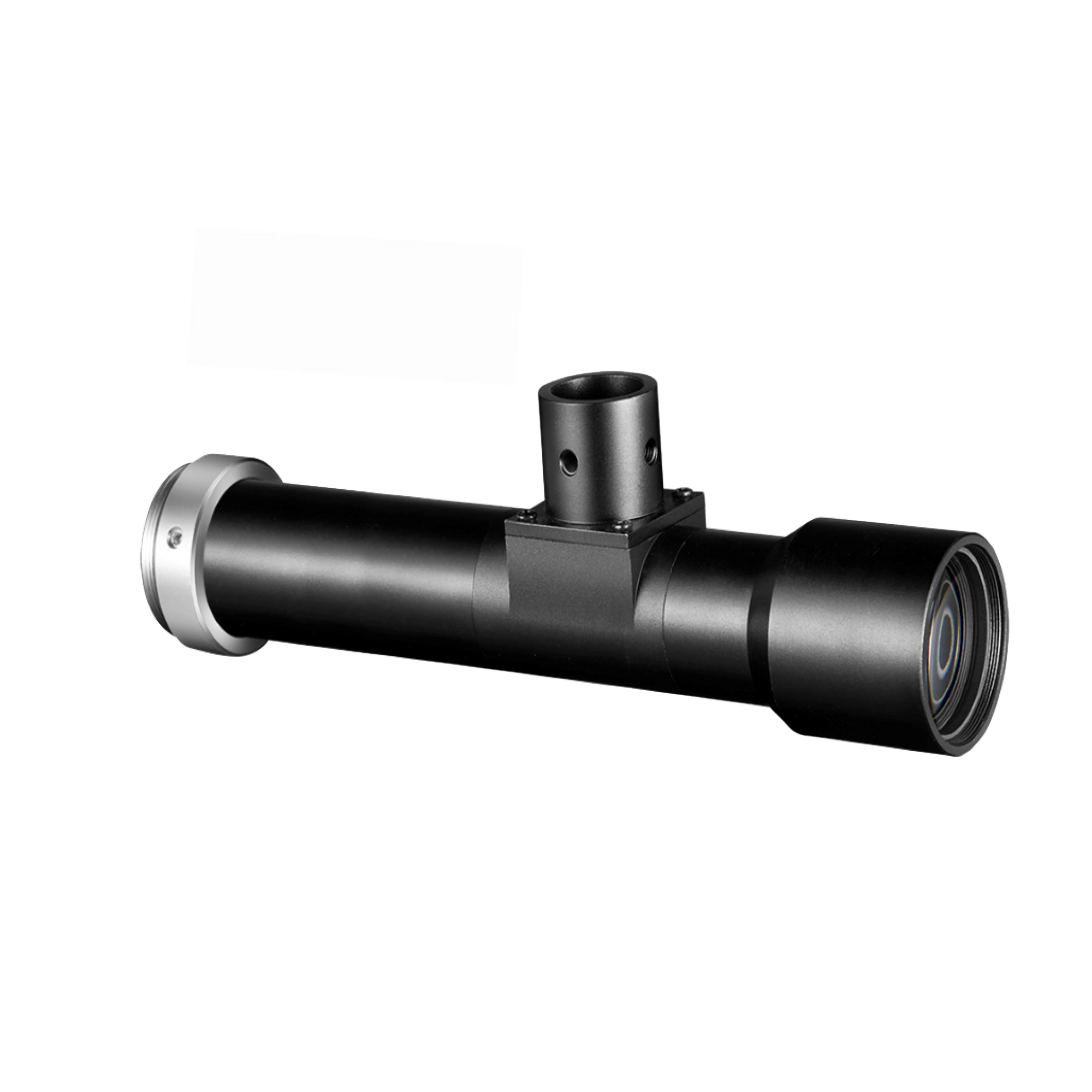

1/3" 0.6X Industrial Lenses | WH06-220CT-130 COOLENS®

WH06-220CT-130
$386.00 USD
Shipping calculated at checkout.
Quantity
1/3" 0.6X Industrial Lenses | WH06-220CT-130 COOLENS®-OKLAB

Description

Model NO. WH06-220CT-130 Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 0.6 Working Distance(mm) 220
NA 0.024 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.5
MTF30 (lp/mm) 65 Object Resolution(μm) 14
Depth of Field(mm) 2.8 Distortion Typical(% max) 0.03
Telecentricity Typical (°max) Non-telecentric Length (mm) 198.8
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.4
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/3"(4.8x3.6) 8.0x6.0

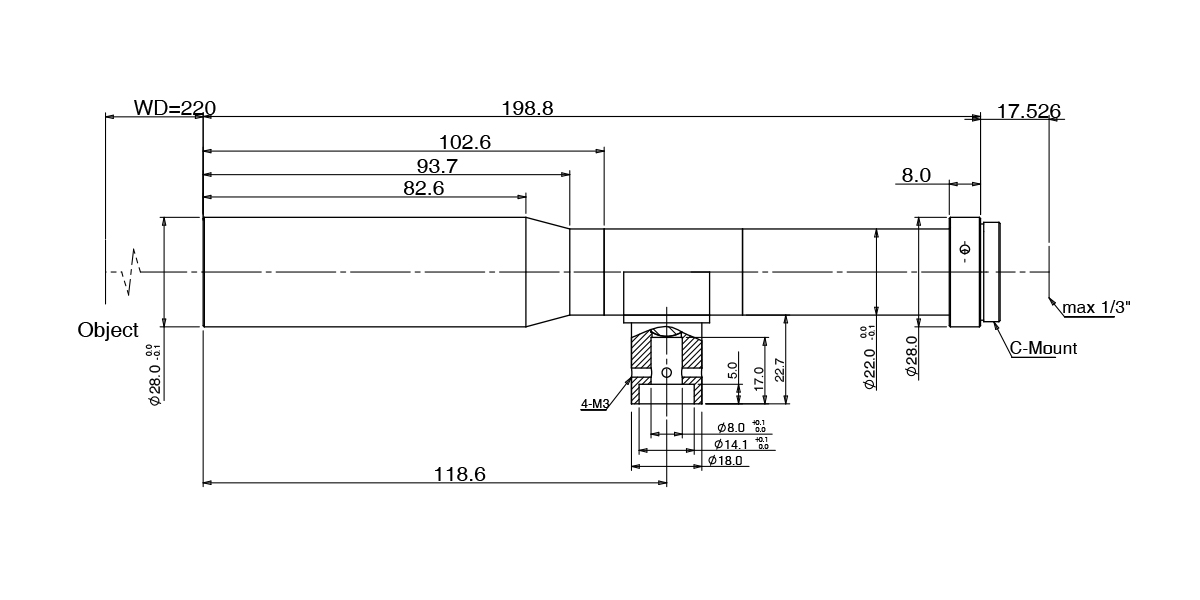

Dimensions

Naming Rule



Important Note
