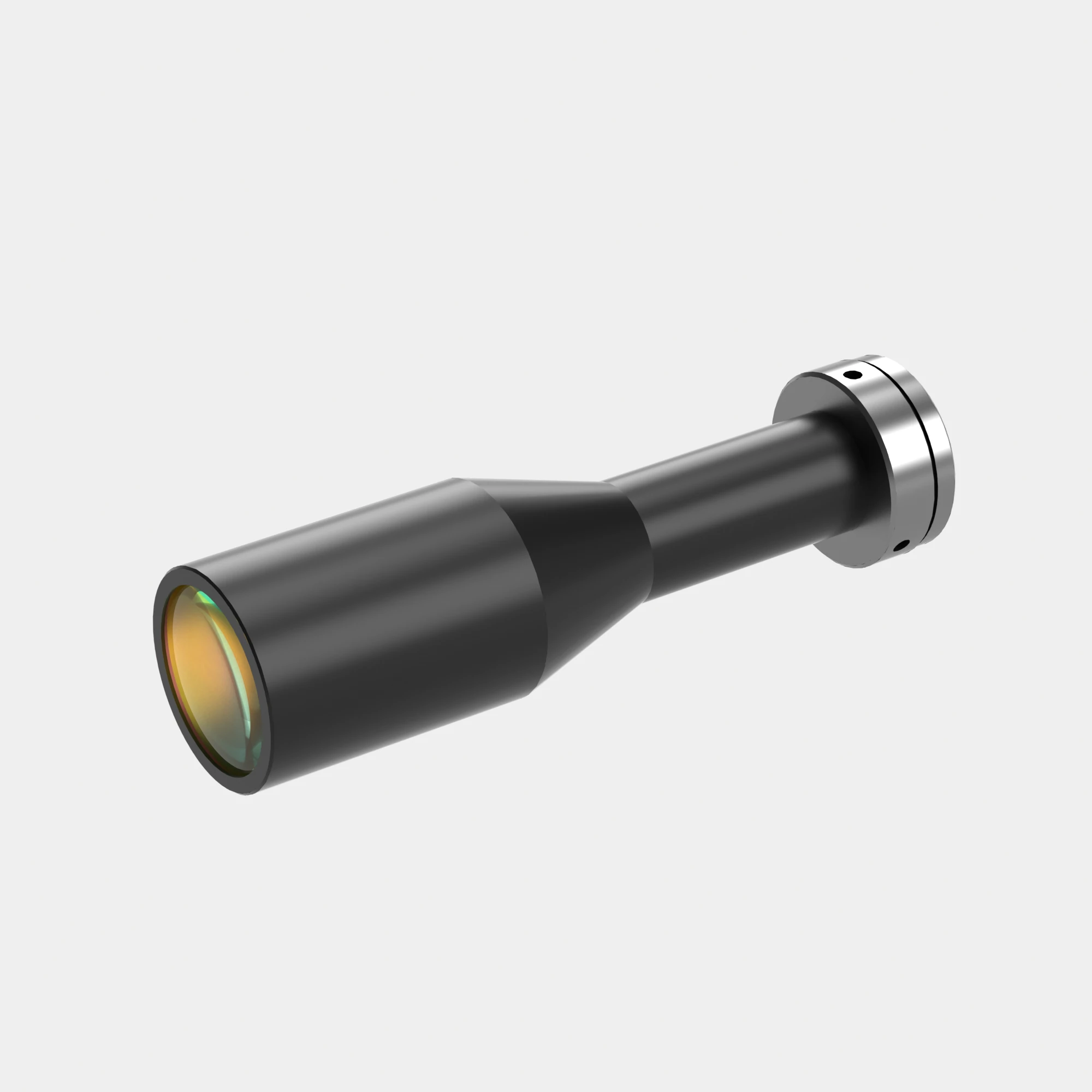

1/3" 0.6X Telecentric Lenses | WWL06-65AT COOLENS®

WWL06-65AT
Image Circle:6(1/3")mm, Magnification:0.6X, WD:65mm, NA:0.03746, Mount:C, Type:Telecentric Lenses
$279.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$279.00 USD each
Description

Model NO. WWL06-65AT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 0.6 Working Distance(mm) 65
NA 0.0375 Type Telecentric
Mount C Best Aperture(f/#) 8.0
MTF30 (lp/mm) 105 Object Resolution(μm) 9
Depth of Field(mm) 1.8 Distortion Typical(% max) 0.03
Telecentricity Typical (°max) 0.01 Length (mm) 97.1
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 5.3x4.0
1/3" (4.8x3.6)
 8.0x6.0

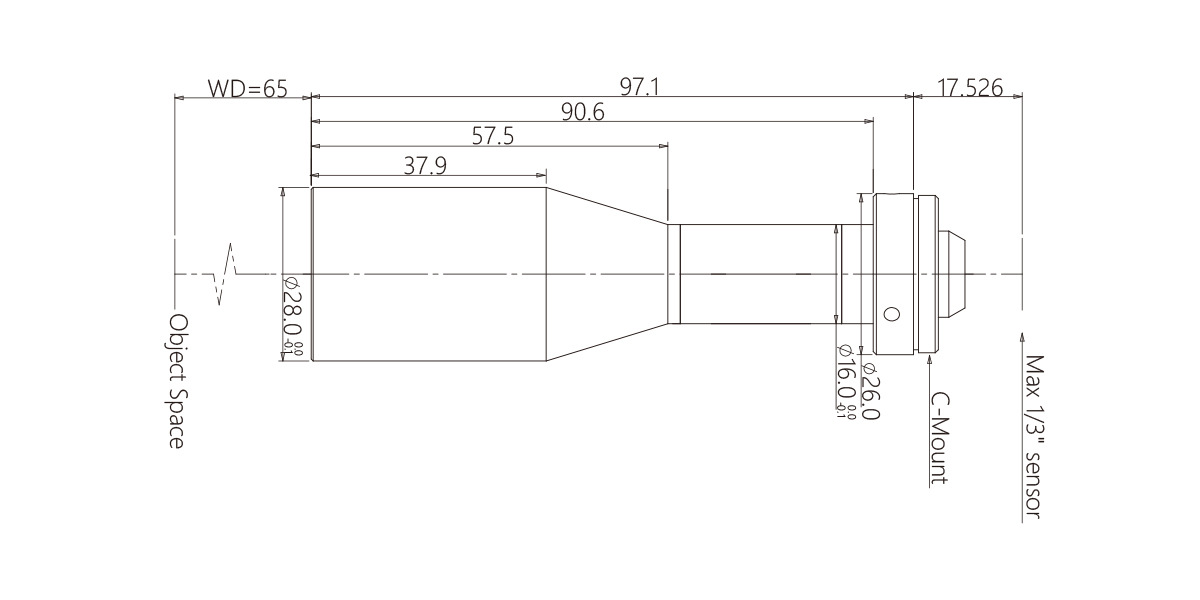

Dimensions

Naming Rule
