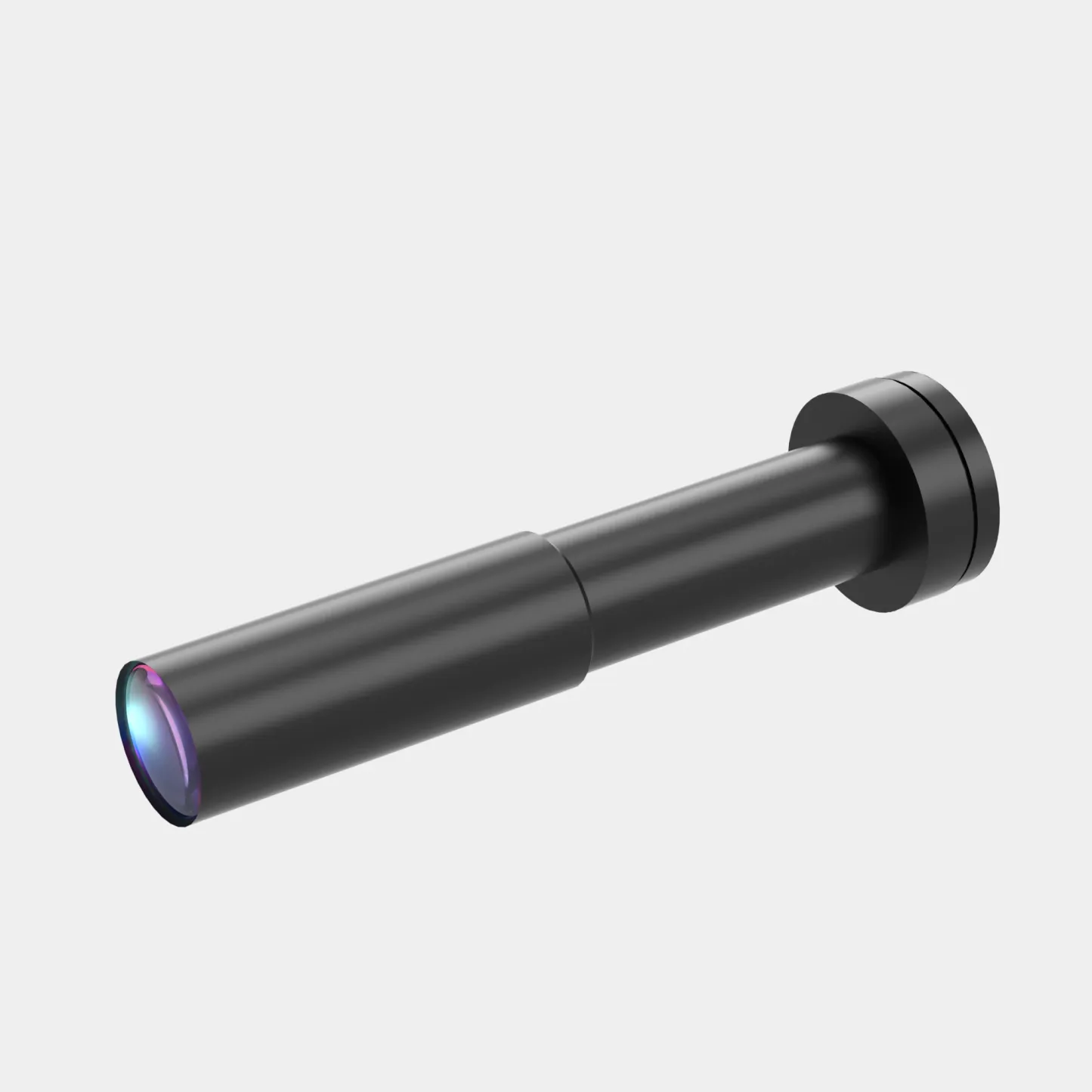

Model NO. | WWL08-130AT | Image Circle Diameter (Φmm) | 6(1/3") | ||||
Magnification(x) | 0.8 | Working Distance(mm) | 130 | ||||
NA | 0.0261 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 15.2 | ||||
MTF30 (lp/mm) | 55 | Object Resolution(μm) | 12.9 | ||||
Depth of Field(mm) | 1.9 | Distortion Typical(% max) | 0.1 | ||||

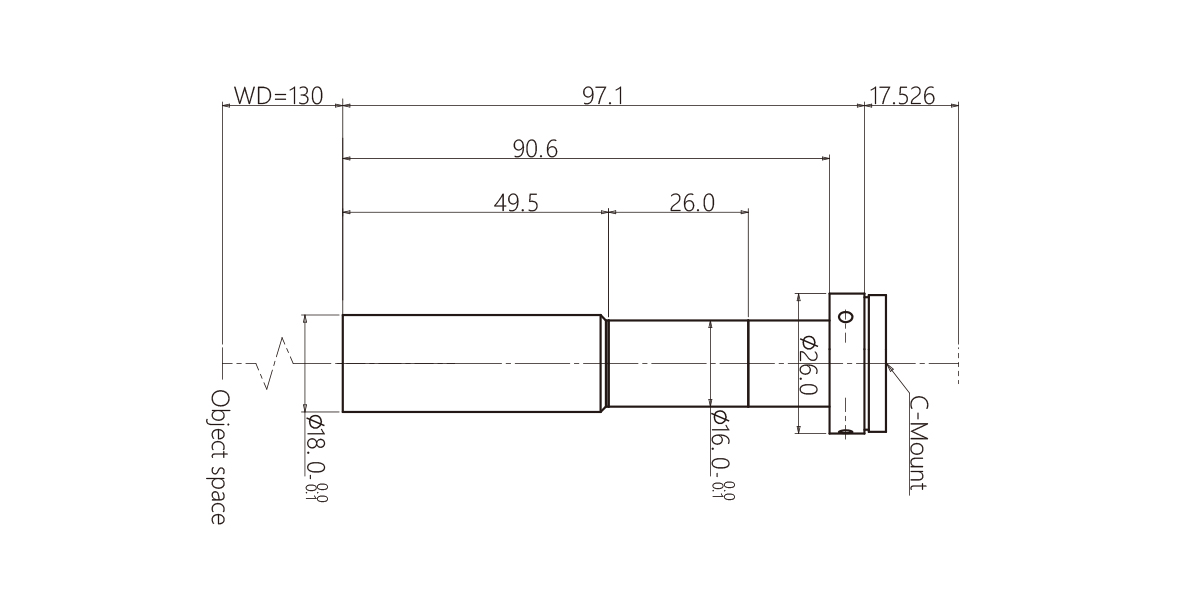

Telecentricity Typical (°max) | 0.01 | Length (mm) | 97.1 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2 | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) | |||||||
1/4" (3.2x2.4) | 4.0x3.0 | ||||||
1/3" (4.8x3.6)
|
6.0x4.5 |
