1/3" 0.8X Telecentric Lenses | WWL08-65AT COOLENS®-OKLAB
1/3" 0.8X Telecentric Lenses | WWL08-65AT COOLENS®-OKLAB
Home / 1/3" 0.8X Telecentric Lenses | WWL08-65AT COOLENS®

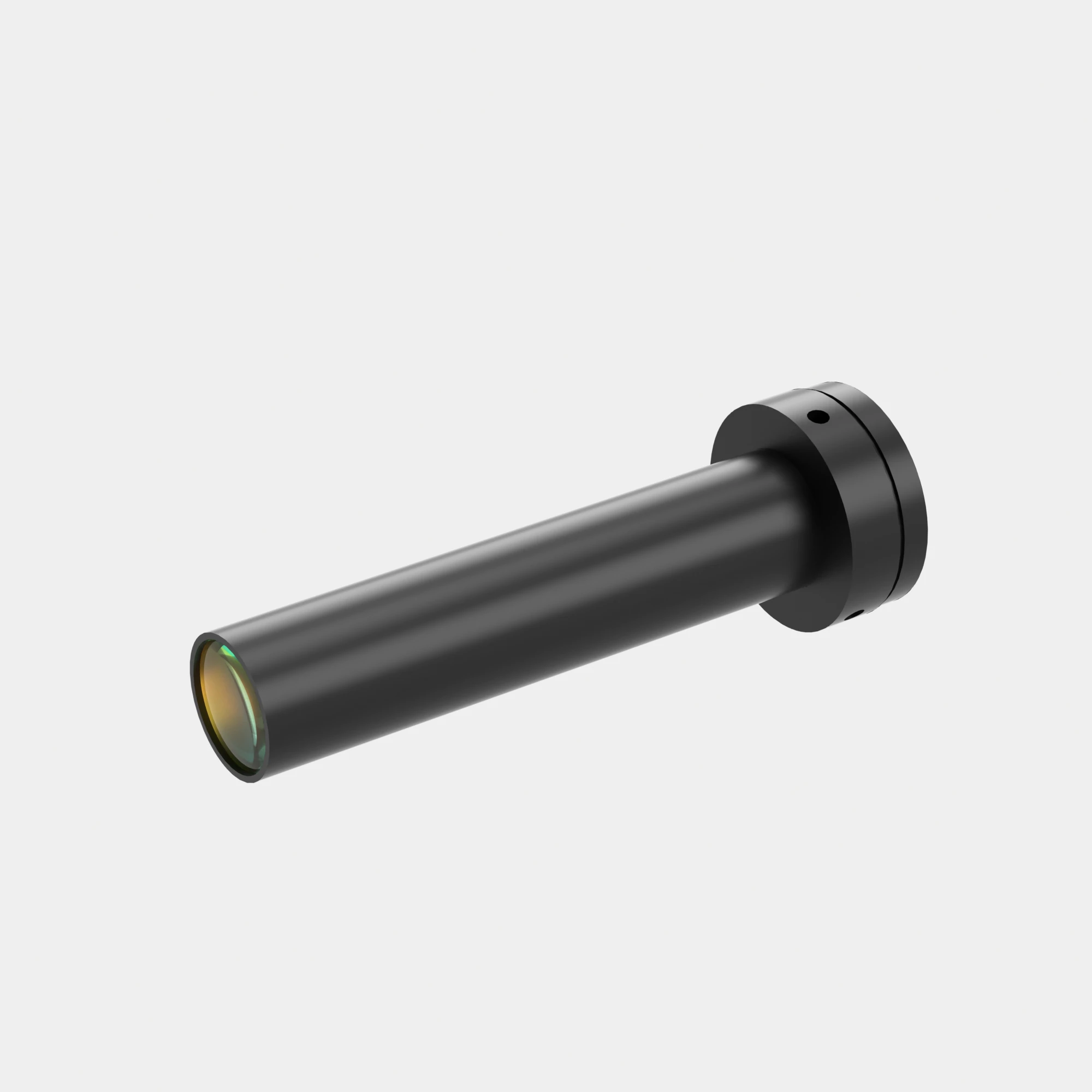

1/3" 0.8X Telecentric Lenses | WWL08-65AT COOLENS®

WWL08-65AT
Image Circle:6(1/3")mm, Magnification:0.8X, WD:65mm, NA:0.03347, Mount:C, Type:Telecentric Lenses
$171.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$171.00 USD each
Description

Model NO. WWL08-65AT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 0.8 Working Distance(mm) 65
NA 0.0335 Type Telecentric
Mount C Best Aperture(f/#) 11.9
MTF30 (lp/mm) 75 Object Resolution(μm) 10
Depth of Field(mm) 1.5 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) 0.01 Length (mm) 76
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.8
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 4.0x3.0
1/3" (4.8x3.6)
 6.0x4.5

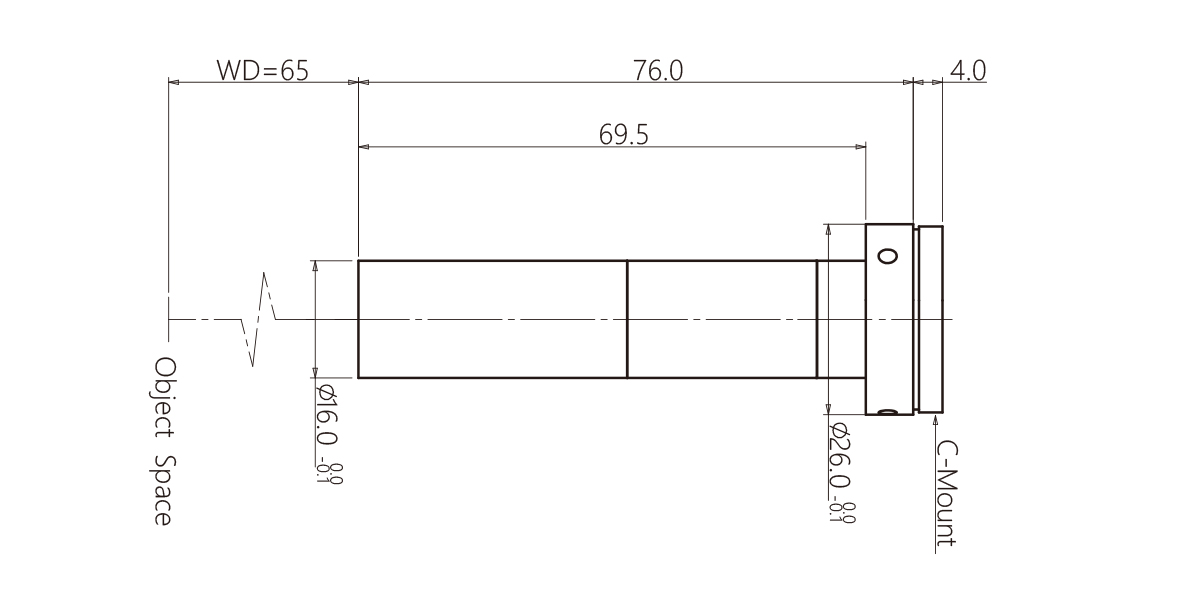

Dimensions

Naming Rule
