1/3" 1.5X Telecentric Lenses | WWL15-110CN COOLENS®-OKLAB
1/3" 1.5X Telecentric Lenses | WWL15-110CN COOLENS®-OKLAB
Home / 1/3" 1.5X Telecentric Lenses | WWL15-110CN COOLENS®

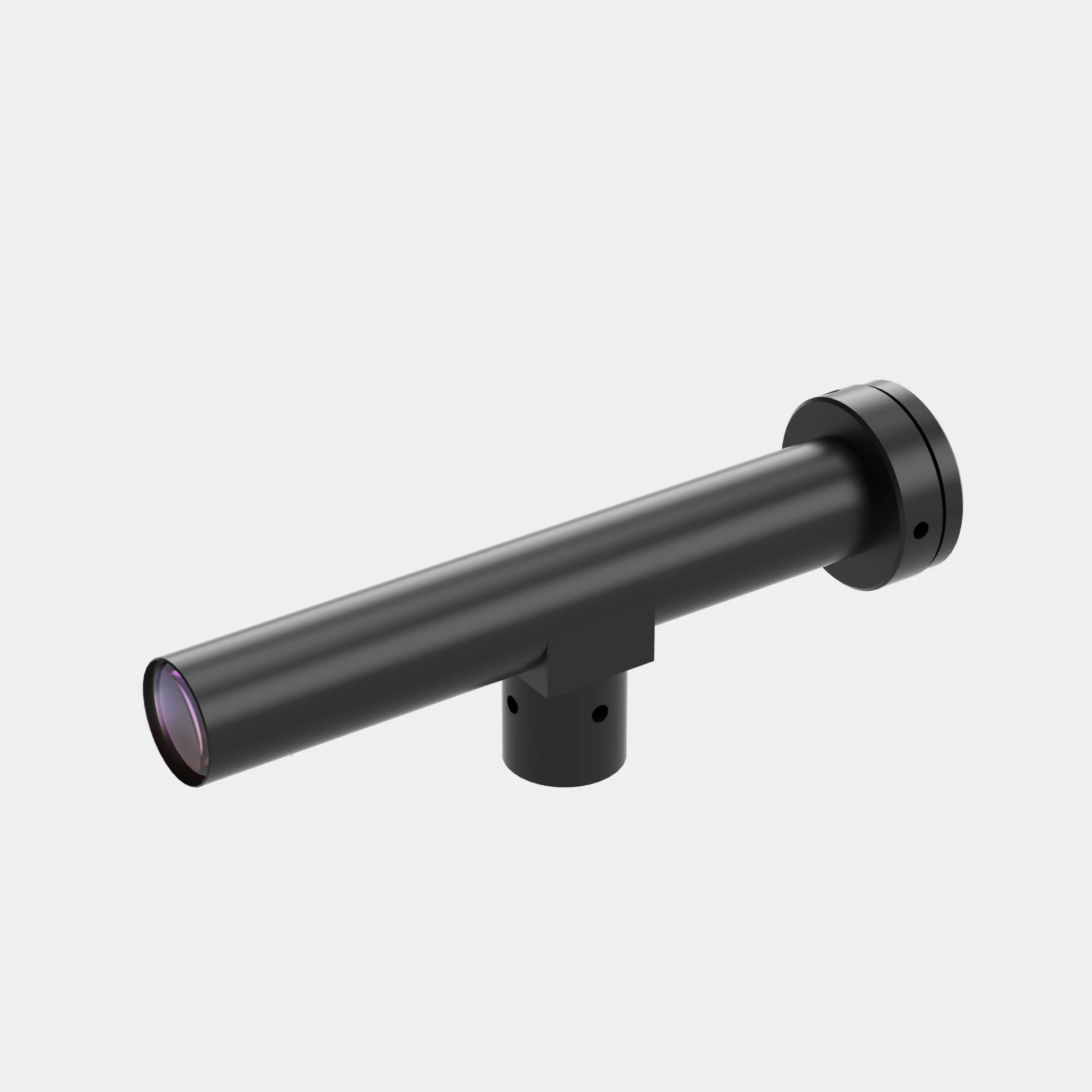

1/3" 1.5X Telecentric Lenses | WWL15-110CN COOLENS®

WWL15-110CN
Image Circle:6(1/3")mm, Magnification:1.5X, WD:110mm, NA:0.0552, Mount:C, Type:Telecentric Lenses
$236.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$236.00 USD each
Description

Model NO. WWL15-110CN Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 1.5 Working Distance(mm) 110
NA 0.0552 Type Telecentric
Mount C Best Aperture(f/#) 13.6
MTF30 (lp/mm) 70 Object Resolution(μm) 6.1
Depth of Field(mm) 0.5 Distortion Typical(% max) 0.05
Telecentricity Typical (°max) 1 Length (mm) 104.2
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.4
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 2.1x1.6
1/3" (4.8x3.6)
 3.2x2.4

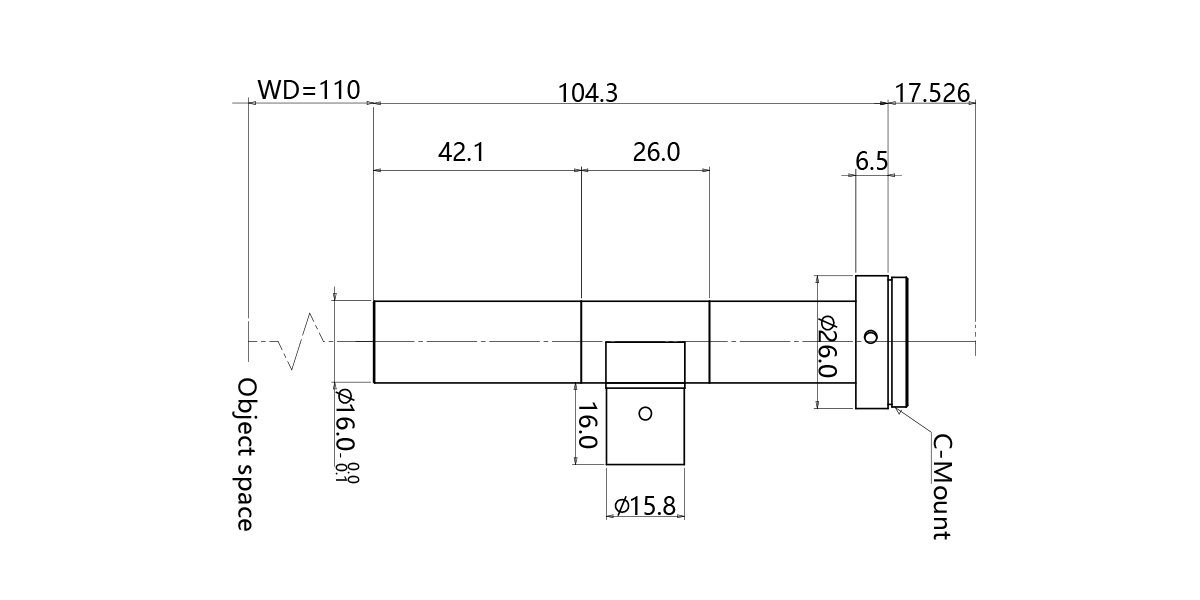

Dimensions

Naming Rule
