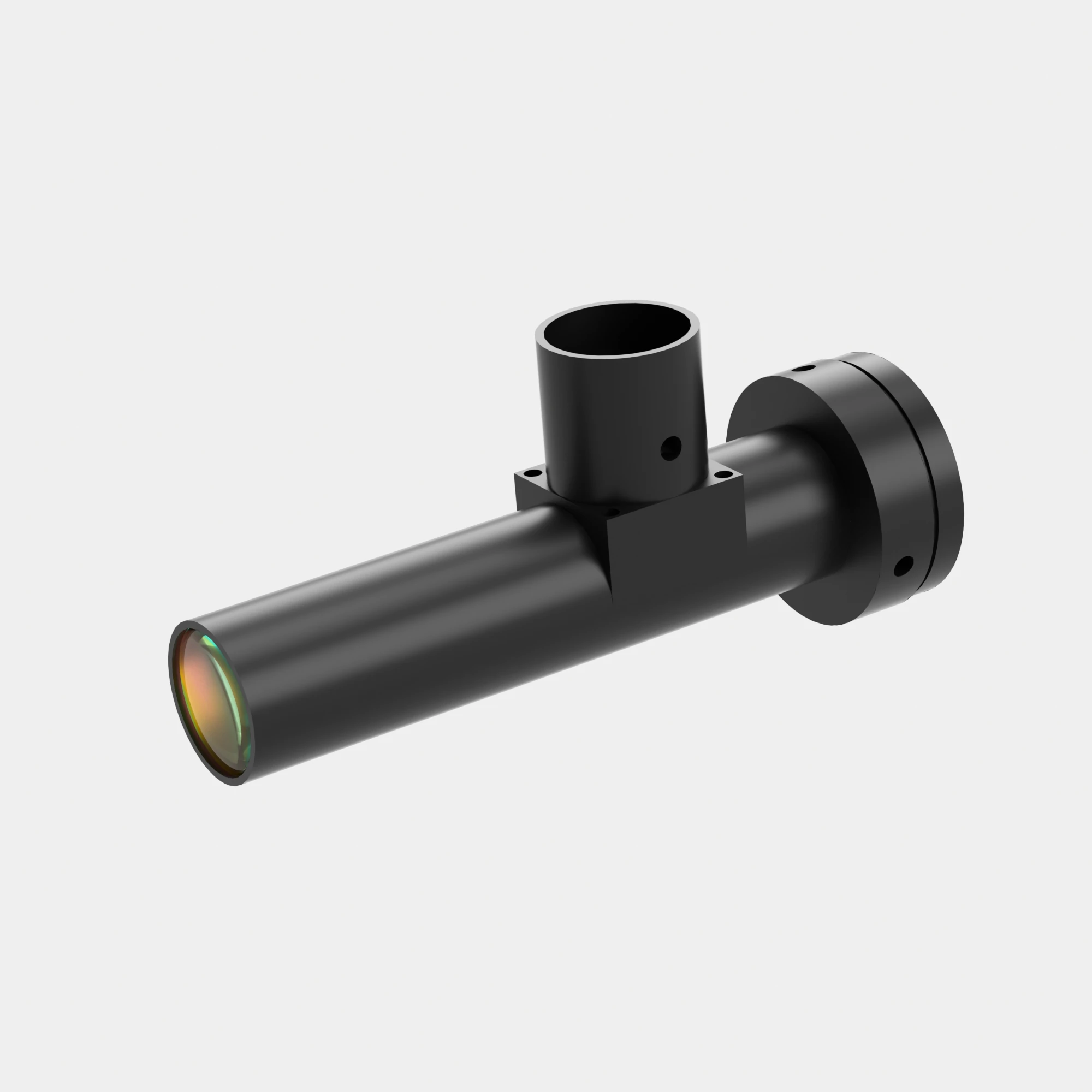

1/3" 1.5X Telecentric Lenses | WWL15-65CT COOLENS®

WWL15-65CT
Image Circle:6(1/3")mm, Magnification:1.5X, WD:65mm, NA:0.06189, Mount:C, Type:Telecentric Lenses
$257.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$257.00 USD each
Description

Model NO. WWL15-65CT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 1.5 Working Distance(mm) 65
NA 0.0619 Type Telecentric
Mount C Best Aperture(f/#) 12
MTF30 (lp/mm) 75 Object Resolution(μm) 5.4
Depth of Field(mm) 0.4 Distortion Typical(% max) 0.3
Telecentricity Typical (°max) 0.2 Length (mm) 74.6
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.4
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 2.1x1.6
1/3" (4.8x3.6)
 3.2x2.4

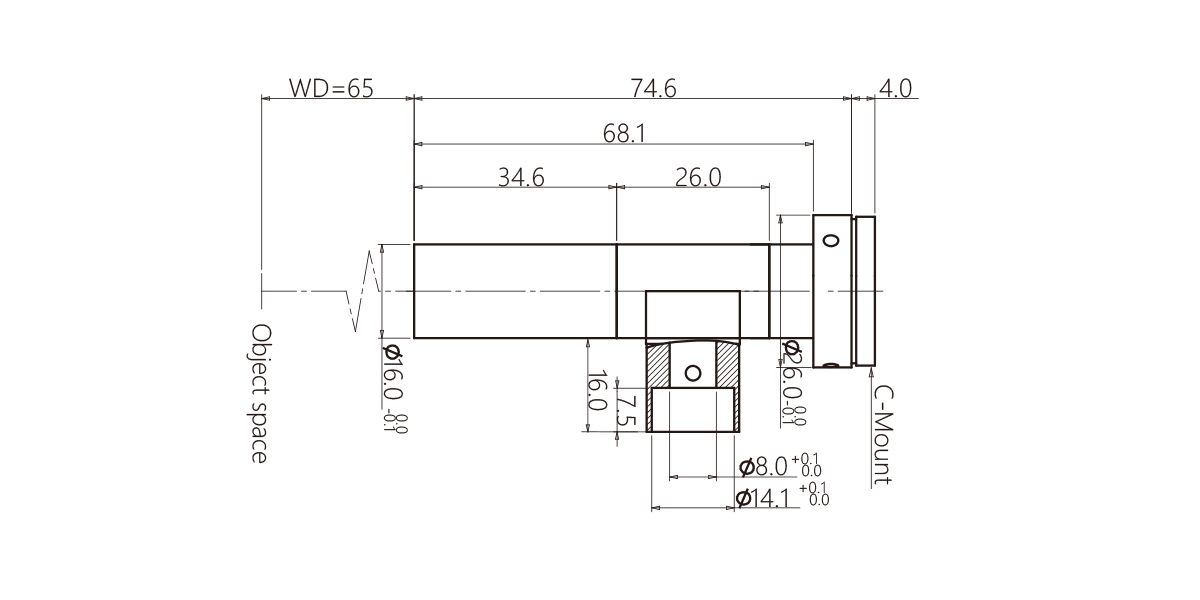

Dimensions

Naming Rule
