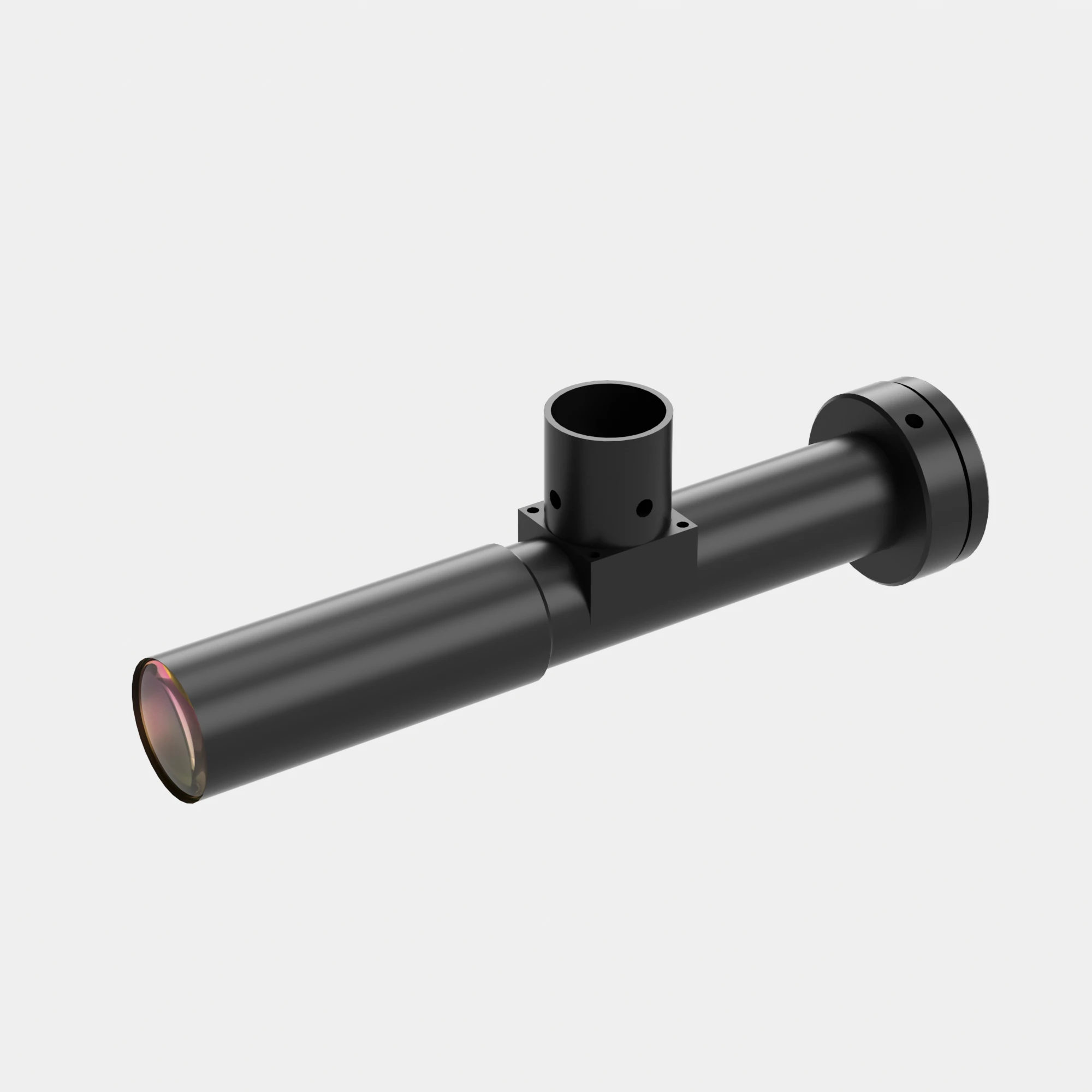

1/3" 1X Telecentric Lenses | WWL10-110CT COOLENS®

WWL10-110CT
Image Circle:6(1/3")mm, Magnification:1X, WD:113mm, NA:0.03663, Mount:C, Type:Telecentric Lenses
$257.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$257.00 USD each
Description

Model NO. WWL10-110CT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 1.0 Working Distance(mm) 113
NA 0.0366 Type Telecentric
Mount C Best Aperture(f/#) 13.7
MTF30 (lp/mm) 60 Object Resolution(μm) 9.2
Depth of Field(mm) 1.1 Distortion Typical(% max) 0.05
Telecentricity Typical (°max) 0.01 Length (mm) 109.8
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 3.2x2.4
1/3" (4.8x3.6)
 4.8x3.6

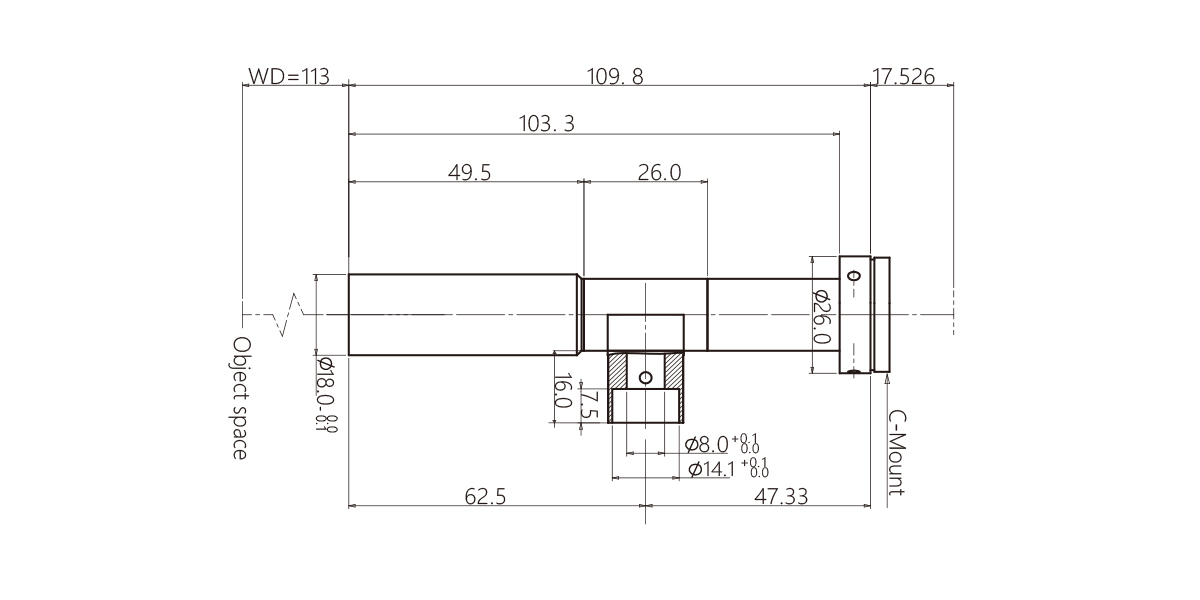

Dimensions

Naming Rule
