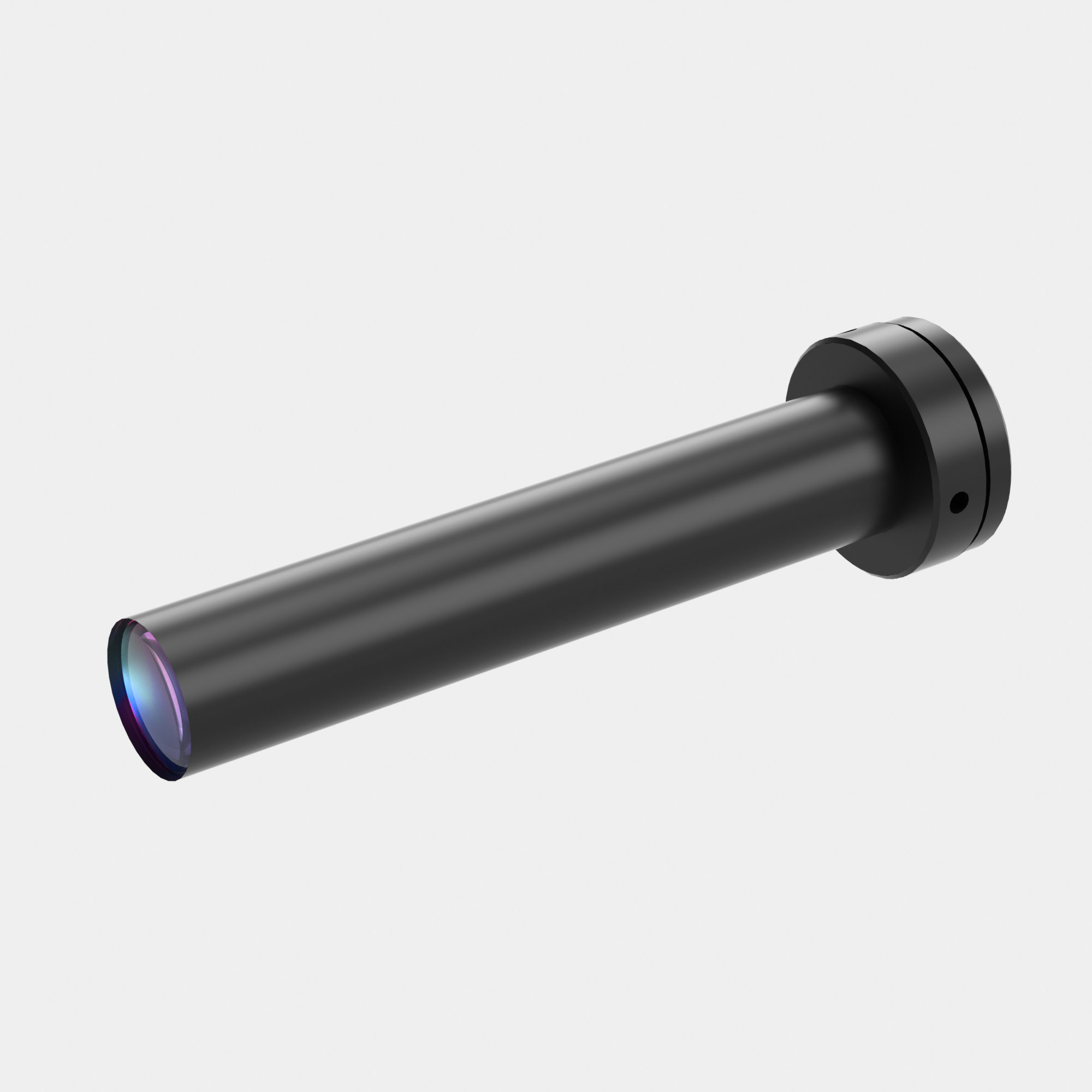

1/3" 1X Telecentric Lenses | WWL10-150AT COOLENS®

WWL10-150AT
Image Circle:6(1/3")mm, Magnification:1X, WD:150mm, NA:0.0212, Mount:C, Type:Telecentric Lenses
$176.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$176.00 USD each
Description

Model NO. WWL10-150AT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 1.0 Working Distance(mm) 150
NA 0.0212 Type Telecentric
Mount C Best Aperture(f/#) 23.5
MTF30 (lp/mm) 40 Object Resolution(μm) 15.8
Depth of Field(mm) 1.9 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) 0.01 Length (mm) 90.1
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.8
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 3.2x2.4
1/3" (4.8x3.6)
 4.8x3.6

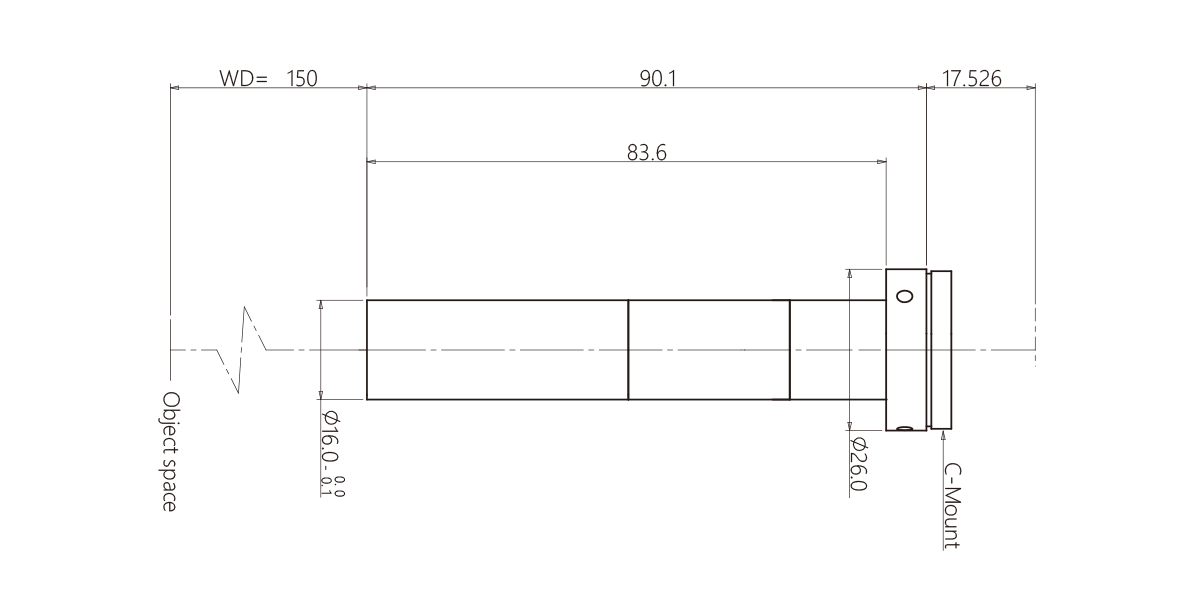

Dimensions

Naming Rule
