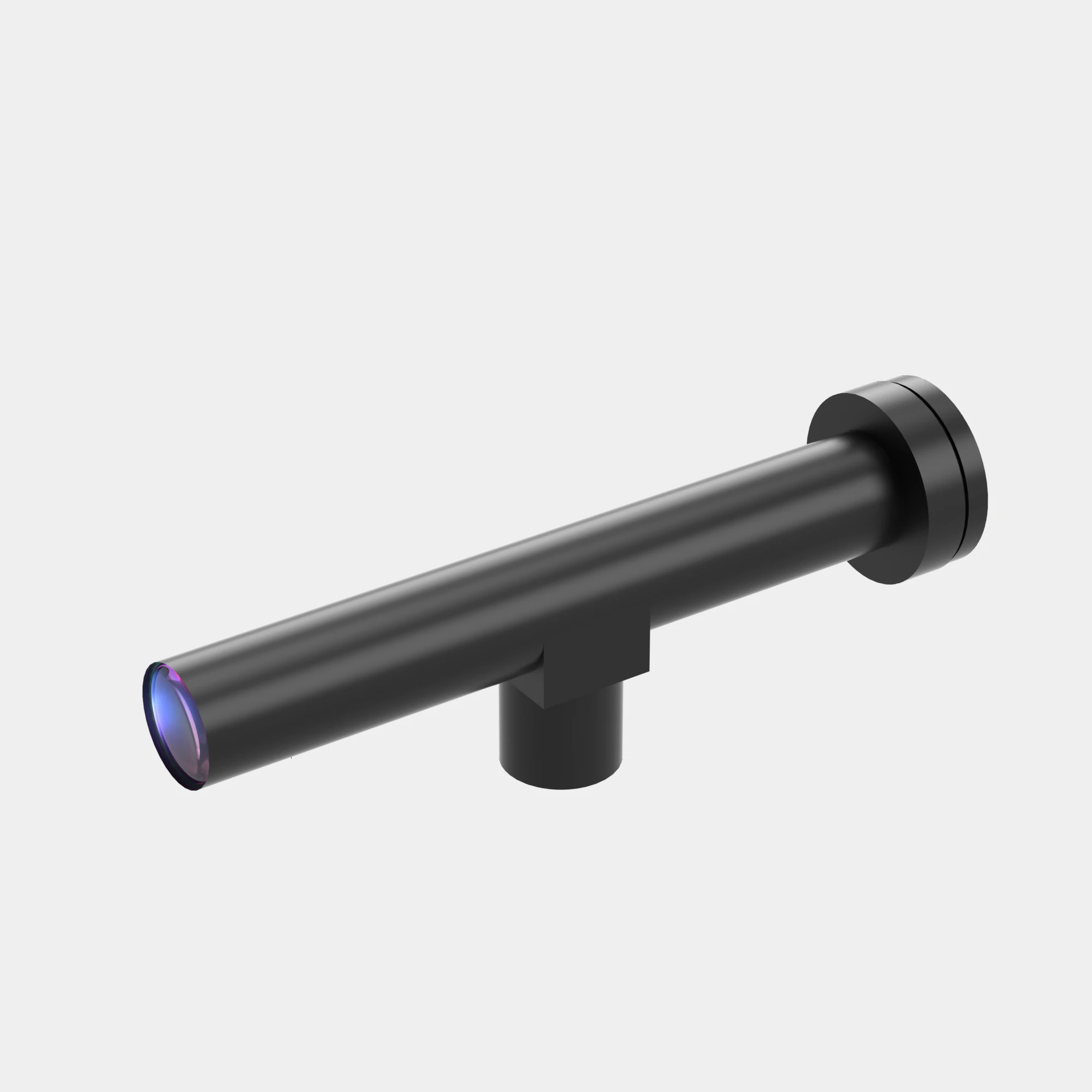

1/3" 2.5X Telecentric Lenses | WWL25-110C COOLENS®

WWL25-110C
Image Circle:6(1/3")mm, Magnification:2.5X, WD:110mm, NA:0.04607, Mount:C, Type:Telecentric Lenses
$236.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$236.00 USD each
Description

Model NO. WWL25-110C Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 2.5 Working Distance(mm) 110
NA 0.0461 Type Telecentric
Mount C Best Aperture(f/#) 26.7
MTF30 (lp/mm) 35 Object Resolution(μm) 7.3
Depth of Field(mm) 0.3 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) 0.001 Length (mm) 109.7
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.4
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 1.3x1.0
1/3" (4.8x3.6)
 1.9x1.4

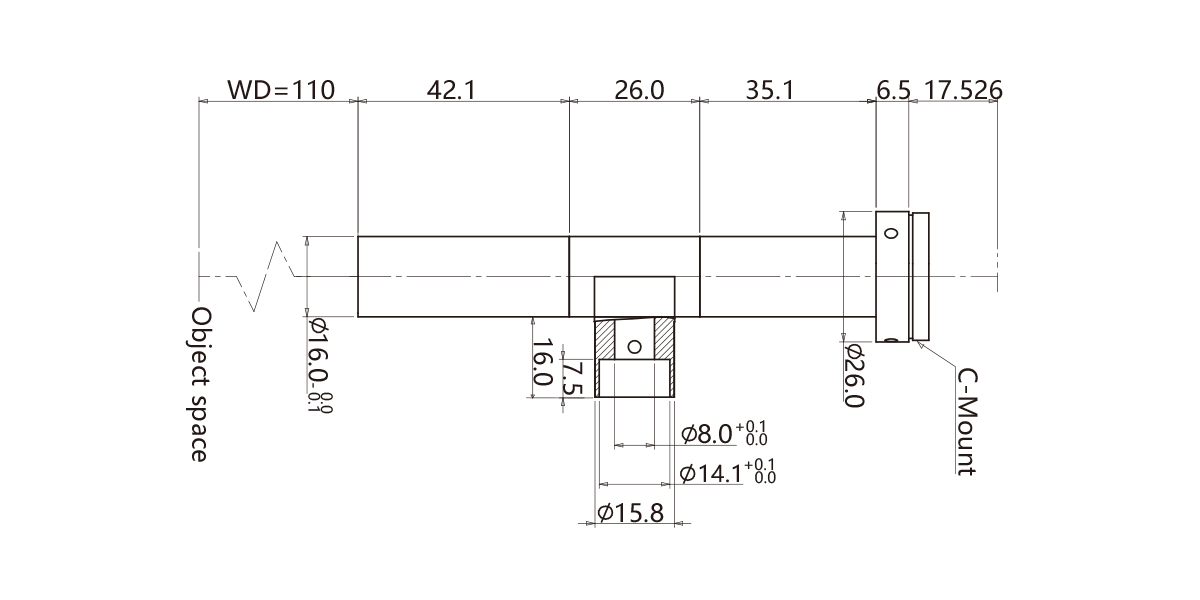

Dimensions

Naming Rule
