1/3" 2X Telecentric Lenses | WWL20-110CTS COOLENS®-OKLAB
1/3" 2X Telecentric Lenses | WWL20-110CTS COOLENS®-OKLAB
Home / 1/3" 2X Telecentric Lenses | WWL20-110CTS COOLENS®

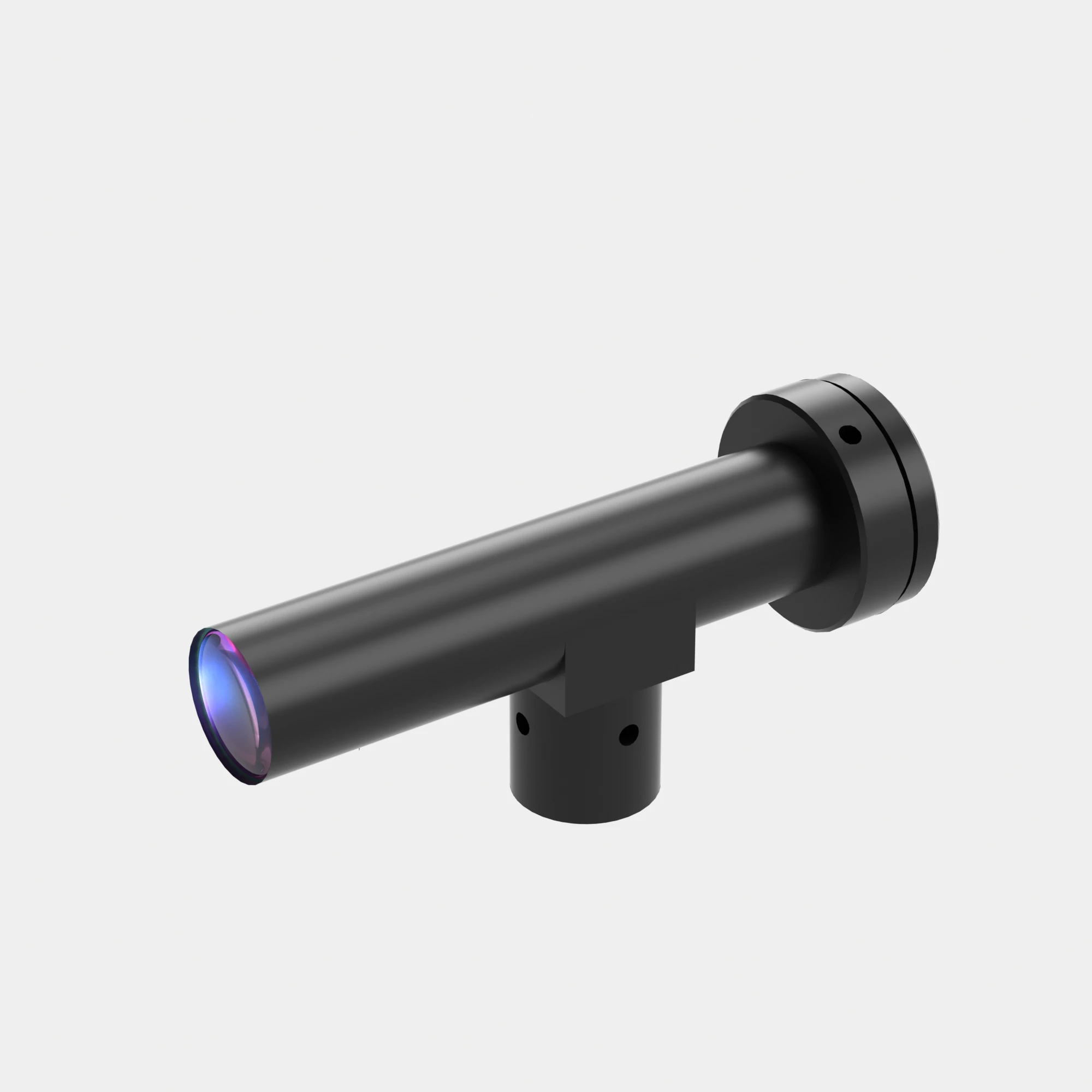

1/3" 2X Telecentric Lenses | WWL20-110CTS COOLENS®

WWL20-110CTS
Image Circle:6(1/3")mm, Magnification:2X, WD:110mm, NA:0.04152, Mount:C, Type:Telecentric Lenses
$257.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$257.00 USD each
Description

Model NO. WWL20-110CTS Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 2.0 Working Distance(mm) 110
NA 0.0415 Type Telecentric
Mount C Best Aperture(f/#) 23.7
MTF30 (lp/mm) 35 Object Resolution(μm) 8.1
Depth of Field(mm) 0.5 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) 0.01 Length (mm) 73.8
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.6
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 1.6x1.2
1/3" (4.8x3.6)
 2.4x1.8

Dimensions

Naming Rule
