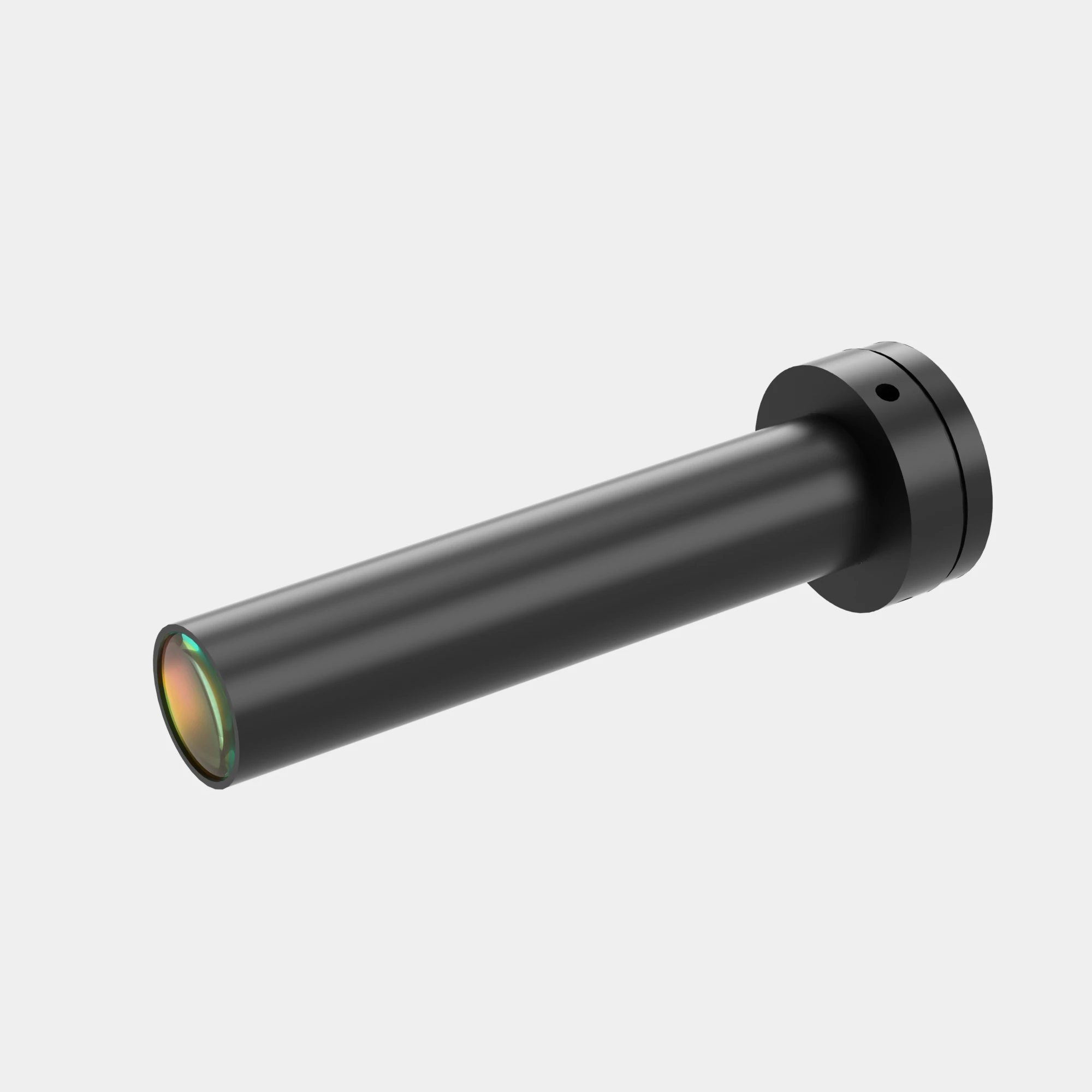

| Model NO. | WWL20-65AT | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 2.0 | Working Distance(mm) | 65 | ||||
| NA | 0.0719 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 13.7 | ||||
| MTF30 (lp/mm) | 65 | Object Resolution(μm) | 4.7 | ||||
| Depth of Field(mm) | 0.3 | Distortion Typical(% max) | 0.15 | ||||
| Telecentricity Typical (°max) | 0.06 | Length (mm) | 80.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.3 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/4" (3.2x2.4) | 1.6x1.2 | ||||||
|
1/3" (4.8x3.6)
|
2.4x1.8 | ||||||

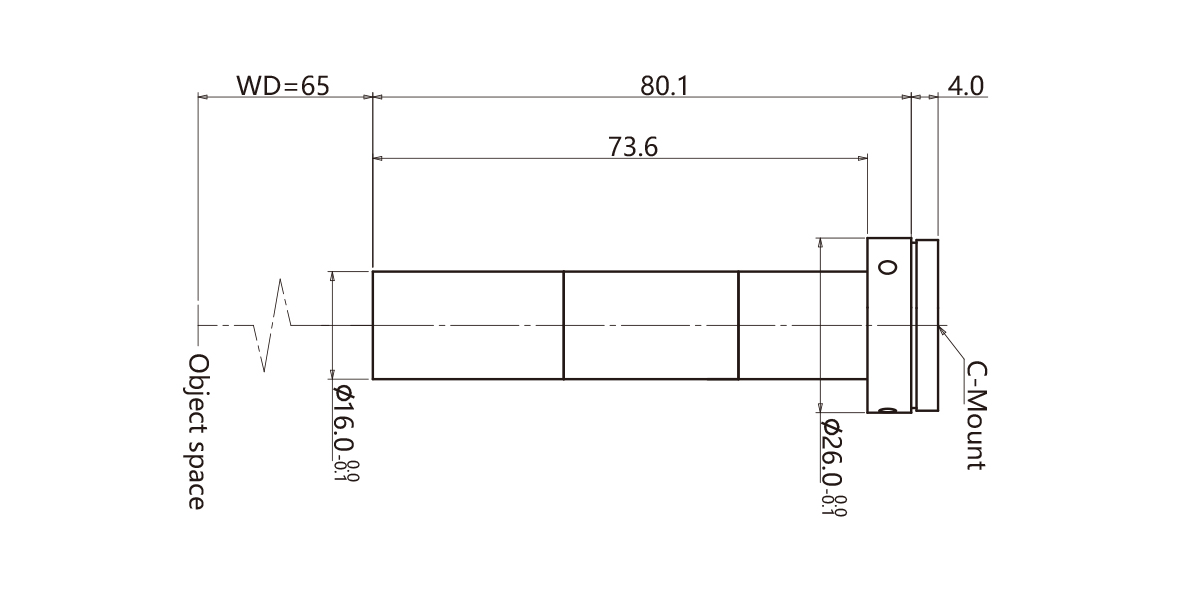

Dimensions
Naming Rule
