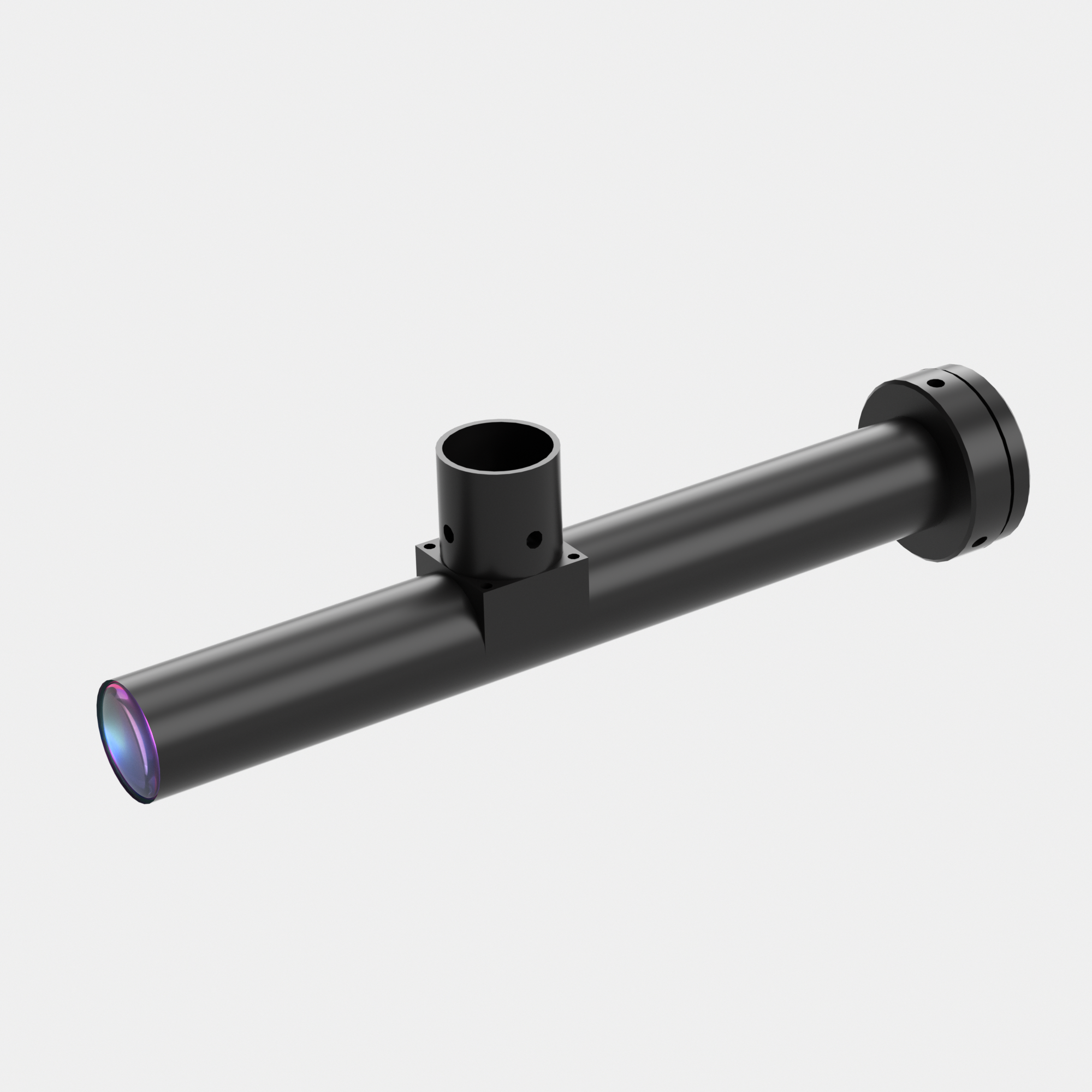

1/3" 3X Telecentric Lenses | WWL30-150CT COOLENS®

WWL30-150CT
Image Circle:6(1/3")mm, Magnification:3X, WD:150mm, NA:0.03329, Mount:C, Type:Telecentric Lenses
$236.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$236.00 USD each
Description

Model NO. WWL30-150CT Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 3.0 Working Distance(mm) 150
NA 0.0333 Type Telecentric
Mount C Best Aperture(f/#) 45.5
MTF30 (lp/mm) 20 Object Resolution(μm) 10.1
Depth of Field(mm) 0.4 Distortion Typical(% max) 0.05
Telecentricity Typical (°max) 0.01 Length (mm) 128.8
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.4
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 1.1x0.8
1/3" (4.8x3.6)
 1.6x1.2

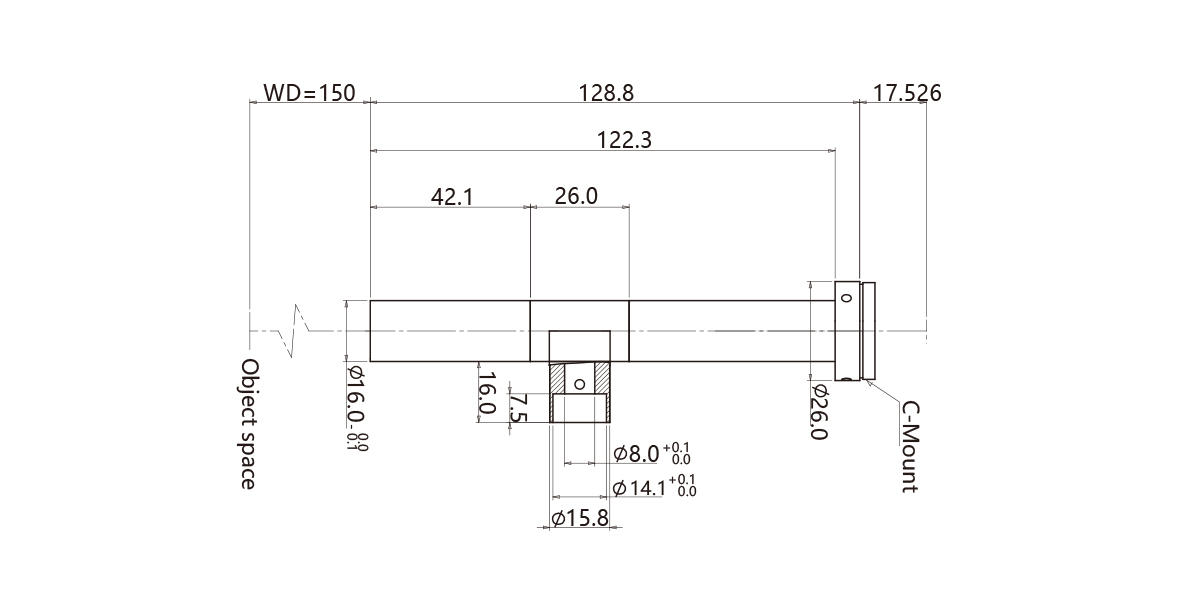

Dimensions

Naming Rule
