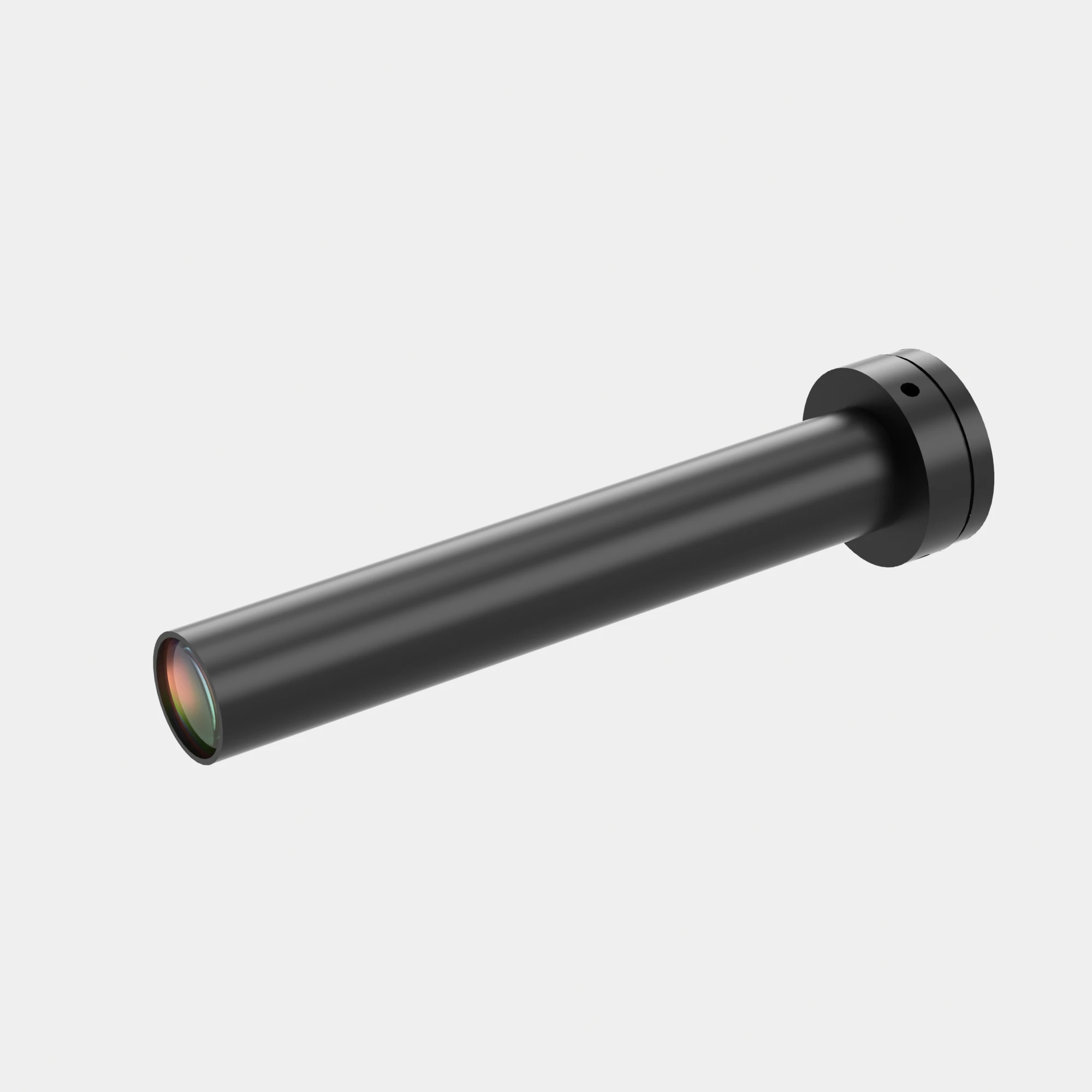

1/3" 4X Telecentric Lenses | WWL40-65A COOLENS®

WWL40-65A
Image Circle:6(1/3")mm, Magnification:4X, WD:65mm, NA:0.05619, Mount:C, Type:Telecentric Lenses
$164.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$164.00 USD each
Description

Model NO. WWL40-65A Image Circle Diameter (Φmm) 6(1/3")
Magnification(x) 4.0 Working Distance(mm) 65
NA 0.0562 Type Telecentric
Mount C Best Aperture(f/#) 34.9
MTF30 (lp/mm) 27 Object Resolution(μm) 6
Depth of Field(mm) 0.2 Distortion Typical(% max) 0.03
Telecentricity Typical (°max) 0.5 Length (mm) 103.8
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.2
Filter Screw Size /
Field of View (mm x mm)
1/4" (3.2x2.4) 0.8x0.6
1/3" (4.8x3.6)
 1.2x0.9

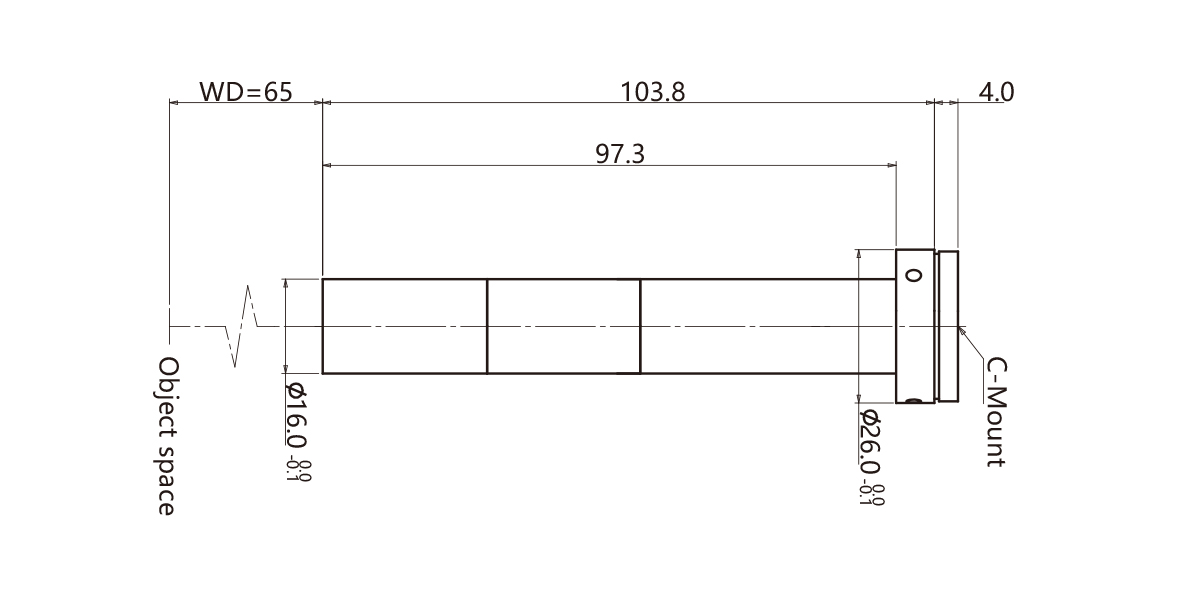

Dimensions

Naming Rule
