Model No. | MFA110-H12 | Image Circle Diameter (Φmm) | 1" | ||||
Focal Length(mm) | 12 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 120 | ||||
Type | Fixed Focal Length | Support Cameras | 20M | ||||
Mount | C | Back Focal Length | 11.5mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | / | ||||

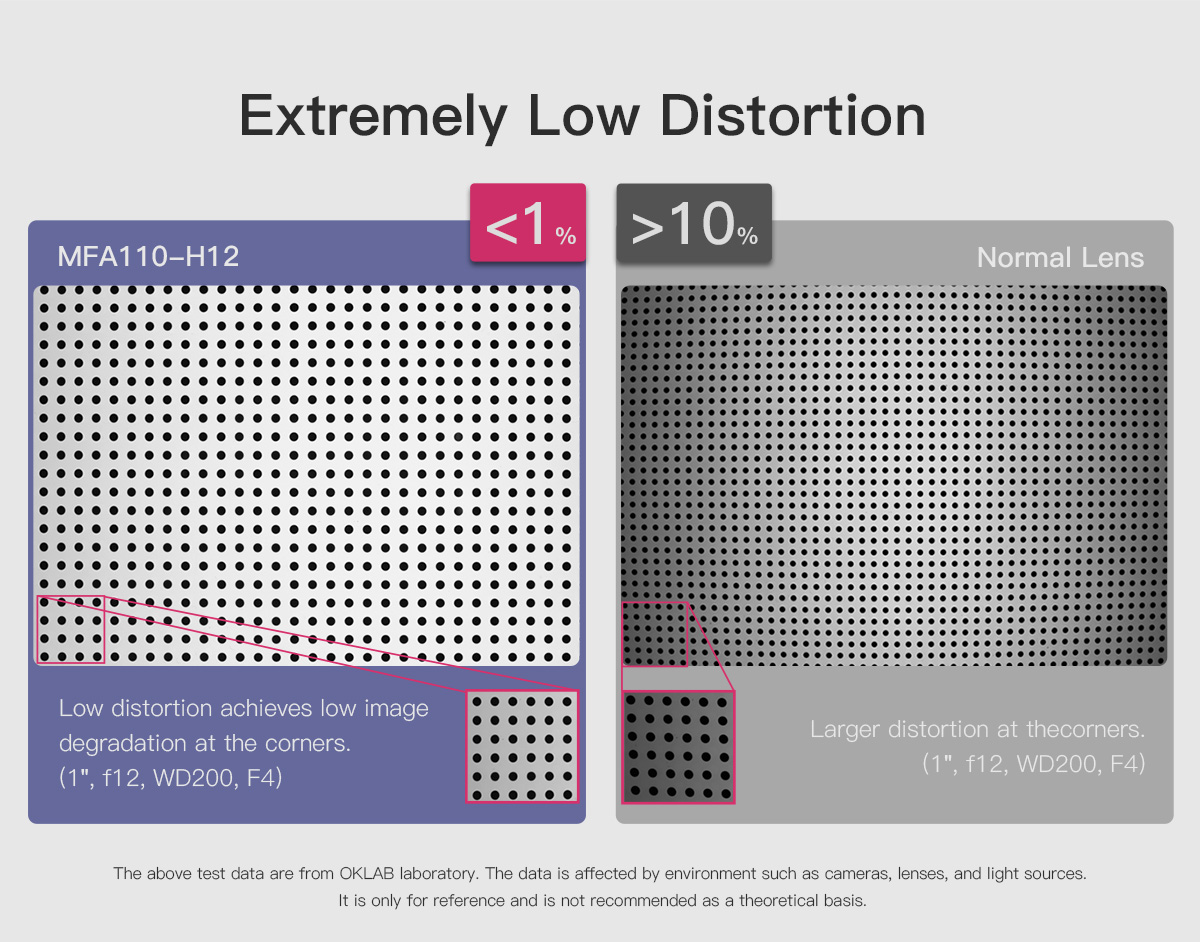

Max. Image Format | 1" (φ17.6mm) | Distortion | <0.1% | ||||
Angle of View | D | 1.1'' | 70.5° | 1" | 65.7° | 2/3" | 48.3° |
H | 59.8° | 53.5° | 37.8° | ||||
V | 46.2° | 43.3° | 32.1° | ||||
M.o.D | 0.1m | Object Dimension at M.o.D | 1.1" | 145.95mm x 105.37mm | |||
Weight | 169.0g | 1" | 127.71mm x 99.90mm | ||||
Flange Back Length | 17.526mm in Air | 2/3" | 85.49mm x 71.25mm | ||||
Structure | 10 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||

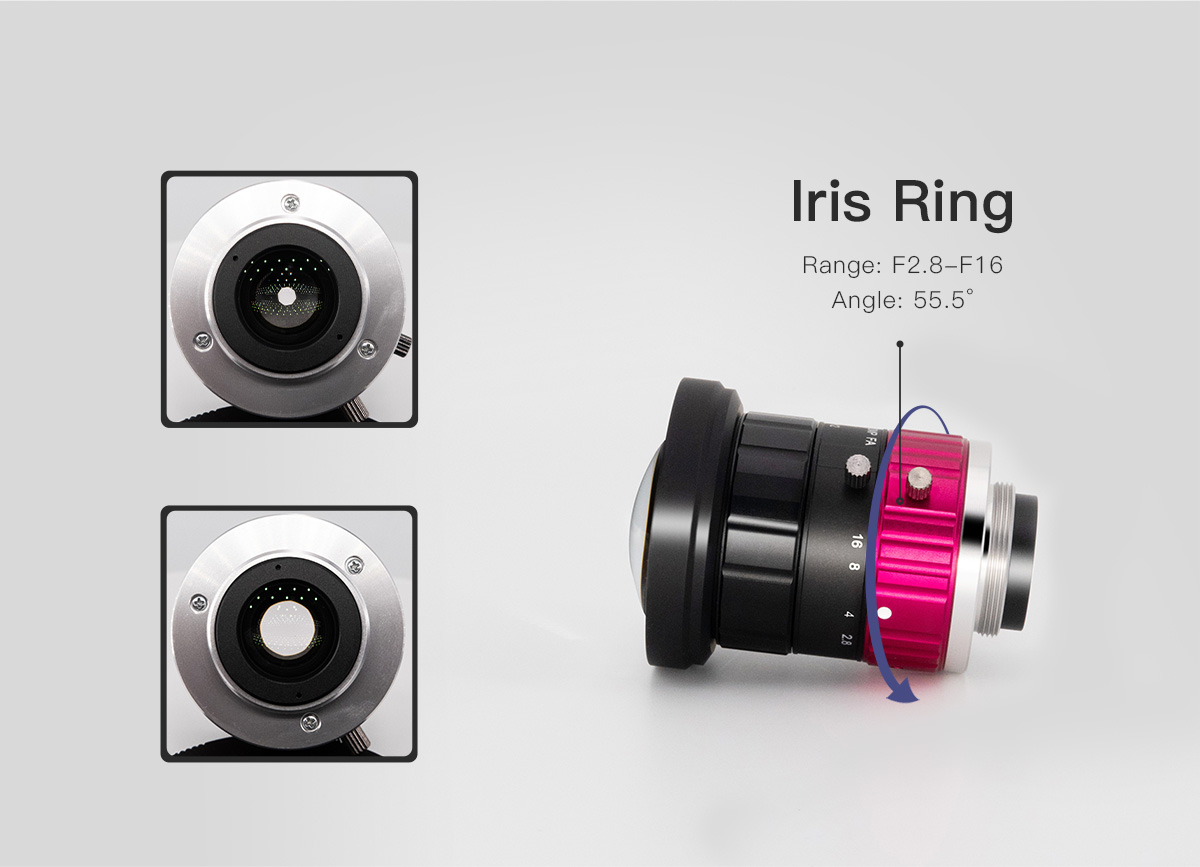

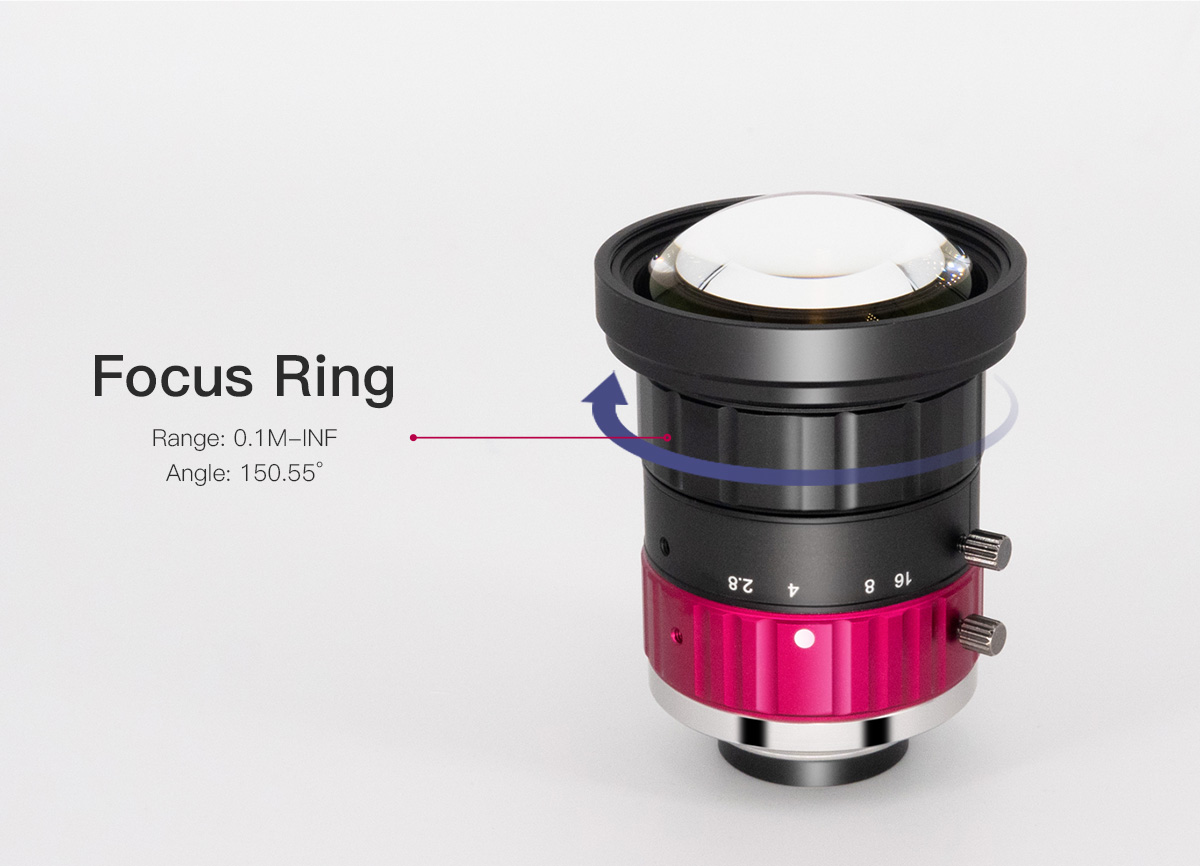

Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | F2.8 - F16 | ||
Angle | 55.5° | Angle | 150.55° | ||||
Spectral Transmission | AT 436nm-656nmT≥85% |

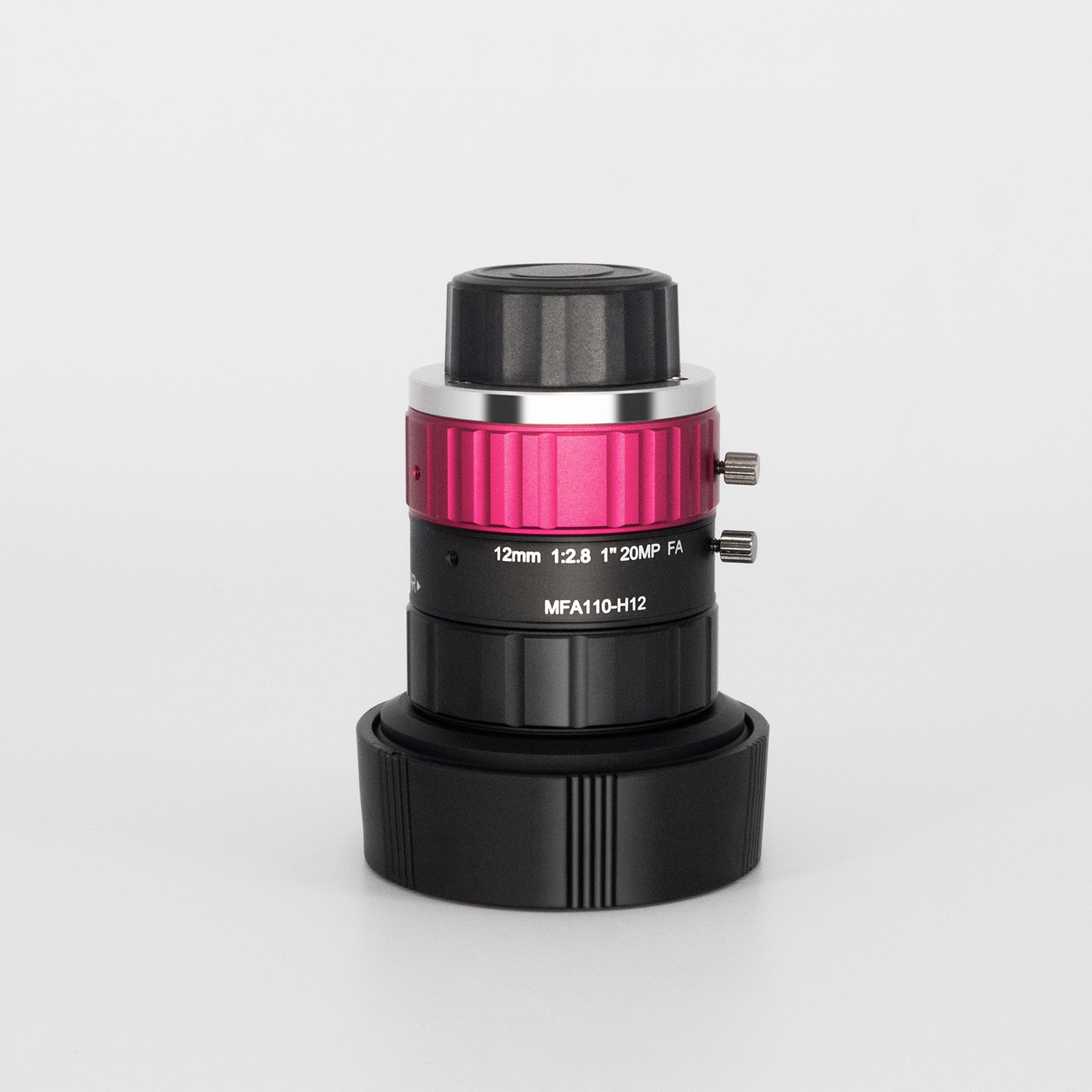

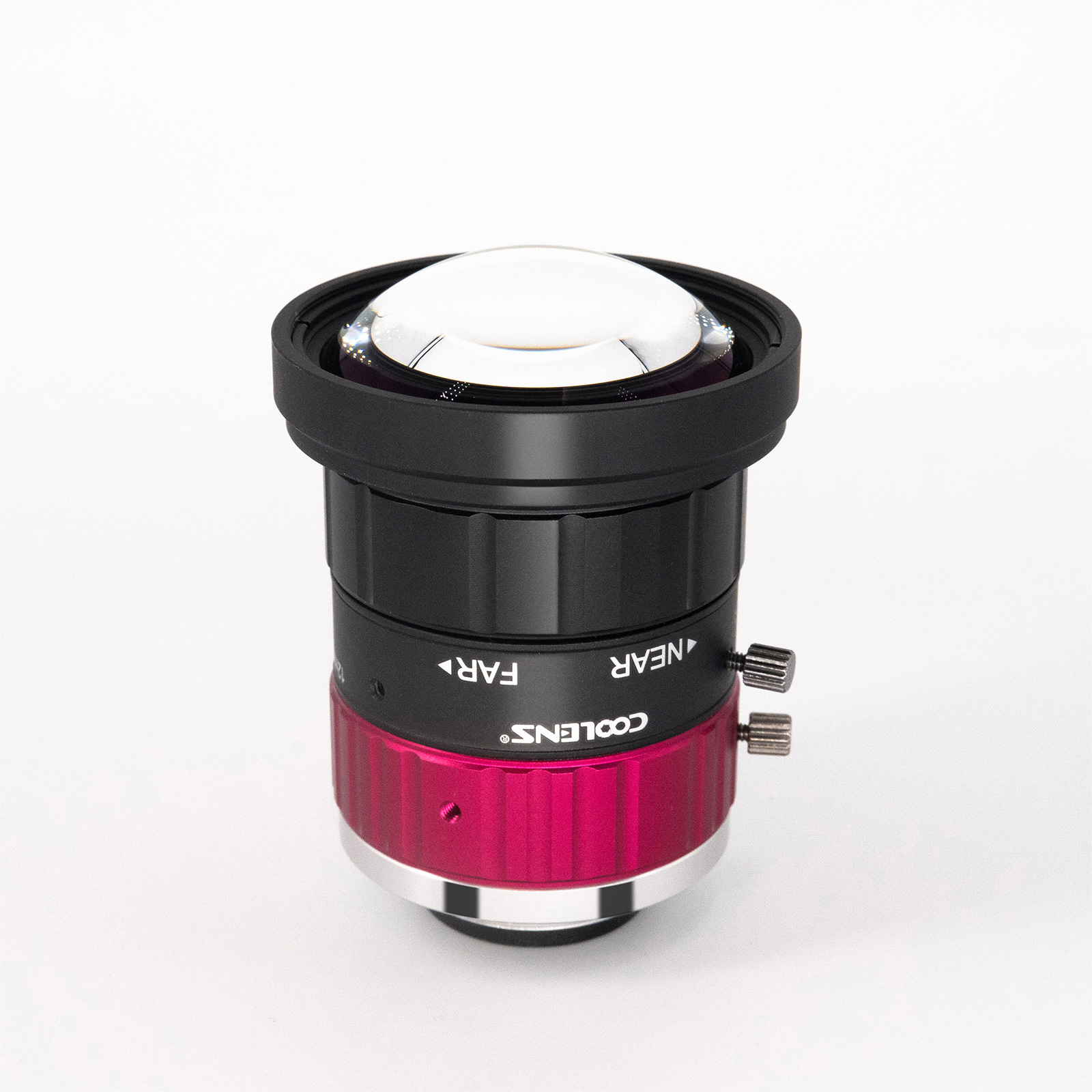

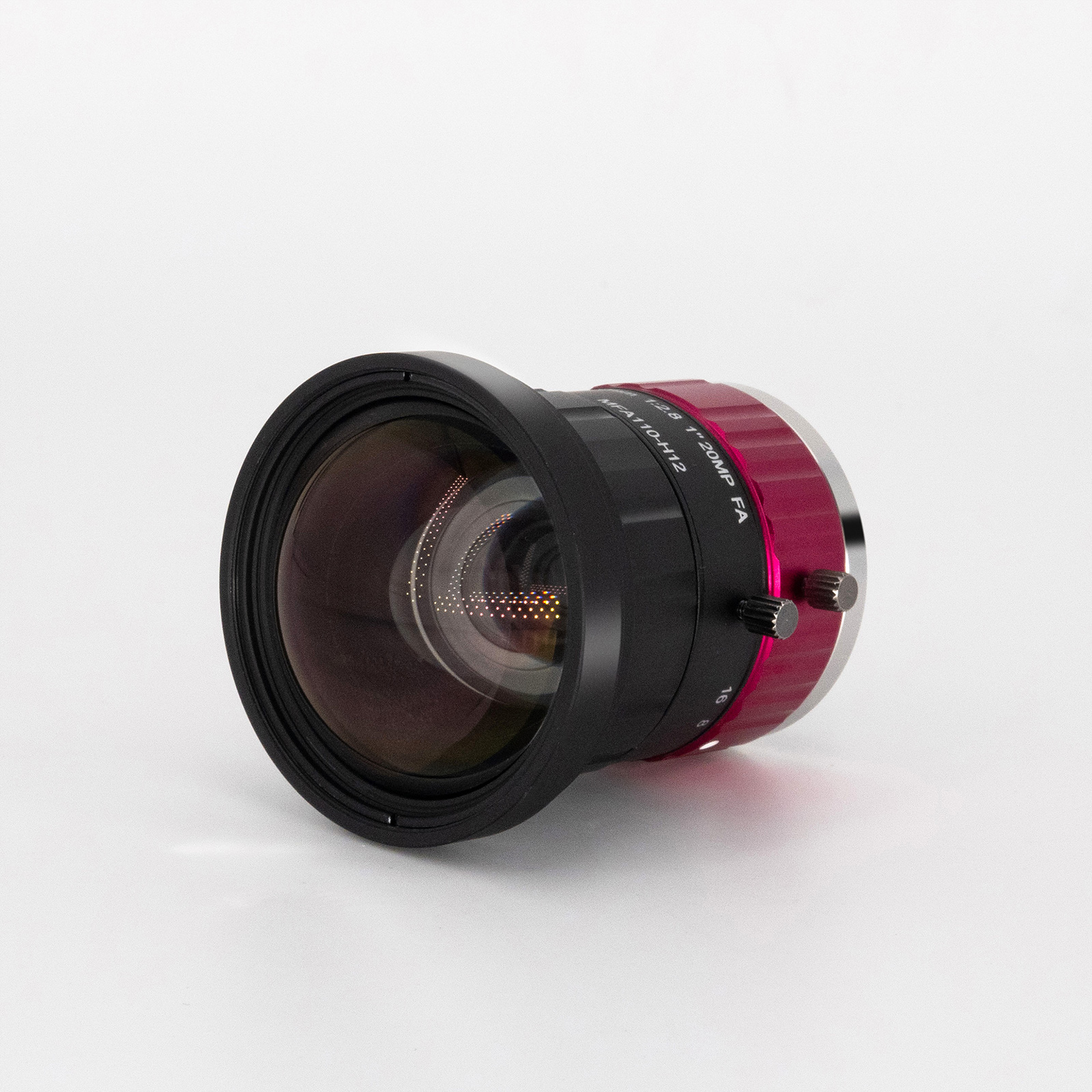

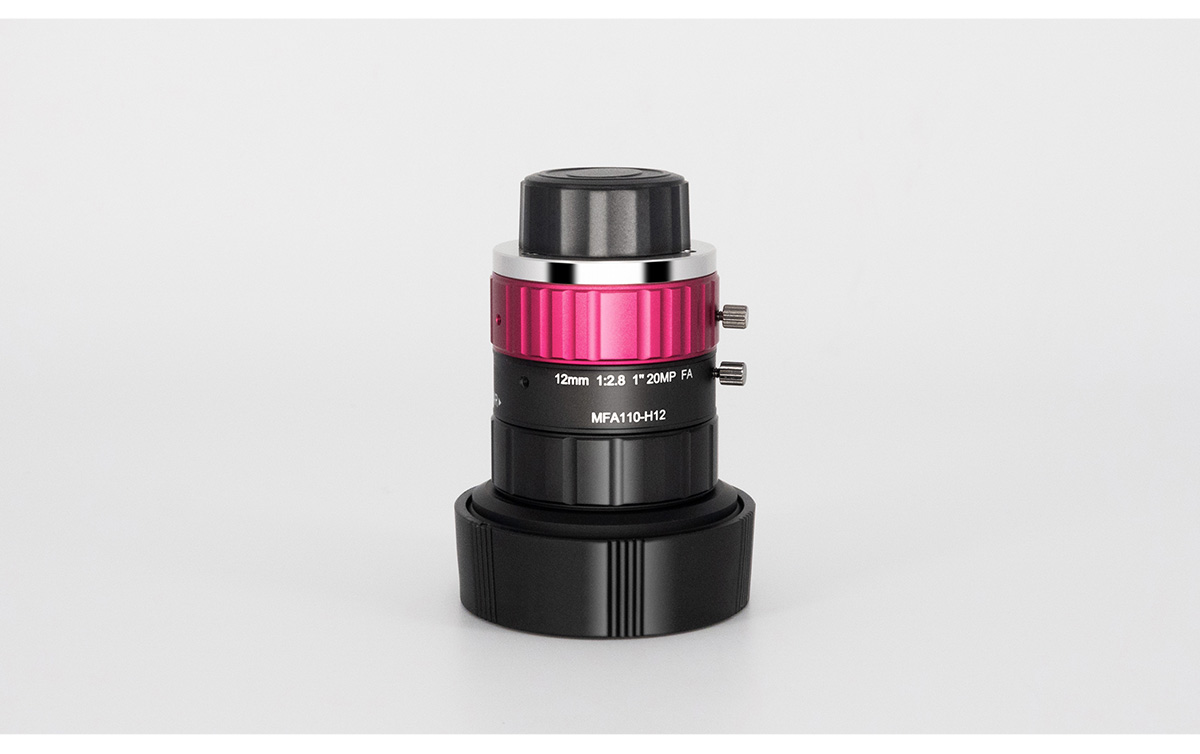

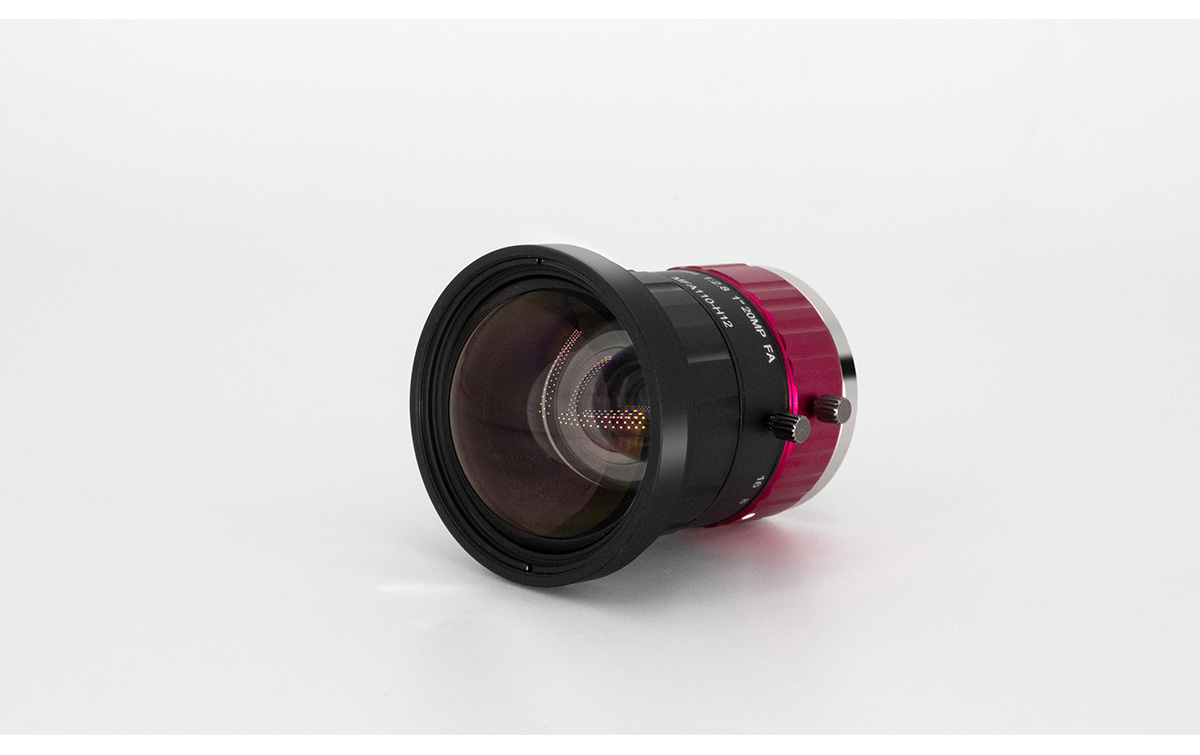

1" 12mm Fixed Focal Length Lens | MFA110-H12 COOLENS®
$251.00 USD
Shipping calculated at checkout.
Quantity










Description
-
Description
Model No. | MFA110-H12 | Image Circle Diameter (Φmm) | 1" | ||||
Focal Length(mm) | 12 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 120 | ||||
Type | Fixed Focal Length | Support Cameras | 20M | ||||
Mount | C | Back Focal Length | 11.5mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | / | ||||
Max. Image Format | 1" (φ17.6mm) | Distortion | <0.1% | ||||
Angle of View | D | 1.1'' | 70.5° | 1" | 65.7° | 2/3" | 48.3° |
H | 59.8° | 53.5° | 37.8° | ||||
V | 46.2° | 43.3° | 32.1° | ||||
M.o.D | 0.1m | Object Dimension at M.o.D | 1.1" | 145.95mm x 105.37mm | |||
Weight | 169.0g | 1" | 127.71mm x 99.90mm | ||||
Flange Back Length | 17.526mm in Air | 2/3" | 85.49mm x 71.25mm | ||||
Structure | 10 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||
Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | F2.8 - F16 | ||
Angle | 55.5° | Angle | 150.55° | ||||
Spectral Transmission | AT 436nm-656nmT≥85% |
