Model No. | MFA110-H16 | Image Circle Diameter (Φmm) | 1" | ||||
Focal Length(mm) | 16 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 120 | ||||
Type | Fixed Focal Length | Support Cameras | 20M | ||||
Mount | C | Back Focal Length | 11.5mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | / | ||||

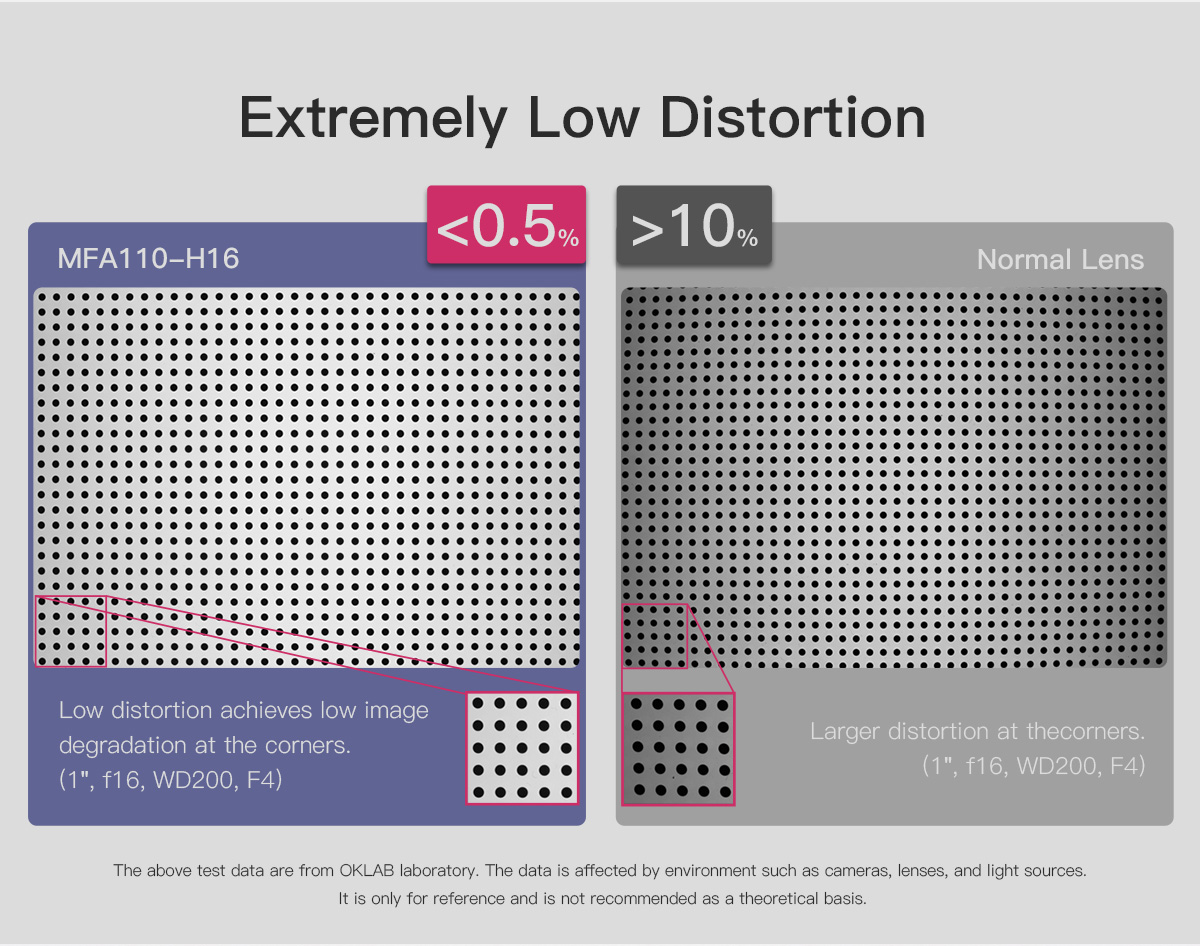

Max. Image Format | 1" (φ17.6mm) | Distortion | <0.1% | ||||
Angle of View | D | 1.1'' | 57.8° | 1" | 52.8° | 2/3" | 38.2° |
H | 47.6° | 42.5° | 30.2° | ||||
V | 36.5° | 34.1° | 25.1° | ||||
M.o.D | 0.1m | Object Dimension at M.o.D | 1.1" | 104.30mm x 75.52mm | |||

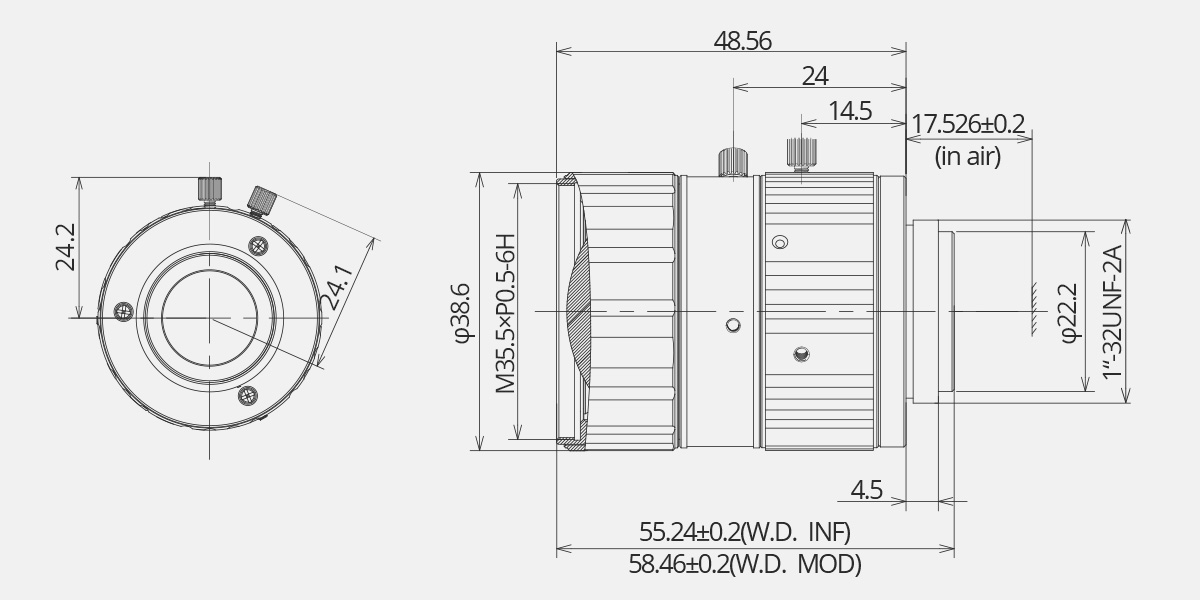

Length (mm) | 48.56 | 1" | 91.37mm x 71.63mm | ||||
Flange Back Length | 17.526mm in Air | 2/3" | 61.38mm x 51.21mm | ||||
Structure | 10 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||

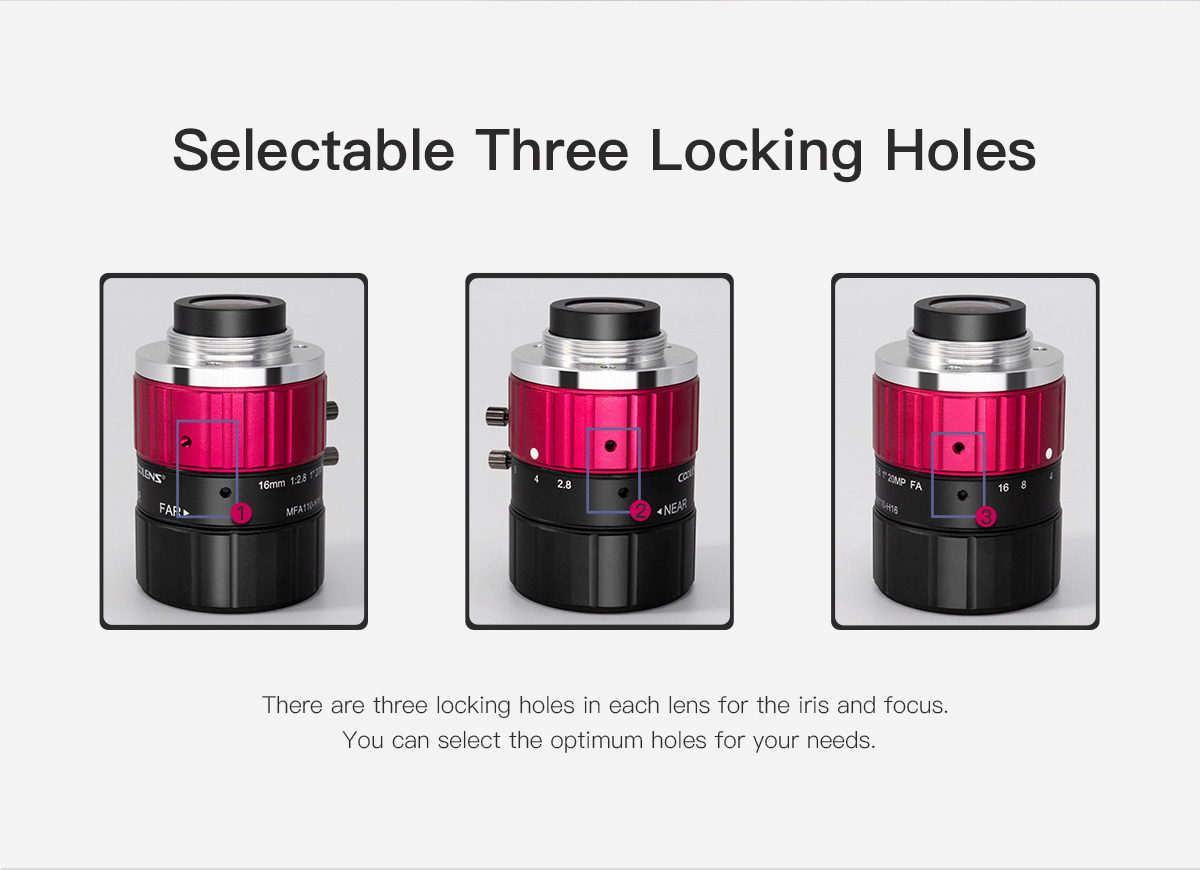

Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | F2.8 - F16 | ||
Angle | 59.6° | Angle | 210.8° | ||||
Spectral Transmission | AT 436nm-656nmT≥85% |

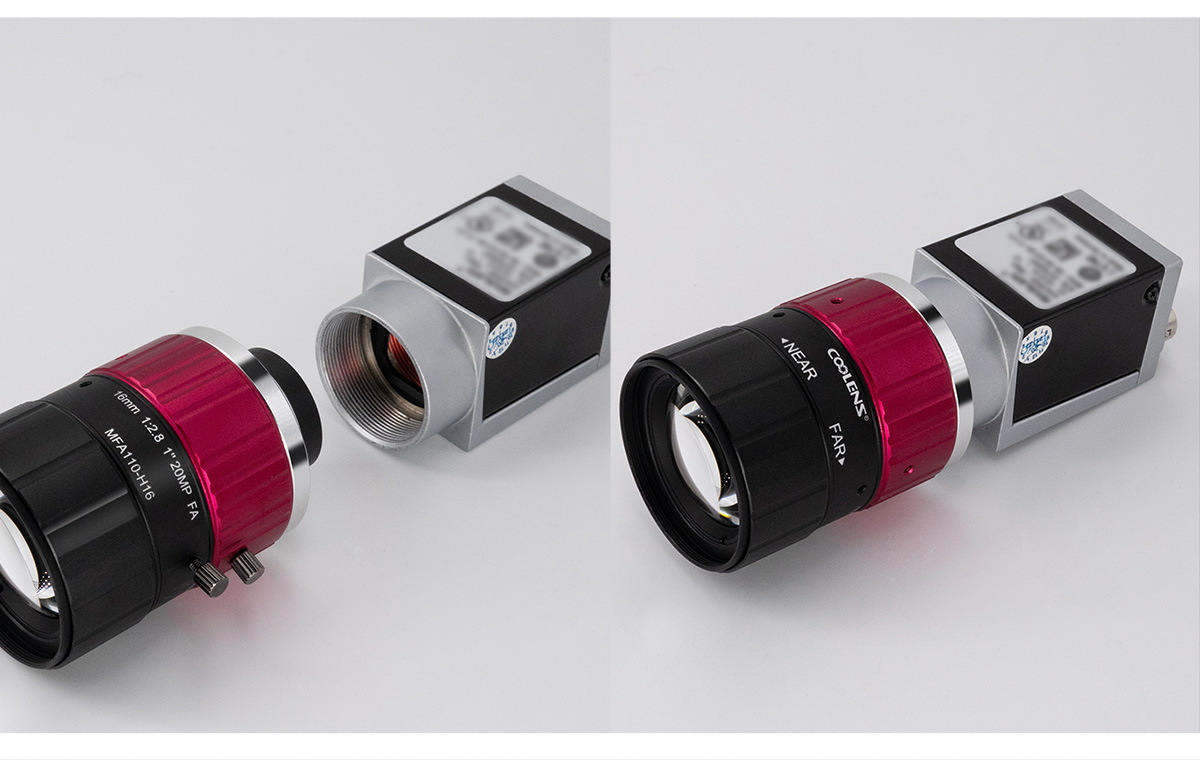

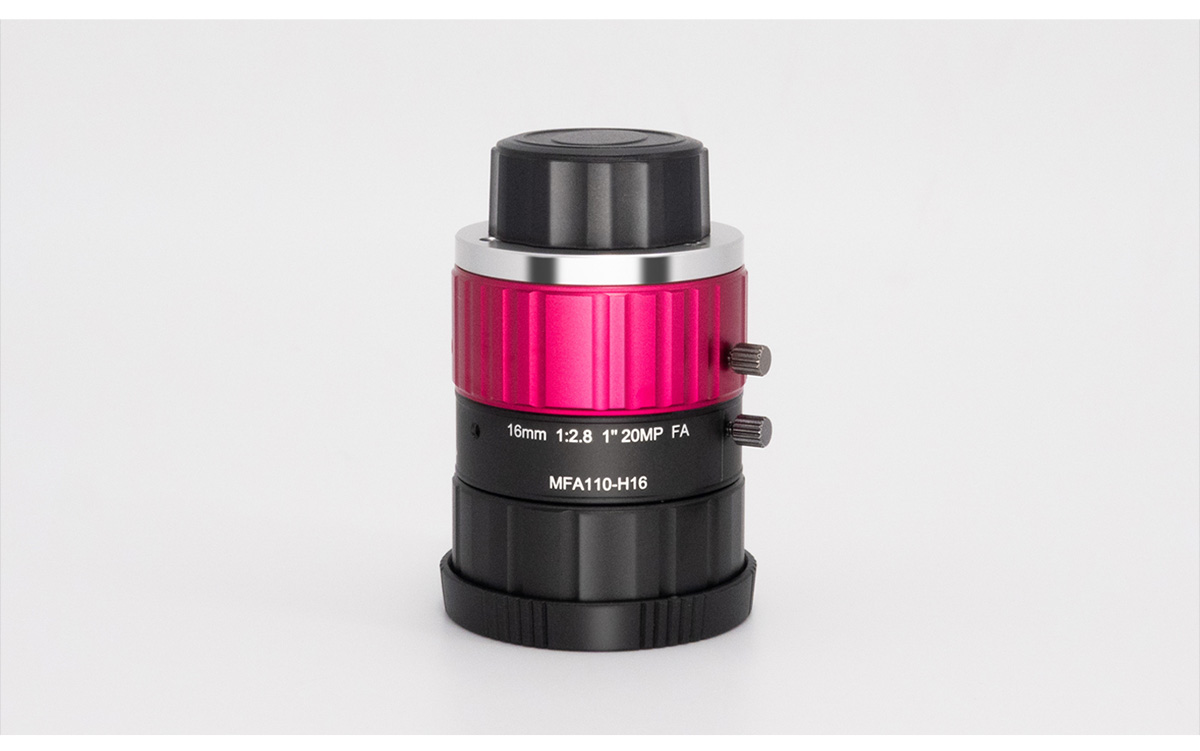

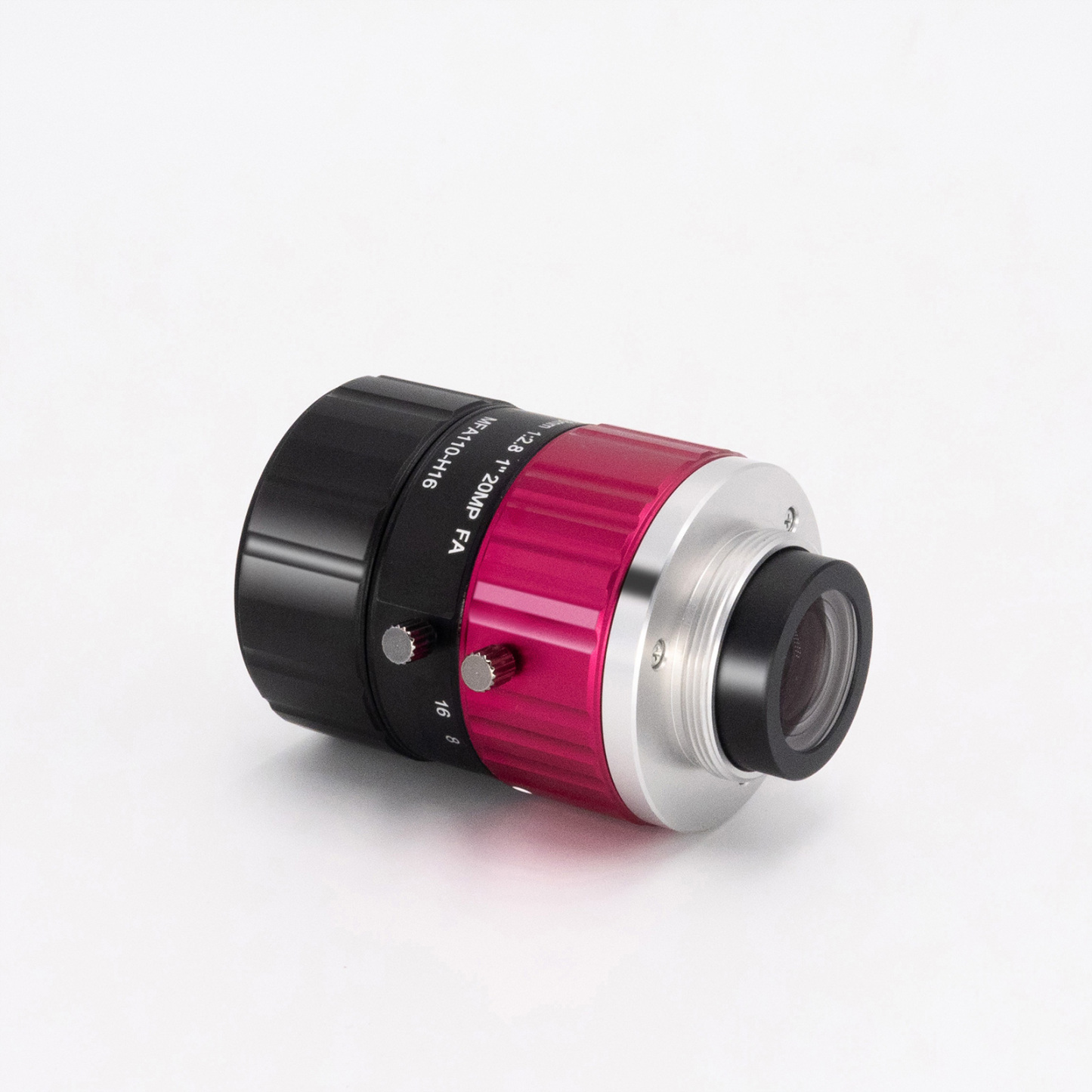

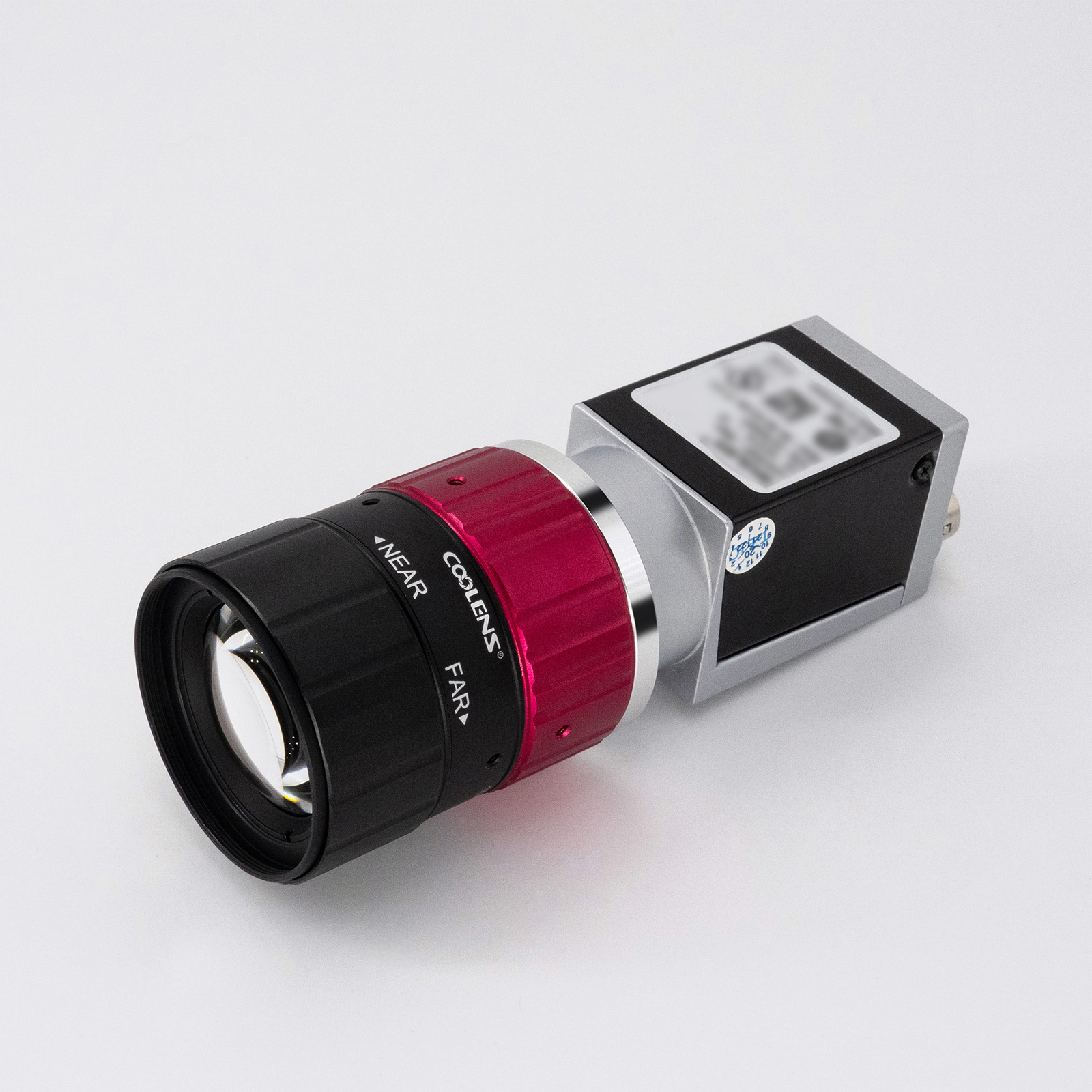

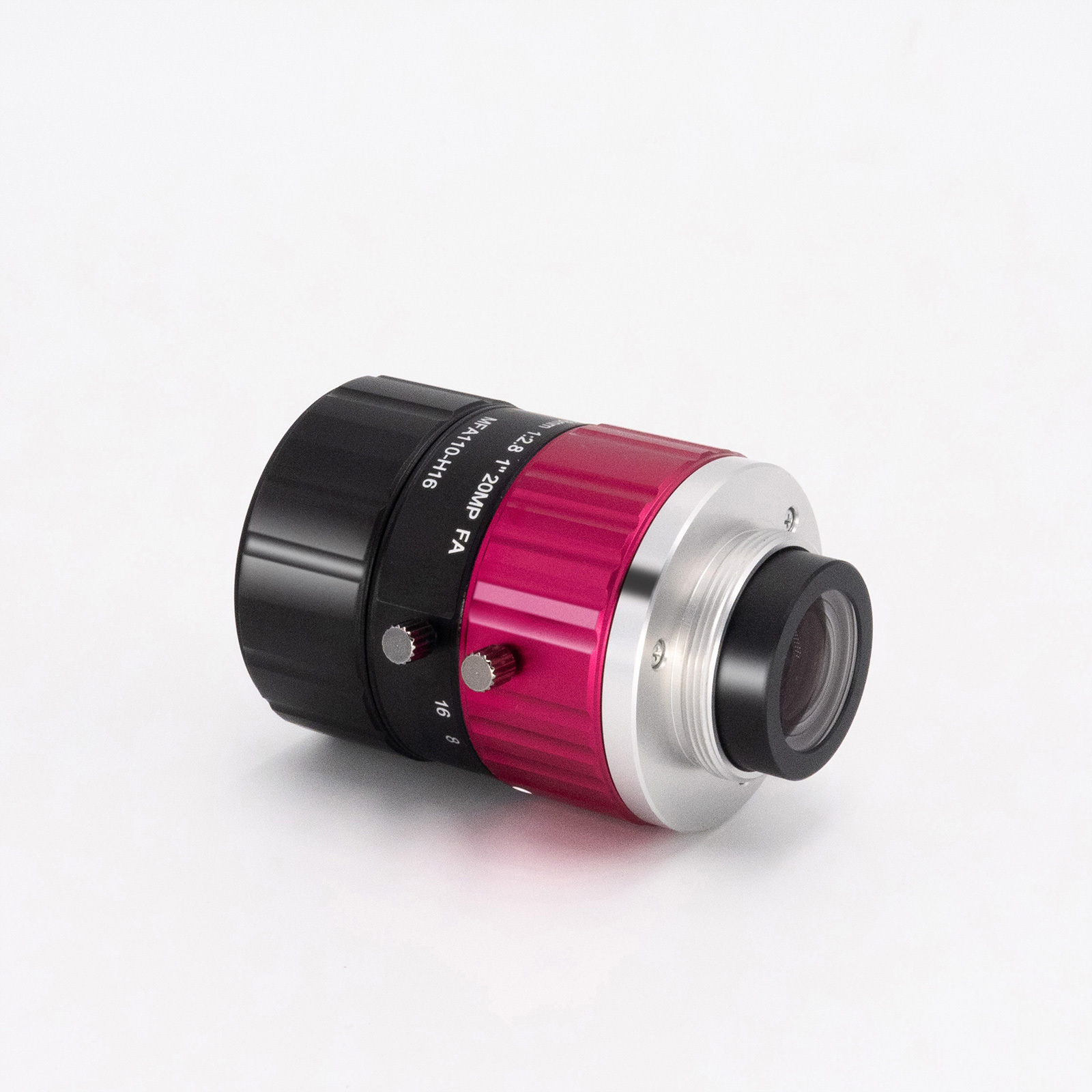

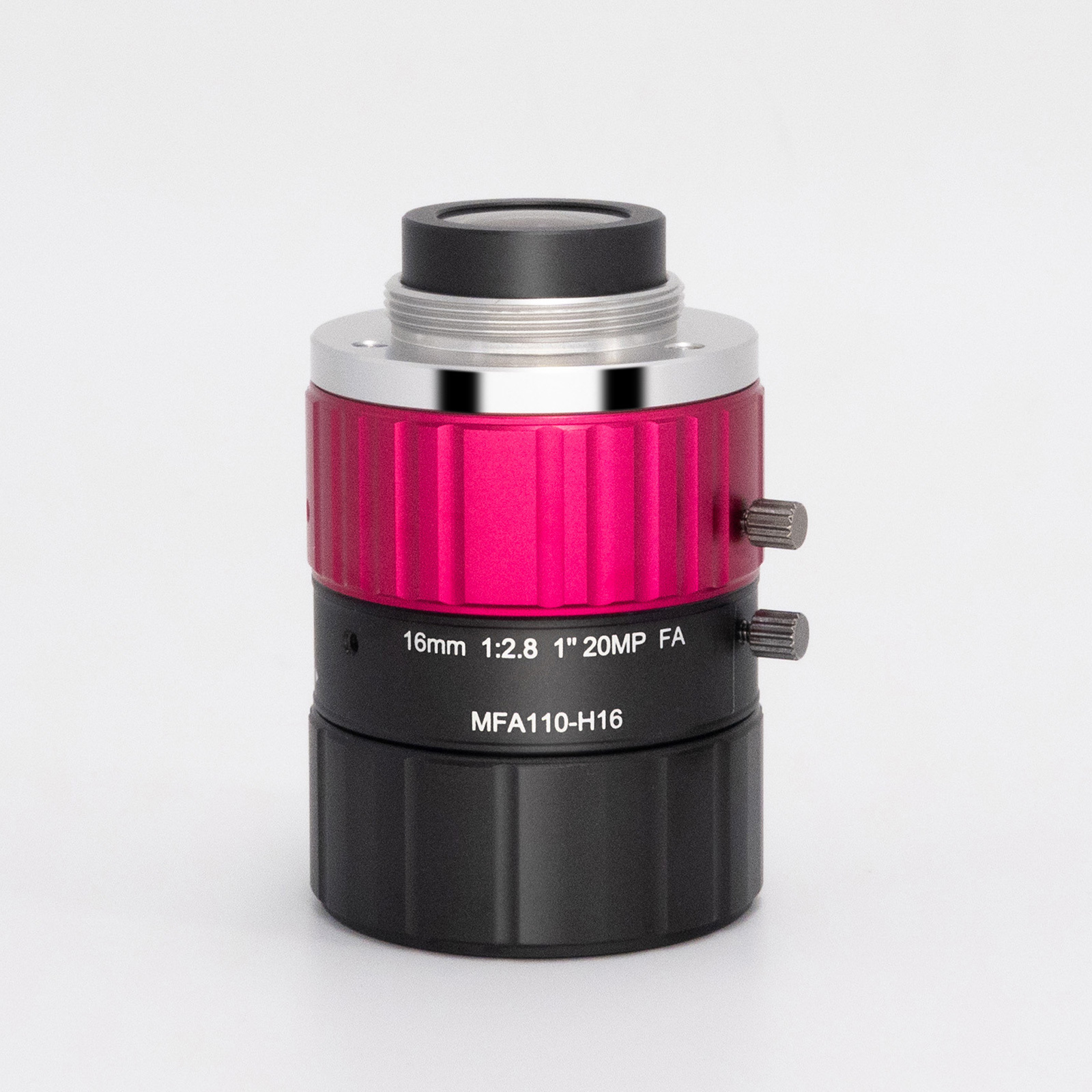

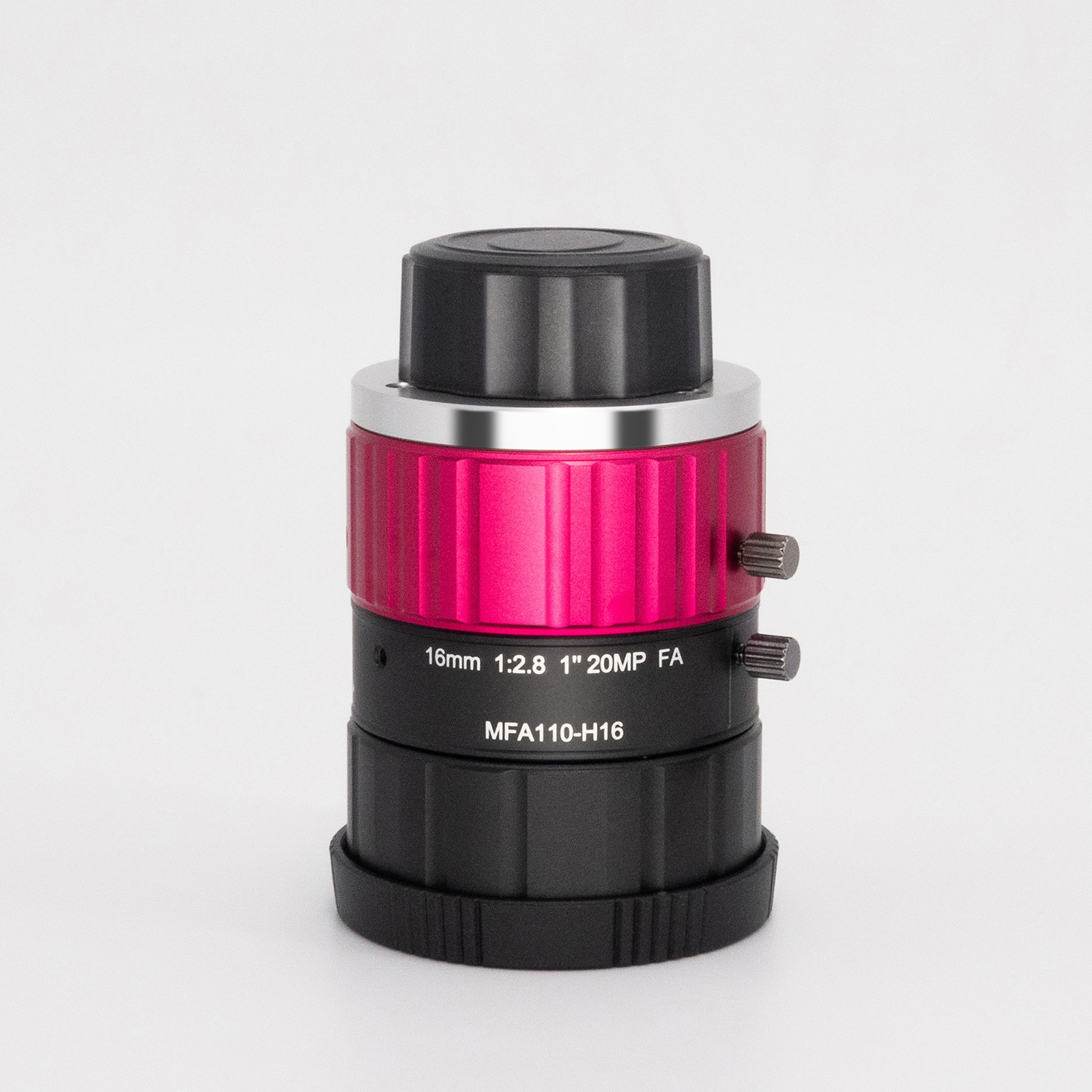

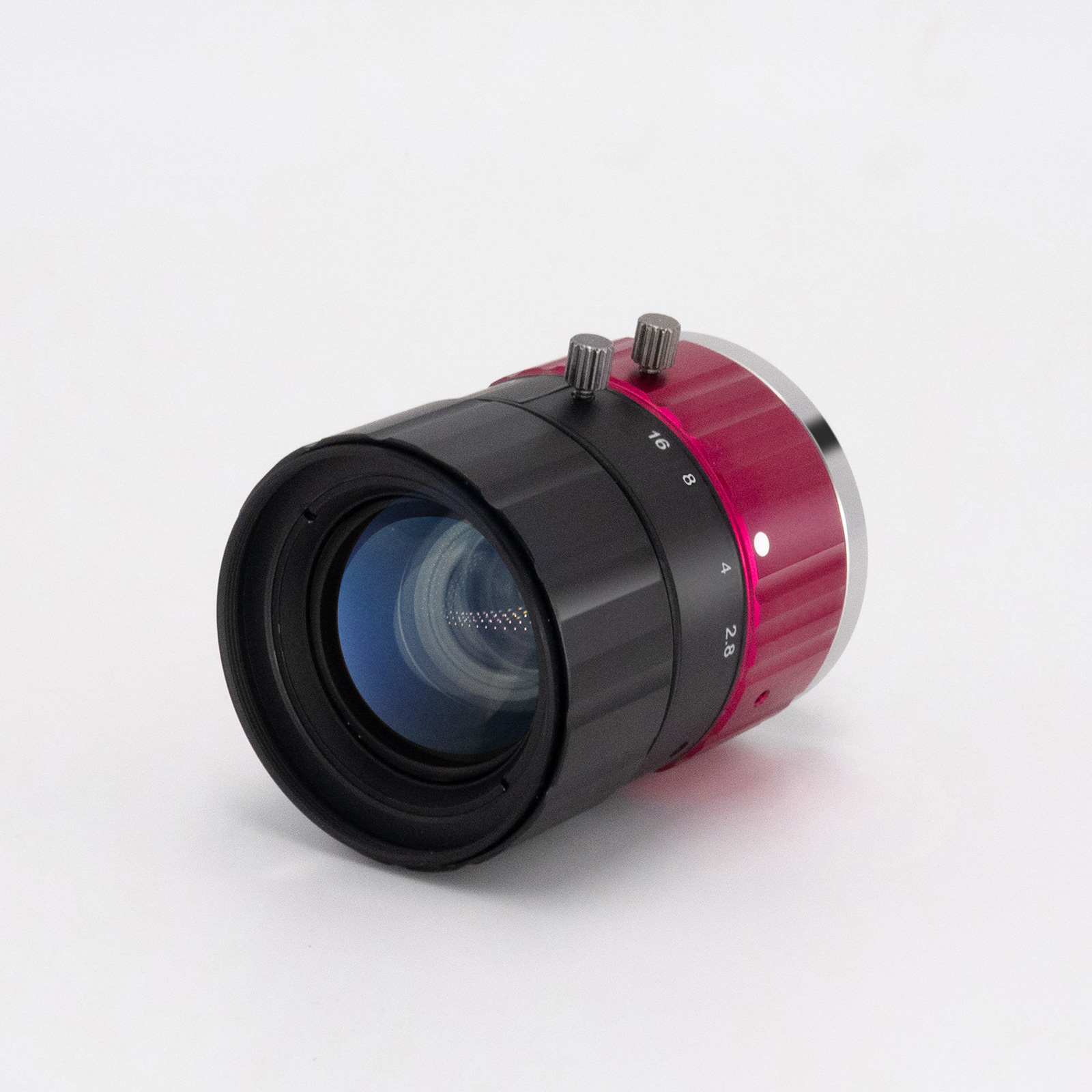

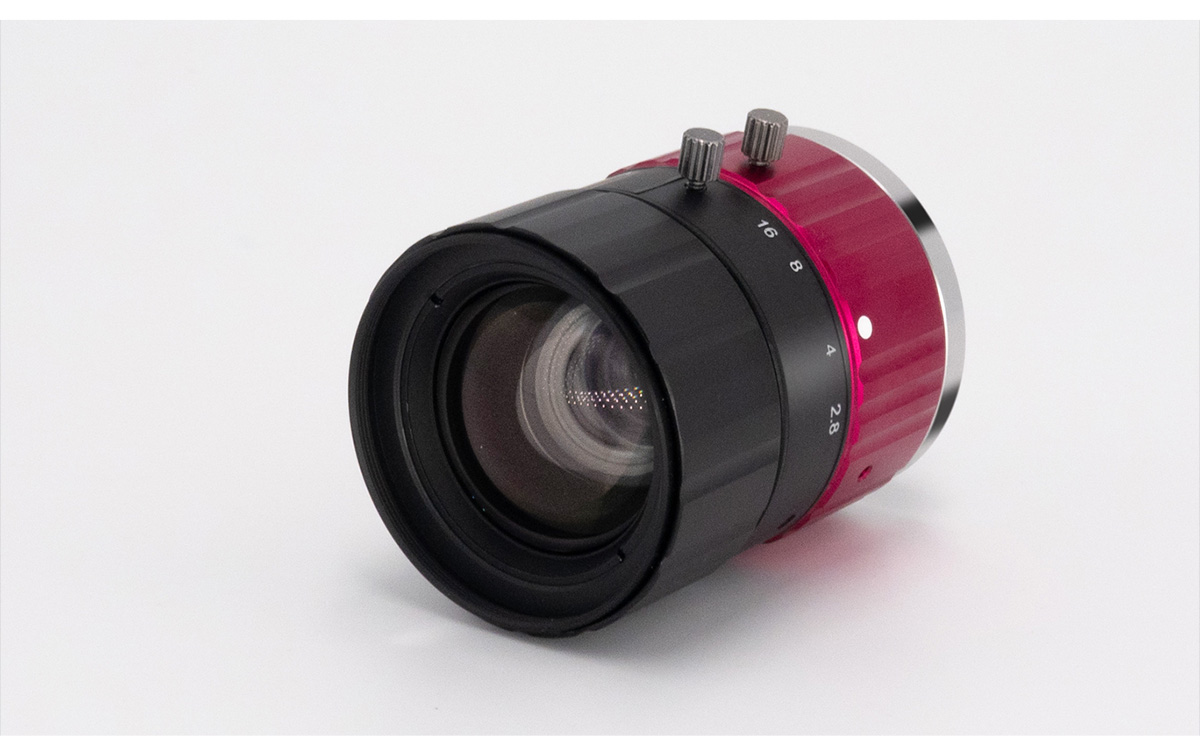

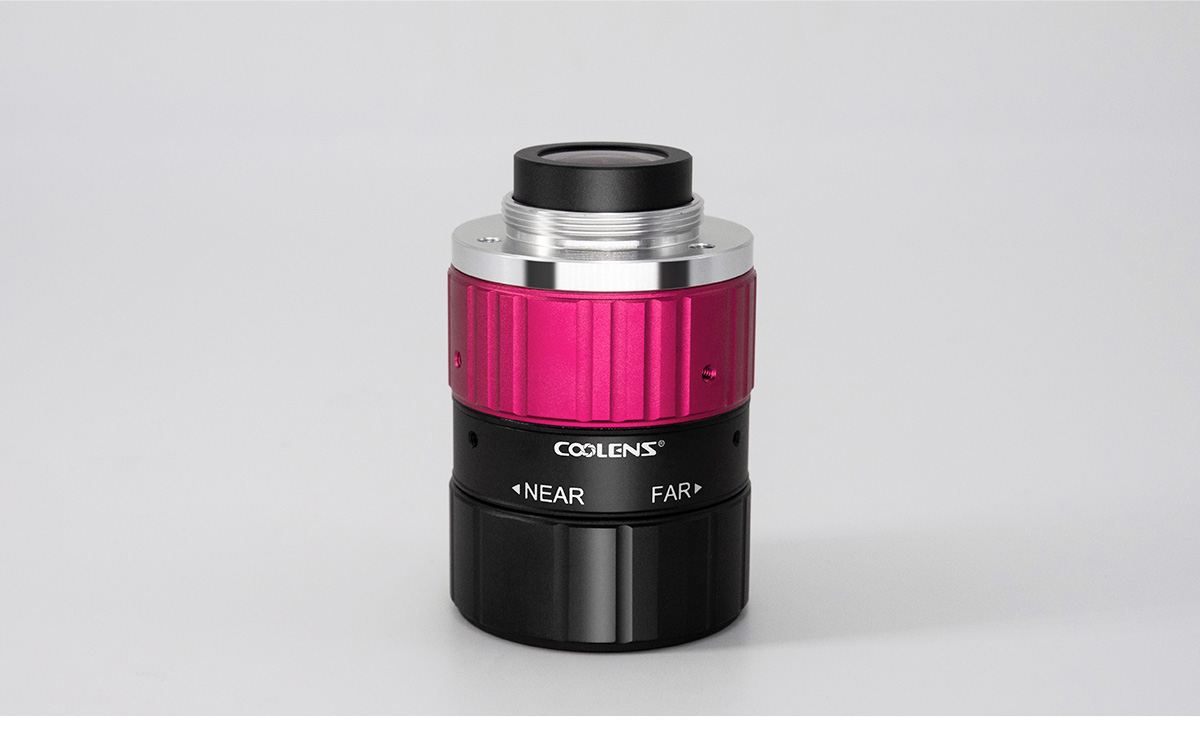

1" 16mm Fixed Focal Length Lens | MFA110-H16 COOLENS®
$251.00 USD
Shipping calculated at checkout.
Quantity










Description
-
Description
Model No. | MFA110-H16 | Image Circle Diameter (Φmm) | 1" | ||||
Focal Length(mm) | 16 | Magnification(x) | Adjustable | ||||
Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 120 | ||||
Type | Fixed Focal Length | Support Cameras | 20M | ||||
Mount | C | Back Focal Length | 11.5mm in Air | ||||
F NO. | F2.8 - F16 | Filter Size | / | ||||
Max. Image Format | 1" (φ17.6mm) | Distortion | <0.1% | ||||
Angle of View | D | 1.1'' | 57.8° | 1" | 52.8° | 2/3" | 38.2° |
H | 47.6° | 42.5° | 30.2° | ||||
V | 36.5° | 34.1° | 25.1° | ||||
M.o.D | 0.1m | Object Dimension at M.o.D | 1.1" | 104.30mm x 75.52mm | |||
Length (mm) | 48.56 | 1" | 91.37mm x 71.63mm | ||||
Flange Back Length | 17.526mm in Air | 2/3" | 61.38mm x 51.21mm | ||||
Structure | 10 Groups, 12 Elements | Operating Temperature | -10°C — 50°C | ||||
Operation of Iris | Range | F2.8 - F16 | Operation of Focus | Range | F2.8 - F16 | ||
Angle | 59.6° | Angle | 210.8° | ||||
Spectral Transmission | AT 436nm-656nmT≥85% |
