1" 50mm Fixed Focal Length Lens | MFA110-H50 COOLENS®

Name: 1" 50mm Fixed Focal Length Lens | MFA110-H50 COOLENS®
Brand: COOLENS
SKU: MFA110-H50
Price: 251 USD
Availability: InStock
Rating: 0 (0 reviews)

MFA110-H50

Image Circle: 1" Focal Length: 50mm MTF30 (lp/mm):120 Mount: C

$251.00 USD

Quantity

Description

Model No.		MFA110-H50		Image Circle Diameter (Φmm)		1"
Focal Length(mm)		50		Magnification(x)		Adjustable
Working Distance(mm)		Min.300		MTF30 (lp/mm)		120
Type		Fixed Focal Length		Support Cameras		20M
Mount		C		Back Focal Length		12.03mm in Air
F NO.		F2.8 - F16		Filter Size		M35.5 x P0.5

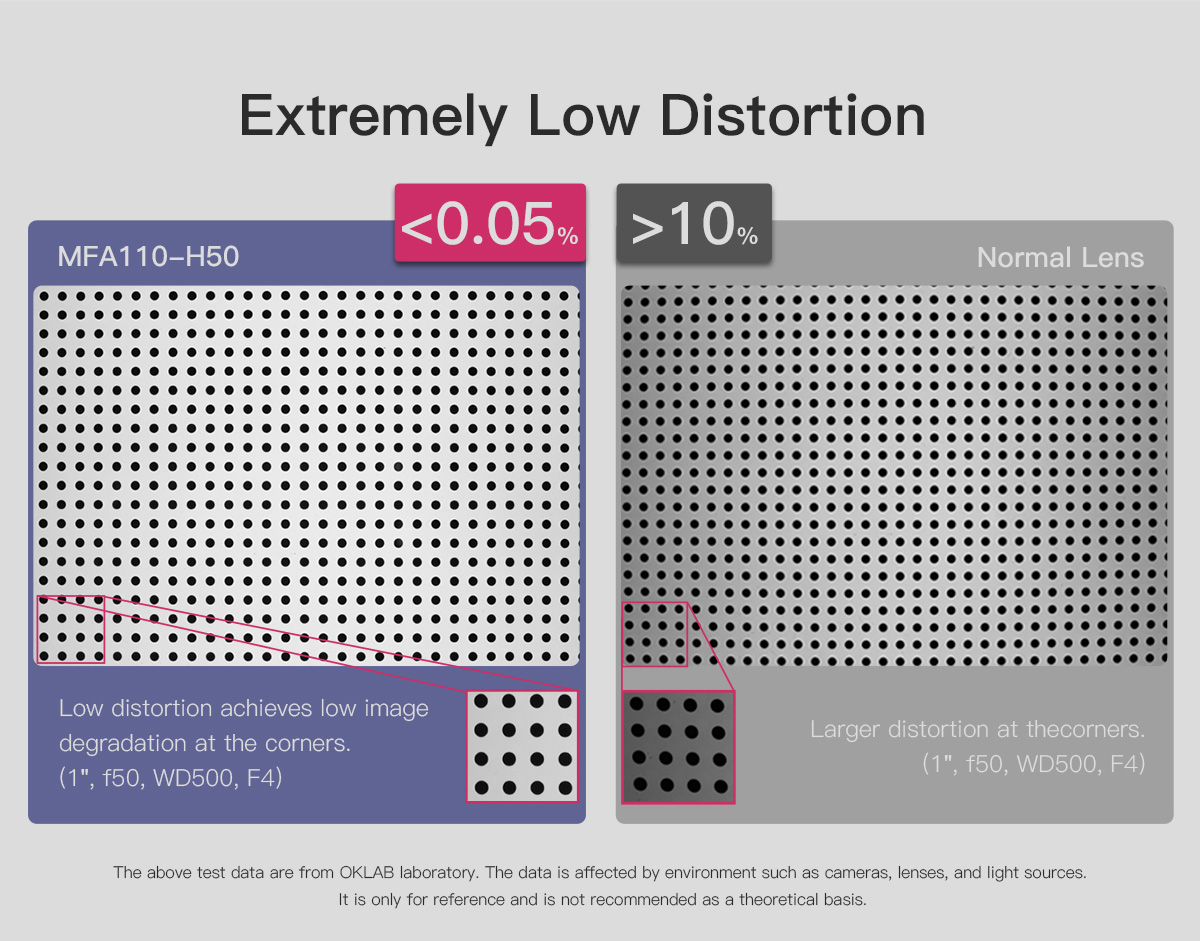

Max. Image Format		1" (φ17.6mm)		Distortion		<0.05%
Angle of View	D	1.1''	10.5°	1"	16.7°	2/3"	11.7°
	H		14.8°		13.2°		9.1°
	V		11.2°		10.5°		7.5°
M.o.D		0.3m		Object Dimension at M.o.D	1.1"	81.57mm x 59.71mm
Length (mm)		46.72			1"	71.82mm x 56.70mm
Flange Back Length		17.526mm in Air			2/3"	48.75mm x 40.79mm
Structure		6 Groups, 8 Elements		Operating Temperature		-10°C — 50°C

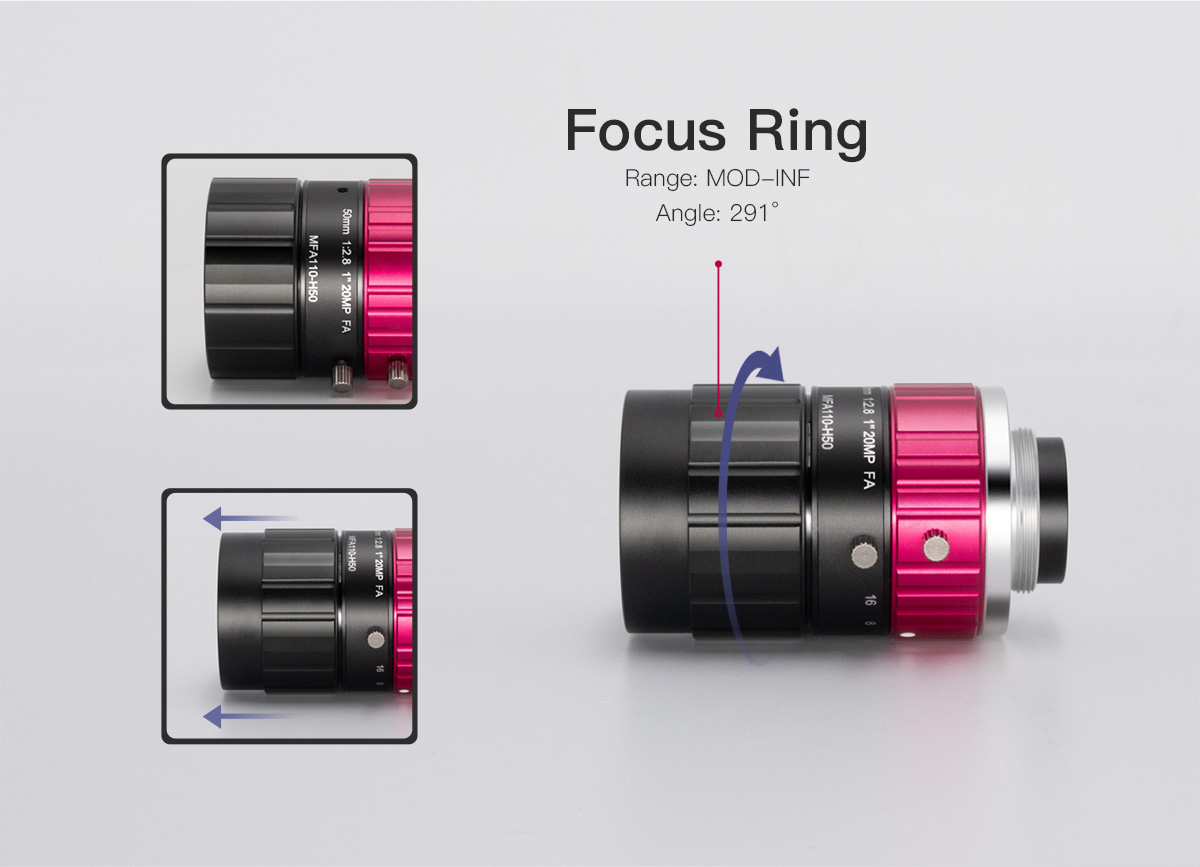

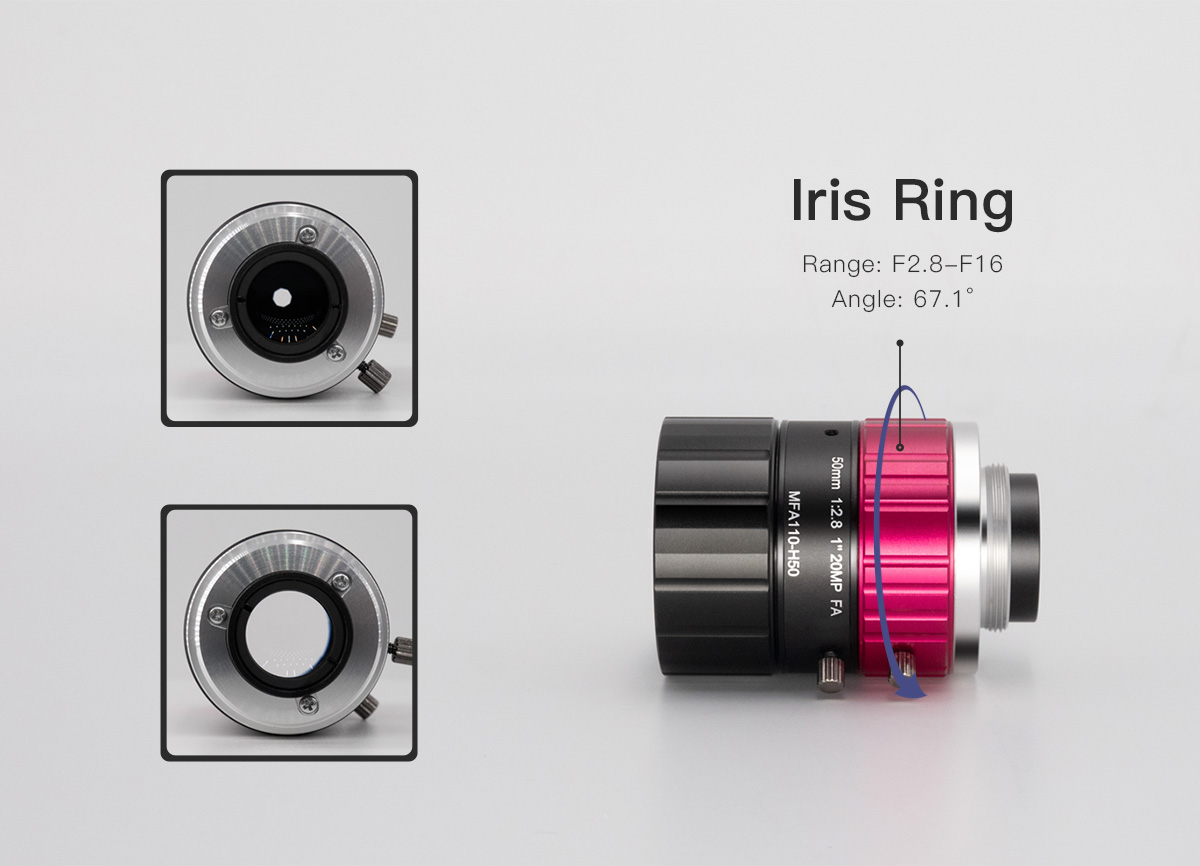

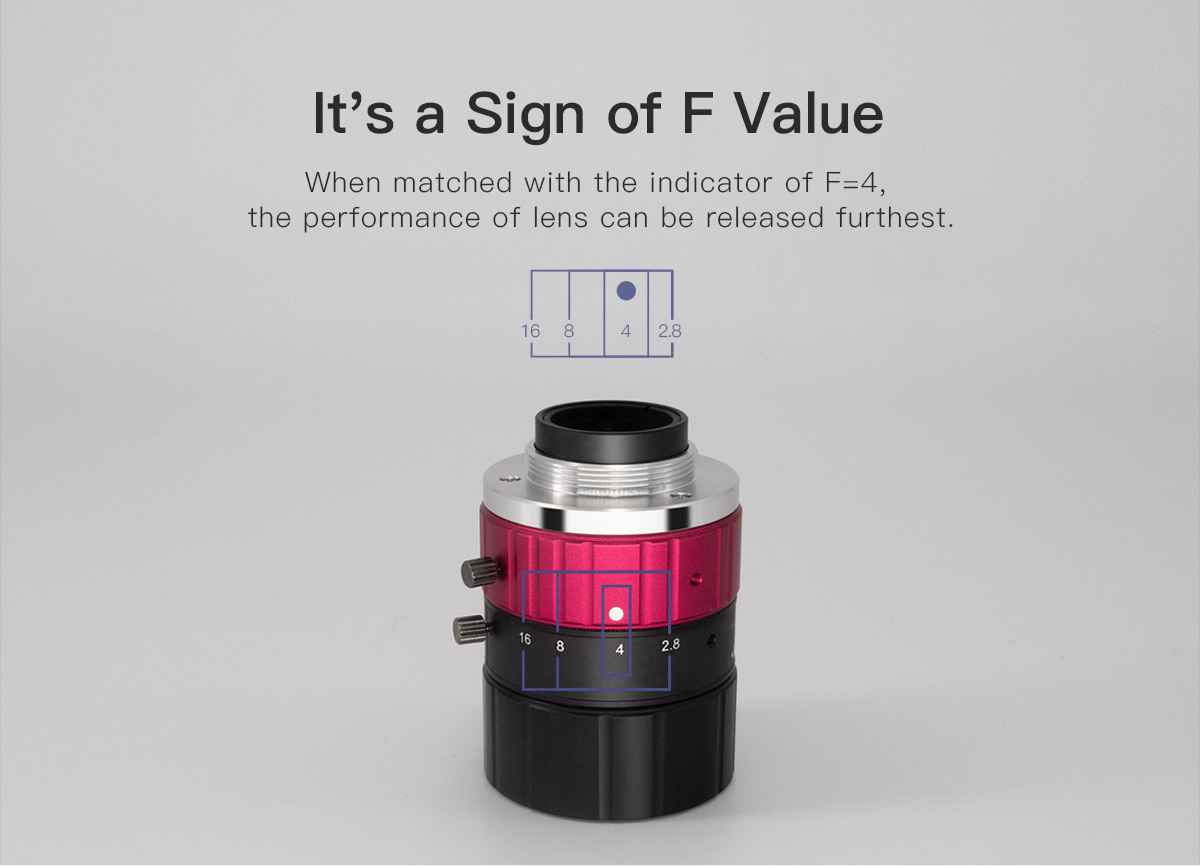

Operation of Iris		Range	F2.8 - F16	Operation of Focus		Range	MOD-INF
		Angle	67.1°			Angle	291°
Spectral Transmission		AT 436nm-656nmT≥85%

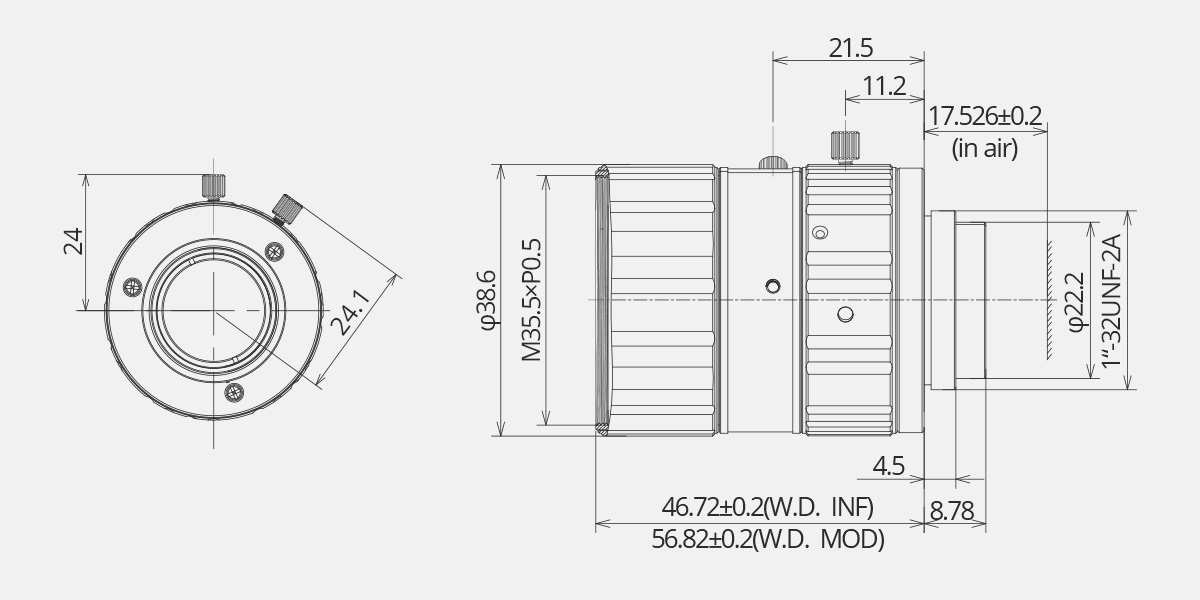

Dimensions

1" 50mm Fixed Focal Length Lens | MFA110-H50 COOLENS®

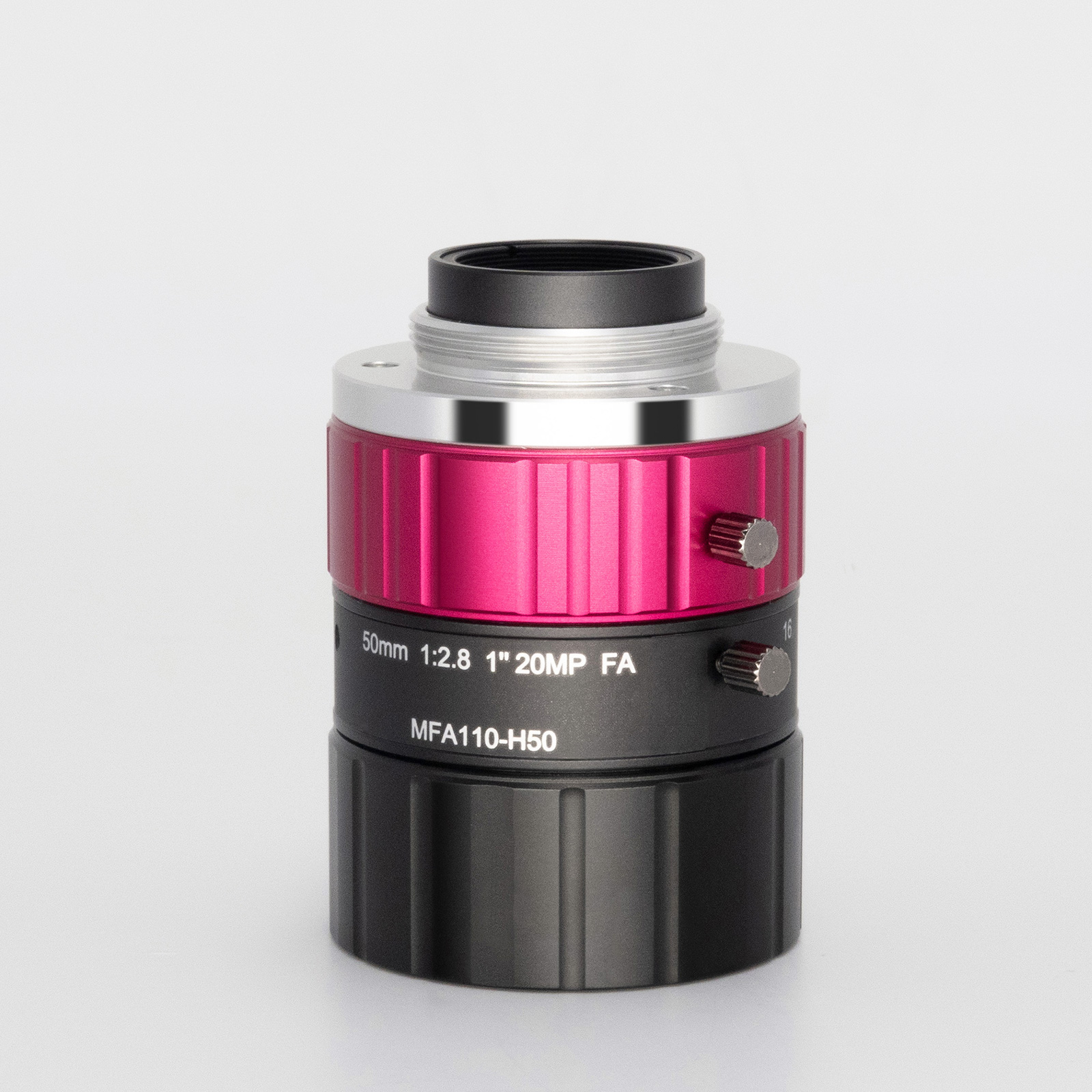

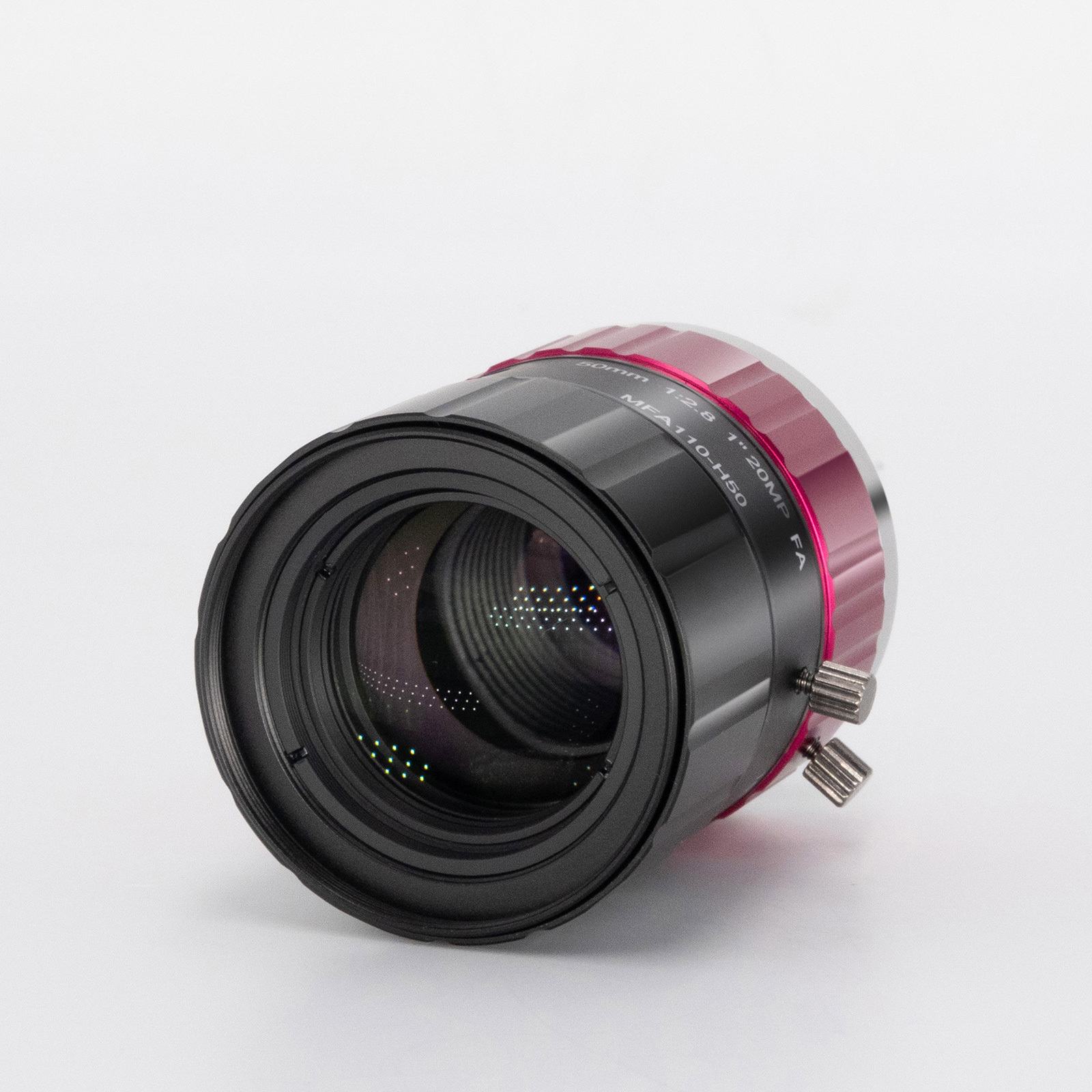

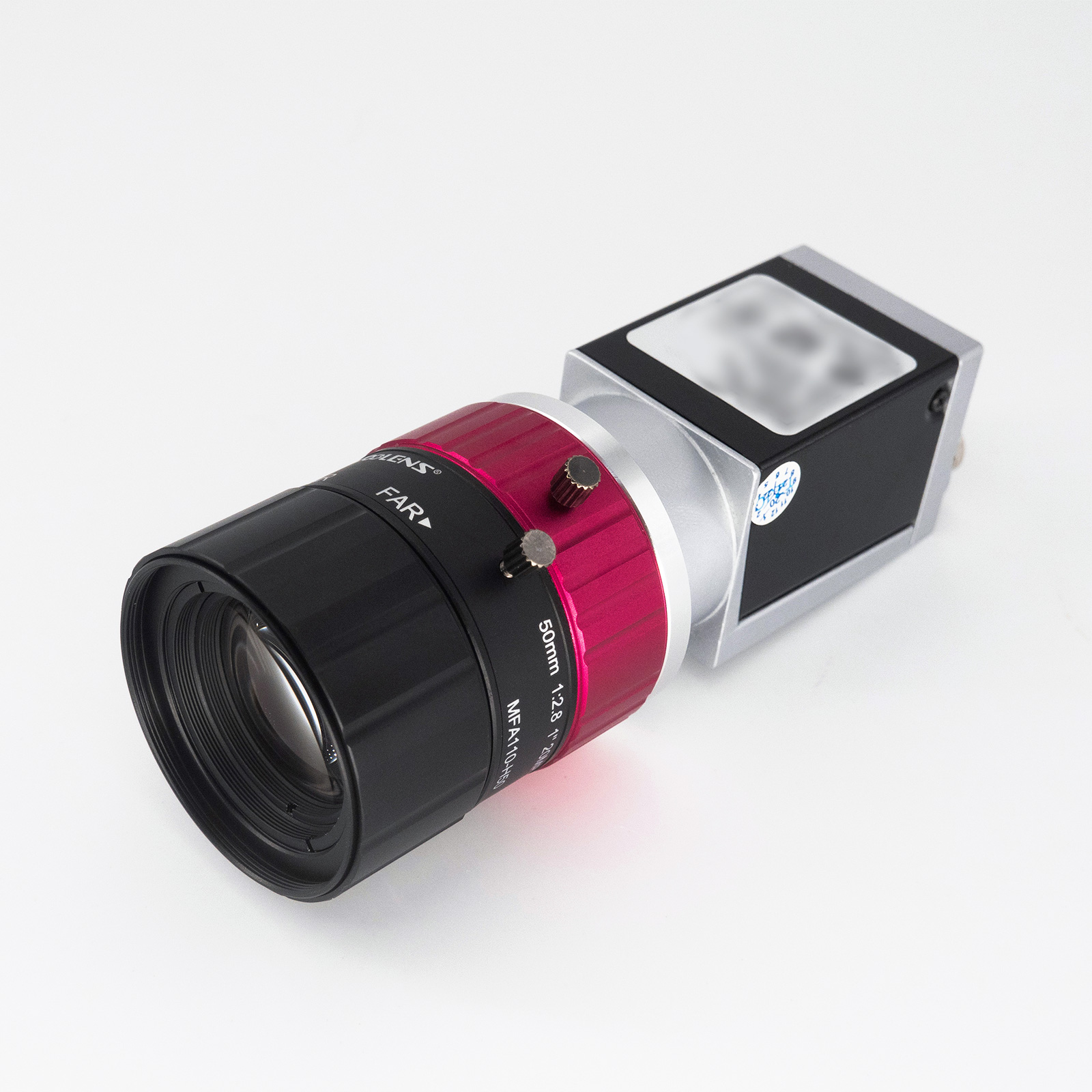

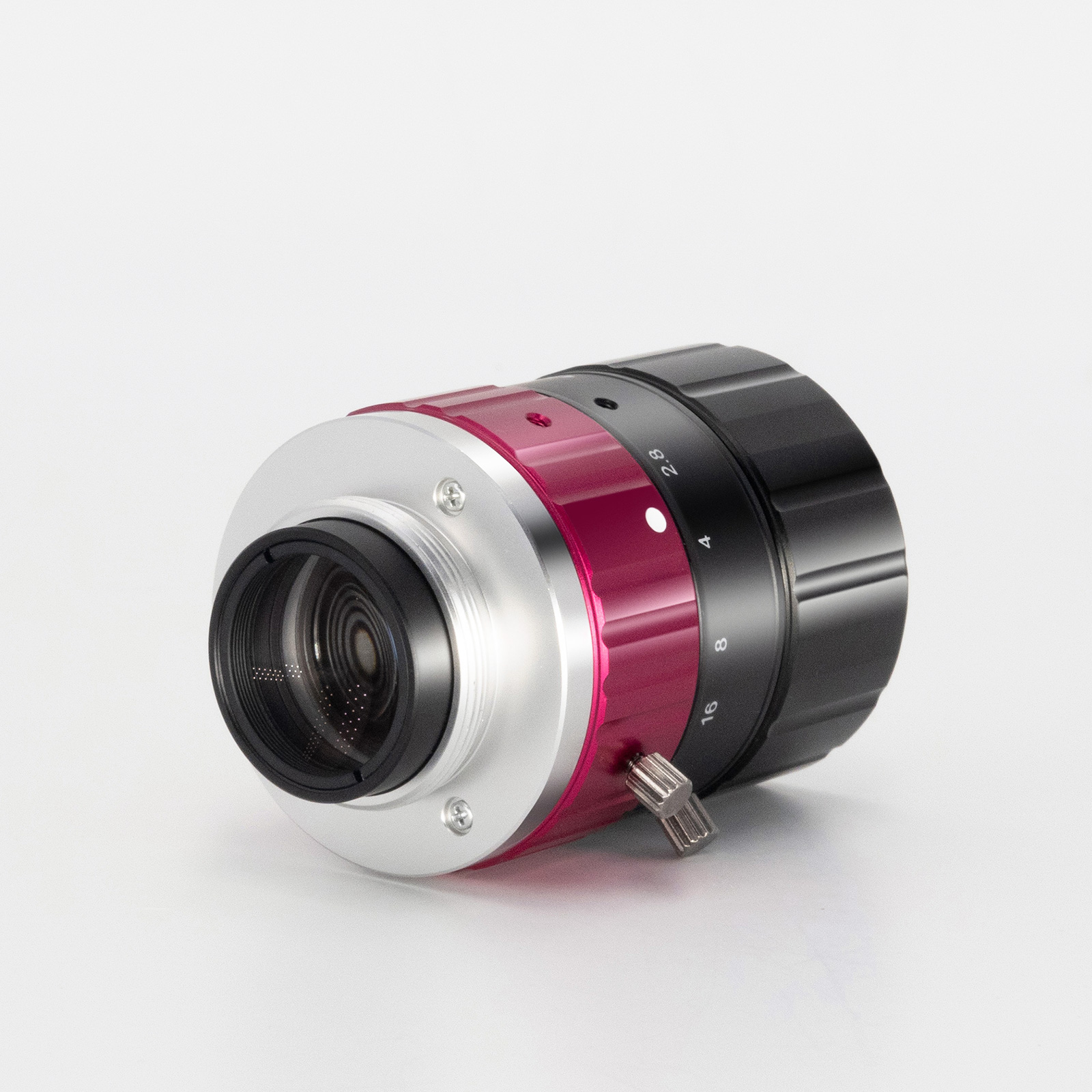

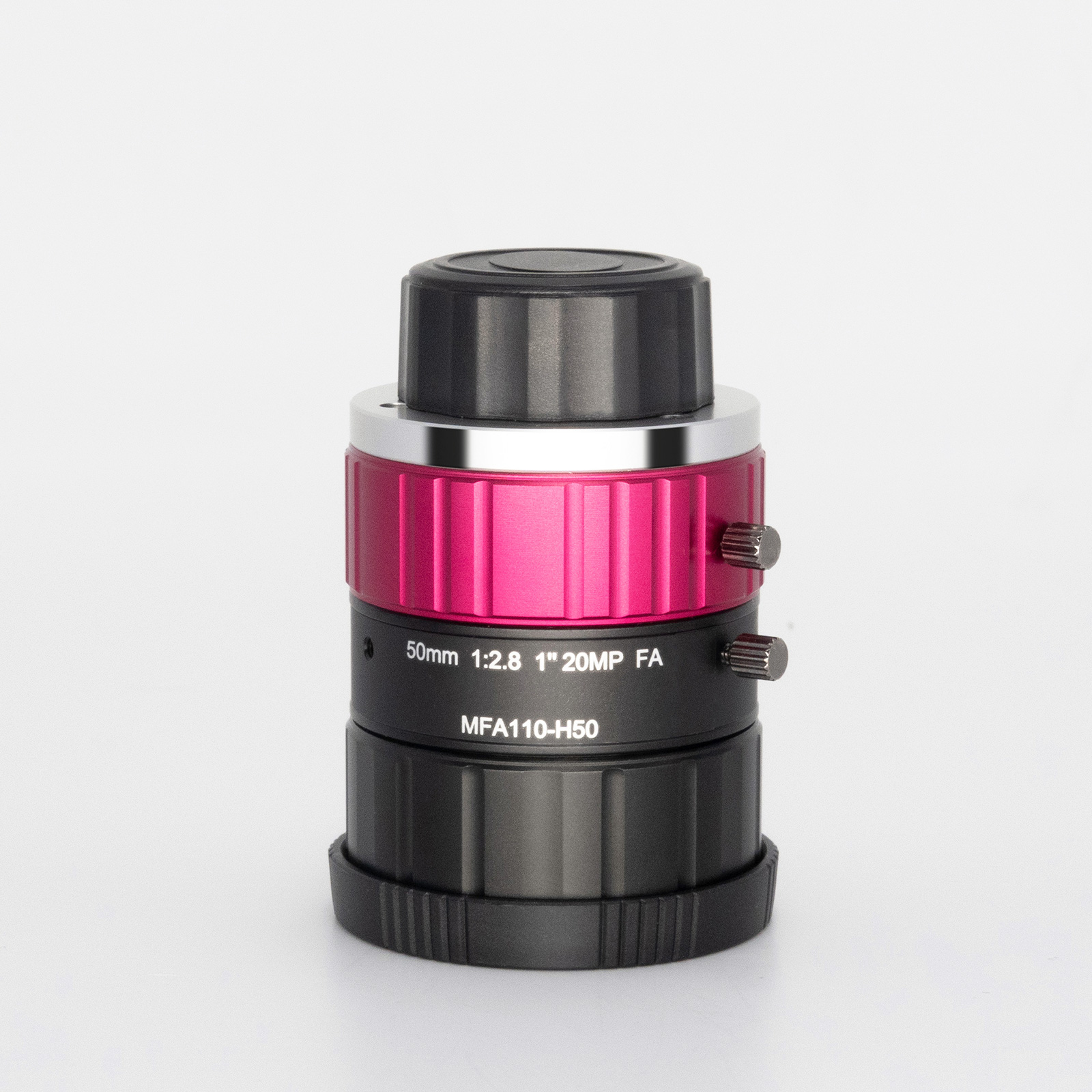

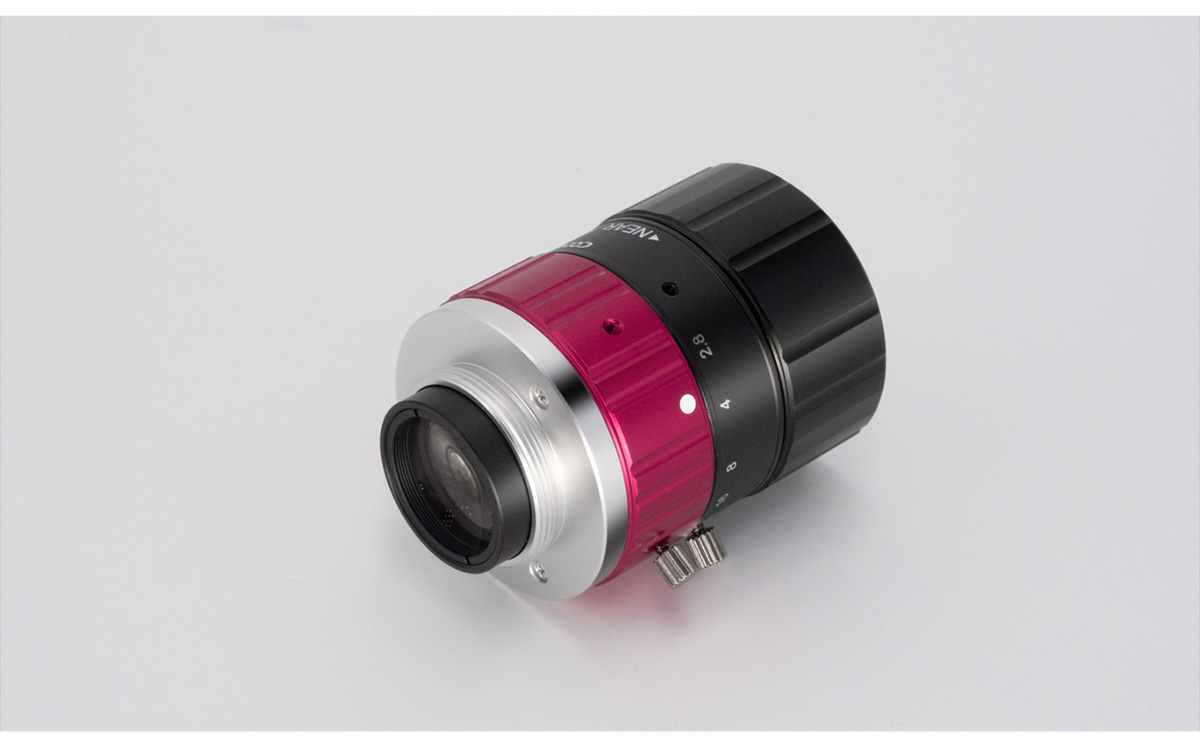

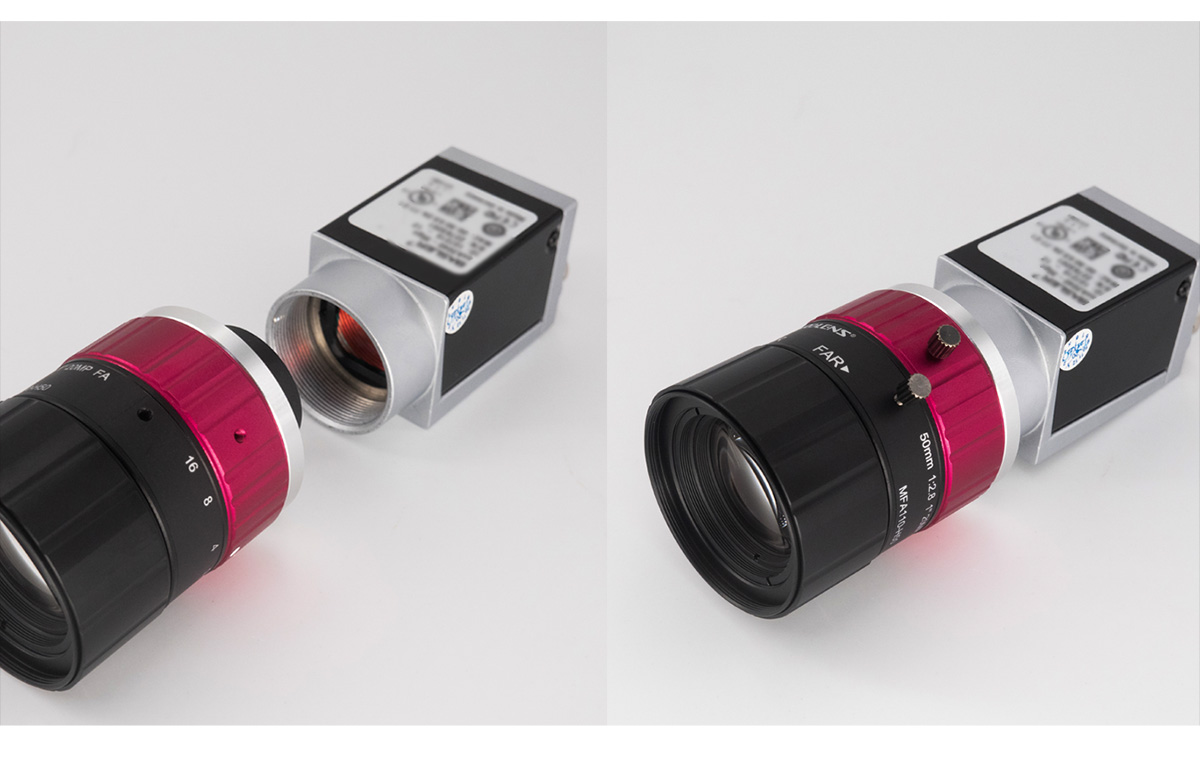

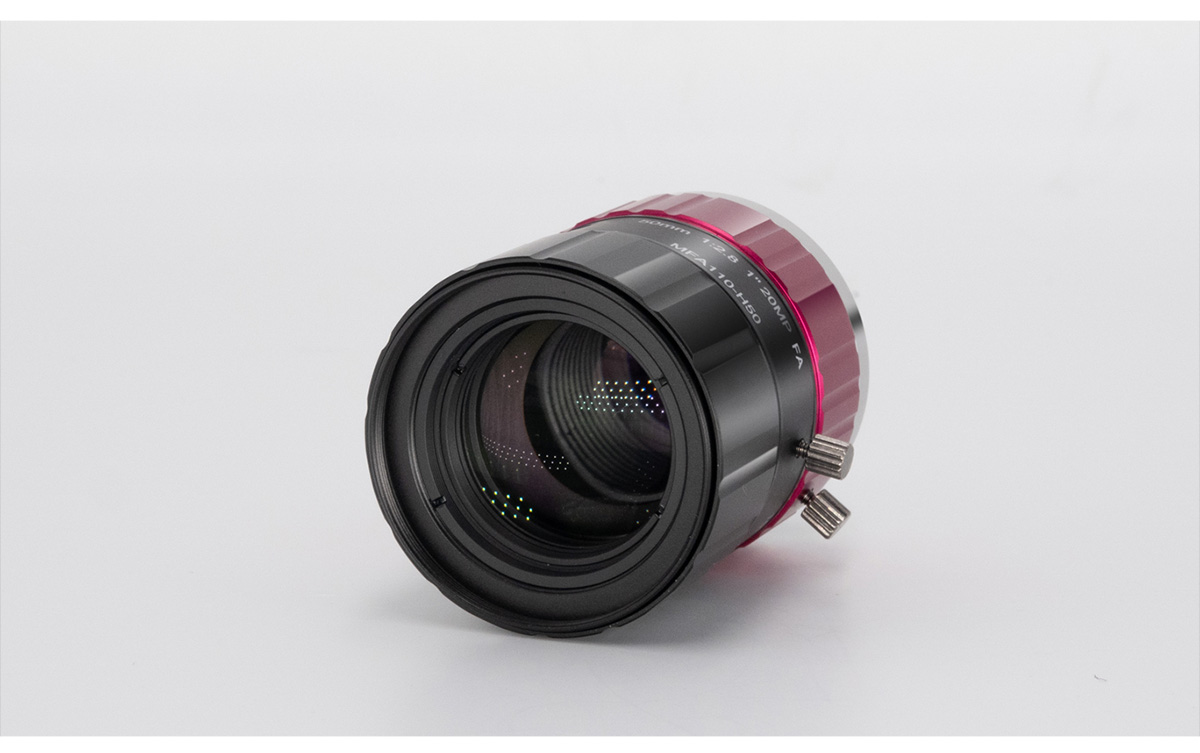

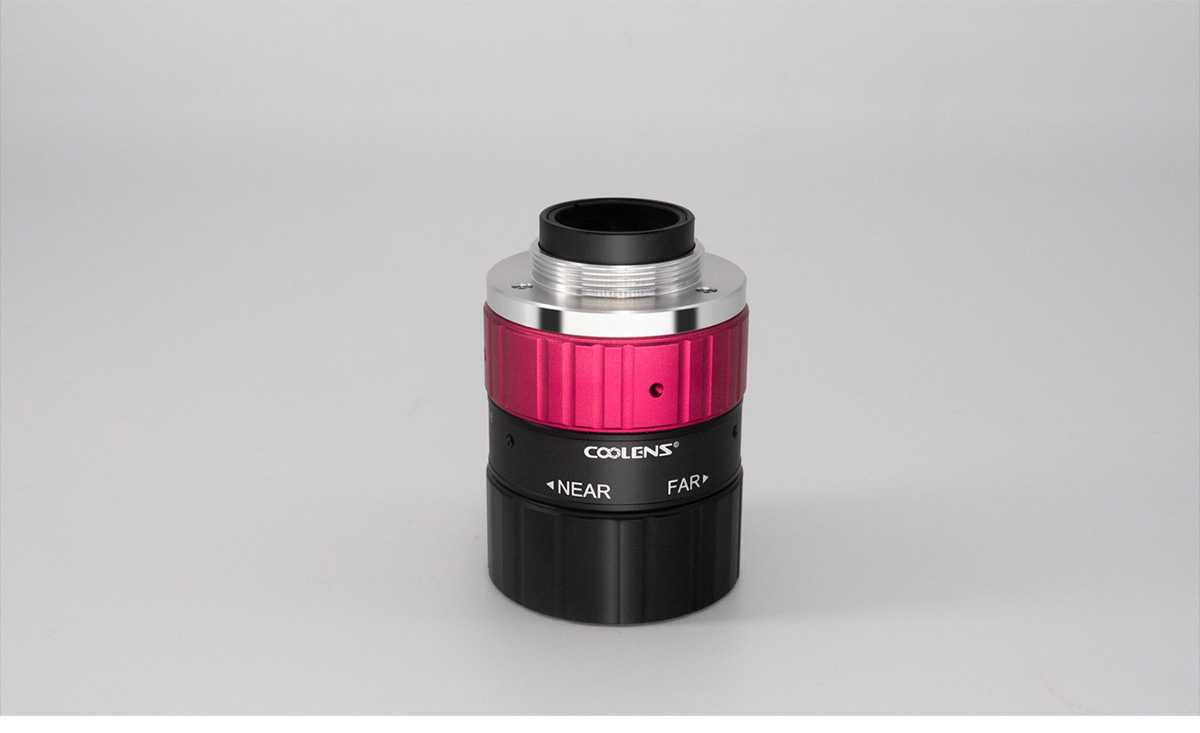

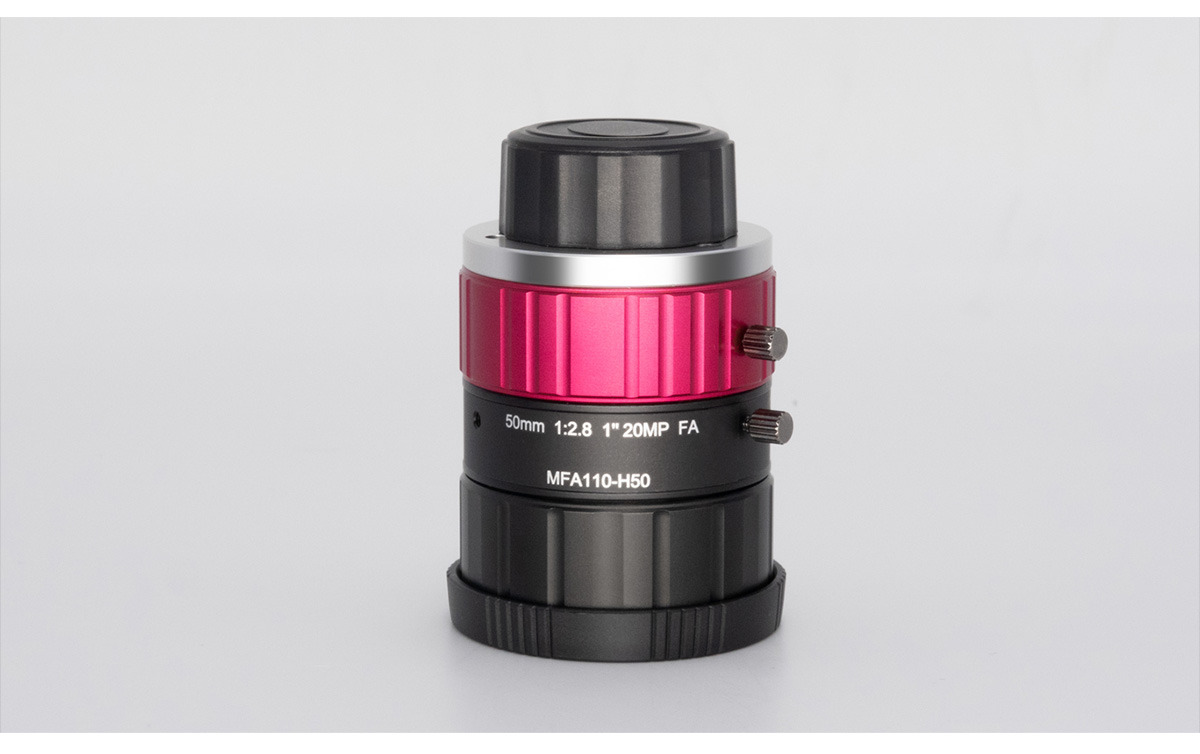

Product Photograph
