| Model NO. |
DTCM71M-36-M58-AL |
Image Circle Diameter (Φmm) |
39(71M) |
| Magnification(x) |
1.083 |
Working Distance(mm) |
110±2 |
| NA |
0.0295 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
36 |
| Best Aperture(f/#) |
18.3 |
MTF30 (lp/mm) |
>43 |
| Depth of Field(mm) |
±0.65@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
363±2 |
| Length (mm) |
241.2 |
Weight(kg) |
1.1 |
| Measured Depth of Field (mm) |
1.4 |
Filter Screw Size |
M50x0.5 |
Field of View (mm × mm)
|
CHR 70M (31.0x21.7) |
28.6x20.0 |
|
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-36-xW-y |
|
| Beam Diameter 36mm |

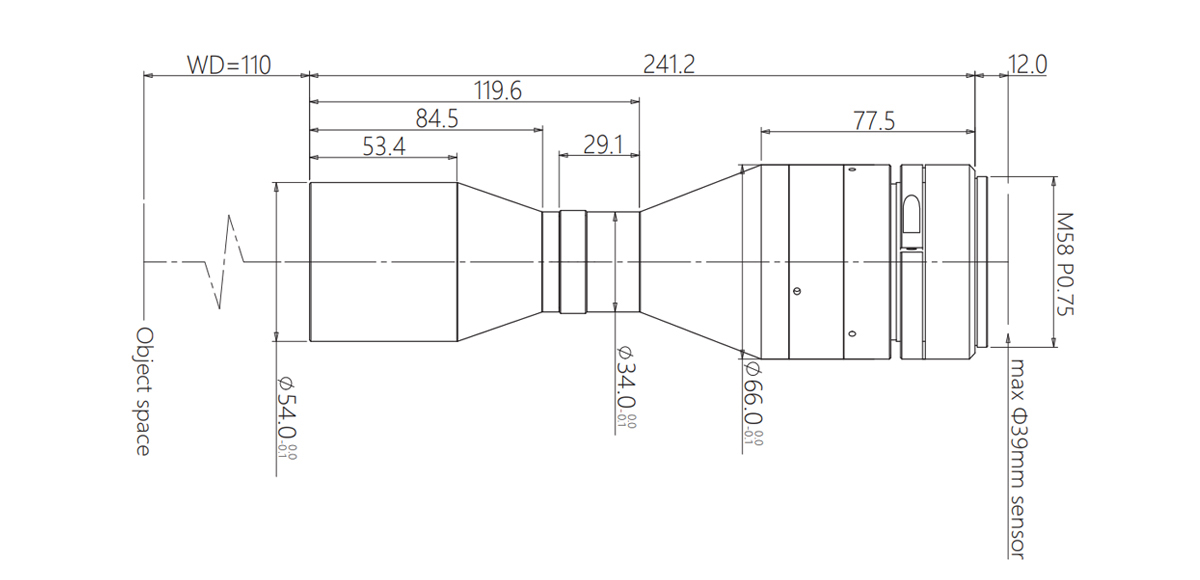

Dimensions
Naming Rule
